NetAlly EtherScope nXG EXG-300 Portable Network Expert (EXG-300E)

Description

Technical Specifications

• Brand
  NetAlly
• Model
  EtherScope nXG EXG-300 (EXG-300E)
• SKU
  21333855
• EAN / Barcode
  0841969100826
• Product Type
  Handheld multi-technology network analyzer / portable network expert
• Supported Wired Speeds
  10/100 Mbps, 1/2.5/5/10 Gbps
• Wi‑Fi Standards
  802.11a/b/g/n/ac/ax (Wi‑Fi 6) and visibility for Wi‑Fi 6E/7 / 6 GHz parameters
• Bluetooth Support
  Bluetooth / BLE site survey and diagnostics
• PoE Support
  802.3af/at/bt, Class 0–8 and UPOE
• Physical Dimensions
  10.3 cm x 19.5 cm x 5.5 cm
• Product Weight
  760 g
• Battery
  Rechargeable lithium‑ion battery pack
• Power / Charging
  USB Type‑C charging (45 W adapter typical)
• Storage / Expansion
  microSD card slot for capture and results
• Memory
  Approximately 8 GB available for test results and apps
• Interfaces
  Main RJ‑45 multi‑gig test port, secondary Ethernet port, SFP/SFP+ support (kit dependent), USB‑C, microSD
• Key Software Features
  AutoTest, iPerf, packet capture, discovery, Wi‑Fi path analysis, AirMapper surveys, Link-Live cloud reporting
• LAN Diagnostics
  LANBERT media qualification, cable testing workflows via Link-Live

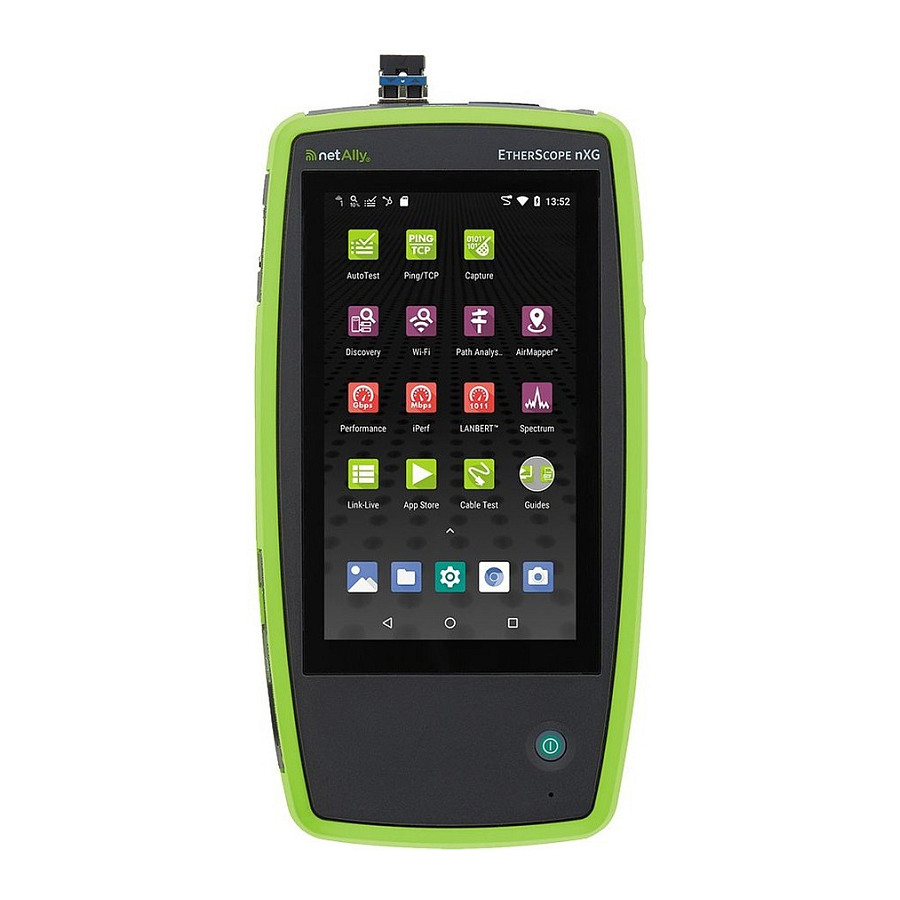

• Display & UI
  Android-based troubleshooting apps and touchscreen UI

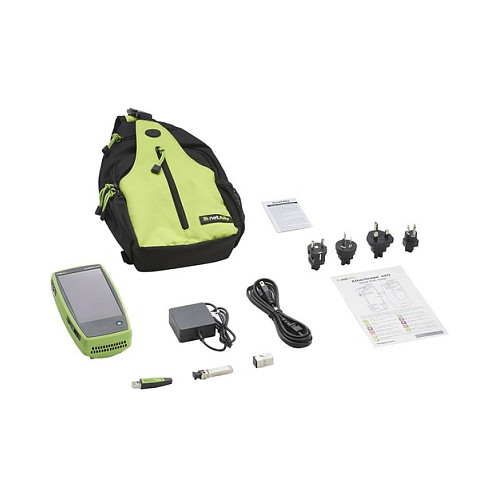

• Included Accessories (typical)
  Li‑ion battery, USB‑C 45W adapter, SFP modules (kit dependent), carrying case/holster, wireview, extension antenna (kit dependent)
• Operating Temperature
  32 to 113 °F (0 to 45 °C) reported
• Certifications
  CE, FCC, CSA and Australian Safety & EMC (varies by region)
• Typical Use Cases
  Deployment verification, troubleshooting, site surveys, performance validation, remote collaboration
