Handheld multifunction CCTV/IP camera tester for installation, configuration and troubleshooting. Supports AHD, HD-CVI, HD-TVI, HD-SDI, CVBS and IP cameras (ONVIF), PTZ/RS-485 control (many protocols), network diagnostics including ping and IP discovery, RJ45 continuity and TDR cable testing, PoE...
More

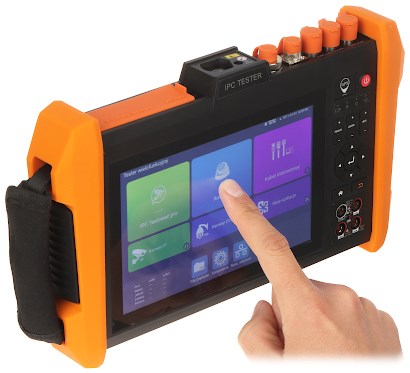

Multifunction CCTV Tester CS-H9-70HG (7-inch)
Product Code: 1127676758
Available in 4 - 10 days
960,28 €
or
29,99€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Handheld multifunction CCTV/IP camera tester for installation, configuration and troubleshooting. Supports AHD, HD-CVI, HD-TVI, HD-SDI, CVBS and IP cameras (ONVIF), PTZ/RS-485 control (many protocols), network diagnostics including ping and IP discovery, RJ45 continuity and TDR cable testing, PoE testing and power output, video signal measurement/generator and optical power meter functionality. 7" 1280×800 capacitive IPS touchscreen, HDMI/VGA/BNC I/O, dual LAN (PoE), audio I/O. Brand: Generic/OEM (not verified).
-
Product NameMultifunction CCTV Tester CS-H9-70HG
-
Model / MPNCS-H9-70HG
-
SKUWLONONWCRRA72
-
EAN / Barcode5902887078965
-
Display Size7 inches
-
Display TypeCapacitive IPS (retina) touch screen
-
Display Resolution1280 × 800 px
-
Supported Video StandardsAHD, HD-CVI, HD-TVI, HD-SDI, CVBS, IP (ONVIF)
-
Max Analog ResolutionUp to 8 MP (AHD / CVI / TVI / SDI)
-
Max IP ResolutionIP up to 8K (H.265) / 4K (H.264) stated by vendor
-
Video InputsBNC (AHD/CVI/TVI/CVBS), BNC (HD-SDI), HDMI, VGA
-
Video OutputsBNC (CVBS), HDMI, VGA
-
Network Ports2 × RJ45 LAN (dual LAN) with PoE support
-
PoE/Power OutputPoE support (48V, up to 30W stated on listings); DC outputs 12V (2–3A) and 24V options mentioned
-
Audio I/O1 × 3.5 mm audio in, 1 × 3.5 mm audio out
-
PTZ / Serial ControlRS-485 port, supports 30+ protocols (Pelco-D/P, YAAN, Samsung, Panasonic, Hikvision, etc.)
-
Onvif SupportYes (ONVIF discovery/ONVIF functions listed)
-
Network ToolsPing, IP search/discovery, IP camera streaming and config
-
Cable TestRJ45 continuity, open/short, pinout, length estimation
-
TDR RangeTDR for RJ45 up to ~180 m (vendor listed)
-
Cable TracerBNC/network/telephone tracer support
-
Optical/FiberOptical wavelengths listed: 850, 1300, 1310, 1490, 1550, 1625 nm
-
Optical Power Range-70 to +10 dBm (vendor-listed range)
-
Video Signal MeasurementSignal level meter: peak level, sync, burst for analog formats
-
Battery / RuntimeBattery powered lithium; vendor lists ~16 hours runtime
-
Additional FunctionsVideo generator, multimeter/refelectometer functions, create test report, Hikvision activation/reset tools, face recognition/analytics listed on some pages
-
Weight (device)~700 g (estimated)
-
Package Weight~1500 g (estimated)
-
Dimensions (package)25 × 18 × 7 cm (estimated)
-
Brand / ManufacturerGeneric / OEM (brand not verified)
-
AccessoriesTypical packaging expected to include power leads, BNC/RJ45 adapters, RS-485 leads and user manual (varies by seller)
Ratings
Description
Handheld multifunction CCTV/IP camera tester for installation, configuration and troubleshooting. Supports AHD, HD-CVI, HD-TVI, HD-SDI, CVBS and IP cameras (ONVIF), PTZ/RS-485 control (many protocols), network diagnostics including ping and IP discovery, RJ45 continuity and TDR cable testing, PoE testing and power output, video signal measurement/generator and optical power meter functionality. 7" 1280×800 capacitive IPS touchscreen, HDMI/VGA/BNC I/O, dual LAN (PoE), audio I/O. Brand: Generic/OEM (not verified).
Technical Specifications
-
Product NameMultifunction CCTV Tester CS-H9-70HG
-
Model / MPNCS-H9-70HG
-
SKUWLONONWCRRA72
-
EAN / Barcode5902887078965
-
Display Size7 inches
-
Display TypeCapacitive IPS (retina) touch screen
-
Display Resolution1280 × 800 px
-
Supported Video StandardsAHD, HD-CVI, HD-TVI, HD-SDI, CVBS, IP (ONVIF)
-
Max Analog ResolutionUp to 8 MP (AHD / CVI / TVI / SDI)
-
Max IP ResolutionIP up to 8K (H.265) / 4K (H.264) stated by vendor
-
Video InputsBNC (AHD/CVI/TVI/CVBS), BNC (HD-SDI), HDMI, VGA
-
Video OutputsBNC (CVBS), HDMI, VGA
-
Network Ports2 × RJ45 LAN (dual LAN) with PoE support
-
PoE/Power OutputPoE support (48V, up to 30W stated on listings); DC outputs 12V (2–3A) and 24V options mentioned
-
Audio I/O1 × 3.5 mm audio in, 1 × 3.5 mm audio out
-
PTZ / Serial ControlRS-485 port, supports 30+ protocols (Pelco-D/P, YAAN, Samsung, Panasonic, Hikvision, etc.)
-
Onvif SupportYes (ONVIF discovery/ONVIF functions listed)
-
Network ToolsPing, IP search/discovery, IP camera streaming and config
-
Cable TestRJ45 continuity, open/short, pinout, length estimation
-
TDR RangeTDR for RJ45 up to ~180 m (vendor listed)
-
Cable TracerBNC/network/telephone tracer support
-
Optical/FiberOptical wavelengths listed: 850, 1300, 1310, 1490, 1550, 1625 nm
-
Optical Power Range-70 to +10 dBm (vendor-listed range)
-
Video Signal MeasurementSignal level meter: peak level, sync, burst for analog formats
-
Battery / RuntimeBattery powered lithium; vendor lists ~16 hours runtime
-
Additional FunctionsVideo generator, multimeter/refelectometer functions, create test report, Hikvision activation/reset tools, face recognition/analytics listed on some pages
-
Weight (device)~700 g (estimated)
-
Package Weight~1500 g (estimated)
-
Dimensions (package)25 × 18 × 7 cm (estimated)
-
Brand / ManufacturerGeneric / OEM (brand not verified)
-
AccessoriesTypical packaging expected to include power leads, BNC/RJ45 adapters, RS-485 leads and user manual (varies by seller)
