The MSI MAG A500N-H S01 is a 500W non-modular ATX power supply (retailer-labelled ATX 3.0) with active cooling via a 120 mm fan and Active PFC. It accepts 200–240V~ 50–60Hz input and delivers DC rails: +3.3V, +5V, +12V, -12V and +5Vsb with a combined total of 500W. Built-in protections include Over...
More

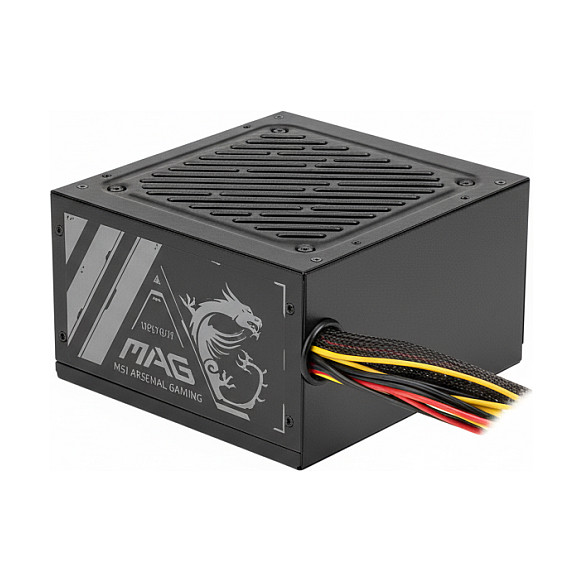

MSI MAG A500N-H S01 500W ATX Power Supply (Netzteil) ATX 3.0
Product Code: 1173700504
Available in 4 - 6 days
83,66 €
or
2,61€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 251 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The MSI MAG A500N-H S01 is a 500W non-modular ATX power supply (retailer-labelled ATX 3.0) with active cooling via a 120 mm fan and Active PFC. It accepts 200–240V~ 50–60Hz input and delivers DC rails: +3.3V, +5V, +12V, -12V and +5Vsb with a combined total of 500W. Built-in protections include Over Power Protection (OPP), Over Voltage Protection (OVP) and Short Circuit Protection (SCP). Dimensions: 140 x 150 x 86 mm. Typical connector set: 1×24-pin ATX, 1×EPS 8-pin (4+4), 1×PCIe 6+2-pin, 3×SATA, 2×Molex, 1×FDD. Efficiency is listed as 80 PLUS Bronze by some retailers. There is slight discrepancy between sources about the ATX version (ATX 3.0 in titles vs ATX 2.4 in some spec listings / manual).
-
BrandMSI
-
ModelMAG A500N-H S01 (MPN 306-7ZPGX91-HH9)
-
SKU21156379
-
EAN4711377366434
-
CategoryNetzteile / ATX power supply
-
Rated Power500W
-
Form FactorATX
-
ATX VersionListed by retailers as ATX 3.0; manual/spec pages sometimes reference ATX/ATX 2.4 (discrepancy)
-
ModularityNon-modular (fixed cables)
-
CoolingActive cooling with 120 mm fan
-
Fan Size120 mm
-
PFCActive PFC
-
Efficiency Certification80 PLUS Bronze (listed by Mindfactory / retailers)
-
AC Input200–240V~, 50–60Hz
-
Maximum Input Current6.3A
-
+3.3V Rail Current14A
-
+5V Rail Current14A
-
+12V Rail Current38A
-
-12V Rail Current0.3A
-
+5Vsb Rail Current2.5A
-
Combined +3.3V and +5V105W
-
+12V Maximum Output456W
-
Total Output500W
-
ProtectionsOPP (Over Power Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection)
-
ColorBlack
-
Dimensions (WxDxH)140 x 150 x 86 mm
-
Recommended UseSingle-GPU mid- to upper-range systems (retailer notes)
-
Connectors - ATX 24-pin1 (20+4)
-
Connectors - EPS12V CPU 8-pin1 (4+4)
-
Connectors - PCIe 8-pin1 (6+2)
-
Connectors - SATA3
-
Connectors - Molex (Peripheral 4-pin)2
-
Connectors - FDD 4-pin1
-
Cable Lengths (approx.)ATX 24-pin: 480 mm; EPS 8-pin: 680 mm; PCIe 6+2: 480 mm; SATA/Molex segments: ~150 mm segments
-
Weight (unit)~1200 g (estimated)
-
Package Weight~1600 g (estimated)
-
MaterialsStandard metal PSU housing / plastic fan frame
-
MountingStandard ATX screw mounts
-
Included ItemsPower supply unit, fixed cables, user manual (pack contents vary by retailer)
-
NotesSome listings title the unit as ATX 3.0; MSI manual provides electrical data but does not clearly state ATX 3.0 in the excerpted spec sheet.
Ratings
Description
The MSI MAG A500N-H S01 is a 500W non-modular ATX power supply (retailer-labelled ATX 3.0) with active cooling via a 120 mm fan and Active PFC. It accepts 200–240V~ 50–60Hz input and delivers DC rails: +3.3V, +5V, +12V, -12V and +5Vsb with a combined total of 500W. Built-in protections include Over Power Protection (OPP), Over Voltage Protection (OVP) and Short Circuit Protection (SCP). Dimensions: 140 x 150 x 86 mm. Typical connector set: 1×24-pin ATX, 1×EPS 8-pin (4+4), 1×PCIe 6+2-pin, 3×SATA, 2×Molex, 1×FDD. Efficiency is listed as 80 PLUS Bronze by some retailers. There is slight discrepancy between sources about the ATX version (ATX 3.0 in titles vs ATX 2.4 in some spec listings / manual).
Technical Specifications
-
BrandMSI
-
ModelMAG A500N-H S01 (MPN 306-7ZPGX91-HH9)
-
SKU21156379
-
EAN4711377366434
-
CategoryNetzteile / ATX power supply
-
Rated Power500W
-
Form FactorATX
-
ATX VersionListed by retailers as ATX 3.0; manual/spec pages sometimes reference ATX/ATX 2.4 (discrepancy)
-
ModularityNon-modular (fixed cables)
-
CoolingActive cooling with 120 mm fan
-
Fan Size120 mm
-
PFCActive PFC
-
Efficiency Certification80 PLUS Bronze (listed by Mindfactory / retailers)
-
AC Input200–240V~, 50–60Hz
-
Maximum Input Current6.3A
-
+3.3V Rail Current14A
-
+5V Rail Current14A
-
+12V Rail Current38A
-
-12V Rail Current0.3A
-
+5Vsb Rail Current2.5A
-
Combined +3.3V and +5V105W
-
+12V Maximum Output456W
-
Total Output500W
-
ProtectionsOPP (Over Power Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection)
-
ColorBlack
-
Dimensions (WxDxH)140 x 150 x 86 mm
-
Recommended UseSingle-GPU mid- to upper-range systems (retailer notes)
-
Connectors - ATX 24-pin1 (20+4)
-
Connectors - EPS12V CPU 8-pin1 (4+4)
-
Connectors - PCIe 8-pin1 (6+2)
-
Connectors - SATA3
-
Connectors - Molex (Peripheral 4-pin)2
-
Connectors - FDD 4-pin1
-
Cable Lengths (approx.)ATX 24-pin: 480 mm; EPS 8-pin: 680 mm; PCIe 6+2: 480 mm; SATA/Molex segments: ~150 mm segments
-
Weight (unit)~1200 g (estimated)
-
Package Weight~1600 g (estimated)
-
MaterialsStandard metal PSU housing / plastic fan frame
-
MountingStandard ATX screw mounts
-
Included ItemsPower supply unit, fixed cables, user manual (pack contents vary by retailer)
-
NotesSome listings title the unit as ATX 3.0; MSI manual provides electrical data but does not clearly state ATX 3.0 in the excerpted spec sheet.
