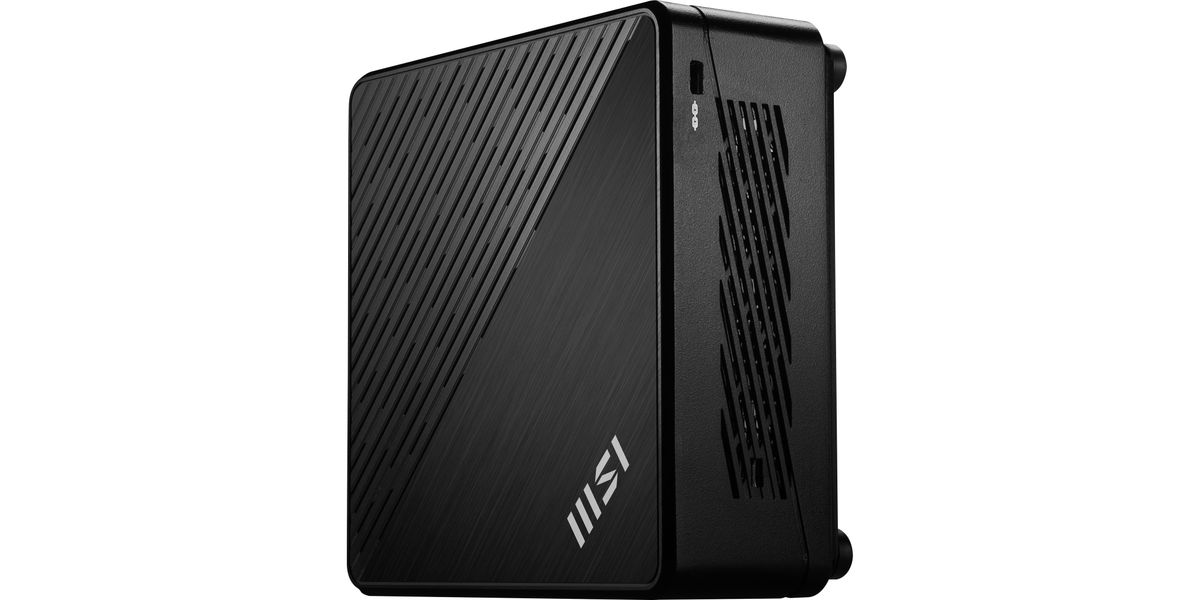

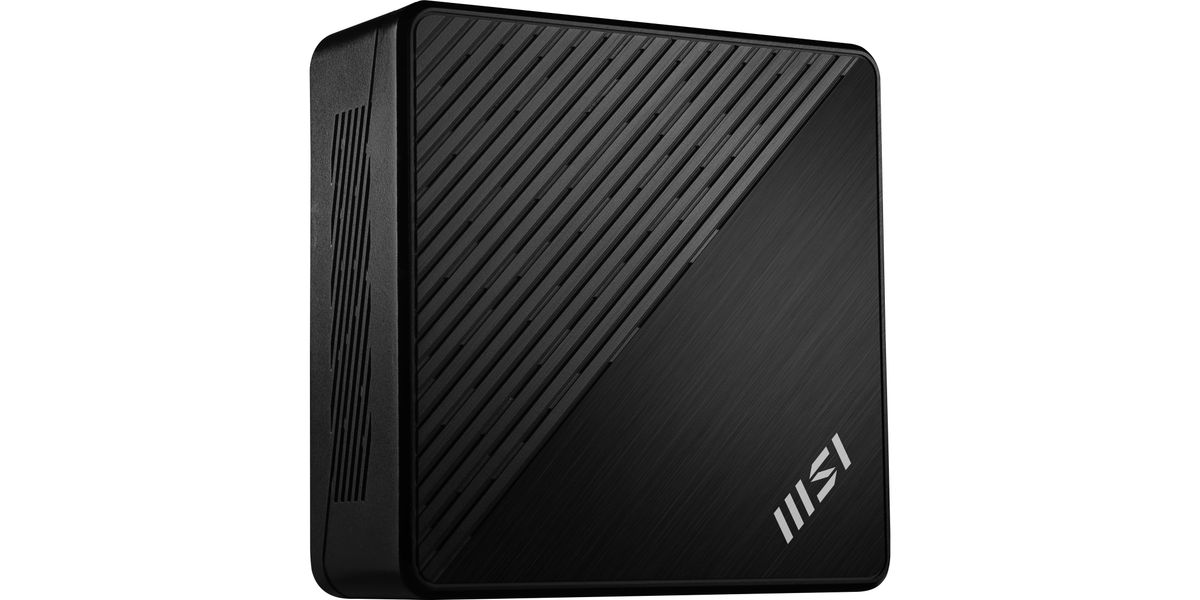

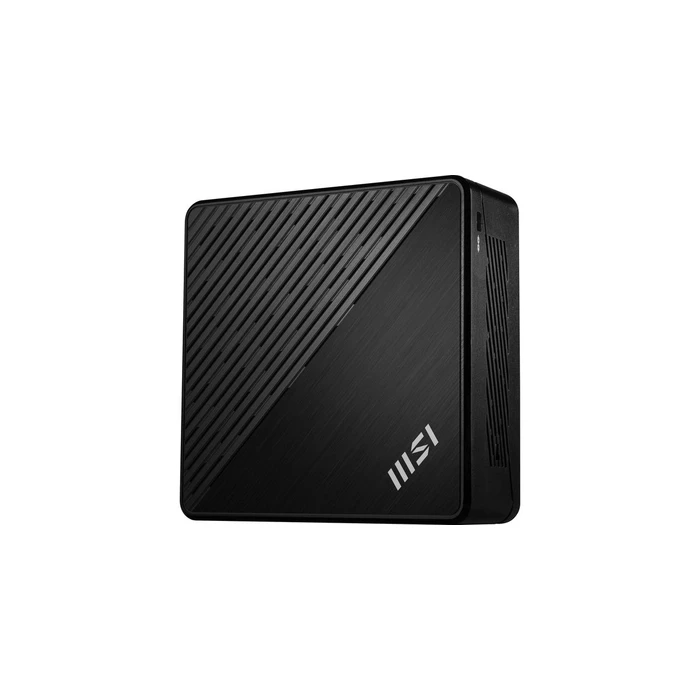

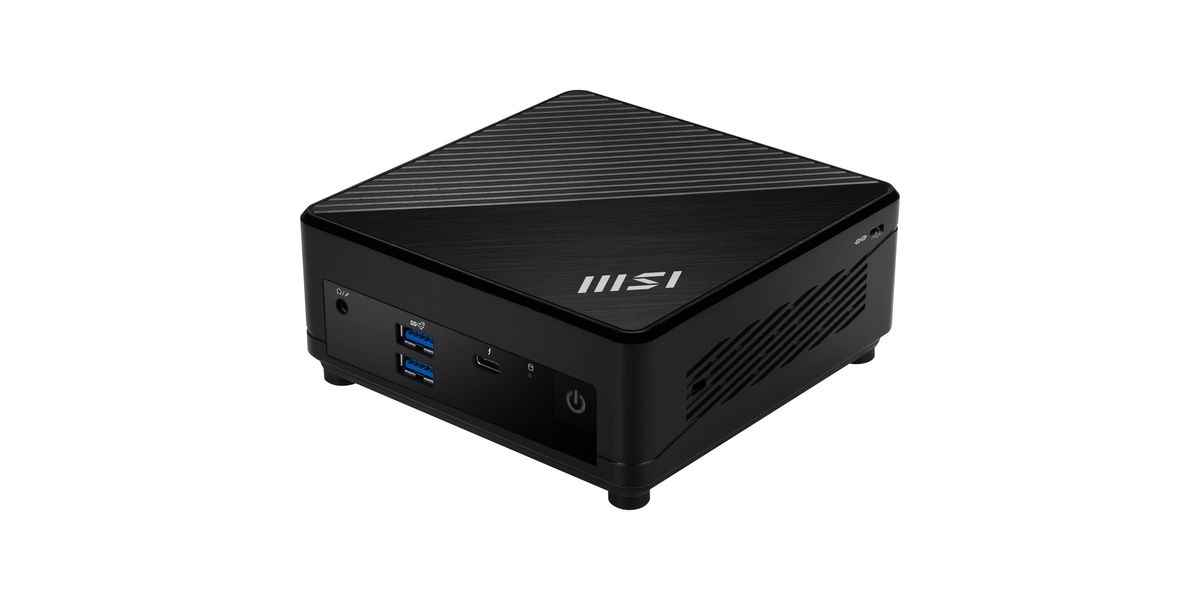

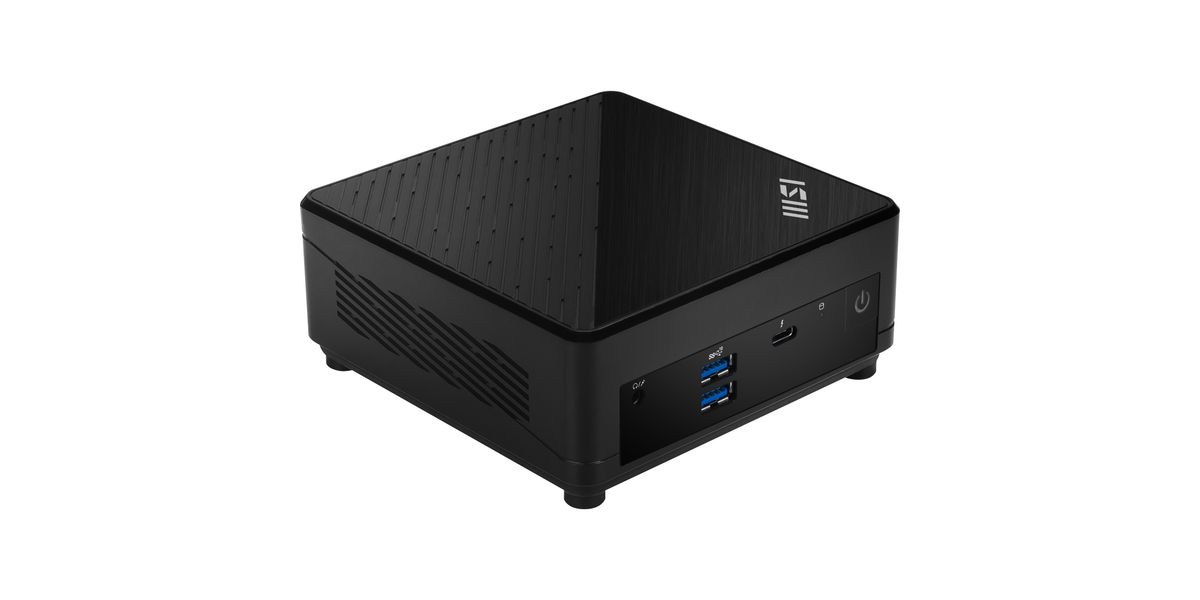

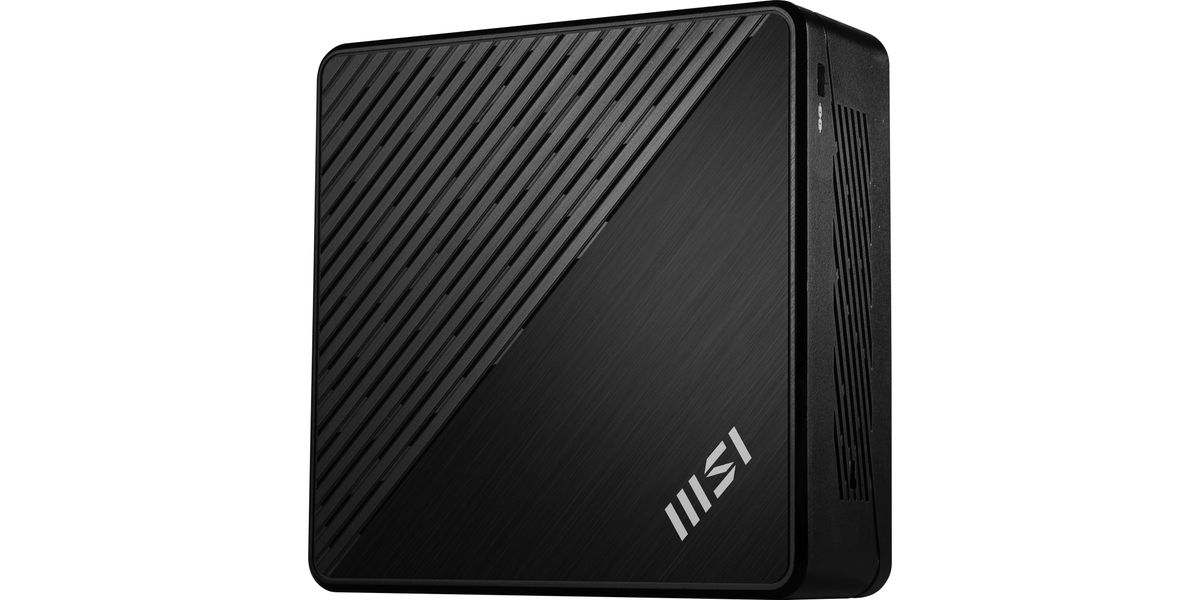

MSI Cubi 1M-437BEU-B7150UXX Core i7-150U Barebones (no OS)

Description

Technical Specifications

• Brand
  MSI
• Model
  Cubi 1M-437BEU-B7150UXX
• MPN
  936-B0A821-437
• SKU
  578268
• EAN
  4711377397056
• Product Type
  Mini PC / NUC form factor (barebones)
• Configuration
  Barebones (0GB RAM, 0GB storage, no OS)
• CPU
  Intel Core i7-150U (12M Cache, 1.80 GHz base, up to 5.40 GHz turbo; platform details per MSI)
• Chipset
  Intel SoC
• Graphics
  Integrated Intel Graphics
• Memory Type
  DDR5 SO-DIMM (5200 MT/s typical)
• Memory Slots
  2 x SO-DIMM (dual-channel)
• Max Memory
  Up to 64GB DDR5
• Storage Options
  2 x M.2 NVMe (PCIe Gen4 x4) + 1 x 2.5" SATA drive bay

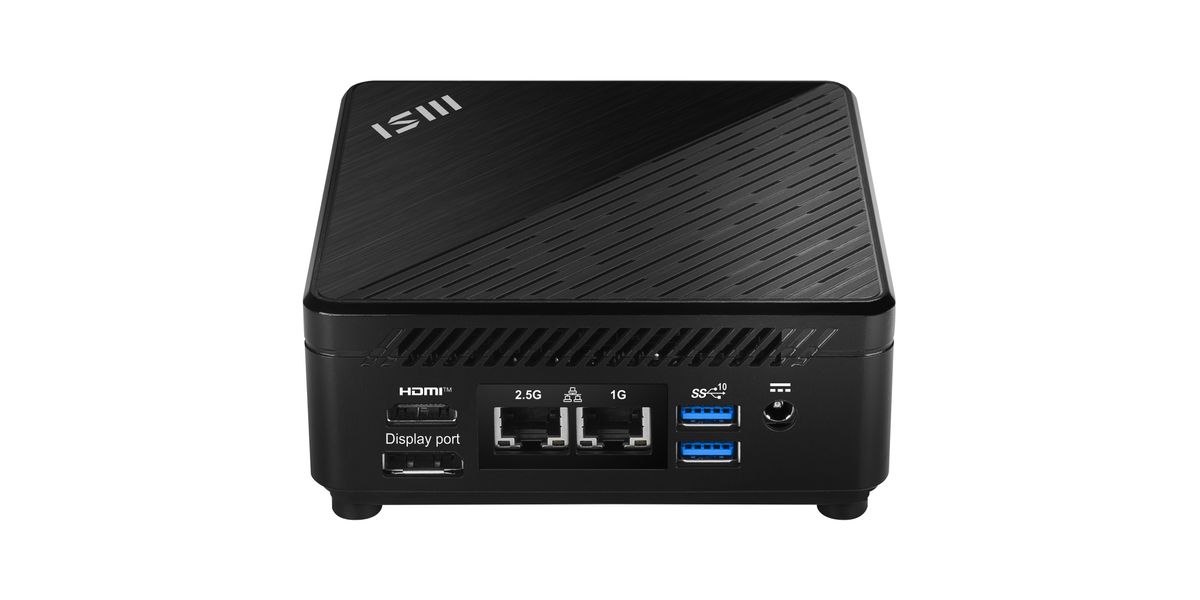

• Networking (LAN)
  2 x Intel I226-V 2.5G Ethernet (dual LAN)
• Wireless
  Intel AX211 Wi‑Fi 6E + Bluetooth 5.3 (varies by region/SKU)
• Video Output
  2 x HDMI 2.1
• Thunderbolt
  2 x Thunderbolt 4 (DP alt‑mode, PD support)

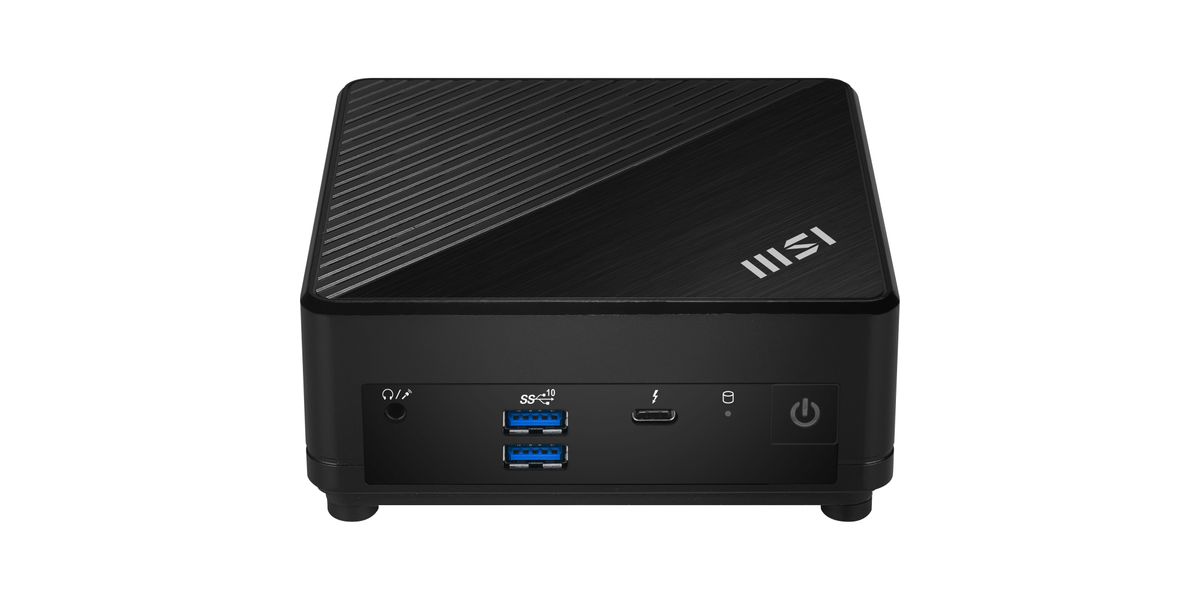

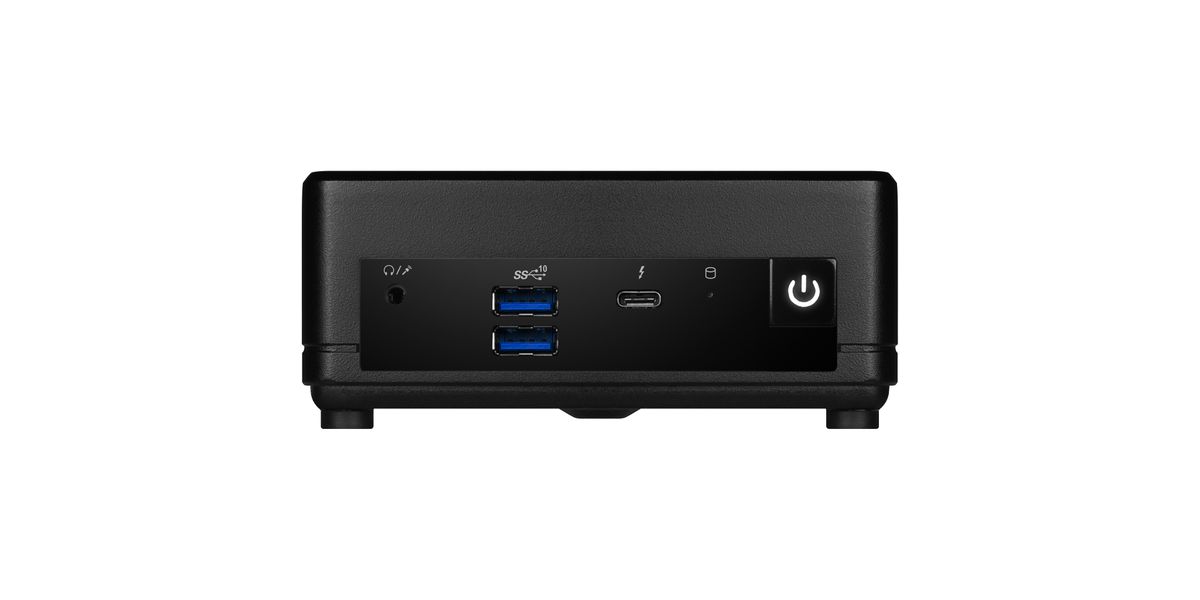

• USB Ports
  Front: USB 3.2 Gen2 Type-A ports; Rear: additional high-speed USB/Thunderbolt ports per spec
• Audio
  Integrated audio via HDMI / onboard audio codec (depends on SKU)
• Expansion

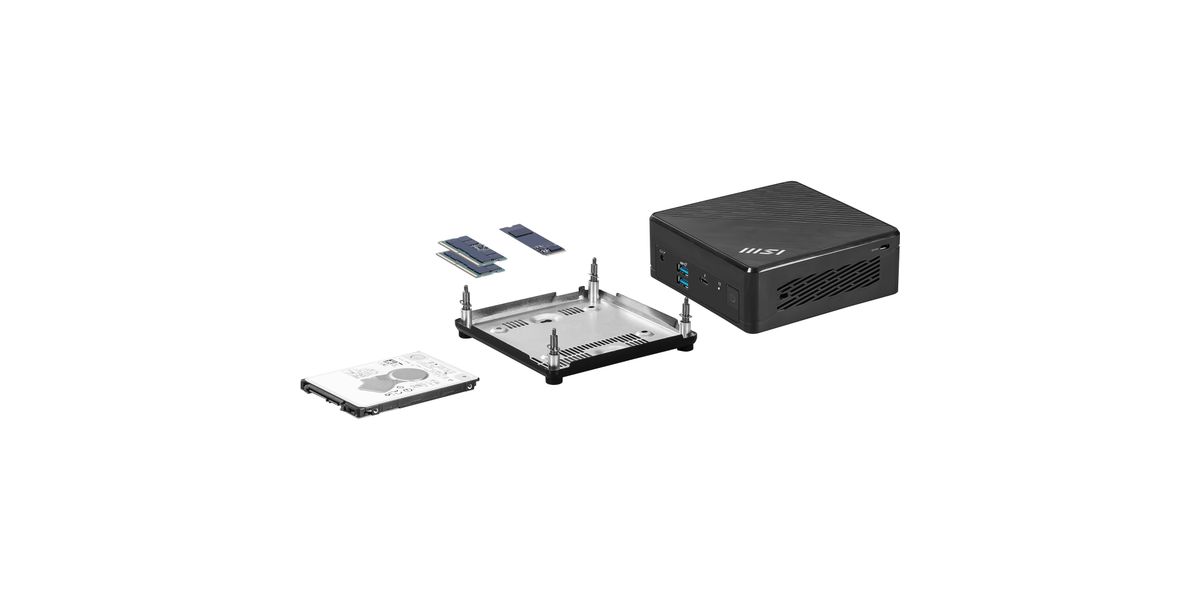

  Tool-less access for RAM and storage upgrades
• Cooling
  Active air cooling
• Power
  External DC adapter; supports PD-in via Thunderbolt up to 100W (depending on configuration)
• Dimensions
  135.6 x 132.5 x 50.1 mm
• Volume
  ~0.826 L
• Product Weight
  ~700 g

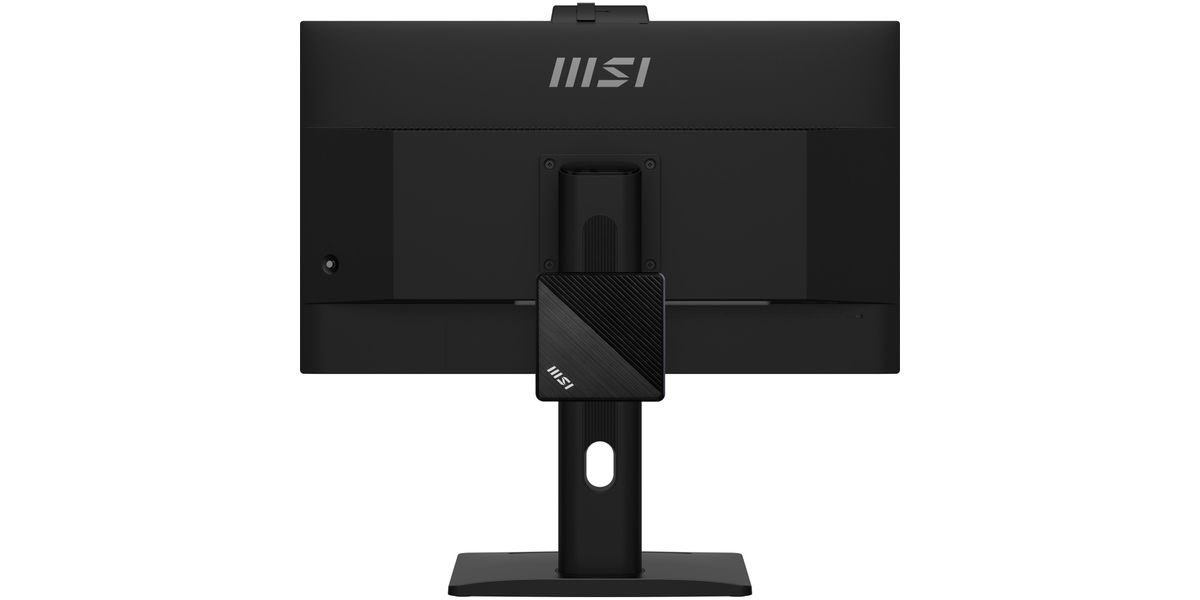

• Mounting
  VESA 100 x 100 mm compatible
• Materials
  PCR (post-consumer recycled) plastic chassis
• Color
  Black
• OS
  None supplied (ohne OS) — supports Windows 11 Home/Pro, Linux (user-installed)
• Security & Features

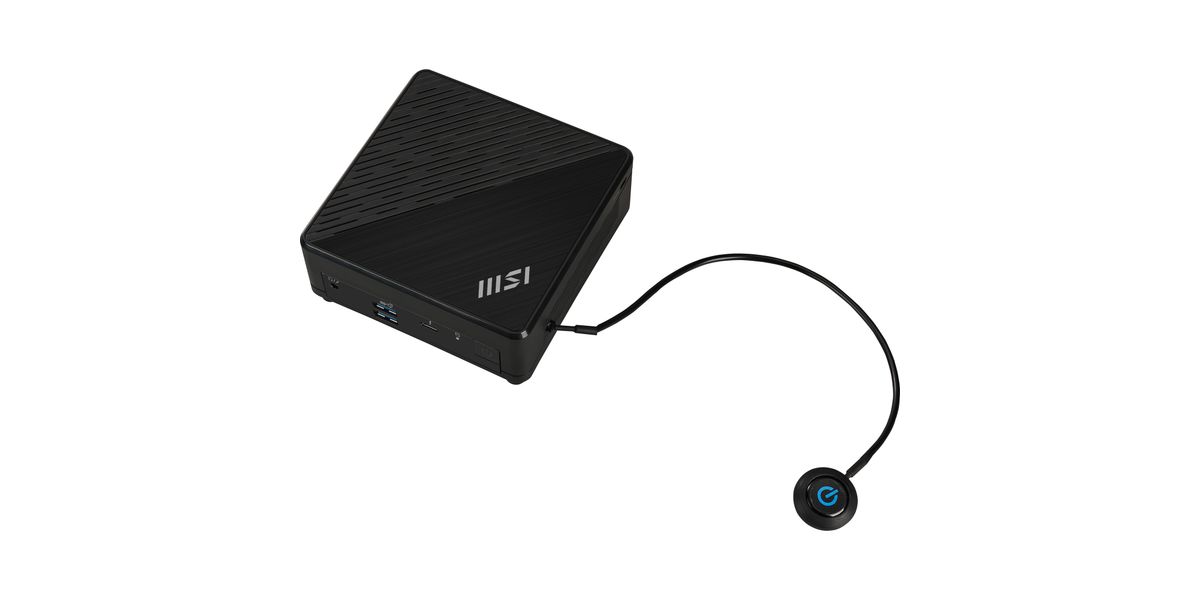

  MSI Power Link (HDMI power sync), VESA mount, compact business design
• Warranty
  Region dependent (MSI up to 3 years in some regions)
