The ANT WDB ARM 02 from Moxa is a dual-band indoor WLAN rubber duck antenna designed for 2.4 GHz and 5 GHz wireless applications. It provides omni-directional coverage, compact size, and easy installation with a tilt-and-swivel design. The antenna uses an RP SMA male connector and is suitable for...
More

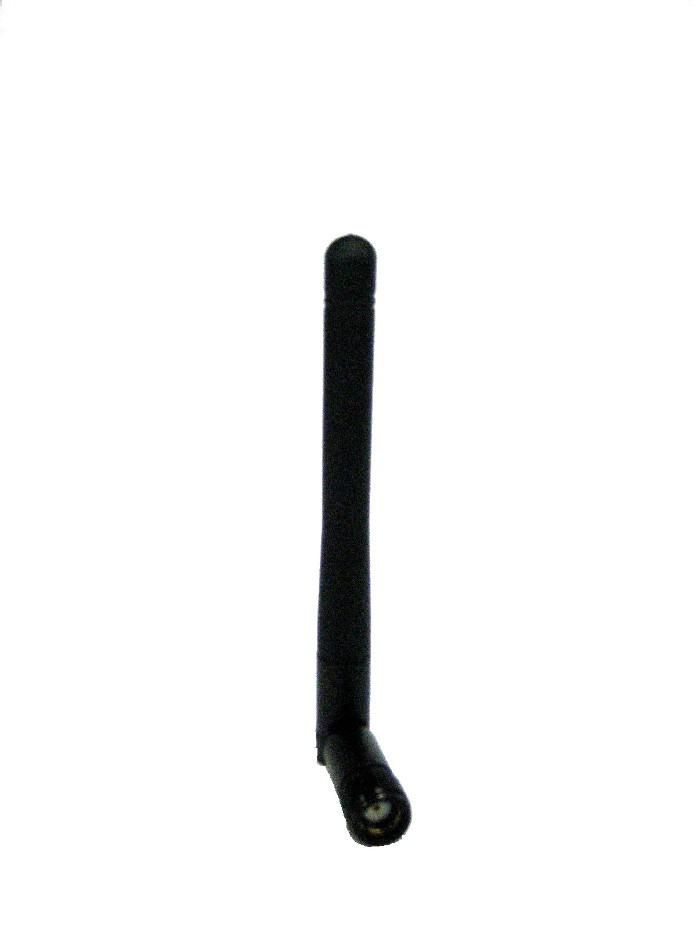

Moxa ANT WDB ARM 02 WLAN Antenna
Product Code: 1200653477
Available in 4 - 10 days
9,38 €
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The ANT WDB ARM 02 from Moxa is a dual-band indoor WLAN rubber duck antenna designed for 2.4 GHz and 5 GHz wireless applications. It provides omni-directional coverage, compact size, and easy installation with a tilt-and-swivel design. The antenna uses an RP SMA male connector and is suitable for devices such as the NPort W21 series. Its lightweight construction and small footprint make it ideal for indoor industrial and professional wireless deployments. It features a plastic radome, black finish, 108 mm length, and 10 g weight. Operating temperature ranges from -40 to 80°C, with 5 to 95% non-condensing humidity support.
-
BrandMoxa
-
ModelANT-WDB-ARM-02
-
Product TypeIndoor dual-band WLAN antenna
-
Antenna TypeOmni-directional
-
Antenna StyleRubber duck
-
Frequency Range2.4 to 2.5 GHz and 5.2 to 5.8 GHz
-
Gain2 dBi at 2.4 GHz / 2 dBi at 5 GHz
-
Connector TypeRP-SMA male
-
Impedance50 ohms
-
PolarizationVertical
-
V.S.W.R.2.0 max.
-
Horizontal Beam Width360°
-
Vertical Beam Width80°
-
Mount TypeStraight mount with tilt and swivel
-
Dimensions108 mm length
-
Weight10 g
-
ColorBlack
-
MaterialPlastic radome
-
Operating Temperature-40 to 80°C
-
Storage Temperature-40 to 80°C
-
Relative Humidity5 to 95% non-condensing at 30°C
-
CompatibilityMoxa NPort W21 series and other WLAN devices
-
Warranty1 year
Ratings
Description
The ANT WDB ARM 02 from Moxa is a dual-band indoor WLAN rubber duck antenna designed for 2.4 GHz and 5 GHz wireless applications. It provides omni-directional coverage, compact size, and easy installation with a tilt-and-swivel design. The antenna uses an RP SMA male connector and is suitable for devices such as the NPort W21 series. Its lightweight construction and small footprint make it ideal for indoor industrial and professional wireless deployments. It features a plastic radome, black finish, 108 mm length, and 10 g weight. Operating temperature ranges from -40 to 80°C, with 5 to 95% non-condensing humidity support.
Technical Specifications
-
BrandMoxa
-
ModelANT-WDB-ARM-02
-
Product TypeIndoor dual-band WLAN antenna
-
Antenna TypeOmni-directional
-
Antenna StyleRubber duck
-
Frequency Range2.4 to 2.5 GHz and 5.2 to 5.8 GHz
-
Gain2 dBi at 2.4 GHz / 2 dBi at 5 GHz
-
Connector TypeRP-SMA male
-
Impedance50 ohms
-
PolarizationVertical
-
V.S.W.R.2.0 max.
-
Horizontal Beam Width360°
-
Vertical Beam Width80°
-
Mount TypeStraight mount with tilt and swivel
-
Dimensions108 mm length
-
Weight10 g
-
ColorBlack
-
MaterialPlastic radome
-
Operating Temperature-40 to 80°C
-
Storage Temperature-40 to 80°C
-
Relative Humidity5 to 95% non-condensing at 30°C
-
CompatibilityMoxa NPort W21 series and other WLAN devices
-
Warranty1 year
