Motherboard Supermicro MBD-X11SPL-F-B
| Installment plan | Amount / month |
|---|---|
| 2 | 285,21 € |
| 4 | 143,36 € |
| 6 | 96,08 € |
| 8 | 72,44 € |
| 10 | 58,26 € |
| 12 | 48,81 € |
| 18 | 33,06 € |
| 24 | 25,18 € |
| 36 | 17,32 € |
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description

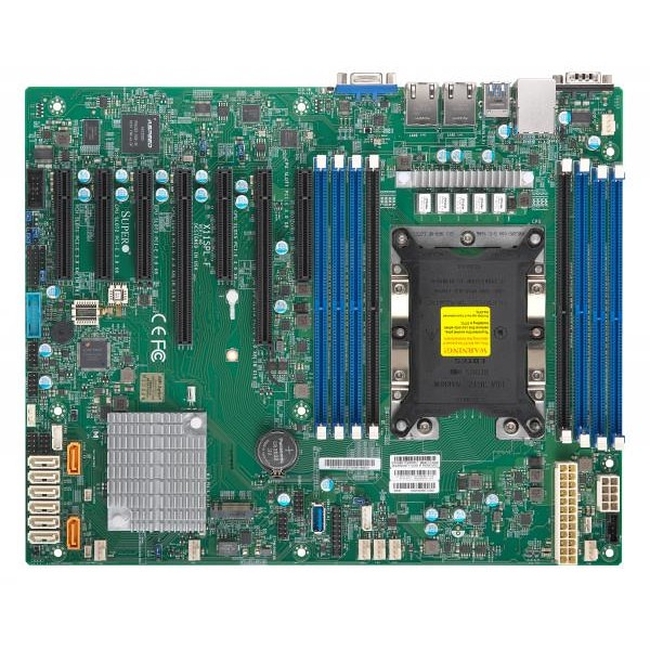

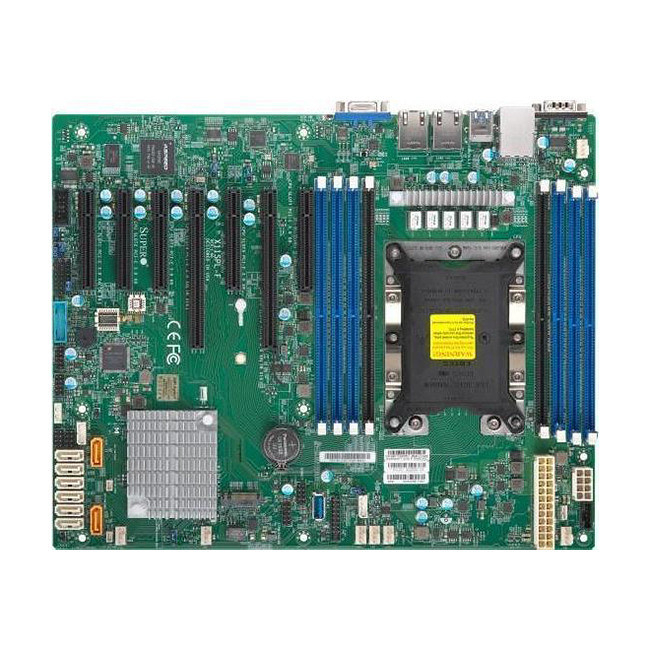

The Supermicro MBD-X11SPL-F-B is a high-performance server motherboard that stands out in modern data center applications. It is meticulously engineered to support the latest 2nd Generation Intel Xeon Scalable Processors, making it a top choice for enterprise needs.
Key Features:
- Processor Support: Designed for Socket P LGA-3647, this motherboard supports CPUs with up to 165W TDP and offers compatibility with processors featuring up to 28 cores.
- Memory Capacity: With 8 DIMM slots, it supports up to 1 TB of DDR4 memory, expandable to 2 TB with advanced 3DS ECC LRDIMM and RDIMM technology.
This motherboard also includes a robust chipset model, Intel PCH C621, optimized for high-performance server applications. It boasts various expansion options including PCIe slots to cater to diverse connectivity needs.
Networking and Storage:
- Dual 1GbE LAN ports for reliable networking operations.
- Support for 8 SATA 3.0 ports and M.2 NGFF connectors ensuring versatile storage options.
Additionally, the MBD-X11SPL-F-B is equipped with advanced power management features, precise system health monitoring, and a durable physical design making it perfect for demanding environments.
Specifications
-
Socket Type
- Socket P LGA-3647
-
Processor Supported
- 2nd Generation Intel Xeon Scalable Processors
-
CPU TDP
- Up to 165W
-
Core Count
- Up to 28 cores
-
Memory Technology
- DDR4 SDRAM
-
Memory Slots
- 8 DIMM slots
-
Maximum Memory
- 1 TB of DDR4 (up to 2 TB with 3DS ECC LRDIMM/RDIMM)
-
Memory Speed
- Up to 2933 MHz
-
Chipset Model
- Intel PCH C621
-
PCIe 3.0 x8 Slots
- 4 (CPU SLOT2, SLOT3, SLOT5, SLOT7)
-
PCIe 3.0 x4 Slot
- 1 (PCH SLOT1)
-
LAN Ports
- Dual 1GbE LAN ports
-
IPMI LAN Port
- Dedicated IPMI LAN port
-
SATA Ports
- 8 SATA 3.0 ports at 6Gb/s
-
M.2 Interface
- M.2 NGFF with PCIe 3.0 x4 and SATA
-
Serial Ports
- 1 rear (COM1), 1 front (COM2)
-
VGA Port
- 1 rear VGA
-
USB 2.0 Ports
- 2 rear (USB0/1)
-
USB 3.0 Ports
- 2 rear (USB8/9)
-
Front USB 2.0 Headers
- 3 headers each with 2 USB connections
-
Front USB 3.0 Header
- 1 header with 2 connections
-
USB 3.0 Type-A Header
- 1 header
-
BIOS
- 256Mb AMI BIOS SPI Flash ROM
-
Power Management Features
- ACPI power management
-
Operating Temperature Range
- 0°C - 50°C
-
Non-Operating Temperature Range
- -40°C - 70°C
-
Operating Relative Humidity Range
- 8% - 90%
-
Non-Operating Relative Humidity Range
- 5% - 95%
