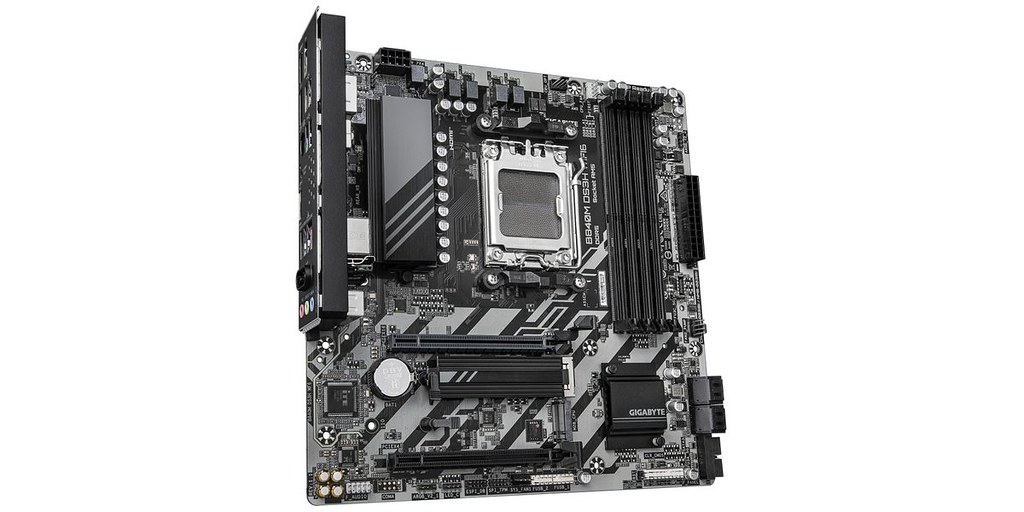

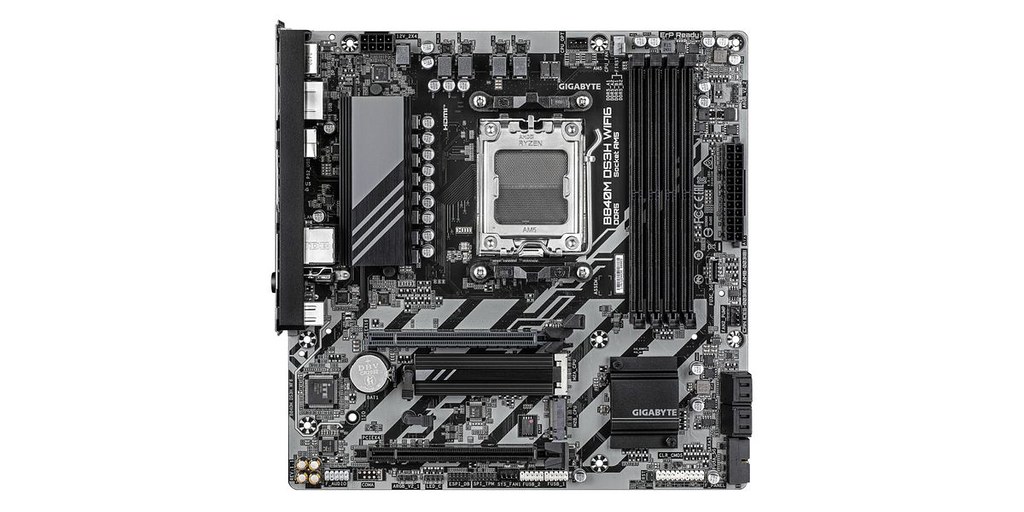

The Gigabyte B840M DS3H WiFi6 is a cutting-edge micro-ATX motherboard meticulously designed to support the latest AMD Ryzen processors. This motherboard harnesses the power of the AMD B840 chipset and AM5 socket, ensuring top-tier performance and reliability for a variety of applications.
One of the key highlights of the B840M is its exceptional memory support. With four DDR5 DIMM slots, it enables a maximum capacity of 256 GB, accommodating even the most demanding tasks. The supported memory speed reaches up to 8200 MHz, providing a significant boost in data transfer efficiency.
Connectivity options are abundant with this model. It includes:
- 1 x PCIe 4.0 x16 slot
- 2 x PCIe 4.0 M.2 slots for NVMe SSDs
- 4 x SATA III 6Gb/s ports
Taking into account modern functionalities, the B840M also integrates WiFi 6 and a 2.5 Gigabit Ethernet LAN, elevating your online experience with faster speeds and greater reliability.
In terms of audio and video outputs, this motherboard offers:
- 1 x HDMI 2.1 port
- 2 x DisplayPort 1.4 ports
Furthermore, its user-friendly features include a Q-Flash Plus button, allowing BIOS updates effortlessly, showcasing Gigabyte's commitment to innovation and user convenience.
-
ChipsetAMD B840
-
SocketAM5
-
Form FactorMicro-ATX
-
Memory Slots4 x DDR5 DIMM
-
Maximum Memory Capacity256 GB
-
Supported Memory SpeedUp to 8200 MHz (OC)
-
PCIe Slots1 x PCIe 4.0 x16, 2 x PCIe 4.0 M.2
-
SATA Ports4 x SATA III 6Gb/s
-
WiFiIntegrated WiFi 6 (802.11ax)
-
Ethernet2.5 Gigabit Ethernet LAN
-
AudioHigh-definition audio
-
HDMI Output1 x HDMI 2.1
-
DisplayPort Outputs2 x DisplayPort 1.4
-
USB Ports1 x USB 3.2 Gen 1 Type-C, 2 x USB 3.2 Gen 1, 4 x USB 2.0
-
Q-Flash PlusYes
-
BIOS Memory Size256 Mbit
-
ACPI Support5.0
-
SMBIOS Support2.7
-
DMI Support2.7
Ratings
Description
The Gigabyte B840M DS3H WiFi6 is a cutting-edge micro-ATX motherboard meticulously designed to support the latest AMD Ryzen processors. This motherboard harnesses the power of the AMD B840 chipset and AM5 socket, ensuring top-tier performance and reliability for a variety of applications.
One of the key highlights of the B840M is its exceptional memory support. With four DDR5 DIMM slots, it enables a maximum capacity of 256 GB, accommodating even the most demanding tasks. The supported memory speed reaches up to 8200 MHz, providing a significant boost in data transfer efficiency.
Connectivity options are abundant with this model. It includes:
- 1 x PCIe 4.0 x16 slot
- 2 x PCIe 4.0 M.2 slots for NVMe SSDs
- 4 x SATA III 6Gb/s ports
Taking into account modern functionalities, the B840M also integrates WiFi 6 and a 2.5 Gigabit Ethernet LAN, elevating your online experience with faster speeds and greater reliability.
In terms of audio and video outputs, this motherboard offers:
- 1 x HDMI 2.1 port
- 2 x DisplayPort 1.4 ports
Furthermore, its user-friendly features include a Q-Flash Plus button, allowing BIOS updates effortlessly, showcasing Gigabyte's commitment to innovation and user convenience.
Technical Specifications
-
ChipsetAMD B840
-
SocketAM5
-
Form FactorMicro-ATX
-
Memory Slots4 x DDR5 DIMM
-
Maximum Memory Capacity256 GB
-
Supported Memory SpeedUp to 8200 MHz (OC)
-
PCIe Slots1 x PCIe 4.0 x16, 2 x PCIe 4.0 M.2
-
SATA Ports4 x SATA III 6Gb/s
-
WiFiIntegrated WiFi 6 (802.11ax)
-
Ethernet2.5 Gigabit Ethernet LAN
-
AudioHigh-definition audio
-
HDMI Output1 x HDMI 2.1
-
DisplayPort Outputs2 x DisplayPort 1.4
-
USB Ports1 x USB 3.2 Gen 1 Type-C, 2 x USB 3.2 Gen 1, 4 x USB 2.0
-
Q-Flash PlusYes
-
BIOS Memory Size256 Mbit
-
ACPI Support5.0
-
SMBIOS Support2.7
-
DMI Support2.7
