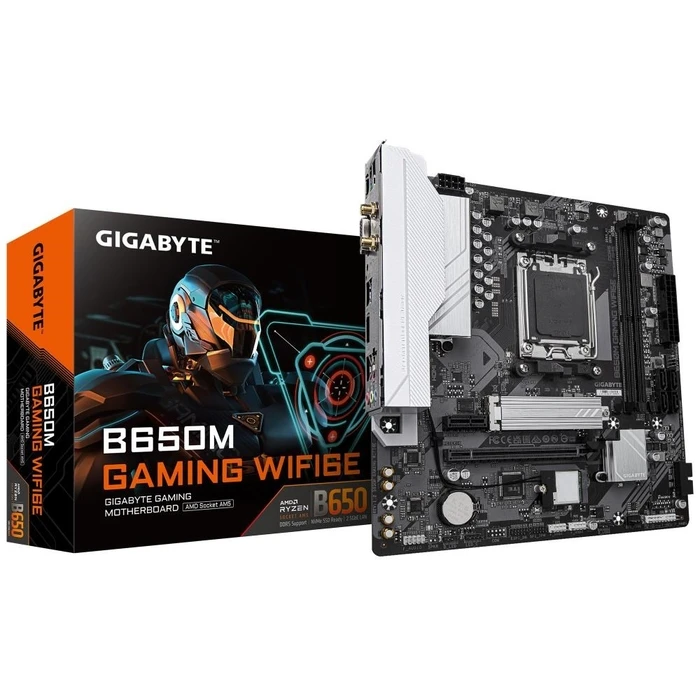

Motherboard Gigabyte B650M Gaming WIFI6E - AMD Ryzen 9000 5+2+2 Phases VRM

Technical Specifications

• Warranty period
  3 year(s)
• Processor manufacturer
  AMD
• Supported processor sockets
  Socket AM5
• Compatible processor series
  AMD Ryzen 7000 Series
• Processor socket
  Socket AM5
• HDCP
  Yes
• Parallel processing technology support
  Not supported
• Maximum resolution
  4096 x 2160 pixels
• Windows operating systems supported
  Windows 11
• Power source type
  ATX
• Component for
  PC
• Motherboard chipset family
  AMD
• Motherboard form factor
  micro ATX
• PC health monitoring
  Fan
• Audio output channels
  7.1 channels
• Motherboard chipset
  AMD B650
• Memory channels
  Dual-channel
• Memory slots type
  DIMM
• Maximum internal memory
  256 GB
• Unbuffered memory
  Yes
• Supported memory types
  DDR5-SDRAM
• Number of memory slots
  4
• Supported memory clock speed (max)
  6400 MHz
• Supported memory clock speeds
  4400 MHz
• ECC ?ompatibility
  Non-ECC
• Maximum internal memory per slot
  64 GB
• Depth
  225 mm
• Width
  240 mm
• Height
  35 mm
• WLAN controller model
  Realtek RTL8852CE
• Bluetooth version
  5.3
• Wi-Fi standards
  Wi-Fi 6E (802.11ax)
• Ethernet interface type
  2.5 Gigabit Ethernet
• Ethernet LAN
  Yes
• Wi-Fi
  Yes
• Top Wi-Fi standard
  Wi-Fi 6E (802.11ax)
• Bluetooth
  Yes
• USB 3.2 Gen 1 (3.1 Gen 1) connectors
  1
• EPS power connector (8-pin)
  Yes
• TPM connector
  Yes
• Number of SATA III connectors
  4
• Front panel audio connector
  Yes
• Front panel connector
  Yes
• Number of chassis fan connectors
  2
• USB 2.0 connectors
  2
• CPU fan connector
  Yes
• RGB LED pin header
  Yes
• ATX Power connector (24-pin)
  Yes
• Number of CPU fan connectors
  1
• Number of EPS power connectors (8-pin)
  1
• Number of RGB LED pin headers
  3
• Clear CMOS jumper
  Yes
• Desktop Management Interface (DMI) version
  2.7
• System Management BIOS (SMBIOS) version
  2.7
• BIOS memory size
  256 Mbit
• ACPI version
  5.0
• BIOS type
  UEFI AMI
• Package width
  270 mm
• Package height
  68 mm
• Package depth
  268 mm
• Package weight
  1.21 kg
• Antenna included
  Yes
• Screws included
  Yes
• Batteries included
  Yes
• RAID levels
  1
• Number of storage drives supported
  5
• Supported storage drive types
  HDD & SSD
• RAID support
  Yes
• Number of HDDs supported
  4
• Supported storage drive interfaces
  M.2, SATA III
• HDMI ports quantity
  1
• Headphone outputs
  1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  2
• HDMI version
  2.1
• Ethernet LAN (RJ-45) ports
  1
• WiFi-AP antenna jack
  2
• VGA (D-Sub) ports quantity
  1
• Line-in
  Yes
• PS/2 ports quantity
  1
• USB 2.0 ports quantity
  4
• Microphone in
  Yes
• Number of M.2 (M) slots
  1
• PCI Express x1 (Gen 3.x) slots
  1
• PCI Express x16 (Gen 4.x) slots
  1
• 1st M.2 largest key size
  2580
• 1st M.2 highest PCI Express generation
  4.0
• Battery technology
  Lithium-Manganese Dioxide (LiMnO2)
• Number of battery cells
  1
• Battery type
  CR2032
• Battery weight
  3 g
• Lithium weight per battery
  0.07 g
• Weight
  720 g
• Products per shipping (inner) case
  1 pc(s)
• Country of origin
  China
