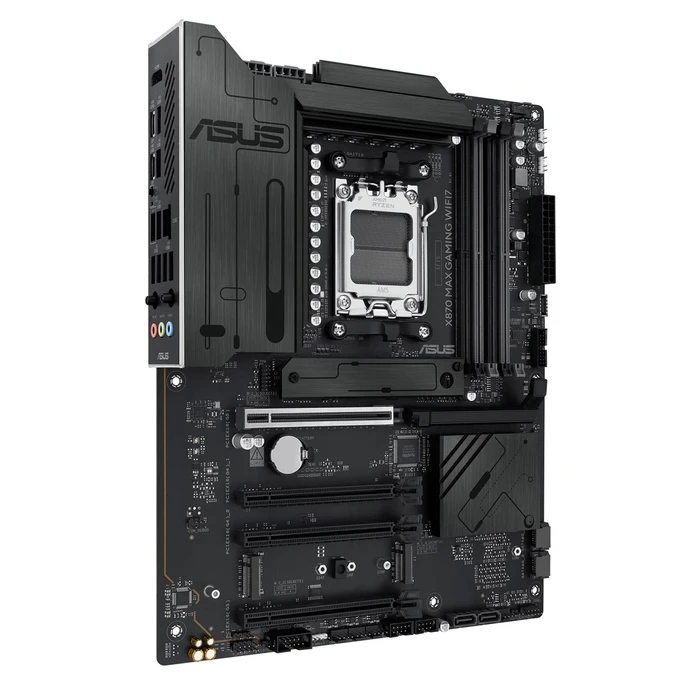

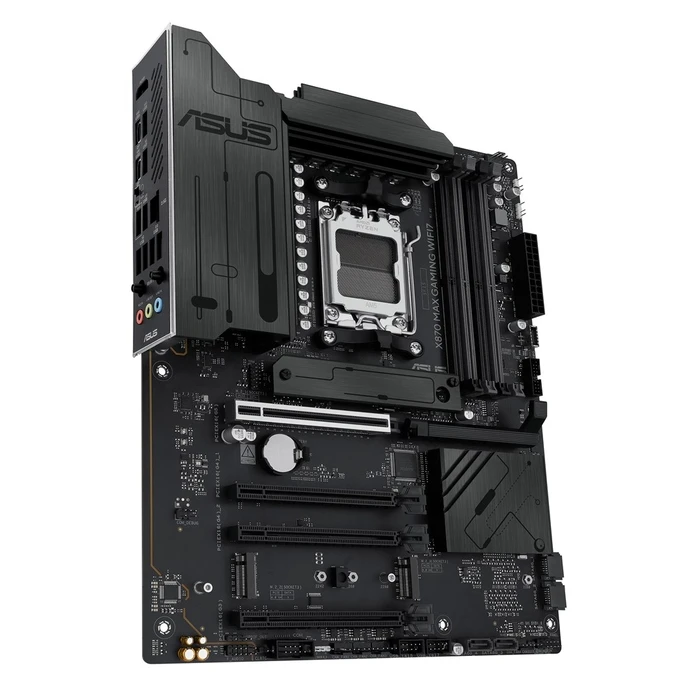

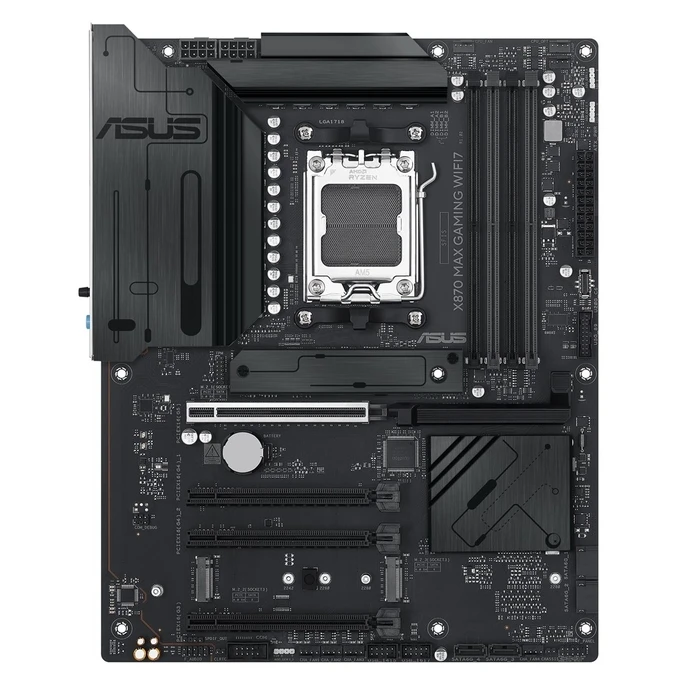

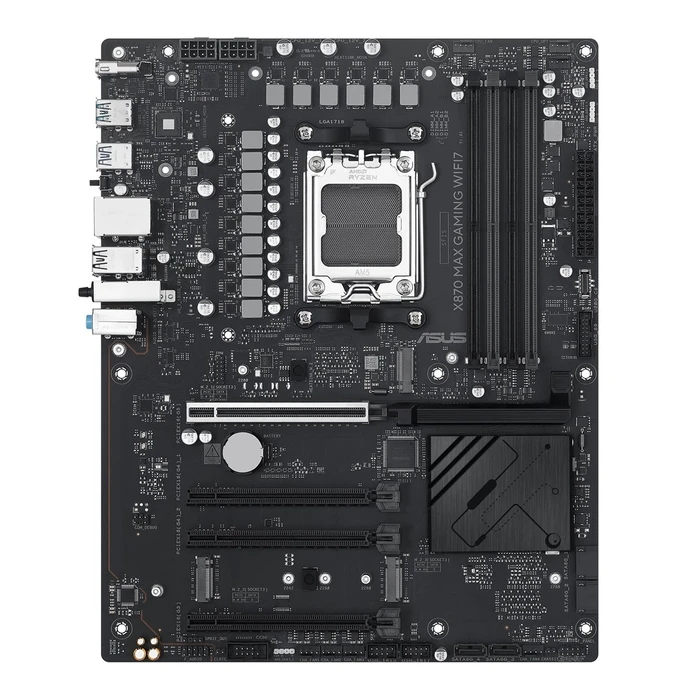

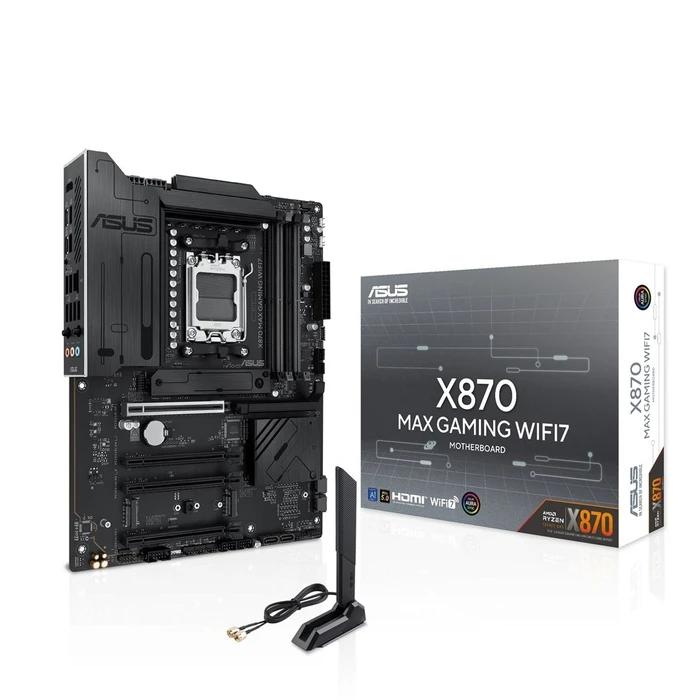

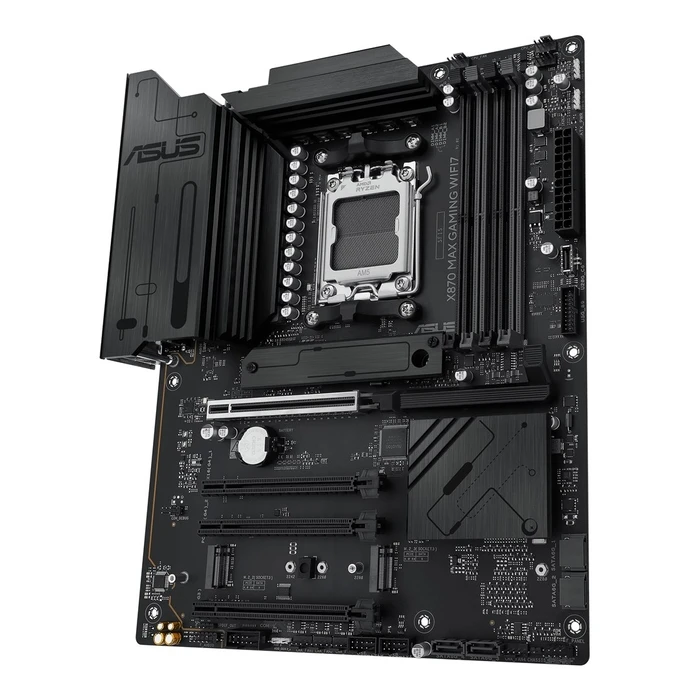

Motherboard Asus X870 MAX Gaming WIFI7 AMD X870 Socket AM5 ATX

Technical Specifications

• Compatible processor series
  AMD Ryzen 7000 Series
• Processor manufacturer
  AMD
• Processor socket
  Socket AM5
• Parallel processing technology support
  Not supported
• Product colour
  Multicolour
• Motherboard form factor
  ATX
• Audio output channels
  7.1 channels
• Motherboard chipset
  AMD X870
• Motherboard chipset family
  AMD
• Windows operating systems supported
  Windows 11
• Component for
  PC
• Maximum internal memory
  256 GB
• Unbuffered memory
  Yes
• Memory channels
  Dual-channel
• Supported memory types
  DDR5-SDRAM
• Number of memory slots
  4
• Memory slots type
  DIMM
• ECC ?ompatibility
  ECC & Non-ECC
• Supported memory clock speed (max)
  8000 MHz
• Width
  305 mm
• Depth
  244 mm
• Height
  48 mm
• Bluetooth
  Yes
• Top Wi-Fi standard
  Wi-Fi 7 (802.11be)
• Ethernet interface type
  2.5 Gigabit Ethernet
• Ethernet LAN
  Yes
• Wi-Fi
  Yes
• Bluetooth version
  5.4
• USB 2.0 connectors
  2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors
  1
• S/PDIF out connector
  Yes
• EPS power connector (8-pin)
  Yes
• TPM connector
  Yes
• Front panel audio connector
  Yes
• 12V power connector
  Yes
• Number of chassis fan connectors
  4
• Number of COM connectors
  1
• CPU fan connector
  Yes
• Chassis intrusion connector
  Yes
• Number of SATA III connectors
  4
• ATX Power connector (24-pin)
  Yes
• Number of CPU fan connectors
  1
• USB 3.2 Gen 2x2 connectors
  1
• BIOS memory size
  256 Mbit
• BIOS type
  UEFI AMI
• Package depth
  273 mm
• Package width
  353 mm
• Package height
  68 mm
• Package weight
  1.95 kg

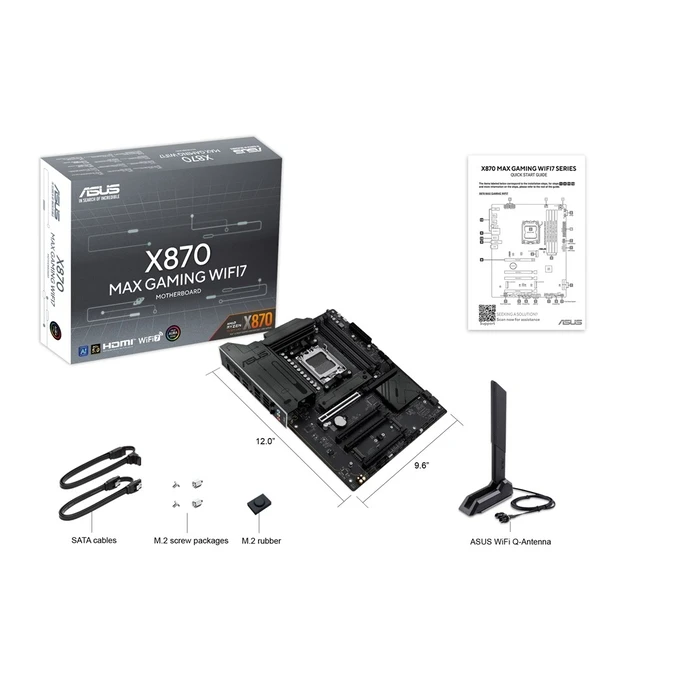

• Antenna included
  Yes
• Supported storage drive types
  HDD & SSD
• Supported storage drive interfaces
  M.2, SATA III
• RAID levels
  1
• Number of storage drives supported
  7
• Number of HDDs supported
  4
• RAID support
  Yes
• Line-in
  Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  1
• Microphone in
  Yes
• USB connector type
  USB Type-A
• Ethernet LAN (RJ-45) ports
  1
• USB 2.0 ports quantity
  4
• HDMI ports quantity
  1
• WiFi-AP antenna jack
  2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  3
• USB4 Gen 3x2 ports quantity
  2
• PCI Express x16 (Gen 4.x) slots
  2
• PCI Express x16 (Gen 3.x) slots
  1
• Number of M.2 (M) slots
  3
• Weight
  1.36 kg
