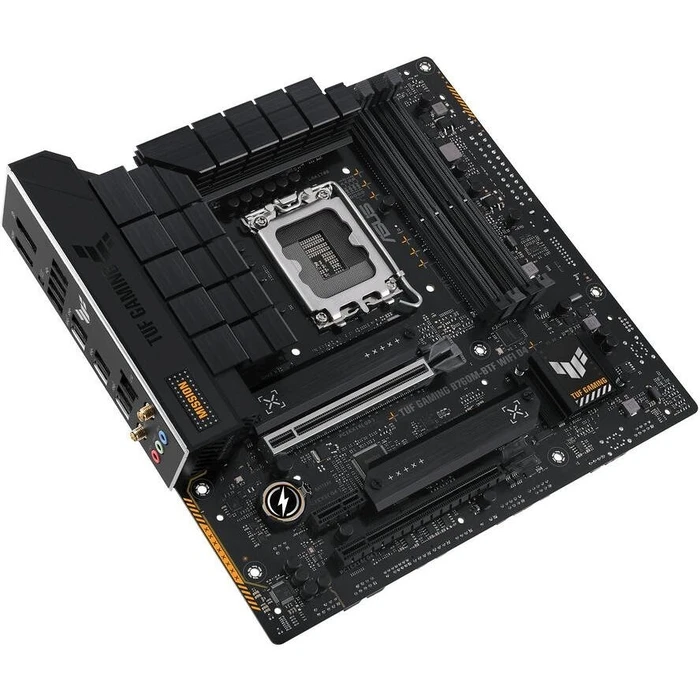

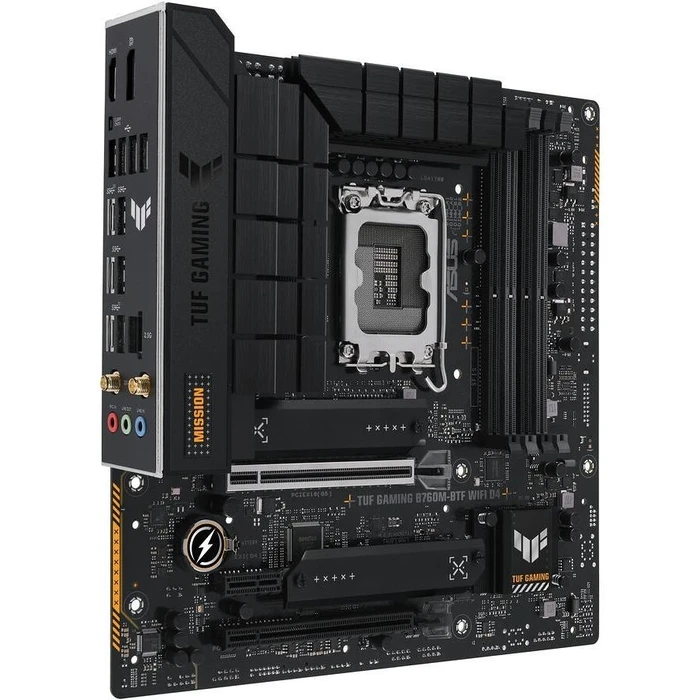

Motherboard Asus TUF GAMING B760M-BTF WIFI D4 (INTEL,1700,DDR4,mATX)

Technical Specifications

• BIOS type
  UEFI AMI
• BIOS memory size
  128 Mbit
• Clear CMOS button
  yes
• processor manufacturer
  intel
• processor socket
  LGA 1700
• Compatible processors
  Intel Celeron, Intel Core™ i3, Intel Core™ i5, Intel Core™ i7, Intel Core™ i9, Intel Pentium Gold
• Supported processor slots
  LGA 1700
• Supported memory
  DDR4 SDRAM
• Number of memory slots
  4
• memory type
  DIMM
• memory channels
  dual channel
• Parallel processing technology
  Unsupported
• Number of USB 2.0 interfaces
  2
• USB 3.2 Gen 1 (3.1 Gen 1) ports
  1
• USB 3.2 Gen 2 (3.1 Gen 2) ports
  1
• SATA III connectors
  4
• Number of USB 2.0 ports
  4
• USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports
  2
• USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-C ports
  1
• USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports
  1
• USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C ports
  1
• USB 3.2 Gen 2x2 Type-C number of ports
  1
• Number of Ethernet LAN ports (RJ-45)
  1
• Number of HDMI ports
  1
• HDMI version
  2.1
• Number of DisplayPort connections
  1
• DisplayPorts version
  1.4
• headphone outputs
  1
• component for
  personal computer
• motherboard form factor
  micro ATX
• Motherboard chipset family
  intel
• motherboard chipset
  Intel B760
• audio channels
  7.1 channels
• cooling
  Passive
• energy source
  ATX
• Supports Windows operating systems
  Windows 10, Windows 11
• PCI Express x1 slots (Gen 4.x)
  1
• PCI Express x16 slots (Gen 4.x)
  1
• PCI Express x16 slots (Gen 5.x)
  1
• Number of M.2 (M) slots
  3
• packaging width
  275mm
• packing depth
  275mm
• packing height
  67.5mm
• package weight
  1.67kg
