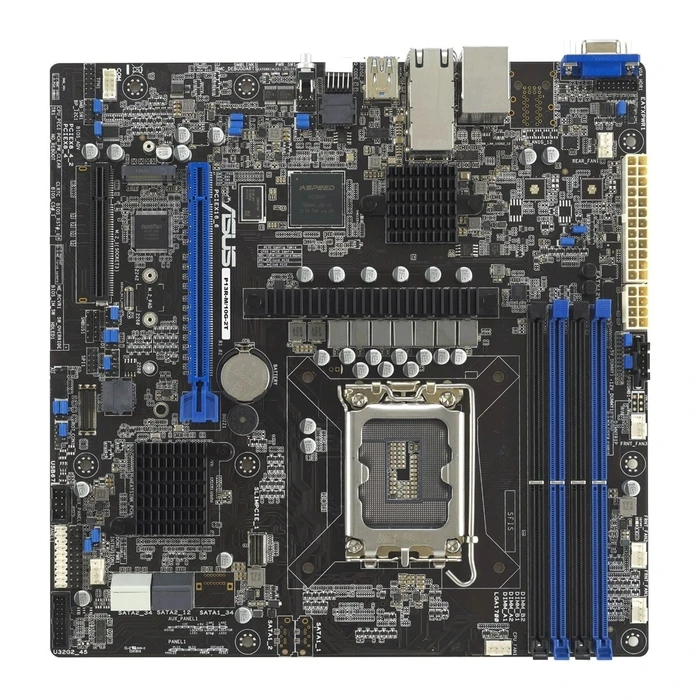

Motherboard Asus P13R-M/10G-2T Intel Xeon E-2400 C262 LGA1700 micro ATX (90SB0CC0-M0UAY0)

Technical Specifications

• Sustainability certificates
  RoHS
• Processor manufacturer
  Intel
• Processor threads
  16
• Intel Xeon series
  E-2400
• Processor thermal power (max)
  95 W
• Processor number of cores supported
  8
• Processor socket
  LGA 1700
• On-board graphics card model
  Aspeed AST2600
• Motherboard form factor
  micro ATX
• Component for
  Server
• Motherboard chipset
  Intel C252
• Supported memory types
  DDR5 UDIMM
• Maximum internal memory
  128 GB
• Supported memory clock speeds
  4400 MHz
• Storage relative humidity (H-H)
  10 - 95%
• Storage temperature (T-T)
  -20 - 60 °C
• Recommended humidity operating range
  10 - 85%
• Operating temperature (T-T)
  0 - 50 °C
• Depth
  244 mm
• Width
  244 mm
• Wi-Fi
  No
• Ethernet interface type
  Fast Ethernet
• Ethernet LAN
  Yes
• Number of M.2 connectors
  1
• USB 3.2 Gen 2 (3.1 Gen 2) ports quantity
  2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors
  1
• TPM connector
  Yes
• VGA connectors
  1
• Number of SATA III connectors
  4
• USB 3.2 Gen 1 (3.1 Gen 1) ports quantity
  2
• USB 2.0 connectors
  1
• Smbus connector (4-pin)
  1
• System Management BIOS (SMBIOS) version
  3.3
• BIOS type
  UEFI
• UEFI version
  2.7
• BIOS memory size
  256 Mbit
• Real Time Clock (RTC)
  Y
• ACPI version
  6.0
• Package type
  Bulk
• SAS controller
  Y
• Supported storage drive interfaces
  SATA III, M.2
• RAID support
  Yes
• VGA (D-Sub) ports quantity
  1
• USB 3.2 Gen 2 (3.1 Gen 2) ports quantity
  3
• Ethernet LAN (RJ-45) ports
  2
• Trusted Platform Module (TPM) version
  2.0
• Trusted Platform Module (TPM)
  Yes
• M.2 card slot (storage)
  2280/22110 (M-key)
• Number of processors supported
  1
• Supported DIMM module capacities
  16GB
• Number of DIMM slots
  4
• PCI Express x4 (Gen 3.x) slots
  1
• Maximum UDIMM memory
  128 GB
• PCI Express x8 (Gen 4.x) slots
  2
• PCI Express x2 (Gen 3.x) slots
  1
• PCI Express x4 (Gen 4.x) slots
  1
