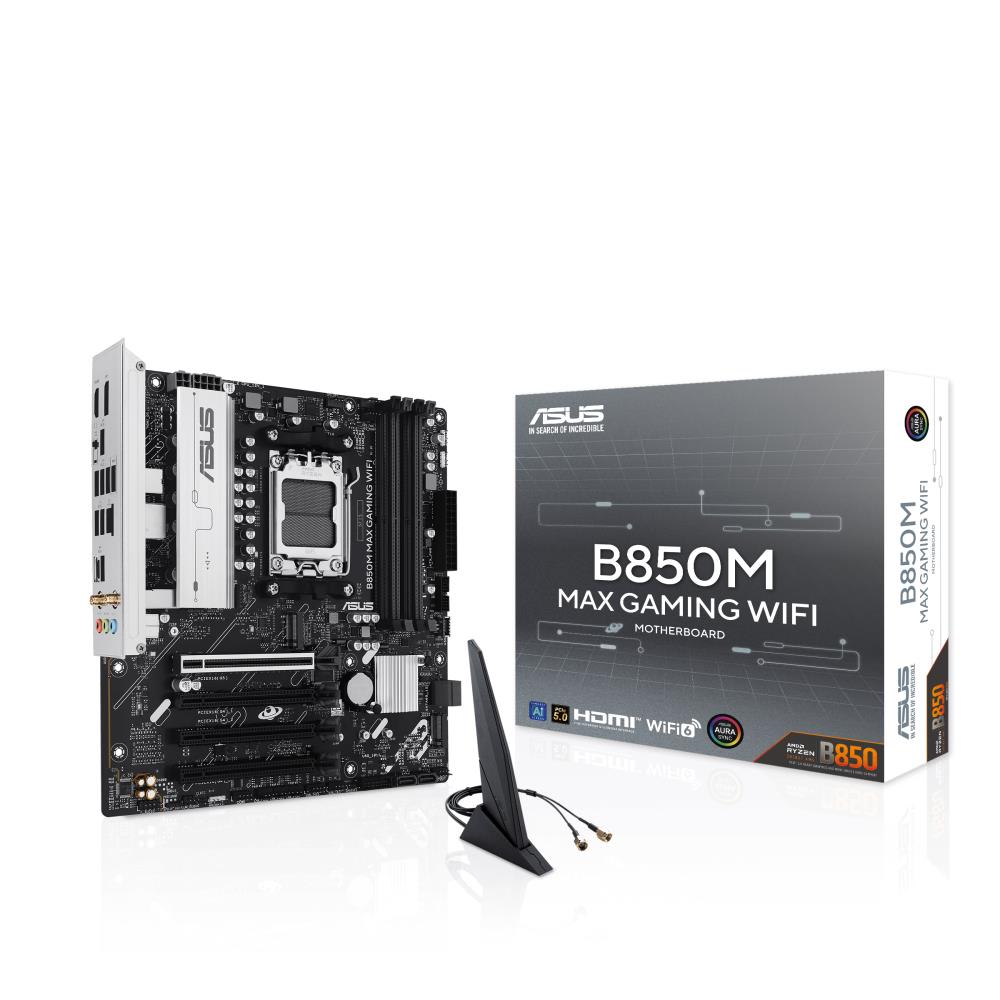

The ASUS B850M MAX GAMING WIFI is a high-performance micro-ATX motherboard designed for AMD Ryzen 9000, 8000, and 7000 series desktop processors. This motherboard is engineered to deliver peak performance with advanced features and robust connectivity options.

CPU and Chipset

• CPU Support: Supports AMD Socket AM5 for Ryzen 9000, 8000, and 7000 series desktop processors.
• Chipset: Powered by the AMD B850 chipset, providing a solid foundation for high-performance computing.

Memory

• Memory Slots: 4 x DIMM slots with a maximum of 256GB DDR5 memory, supporting speeds up to 8000+MT/s (OC).
• Memory Architecture: Dual-channel architecture enhances memory performance and stability.
• Memory Features:
  • ECC and Non-ECC support for added flexibility.
  • On-Die ECC function for extra error correction capabilities.
  • Overclocking support for optimized performance.

Expansion Slots

• PCIe Slots: Mix of PCIe 4.0 and PCIe 5.0 slots for versatile expansion options.

Storage

• M.2 Slots: 3 x M.2 slots supporting NVMe SSDs for high-speed storage options.

Display and Audio

• Display Outputs: 1 x HDMI and 1 x DisplayPort for multiple display configurations.
• Audio Ports: 3 x audio ports ensuring high-quality output for gaming and multimedia applications.

Connectivity

• USB Ports: Variety of USB ports including 5 x USB 2.0 and 2 x USB 3.2.
• USB-C: 2 x USB-C ports offering faster speeds and a reversible plug design.

Networking

• Ethernet Port: 1 x RJ45 Ethernet port for wired connectivity.
• WiFi: Features WiFi 6 for fast and reliable wireless networking.

The ASUS B850M MAX GAMING WIFI motherboard is a comprehensive solution for gamers and content creators, blending high-performance features with robust connectivity and advanced cooling solutions.
