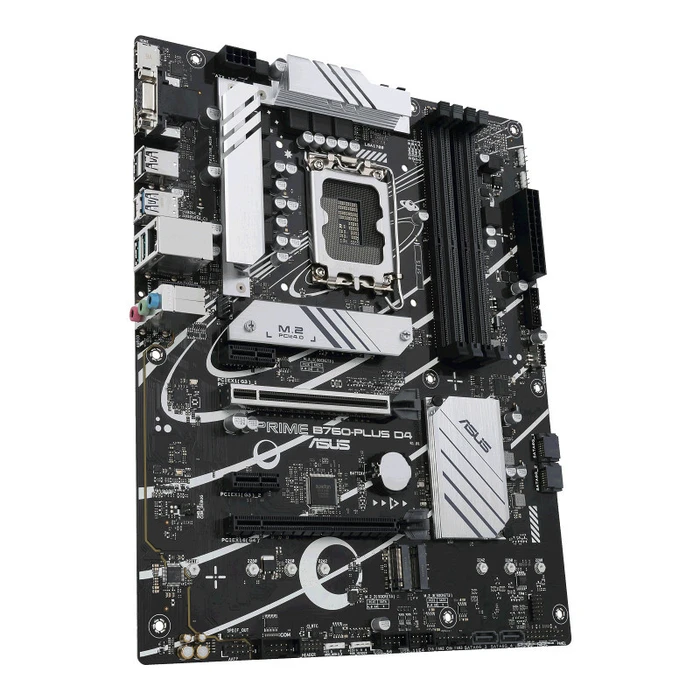

The ASUS PRIME B760-PLUS D4 is an advanced ATX motherboard designed to support Intel's latest processor generations. This motherboard reflects ASUS's commitment to quality, featuring a robust power design and intelligent tuning options.
Key Features:
- Socket and Chipset: Socket LGA 1700 and Intel B760 chipset ensure compatibility with modern processors.
- Memory Support: Offers up to 128 GB DDR4 memory, with speeds exceeding 5066+(OC) MHz, perfect for gaming and content creation.
- Expansion Slots: Includes a variety of expansion slots for multiple peripherals.
Storage & Networking:
- Featuring three M.2 slots for rapid boot times.
- Supports four SATA 6Gb/s ports.
- Equipped with Realtek 2.5Gb Ethernet for fast networking.
Audio & Video: Realtek 7.1 Surround Sound and multiple display outputs including HDMI and DisplayPort mean high-quality audio and video output.
With features such as comprehensive cooling controls and Aura Sync RGB lighting, the ASUS PRIME B760-PLUS D4 is tailored for high-performance tasks and aesthetics.
-
CPUIntel LGA 1700 Processors
-
ChipsetIntel B760
-
Socket TypeLGA 1700
-
Memory4x DIMM, 128 GB max, DDR4 up to 5066+(OC) MHz Non-ECC, Un-buffered Memory
-
GraphicsIntel UHD Graphics support
-
Multi-VGA Output SupportDisplayPort 1.4, HDMI 2.1, and VGA
-
DisplayPort (1.4) Resolution4096 x 2160 @ 60 Hz
-
HDMI 2.1 Resolution4096 x 2160 @ 60 Hz
-
Expansion Slots1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (supports x4 mode), 2x PCIe 3.0 x1 slot
-
M.2 Sockets3
-
First M.2 SocketM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
-
Second M.2 SocketM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
-
Third M.2 SocketM.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
-
SATA 6Gb/s ports4
-
Support RaidSATA RAID 0, 1, 5, and 10
-
LANRealtek 2.5Gb Ethernet with ASUS LANGuard
-
Wireless CommunicationNone
-
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC
-
Back I/O PortsUSB 3.2 Gen 2x2 (Type-C), 2x USB 3.2 Gen 2, USB 3.2 Gen 1, 2x USB 2.0, DisplayPort, D-Sub (VGA), HDMI, Ethernet port, 3x Audio jacks
-
USB Ports Motherboard headers1x USB 3.2 Gen1 connector (supports USB Type-C), 1x USB 3.2 Gen1 header supports additional 2 USB 3.2 Gen1 ports, 2x USB 2.0 headers support additional 4 USB 2.0 ports
-
Accessories2x SATA 6Gb/s cables, I/O Shield, M.2 Rubber Package, 2x M.2 SSD screw packages, M.2 Key E screw package, Support DVD, User guide
-
Form FactorATX
-
Dimensions305 x 244 mm
-
Thunderbolt HeaderYes
-
TPM headerYes
-
Warranty24 months
-
EAN barcode4711081970309
Ratings
Description
The ASUS PRIME B760-PLUS D4 is an advanced ATX motherboard designed to support Intel's latest processor generations. This motherboard reflects ASUS's commitment to quality, featuring a robust power design and intelligent tuning options.
Key Features:
- Socket and Chipset: Socket LGA 1700 and Intel B760 chipset ensure compatibility with modern processors.
- Memory Support: Offers up to 128 GB DDR4 memory, with speeds exceeding 5066+(OC) MHz, perfect for gaming and content creation.
- Expansion Slots: Includes a variety of expansion slots for multiple peripherals.
Storage & Networking:
- Featuring three M.2 slots for rapid boot times.
- Supports four SATA 6Gb/s ports.
- Equipped with Realtek 2.5Gb Ethernet for fast networking.
Audio & Video: Realtek 7.1 Surround Sound and multiple display outputs including HDMI and DisplayPort mean high-quality audio and video output.
With features such as comprehensive cooling controls and Aura Sync RGB lighting, the ASUS PRIME B760-PLUS D4 is tailored for high-performance tasks and aesthetics.
Technical Specifications
-
CPUIntel LGA 1700 Processors
-
ChipsetIntel B760
-
Socket TypeLGA 1700
-
Memory4x DIMM, 128 GB max, DDR4 up to 5066+(OC) MHz Non-ECC, Un-buffered Memory
-
GraphicsIntel UHD Graphics support
-
Multi-VGA Output SupportDisplayPort 1.4, HDMI 2.1, and VGA
-
DisplayPort (1.4) Resolution4096 x 2160 @ 60 Hz
-
HDMI 2.1 Resolution4096 x 2160 @ 60 Hz
-
Expansion Slots1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (supports x4 mode), 2x PCIe 3.0 x1 slot
-
M.2 Sockets3
-
First M.2 SocketM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
-
Second M.2 SocketM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
-
Third M.2 SocketM.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
-
SATA 6Gb/s ports4
-
Support RaidSATA RAID 0, 1, 5, and 10
-
LANRealtek 2.5Gb Ethernet with ASUS LANGuard
-
Wireless CommunicationNone
-
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC
-
Back I/O PortsUSB 3.2 Gen 2x2 (Type-C), 2x USB 3.2 Gen 2, USB 3.2 Gen 1, 2x USB 2.0, DisplayPort, D-Sub (VGA), HDMI, Ethernet port, 3x Audio jacks
-
USB Ports Motherboard headers1x USB 3.2 Gen1 connector (supports USB Type-C), 1x USB 3.2 Gen1 header supports additional 2 USB 3.2 Gen1 ports, 2x USB 2.0 headers support additional 4 USB 2.0 ports
-
Accessories2x SATA 6Gb/s cables, I/O Shield, M.2 Rubber Package, 2x M.2 SSD screw packages, M.2 Key E screw package, Support DVD, User guide
-
Form FactorATX
-
Dimensions305 x 244 mm
-
Thunderbolt HeaderYes
-
TPM headerYes
-
Warranty24 months
-
EAN barcode4711081970309
