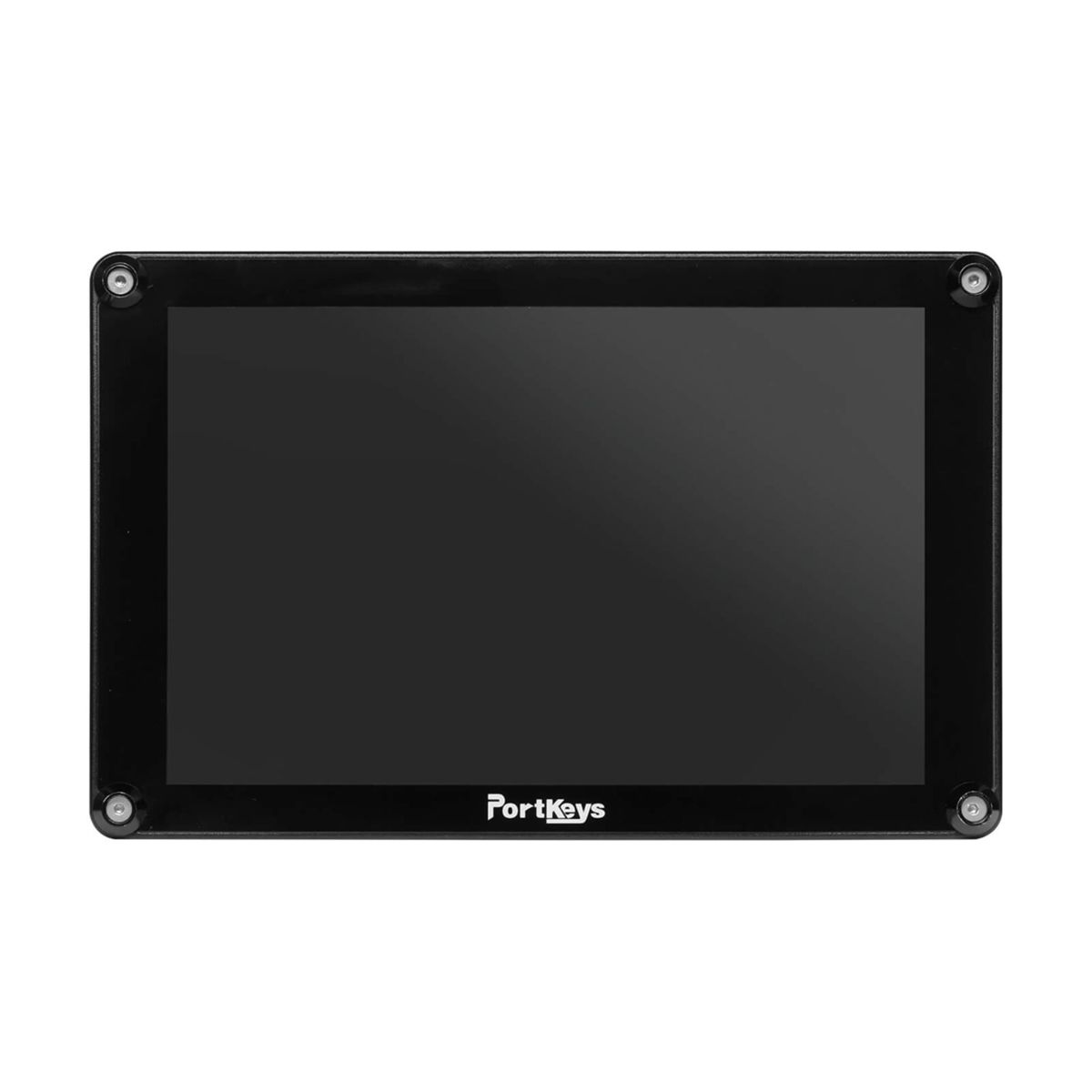

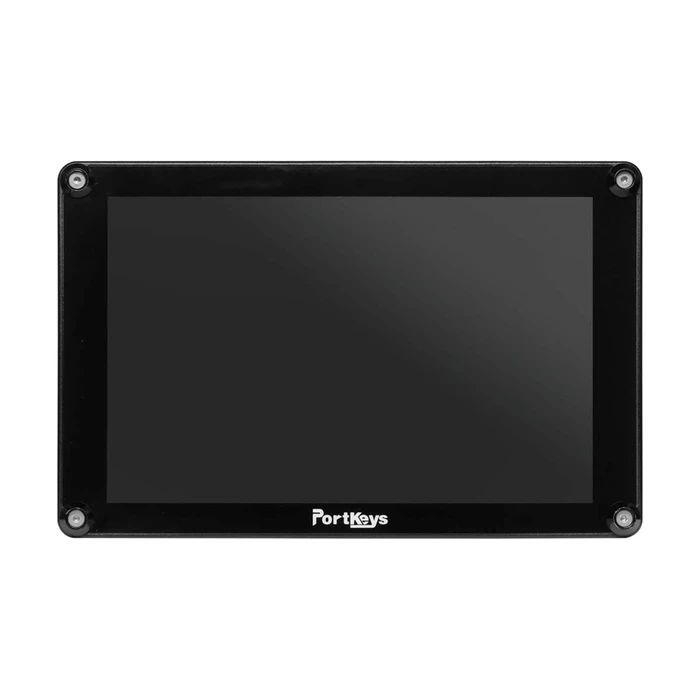

Μόνιτορ βιντεογραφησης Portkeys HS8 Monitor

Description

Technical Specifications

• Brand
  Portkeys
• Model
  HS8
• MPN
  PKSCMHS8
• EAN
  9331924263464
• Product Type
  Professional video monitor
• Screen Size
  8 inches
• Resolution
  1920 x 1200
• Panel Type
  10-bit (8+2 FRC)
• Brightness
  1100 nits
• Contrast Ratio
  1000:1
• Viewing Angles
  178°
• HDMI Input
  1 x HDMI 2.0
• HDMI Output
  1 x HDMI output
• SDI Input
  1 x 3G-SDI input
• SDI Output
  1 x 3G-SDI output with cross-conversion
• Maximum Video Signal
  DCI 4K24
• Color Calibration
  Factory color-calibrated
• Waveform
  RGB and Luma Waveform
• Histogram
  Yes
• Zebra
  Adjustable
• Focus Assist
  Peaking
• Zoom
  Yes
• False Color
  Customizable, 13 colors including ARRI False Color
• 3D LUT
  Yes
• LUT Loading
  USB-A port
• Audio Meters
  Built-in
• Anamorphic De-squeeze
  1.33x, 1.5x, 2.0x, custom 0.25x to 4.0x
• Framing Tools
  Crosshair, check field, guides, grids, rectangle crop
• SDI Features
  SDI Level A/B auto output, progressive to interlaced transformation
• Adjustments
  Black level, backlight, contrast, color temperature, sharpness, chroma, brightness, tint, HDR HLG, OSD flip mode
• Housing Material
  CNC-machined aluminum alloy
• Mounting
  Top and bottom 1/4"-20 thread mounts
• Battery Plates
  Dual rotatable Sony L-series/NP-F battery plates
• Battery Features
  Hot-swappable with power passthrough
• Power Input
  DC input port
• USB Support
  USB 2.0, under 64 GB, FAT32/FAT file system
• Removable Rear Cover
  Yes
• Additional Mounting Support
  Integrated dummy battery system for wireless transmitter mounting
