Mini PCIe full-size expansion card that adds two RS-232 serial ports to systems with a Mini PCIe (PCIe) slot. Provides optional voltage supply on pin 9 (selectable 5 V or 12 V via jumper per port). Uses Moschip MCS9901 chipset, UART compatible with 16C450/16C550, 256-byte FIFO and data rates up to...
More

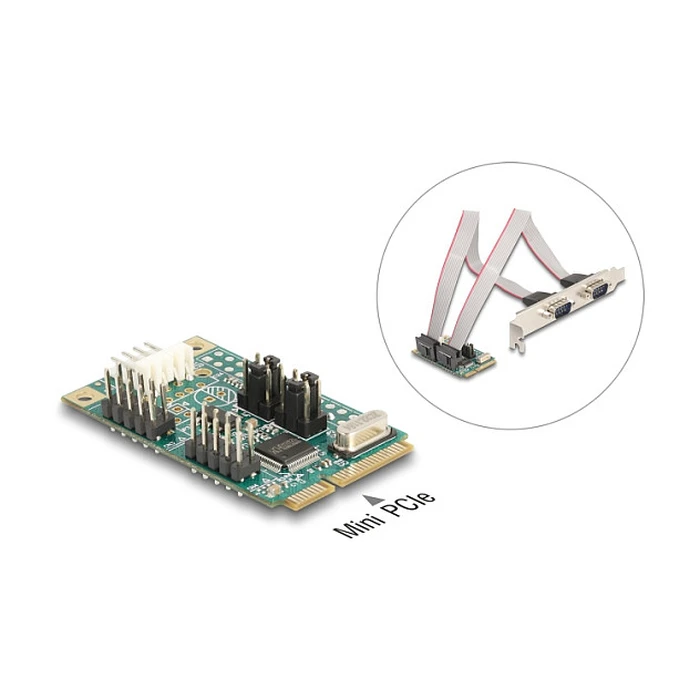

Mini PCIe I/O PCIe full size 2 x Serial RS-232 with voltage supply 5 V / 12 V
Product Code: 1173700131
Available in 4 - 6 days
42,03 €
or
1,31€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 127 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

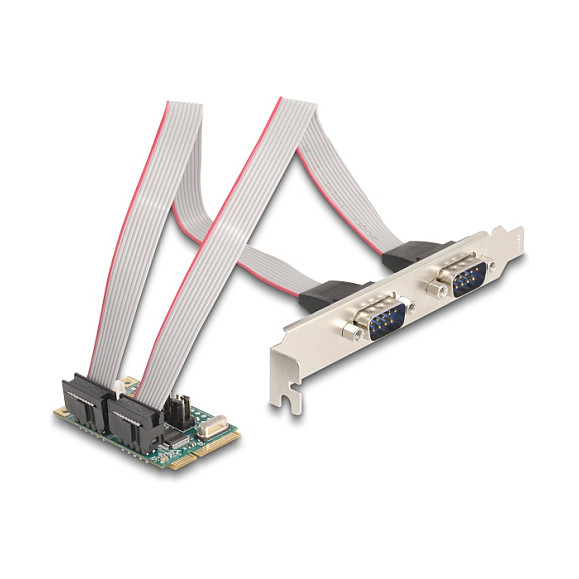

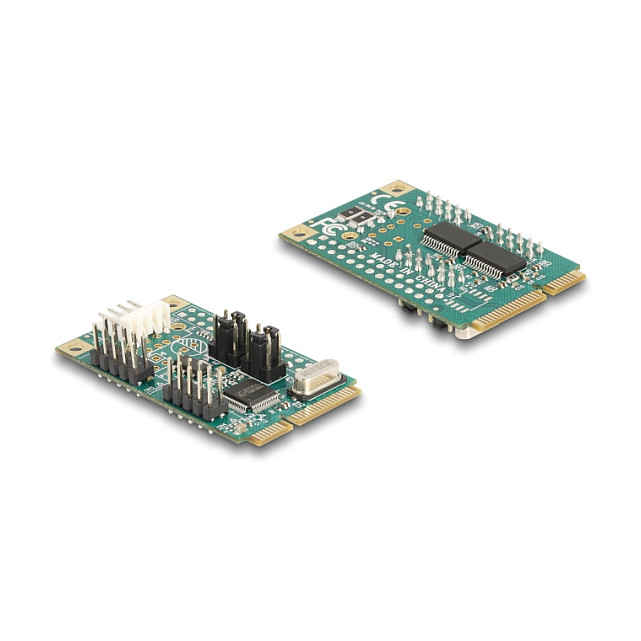

Mini PCIe full-size expansion card that adds two RS-232 serial ports to systems with a Mini PCIe (PCIe) slot. Provides optional voltage supply on pin 9 (selectable 5 V or 12 V via jumper per port). Uses Moschip MCS9901 chipset, UART compatible with 16C450/16C550, 256-byte FIFO and data rates up to 230.4 kbps. Connectors: Mini PCIe male internal, 2 x 9-pin COM PCB header, 2 x DB9 male external. Typical uses: serial peripherals such as printers, POS systems and modems. Supported OS: Windows 7/8.1/10/11 (32/64-bit). Dimensions approx. 51 × 30 × 10 mm.
-
BrandDeLOCK
-
Model / MPN95276
-
EAN4043619952762
-
Form FactorMini PCIe full size
-
InterfacePCI Express revision 1.1
-
Ports2 x RS-232 (DB9 male)
-
Internal Connectors1 x Mini PCIe male; 2 x 9-pin COM PCB header (male)
-
ChipsetMoschip MCS9901
-
UART Compatibility16C450 / 16C550
-
Max Data Rate230.4 Kbps
-
FIFO256 bytes
-
Signals SupportedDCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V
-
Voltage Supply Options5 V or 12 V selectable by jumper per port (voltage on pin 9)
-
Power per Port (max)5 V / 4 A (20 W) or 12 V / 4 A (48 W)
-
Serial ModesRS-232
-
Data Bits5, 6, 7, 8
-
Stop Bits1, 2
-
Parityeven, odd, none, mark, space
-
Flow ControlNone / hardware (RTS/CTS) / software (XON/XOFF)
-
Cable Lengthapprox. 30 cm (including connectors)
-
Dimensions (L×W×H)approx. 51 × 30 × 10 mm
-
OS SupportWindows 7/7-64/8.1/8.1-64/10/10-64/11
-
Typical ApplicationsPrinters, POS systems, modems, serial industrial peripherals
-
Country of OriginNot specified
-

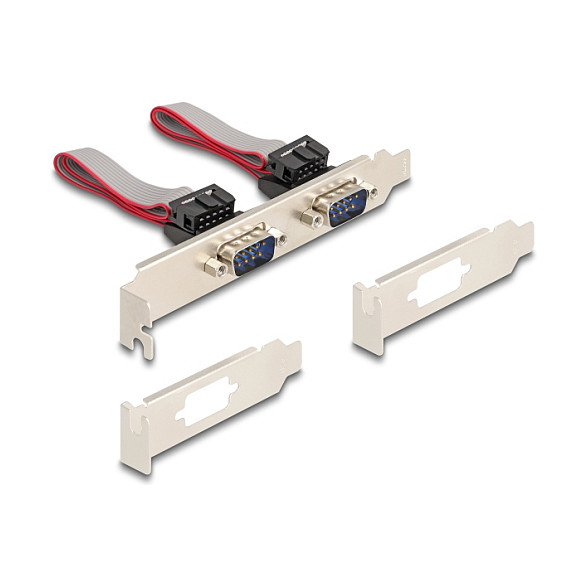

Package Contents (reported)Mini PCIe card; serial cable with DB9 connectors (cable length ~30 cm); jumper(s) for voltage selection
-
Weight (product approx.)15 g
Ratings
Description
Mini PCIe full-size expansion card that adds two RS-232 serial ports to systems with a Mini PCIe (PCIe) slot. Provides optional voltage supply on pin 9 (selectable 5 V or 12 V via jumper per port). Uses Moschip MCS9901 chipset, UART compatible with 16C450/16C550, 256-byte FIFO and data rates up to 230.4 kbps. Connectors: Mini PCIe male internal, 2 x 9-pin COM PCB header, 2 x DB9 male external. Typical uses: serial peripherals such as printers, POS systems and modems. Supported OS: Windows 7/8.1/10/11 (32/64-bit). Dimensions approx. 51 × 30 × 10 mm.
Technical Specifications
-
BrandDeLOCK
-
Model / MPN95276
-
EAN4043619952762
-
Form FactorMini PCIe full size
-
InterfacePCI Express revision 1.1
-
Ports2 x RS-232 (DB9 male)
-
Internal Connectors1 x Mini PCIe male; 2 x 9-pin COM PCB header (male)
-
ChipsetMoschip MCS9901
-
UART Compatibility16C450 / 16C550
-
Max Data Rate230.4 Kbps
-
FIFO256 bytes
-
Signals SupportedDCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V
-
Voltage Supply Options5 V or 12 V selectable by jumper per port (voltage on pin 9)
-
Power per Port (max)5 V / 4 A (20 W) or 12 V / 4 A (48 W)
-
Serial ModesRS-232
-
Data Bits5, 6, 7, 8
-
Stop Bits1, 2
-
Parityeven, odd, none, mark, space
-
Flow ControlNone / hardware (RTS/CTS) / software (XON/XOFF)
-
Cable Lengthapprox. 30 cm (including connectors)
-
Dimensions (L×W×H)approx. 51 × 30 × 10 mm
-
OS SupportWindows 7/7-64/8.1/8.1-64/10/10-64/11
-
Typical ApplicationsPrinters, POS systems, modems, serial industrial peripherals
-
Country of OriginNot specified
-
Package Contents (reported)Mini PCIe card; serial cable with DB9 connectors (cable length ~30 cm); jumper(s) for voltage selection
-
Weight (product approx.)15 g
