Μίκτης Yamaha MG10 - 10-channel mixing console
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Αναλογική Κονσόλα RodeCaster Video Podcast production studio Music production station
Ψηφιακός Μίκτης Synco MC3-LITE, 4 καναλιών, Bluetooth, 500mAh, γκρι

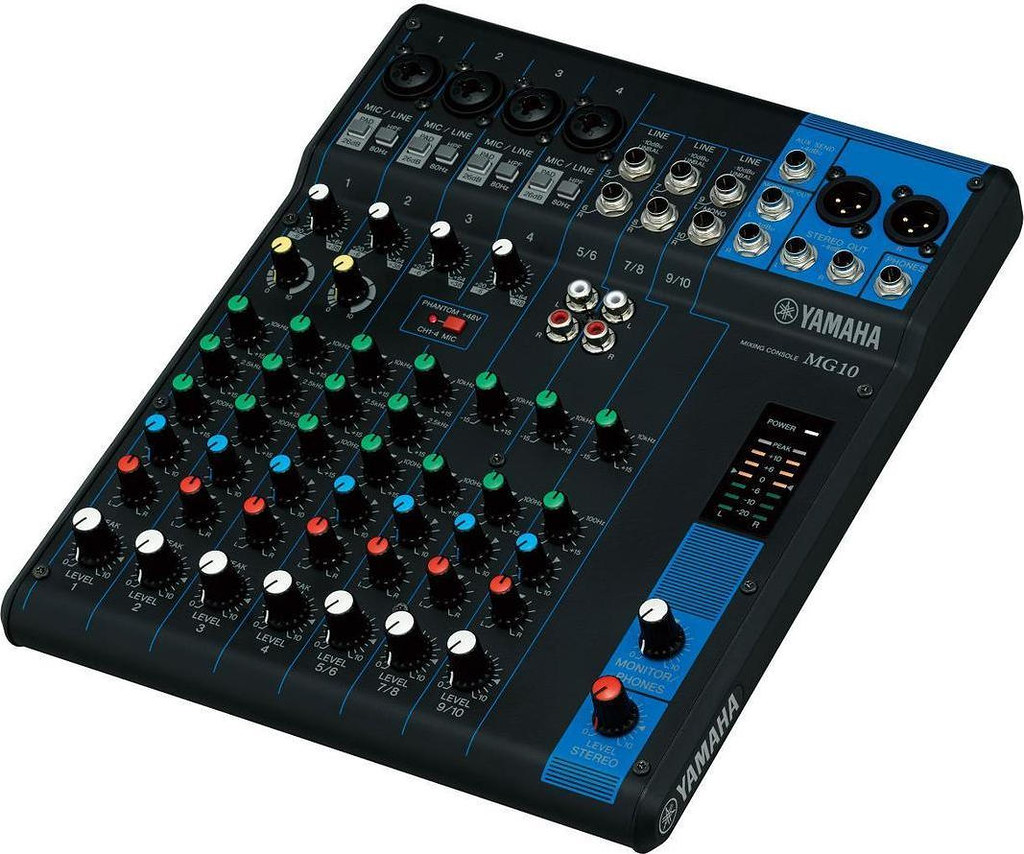

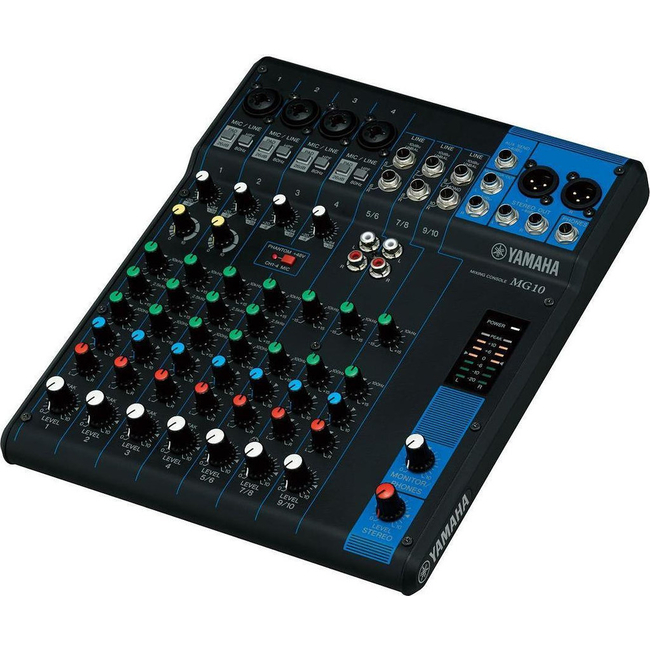

The Yamaha MG10 is a versatile 10-channel mixing console, designed for a variety of users and applications, including practice spaces, small acoustic gigs, and electronic musicians. Its compact and intuitive design is suitable for both beginners and professionals.
Key Features:
- Input Channels: The MG10 features 10 line inputs, including 4 mono and 3 stereo channels, with 4 microphone inputs. Each mic input is equipped with 48-volt phantom power and a high-pass filter.
- Output Channels: With two stereo outputs, one monitor output, one auxiliary send, and one headphone output, this mixer allows flexible routing of audio signals.
- Bus Configuration: It includes one stereo bus and one auxiliary bus for efficient audio signal management.
- Mic Preamps: Utilizing discrete class-A D-PRE mic preamps, the MG10 delivers high sound quality.
- 1-Knob Compressors: Two mic channels feature easy-to-use compressors with LED indicators.
- EQ and PAD: Each channel has a 3-band EQ with ±15 dB gain, and mono inputs include a PAD switch for handling high-level signals.
- LED Level Meter: A 2 x 7 points LED meter provides visual feedback on input levels.
The Yamaha MG10 is not only compact but weighs approximately 1.9 kg, making it portable. Designed to integrate well with digital audio systems, it features a range of output connectors to suit users' needs.
-
Dimensions (Width x Depth x Height)244 mm x 294 mm x 71 mm
-
Weight1.9 kg
-
Power Consumption22.9 watts
-
Power SupplyAC adapter with 38 volts, 0.62 amps
-
Nominal Input Level (Mic)-72 dBu (0.195 mV)
-
Nominal Input Level (Line)-60 dBu (0.775 mV)
-
Load Impedance (Mic)3 kΩ
-
Load Impedance (Line)50 to 600 Ω
Ratings
Description
The Yamaha MG10 is a versatile 10-channel mixing console, designed for a variety of users and applications, including practice spaces, small acoustic gigs, and electronic musicians. Its compact and intuitive design is suitable for both beginners and professionals.
Key Features:
- Input Channels: The MG10 features 10 line inputs, including 4 mono and 3 stereo channels, with 4 microphone inputs. Each mic input is equipped with 48-volt phantom power and a high-pass filter.
- Output Channels: With two stereo outputs, one monitor output, one auxiliary send, and one headphone output, this mixer allows flexible routing of audio signals.
- Bus Configuration: It includes one stereo bus and one auxiliary bus for efficient audio signal management.
- Mic Preamps: Utilizing discrete class-A D-PRE mic preamps, the MG10 delivers high sound quality.
- 1-Knob Compressors: Two mic channels feature easy-to-use compressors with LED indicators.
- EQ and PAD: Each channel has a 3-band EQ with ±15 dB gain, and mono inputs include a PAD switch for handling high-level signals.
- LED Level Meter: A 2 x 7 points LED meter provides visual feedback on input levels.
The Yamaha MG10 is not only compact but weighs approximately 1.9 kg, making it portable. Designed to integrate well with digital audio systems, it features a range of output connectors to suit users' needs.
Technical Specifications
-
Dimensions (Width x Depth x Height)244 mm x 294 mm x 71 mm
-
Weight1.9 kg
-
Power Consumption22.9 watts
-
Power SupplyAC adapter with 38 volts, 0.62 amps
-
Nominal Input Level (Mic)-72 dBu (0.195 mV)
-
Nominal Input Level (Line)-60 dBu (0.775 mV)
-
Load Impedance (Mic)3 kΩ
-
Load Impedance (Line)50 to 600 Ω
