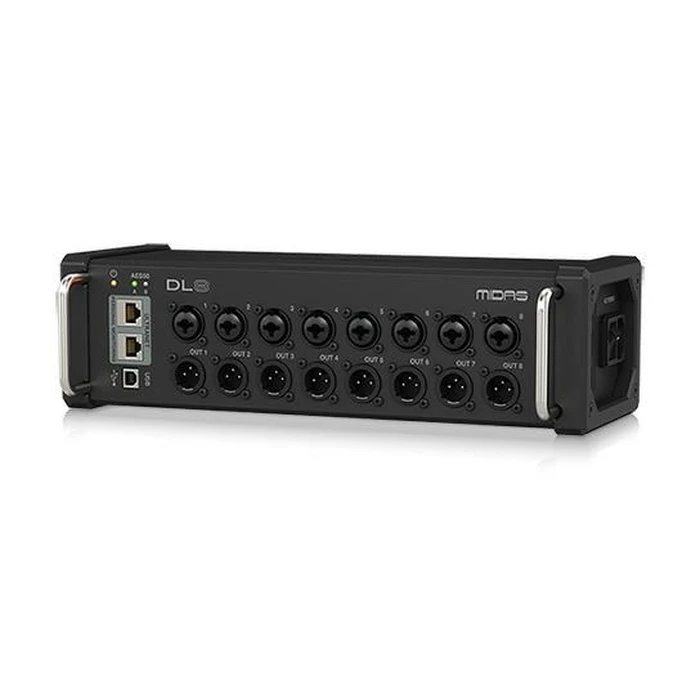

Μίκτης Midas DL8 Digital Stagebox 8 in/8 out
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Πικάπ Roadstar Vintage Ξύλινο ΗiFi με Χοάνη Γραμμοφώνου HIF-1850TUMPK
The Midas DL8 Digital Stagebox 8 in/8 out is a compact and robust solution, perfect for delivering exceptional audio performance in both live sound and installed audio applications. This device boasts 8 award-winning Midas PRO microphone preamplifiers that come equipped with switchable +48 V phantom power.
Designed for ease of use, the DL8 features:
- 8 Inputs: Electronically balanced XLR-1/4" combo connectors, ensuring high quality audio capture.
- 8 Outputs: Balanced low-impedance XLR line outputs that maintain audio integrity.
- Advanced Connectivity: Dual AES50 SuperMAC network ports for cascading and low-latency transmission.
In terms of audio quality, the Midas DL8 excels with a dynamic range of 109 dB and a frequency response range extending from 10 Hz to 22 kHz. The residual noise level is impressively low at -88 dBu, making it ideal for professional settings.
The physical specifications are equally noteworthy:
- Rackmount Chassis: Rugged 2U design measuring approximately 3.7 x 5.9 x 13.1 inches.
- Weight: 5.4 lbs, providing a solid yet manageable option for transport.
With an operating temperature range of 5°C to 40°C, the DL8 is versatile enough for various environments. The convenience of PoE power support not only simplifies installation but also keeps cable clutter at bay.
-
Channels8 inputs ? 8 outputs
-
Inputs8 x XLR-1/4" combo connectors with Midas PRO mic preamps; switchable phantom power (+48 V)
-
Outputs8 x electronically balanced low-impedance XLR line outputs
-
ConnectivityDual AES50 SuperMAC network ports (Neutrik etherCON)
-
Monitoring2 powered ULTRANET outputs
-
Audio QualityDynamic range of 109 dB (22 Hz to 22 kHz, unweighted)
-
Max input level+23 dBu non-clip maximum
-
Residual noise level-88 dBu (22 Hz to 22 kHz, unweighted)
-
Power Consumption35 W
-
Power Supply100-240 V AC, 50/60 Hz, or PoE via AES50 connection
-
Remote Operation RangeUp to 100 meters over shielded CAT5e cable
-
Physical DimensionsApproximately 94 x 150 x 333 mm (WxHxD)
-
Weight2.4 kg
-
Operating Temperature5°C to 40°C
-
ExtrasUSB port for firmware updates
Ratings
Description
The Midas DL8 Digital Stagebox 8 in/8 out is a compact and robust solution, perfect for delivering exceptional audio performance in both live sound and installed audio applications. This device boasts 8 award-winning Midas PRO microphone preamplifiers that come equipped with switchable +48 V phantom power.
Designed for ease of use, the DL8 features:
- 8 Inputs: Electronically balanced XLR-1/4" combo connectors, ensuring high quality audio capture.
- 8 Outputs: Balanced low-impedance XLR line outputs that maintain audio integrity.
- Advanced Connectivity: Dual AES50 SuperMAC network ports for cascading and low-latency transmission.
In terms of audio quality, the Midas DL8 excels with a dynamic range of 109 dB and a frequency response range extending from 10 Hz to 22 kHz. The residual noise level is impressively low at -88 dBu, making it ideal for professional settings.
The physical specifications are equally noteworthy:
- Rackmount Chassis: Rugged 2U design measuring approximately 3.7 x 5.9 x 13.1 inches.
- Weight: 5.4 lbs, providing a solid yet manageable option for transport.
With an operating temperature range of 5°C to 40°C, the DL8 is versatile enough for various environments. The convenience of PoE power support not only simplifies installation but also keeps cable clutter at bay.
Technical Specifications
-
Channels8 inputs ? 8 outputs
-
Inputs8 x XLR-1/4" combo connectors with Midas PRO mic preamps; switchable phantom power (+48 V)
-
Outputs8 x electronically balanced low-impedance XLR line outputs
-
ConnectivityDual AES50 SuperMAC network ports (Neutrik etherCON)
-
Monitoring2 powered ULTRANET outputs
-
Audio QualityDynamic range of 109 dB (22 Hz to 22 kHz, unweighted)
-
Max input level+23 dBu non-clip maximum
-
Residual noise level-88 dBu (22 Hz to 22 kHz, unweighted)
-
Power Consumption35 W
-
Power Supply100-240 V AC, 50/60 Hz, or PoE via AES50 connection
-
Remote Operation RangeUp to 100 meters over shielded CAT5e cable
-
Physical DimensionsApproximately 94 x 150 x 333 mm (WxHxD)
-
Weight2.4 kg
-
Operating Temperature5°C to 40°C
-
ExtrasUSB port for firmware updates
