The MikroTik XS+85LC01D is a multirate SFP28 fiber transceiver module supporting 1G, 10G and 25G data rates. It is designed for multimode fiber (MM) at 850 nm wavelength with a maximum reach of 100 meters. The module uses a duplex LC connector, is hot-pluggable and supports digital diagnostics...
More

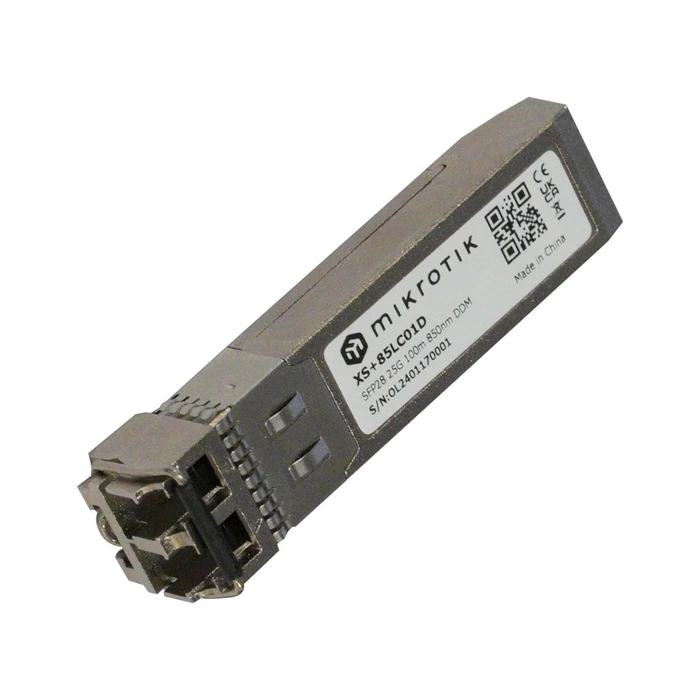

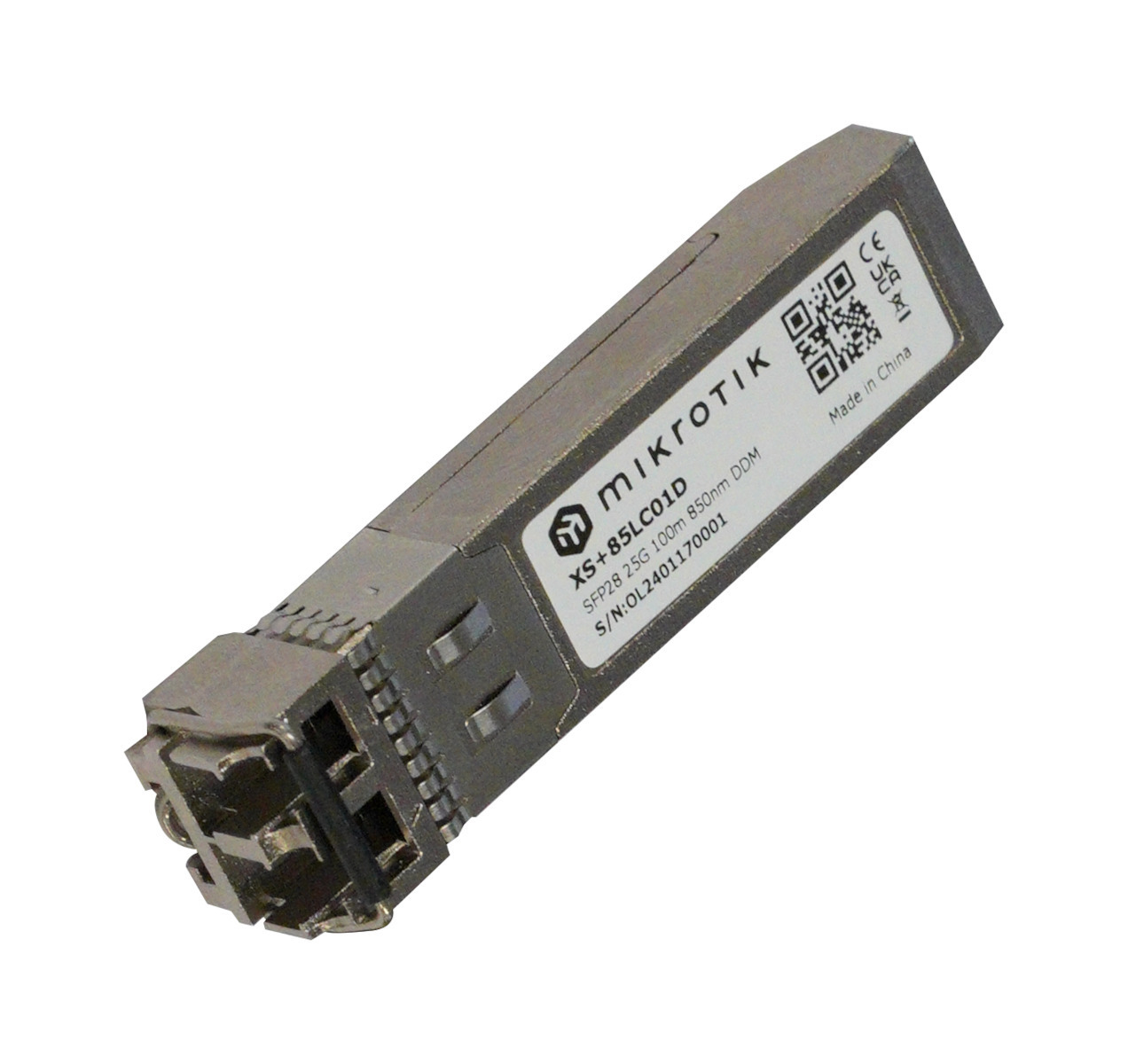

MikroTik XS+85LC01D SFP28 25Gbps Multirate Transceiver 850nm LC 100m
Product Code: 1200737441
Available in 1 - 3 days
100,44 €
or
3,14€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 302 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The MikroTik XS+85LC01D is a multirate SFP28 fiber transceiver module supporting 1G, 10G and 25G data rates. It is designed for multimode fiber (MM) at 850 nm wavelength with a maximum reach of 100 meters. The module uses a duplex LC connector, is hot-pluggable and supports digital diagnostics monitoring (DDM) for parameters such as bias current, laser temperature and supply voltage. Typical applications include deployment in MikroTik devices with SFP/SFP+/SFP28 ports (e.g., RB5009, CCR2116, netPower, CRS, CSS). Operating temperature range: -40°C to +85°C.
-
BrandMikroTik
-
ModelXS+85LC01D
-
Form FactorSFP28
-
Supported Data Rates1G / 10G / 25G (multirate)
-
Fiber TypeMultimode (MM)
-
Wavelength850 nm
-
Connector TypeDuplex LC
-
Maximum Link Distance100 m (multimode)
-
CompatibilitySFP, SFP+, SFP28 ports
-
Digital Diagnostics Monitoring (DDM)Yes (optical diagnostics for bias, temperature, voltage)
-
Operating Temperature-40°C .. +85°C
-
Hot-pluggableYes
-
ApplicationShort-range multimode 25GbE links in switches/routers
-
RoHS CompliantYes (typical for modern transceivers)
-
Typical HousingMetal/plastic SFP28 housing
Ratings
Description
The MikroTik XS+85LC01D is a multirate SFP28 fiber transceiver module supporting 1G, 10G and 25G data rates. It is designed for multimode fiber (MM) at 850 nm wavelength with a maximum reach of 100 meters. The module uses a duplex LC connector, is hot-pluggable and supports digital diagnostics monitoring (DDM) for parameters such as bias current, laser temperature and supply voltage. Typical applications include deployment in MikroTik devices with SFP/SFP+/SFP28 ports (e.g., RB5009, CCR2116, netPower, CRS, CSS). Operating temperature range: -40°C to +85°C.
Technical Specifications
-
BrandMikroTik
-
ModelXS+85LC01D
-
Form FactorSFP28
-
Supported Data Rates1G / 10G / 25G (multirate)
-
Fiber TypeMultimode (MM)
-
Wavelength850 nm
-
Connector TypeDuplex LC
-
Maximum Link Distance100 m (multimode)
-
CompatibilitySFP, SFP+, SFP28 ports
-
Digital Diagnostics Monitoring (DDM)Yes (optical diagnostics for bias, temperature, voltage)
-
Operating Temperature-40°C .. +85°C
-
Hot-pluggableYes
-
ApplicationShort-range multimode 25GbE links in switches/routers
-
RoHS CompliantYes (typical for modern transceivers)
-
Typical HousingMetal/plastic SFP28 housing
