Detailed Description

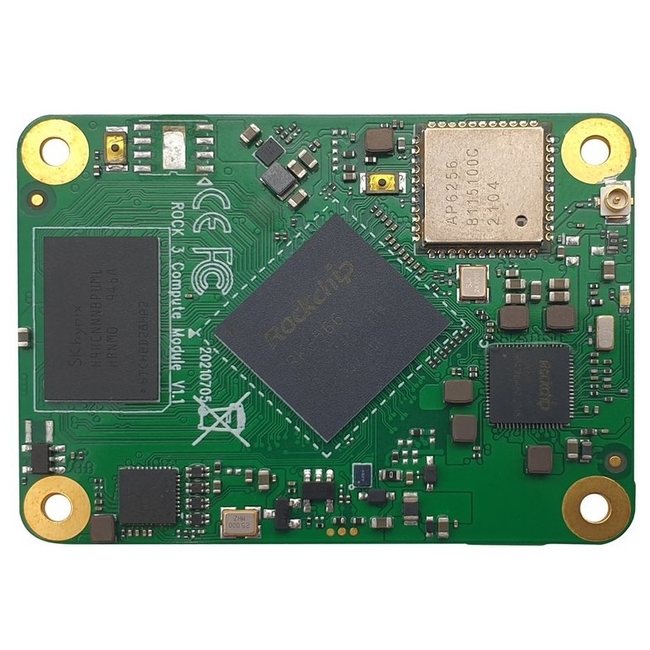

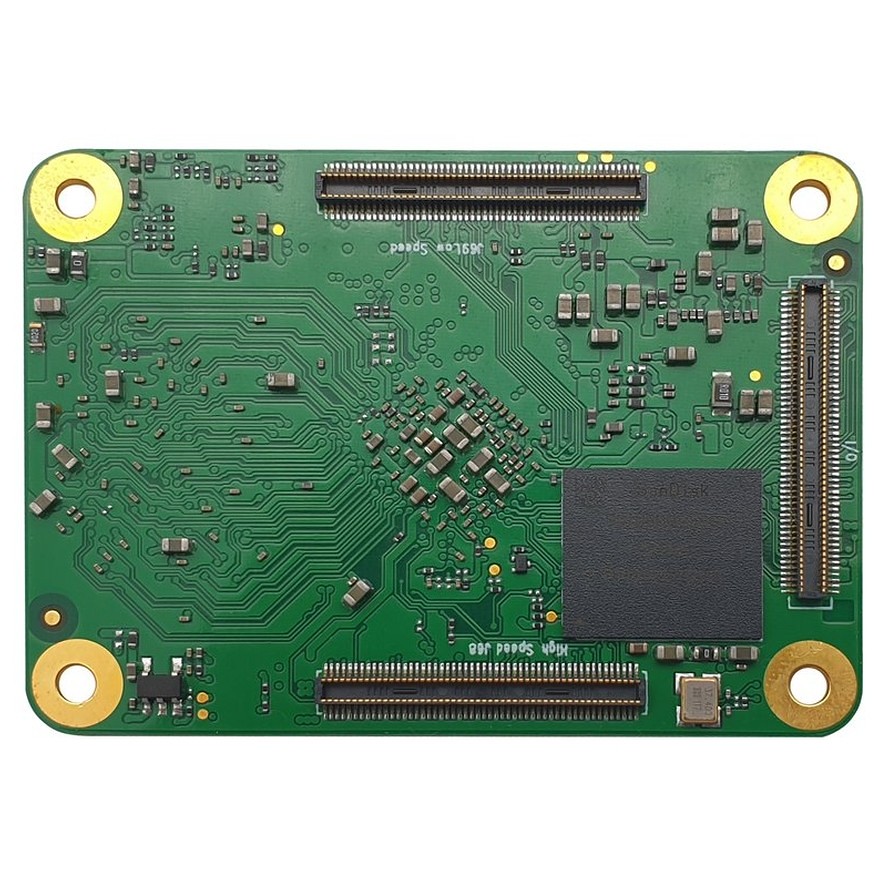

The ALLNET Radxa CM3 Model A Rock3 RK3566 Compute Module is an exceptional System on Module (SoM) catered to multiple applications, particularly within the Internet of Things (IoT) realm.
Key Specifications:
- SoC: Rockchip RK3566, a 64-bit Quad Cortex A55 core operating up to 1.8 GHz.
- Form Factor: Compact dimensions of 55mm x 40mm.
- Memory: 4 GB RAM and 32 GB of EMMC storage.
Connectivity:
- USB: Supports both USB 2.0 and USB 3.0 interfaces.
- Wireless: Bluetooth 5 for advanced wireless communication.
- For other communication:
- I2C, SPI, UART, ADC, PWM, GPIO, Ethernet, CAN, PDM, I2S, MIPI, SATA, eDP, and PCIe 2.0.
Moreover, it provides dual video output with capabilities of supporting resolutions up to 4K x 2K.
Power Efficiency: Engineered for low power consumption, this module is perfect for battery-driven devices and operates at temperatures from 0°C to 60°C.
Software Compatibility: It supports Debian/Ubuntu Linux and Android 11/12, making it versatile for various development environments.
In conclusion, the ALLNET Radxa CM3 Model A is a powerful and adaptable solution for IoT enthusiasts and developers alike, ensuring excellent performance across various applications.
Specifications
-
SoC
- Rockchip RK3566
-
CPU
- 64-bit Quad Cortex A55 up to 1.8 GHz
-
Form Factor
- 55mm x 40mm
-
RAM
- 4 GB
-
Storage
- 32 GB EMMC
-
USB Support
- USB 2.0 and USB 3.0
-
Bluetooth
- Bluetooth 5
-
I2C
- Supported
-
SPI
- Supported
-
UART
- Supported
-
ADC
- Supported
-
PWM
- Supported
-
GPIO
- Supported
-
Ethernet
- Supported
-
CAN
- Supported
-
PDM
- Supported
-
I2S
- Supported
-
MIPI
- Supported
-
SATA
- Supported
-
eDP
- Supported
-
PCIe
- 2.0
-
Power Consumption
- Low power
-
Operating Temperature
- 0°C to 60°C
