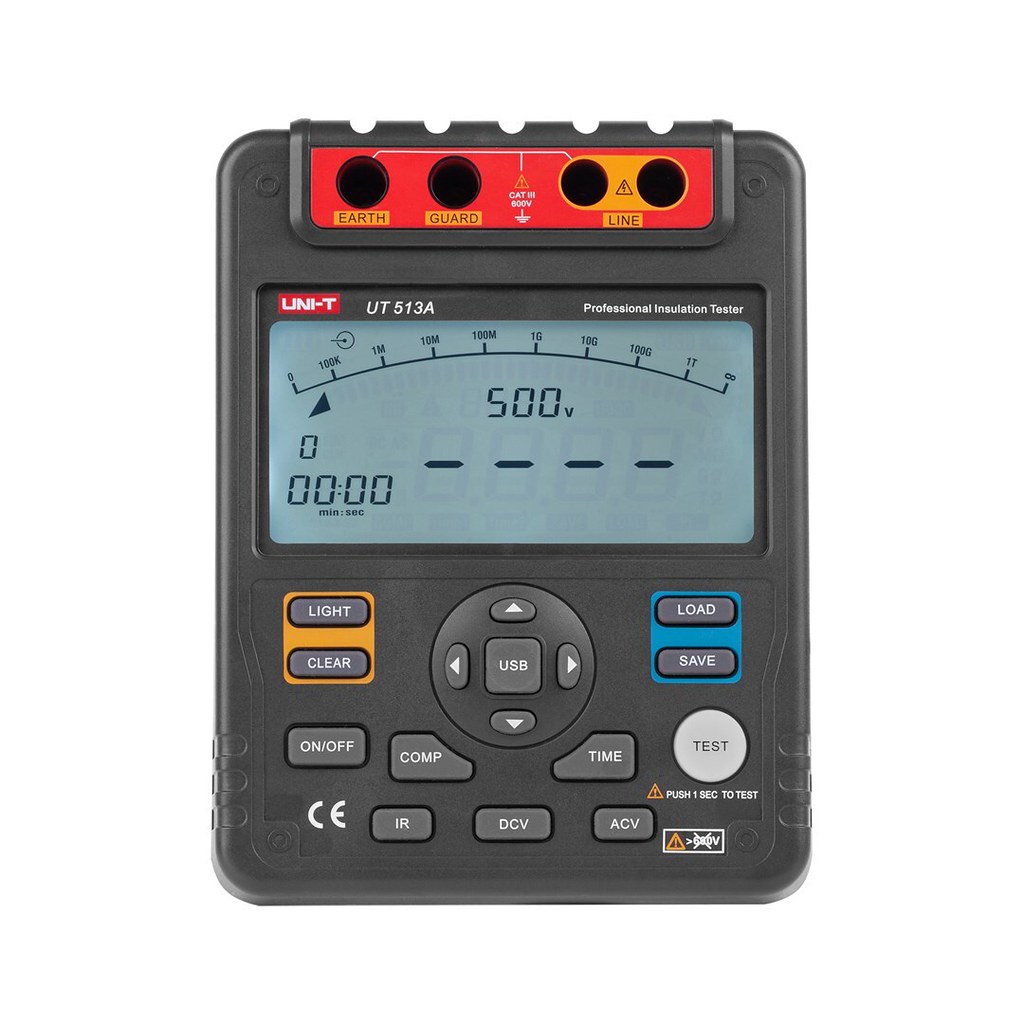

The UNI-T UT513A Insulation Resistance Meter is a versatile and advanced handheld instrument designed to measure insulation resistance in electrical systems. This meter is essential for ensuring the safety and reliability of equipment by detecting potential insulation issues that could lead to short circuits or equipment failures.
Key Features and Specifications
Test Voltages and Measurement Range
- Five selectable test voltages: 500V, 1000V, 1500V, 2500V, and 5000V.
- Measurement range from 0.5 MOhm to 1000 GOhm.
Accuracy and Precision
- Test voltage accuracy varies from 0% to 20%.
- Insulation resistance measurement accuracy is ±3% + 5, depending on test voltage.
Advanced Insulation Analysis
The UT513A performs time-based insulation quality assessments through Polarization Index (PI) and Dielectric Absorption Ratio (DAR) functions, revealing issues like moisture ingress and aging.
Operator-Focused Design
- Large, backlit LCD display for clear readings.
- Comparison measurement function for quick pass/fail assessment.
Additional Features
- Auto Range, Step Voltage, DAR and PI calculations, Timer, High Voltage Indication, Short Circuit Current detection, Data Storage, Comparison Function.
-
Test Voltage 1500 V
-
Test Voltage 21000 V
-
Test Voltage 31500 V
-
Test Voltage 42500 V
-
Test Voltage 55000 V
-
Resistance Measurement Range0.5 MΩ to 1000 GΩ
-
Measurement Accuracy±3% + 5
-
Short Circuit Current Sensitivity< 1.8 mA
-
Weight2.0 kg
-
Meter Dimensions123 mm x 58 mm
-
Power Supply1.5 V alkaline batteries (LR14) x 8
