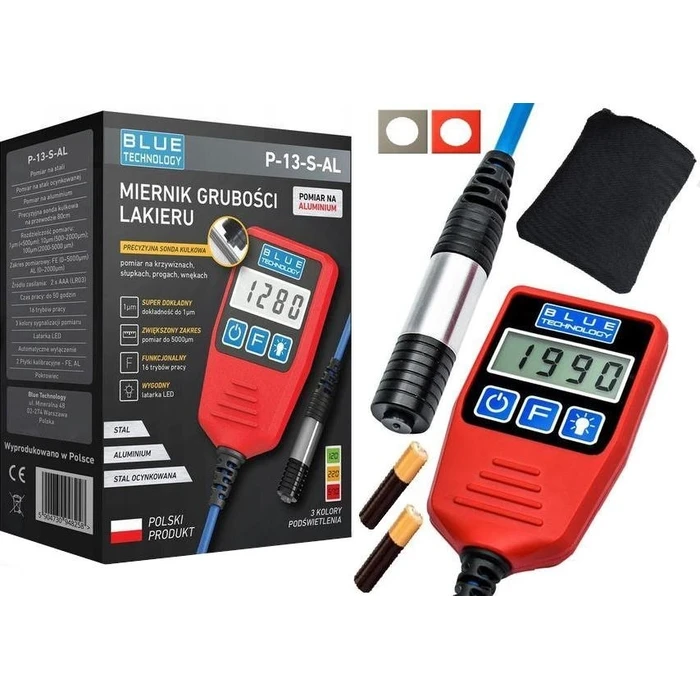

Μετρητής Πάχους Paint thickness gauge P-13-S-AL
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Αξεσουάρ Βιομηχανικών Εγκαταστάσεων Patlite Farbmodul LR7-E-R 70mm LED Red
Παλμογράφος Fnirsi 3 σε 1 Signal Generator/Transistor Tester Dso-Tc3, Επαναφορτιζόμενος
Συστήματα Ελέγχου GIRA power supply 640 mA with KNX choke ONE 213000
The Paint Thickness Gauge P-13-S-AL is a professional device designed for precise measurement of paint coating thickness on various metal surfaces including steel, galvanized steel, and aluminum. It features an automatic substrate detection system that identifies whether the tested surface is steel, galvanized steel, or aluminum, eliminating the need for manual specification by the user.
Key technical specifications include:
- Measurement Ranges:
- Steel and galvanized steel: 0 to 5000 μm
- Aluminum: 0 to 2000 μm
- Measurement Accuracy:
- ±5 μm for thickness between 0 and 500 μm
- ±10 μm for thickness between 500 and 2000 μm
- ±100 μm for steel above 2000 μm
- Measurement Resolution: 1 μm (0.001 mm)
- Measurement Mode: Continuous measurement with a springy ball-ended probe on an 80 cm cable, suitable for flat surfaces as well as curves and rounded areas.
The device's probe housing is pressed with a precise ball probe allowing measurements in curved and hard-to-reach places. It includes a large 2.2 illuminated display with a three-color system (green, orange, red) to signal different measurement states, along with audio warnings to assist the user in taking reliable measurements.
Additional features enhance usability:
- Built-in LED flashlight for measurements in low-light conditions
- HOLD function to freeze readings on the display
- Signaling of the number of paint layers and presence of putties
- Automatic power-saving mode activates after 2 minutes of inactivity
- Battery life up to 50 hours powered by two AAA alkaline batteries, included in the package.
The gauge is housed in durable black ABS plastic, ergonomically shaped for comfortable hand-held use. It also includes calibration plates for both steel and aluminum, a protective pouch, user manual, and batteries.
Operating Conditions:
- Working temperature range from -20°C to +40°C
- CE certified for quality and safety standards.
The P-13-S-AL is suitable for professionals and enthusiasts requiring a highly accurate, versatile paint thickness gauge with user-friendly features.
-
Measurement Range Steel and Galvanized Steel0 to 5000 μm
-
Measurement Range Aluminum0 to 2000 μm
-
Measurement Accuracy 0-500 μm±5 μm
-
Measurement Accuracy 500-2000 μm±10 μm
-
Measurement Accuracy Above 2000 μm±100 μm
-
Measurement Resolution1 μm
-
Measurement ModeContinuous measurement with an 80 cm cable
-
Display Size2.2 inch
-
Battery LifeUp to 50 hours
-
Operating Temperature-20°C to +40°C
Ratings
Description
The Paint Thickness Gauge P-13-S-AL is a professional device designed for precise measurement of paint coating thickness on various metal surfaces including steel, galvanized steel, and aluminum. It features an automatic substrate detection system that identifies whether the tested surface is steel, galvanized steel, or aluminum, eliminating the need for manual specification by the user.
Key technical specifications include:
- Measurement Ranges:
- Steel and galvanized steel: 0 to 5000 μm
- Aluminum: 0 to 2000 μm
- Measurement Accuracy:
- ±5 μm for thickness between 0 and 500 μm
- ±10 μm for thickness between 500 and 2000 μm
- ±100 μm for steel above 2000 μm
- Measurement Resolution: 1 μm (0.001 mm)
- Measurement Mode: Continuous measurement with a springy ball-ended probe on an 80 cm cable, suitable for flat surfaces as well as curves and rounded areas.
The device's probe housing is pressed with a precise ball probe allowing measurements in curved and hard-to-reach places. It includes a large 2.2 illuminated display with a three-color system (green, orange, red) to signal different measurement states, along with audio warnings to assist the user in taking reliable measurements.
Additional features enhance usability:
- Built-in LED flashlight for measurements in low-light conditions
- HOLD function to freeze readings on the display
- Signaling of the number of paint layers and presence of putties
- Automatic power-saving mode activates after 2 minutes of inactivity
- Battery life up to 50 hours powered by two AAA alkaline batteries, included in the package.
The gauge is housed in durable black ABS plastic, ergonomically shaped for comfortable hand-held use. It also includes calibration plates for both steel and aluminum, a protective pouch, user manual, and batteries.
Operating Conditions:
- Working temperature range from -20°C to +40°C
- CE certified for quality and safety standards.
The P-13-S-AL is suitable for professionals and enthusiasts requiring a highly accurate, versatile paint thickness gauge with user-friendly features.
Technical Specifications
-
Measurement Range Steel and Galvanized Steel0 to 5000 μm
-
Measurement Range Aluminum0 to 2000 μm
-
Measurement Accuracy 0-500 μm±5 μm
-
Measurement Accuracy 500-2000 μm±10 μm
-
Measurement Accuracy Above 2000 μm±100 μm
-
Measurement Resolution1 μm
-
Measurement ModeContinuous measurement with an 80 cm cable
-
Display Size2.2 inch
-
Battery LifeUp to 50 hours
-
Operating Temperature-20°C to +40°C
