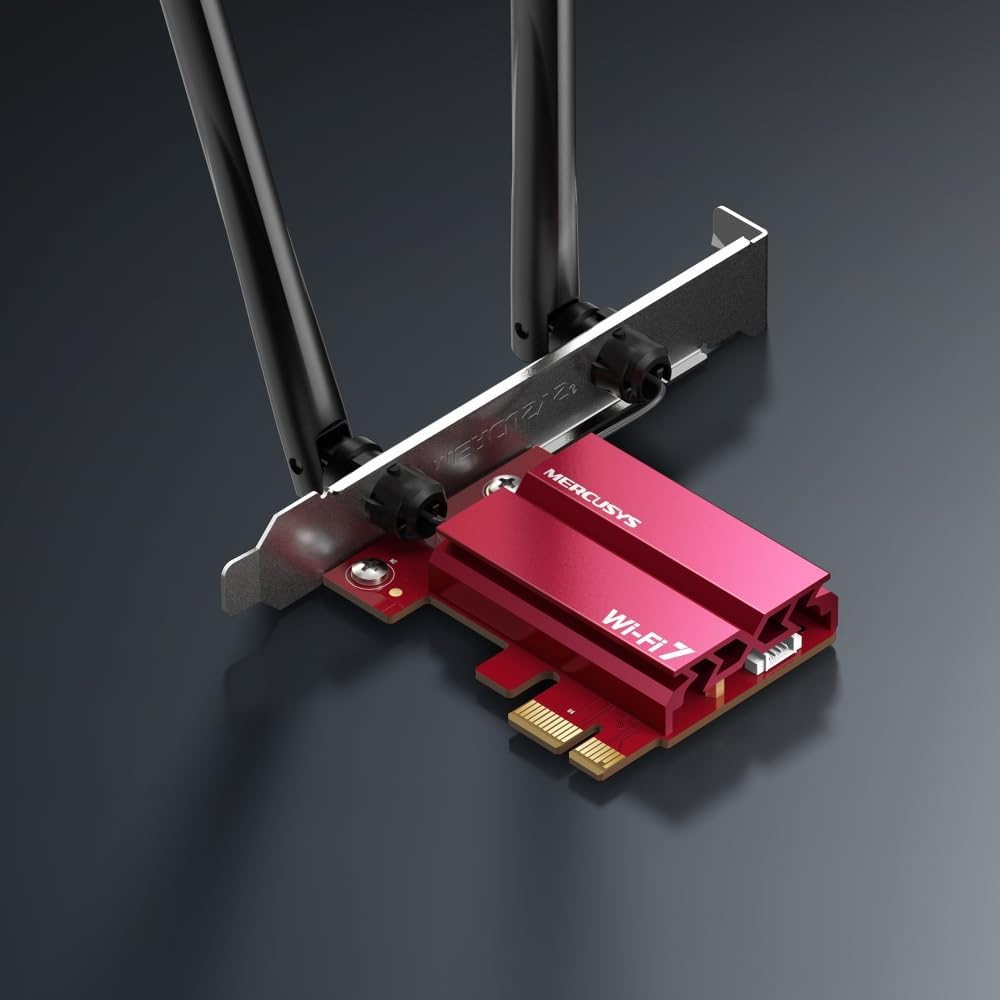

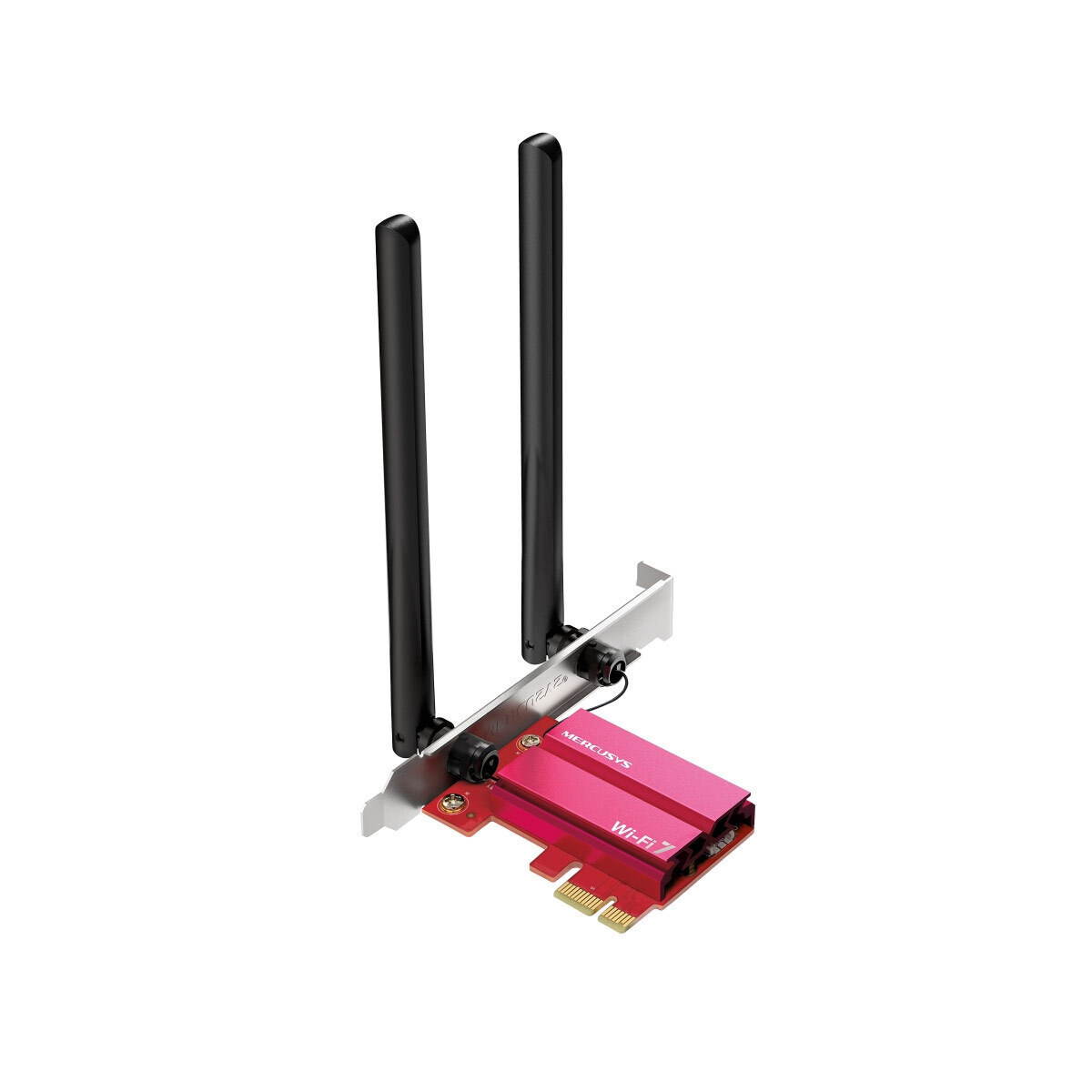

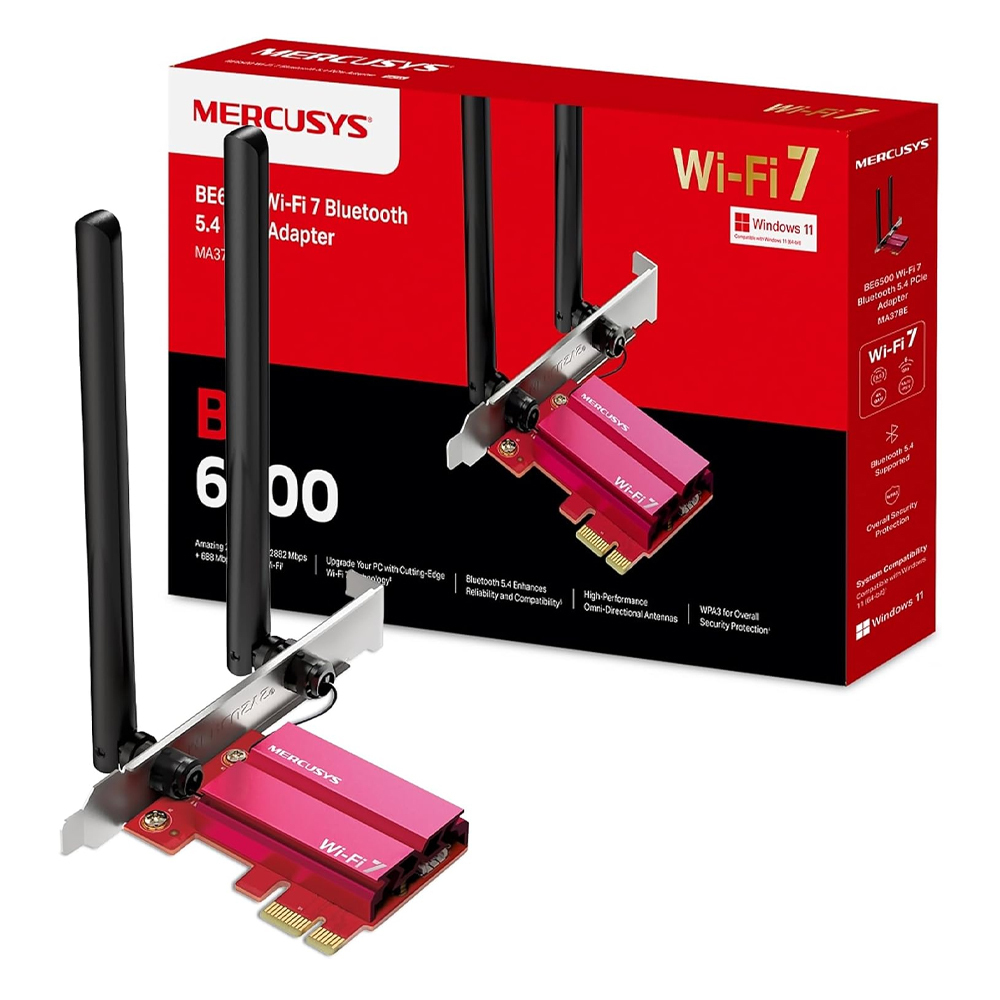

MERCUSYS PCIe Network Card MA37BE BE6500 WiFi 7 Bluetooth 5.4

Description

Technical Specifications

• Brand
  MERCUSYS
• Model
  MA37BE
• MPN
  MERCUSYS MA37BE BE6500
• SKU
  253-0049
• EAN
  6957939003197
• Product Type
  PCIe WiFi and Bluetooth Adapter
• Wireless Standard
  Wi-Fi 7 (IEEE 802.11 ax/be)
• Bands
  Tri-band 2.4 GHz / 5 GHz / 6 GHz
• Maximum Wi-Fi Speeds
  2882 Mbps at 6 GHz, 2882 Mbps at 5 GHz, 688 Mbps at 2.4 GHz
• Combined Wi-Fi Class
  BE6500
• Bluetooth Version
  Bluetooth 5.4
• Security
  WPA-PSK, WPA2-PSK, WPA3-SAE
• Antennas
  2 fixed external high-performance omnidirectional antennas
• Interface
  PCI Express
• Operating System Support
  Windows 11 64-bit
• Dimensions
  228 x 120.8 x 21.5 mm
• Operating Temperature
  0°C to 40°C
• Operating Humidity
  10% to 90% non-condensing
• Certifications
  FCC, CE, RoHS
• Compatible Standards 6 GHz
  IEEE 802.11 ax/be
• Compatible Standards 5 GHz
  IEEE 802.11 a/n/ac/ax/be
• Compatible Standards 2.4 GHz
  IEEE 802.11 b/g/n/ax/be
• Receiver Sensitivity 6 GHz
  11ax HE160 MCS0: -86 dBm; 11ax HE160 MCS11: -56 dBm
• Receiver Sensitivity 5 GHz
  11ax HE80 MCS0: -90 dBm; 11ax HE80 MCS11: -59 dBm; 11a 54Mbps: -77 dBm; 11ac VHT80 MCS0: -92 dBm; 11ac VHT80 MCS9: -64 dBm
• Receiver Sensitivity 2.4 GHz
  11ax HE40 MCS0: -91 dBm; 11ax HE40 MCS11: -60 dBm; 11g 54Mbps: -76 dBm; 11n HT40 MCS7: -72 dBm
• Included Accessories
  Bluetooth header cable, driver/software CD, quick installation guide
• Compatibility Note
  Not compatible with low-profile brackets due to fixed antennas
