The Mellanox MMA2P00-AS is a genuine NVIDIA/Mellanox SFP28 optical transceiver module for 25GbE short-range Ethernet connections over multimode fiber. It operates at a nominal wavelength of 850 nm and supports data rates up to 25 Gbps, with reach up to 100 m on OM4 MMF and 70 m on OM3 MMF at 25...
More

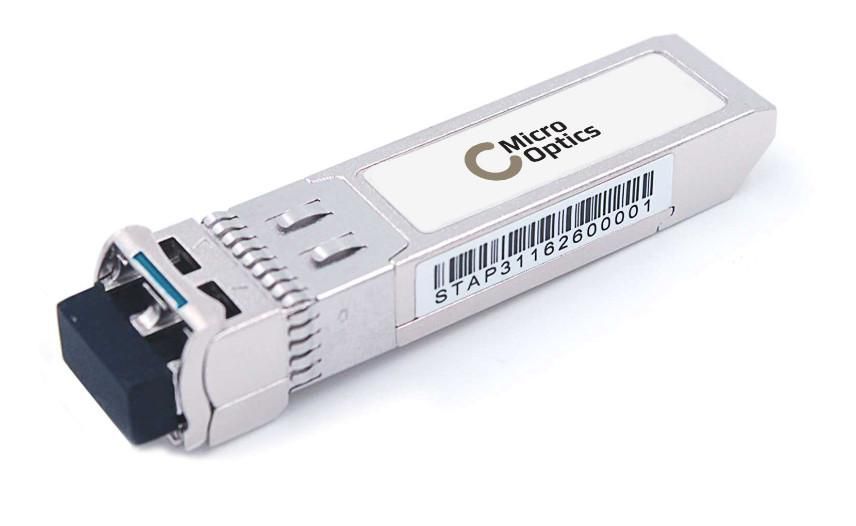

Mellanox Transceiver SFP28 MMA2P00-AS 850nm MMF
Product Code: 1200657515
Available in 4 - 10 days
75,29 €
or
2,35€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Mellanox MMA2P00-AS is a genuine NVIDIA/Mellanox SFP28 optical transceiver module for 25GbE short-range Ethernet connections over multimode fiber. It operates at a nominal wavelength of 850 nm and supports data rates up to 25 Gbps, with reach up to 100 m on OM4 MMF and 70 m on OM3 MMF at 25 Gb/s, and up to 100 m on OM3 at 10 Gb/s. This hot-pluggable transceiver is compliant with IEEE 802.3bm, 10GBASE-SR/25GBASE-SR, and SFP28 MSA standards. It includes digital diagnostic monitoring over I2C (temperature, voltage, optical power), selectable Tx/Rx retiming, programmable equalization and emphasis controls, a VCSEL transmitter, PIN receiver, and Class 1 laser safety. The module uses a duplex LC/UPC optical connector, runs on 3.3 V power, and has low power consumption under 1 W. It is designed for reliable high-performance networking in data centers and enterprise Ethernet environments.
-
BrandMellanox
-
ManufacturerNVIDIA Networking
-
ModelMMA2P00-AS
-
SKUMO-MMA2P00-AS
-
MPNMO-MMA2P00-AS
-
EAN5704174011040
-
Product TypeSFP28 optical transceiver module
-
Network Type25GbE Ethernet
-
Form FactorSFP28
-
Optical Standard25GBASE-SR
-
Wavelength850 nm
-
Fiber TypeMultimode fiber (MMF)
-
Supported Fiber GradesOM3, OM4
-
Maximum Distance100 m on OM4 at 25 Gb/s; 70 m on OM3 at 25 Gb/s; 100 m on OM3 at 10 Gb/s
-
Connector TypeDuplex LC/UPC
-
Data RateUp to 25 Gbps
-
Backward Compatibility10 Gbps support
-
Transmitter TypeVCSEL
-
Receiver TypePIN
-
Tx Output Power-8.4 to 2.4 dBm
-
Receiver SensitivityLess than -10.3 dBm
-
Receiver Overload2.4 dBm
-
Power Supply3.3 V
-
Power ConsumptionLess than 1 W
-
Operating Temperature0 to 70°C
-
Hot PluggableYes
-
Digital Diagnostics MonitoringYes, via I2C / SFF-8472
-
RetimingSelectable Tx and Rx retiming
-
ComplianceIEEE 802.3bm, SFP28 MSA, SFF-8402, SFF-8472
-
Laser SafetyClass 1
-
RoHSCompliant
-
BER1E-12
-
MaterialMetal and plastic transceiver housing
-
ColorSilver metal body with pull tab label
Ratings
Description
The Mellanox MMA2P00-AS is a genuine NVIDIA/Mellanox SFP28 optical transceiver module for 25GbE short-range Ethernet connections over multimode fiber. It operates at a nominal wavelength of 850 nm and supports data rates up to 25 Gbps, with reach up to 100 m on OM4 MMF and 70 m on OM3 MMF at 25 Gb/s, and up to 100 m on OM3 at 10 Gb/s. This hot-pluggable transceiver is compliant with IEEE 802.3bm, 10GBASE-SR/25GBASE-SR, and SFP28 MSA standards. It includes digital diagnostic monitoring over I2C (temperature, voltage, optical power), selectable Tx/Rx retiming, programmable equalization and emphasis controls, a VCSEL transmitter, PIN receiver, and Class 1 laser safety. The module uses a duplex LC/UPC optical connector, runs on 3.3 V power, and has low power consumption under 1 W. It is designed for reliable high-performance networking in data centers and enterprise Ethernet environments.
Technical Specifications
-
BrandMellanox
-
ManufacturerNVIDIA Networking
-
ModelMMA2P00-AS
-
SKUMO-MMA2P00-AS
-
MPNMO-MMA2P00-AS
-
EAN5704174011040
-
Product TypeSFP28 optical transceiver module
-
Network Type25GbE Ethernet
-
Form FactorSFP28
-
Optical Standard25GBASE-SR
-
Wavelength850 nm
-
Fiber TypeMultimode fiber (MMF)
-
Supported Fiber GradesOM3, OM4
-
Maximum Distance100 m on OM4 at 25 Gb/s; 70 m on OM3 at 25 Gb/s; 100 m on OM3 at 10 Gb/s
-
Connector TypeDuplex LC/UPC
-
Data RateUp to 25 Gbps
-
Backward Compatibility10 Gbps support
-
Transmitter TypeVCSEL
-
Receiver TypePIN
-
Tx Output Power-8.4 to 2.4 dBm
-
Receiver SensitivityLess than -10.3 dBm
-
Receiver Overload2.4 dBm
-
Power Supply3.3 V
-
Power ConsumptionLess than 1 W
-
Operating Temperature0 to 70°C
-
Hot PluggableYes
-
Digital Diagnostics MonitoringYes, via I2C / SFF-8472
-
RetimingSelectable Tx and Rx retiming
-
ComplianceIEEE 802.3bm, SFP28 MSA, SFF-8402, SFF-8472
-
Laser SafetyClass 1
-
RoHSCompliant
-
BER1E-12
-
MaterialMetal and plastic transceiver housing
-
ColorSilver metal body with pull tab label
