The MEGASAT Flachantenne D2 Profi-Line is a flat-panel satellite antenna with an integrated, replaceable Twin-LNB for digital satellite TV and radio reception. It supports up to two independent receivers (two LNB outputs). Key RF specs: input frequency 10.7–12.75 GHz, antenna gain 33 dBi (at 12.75...
More
MEGASAT Flachantenne D2 Profi-Line
Product Code: 1117796659
Upon Order
279,91 €
or
8,74€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

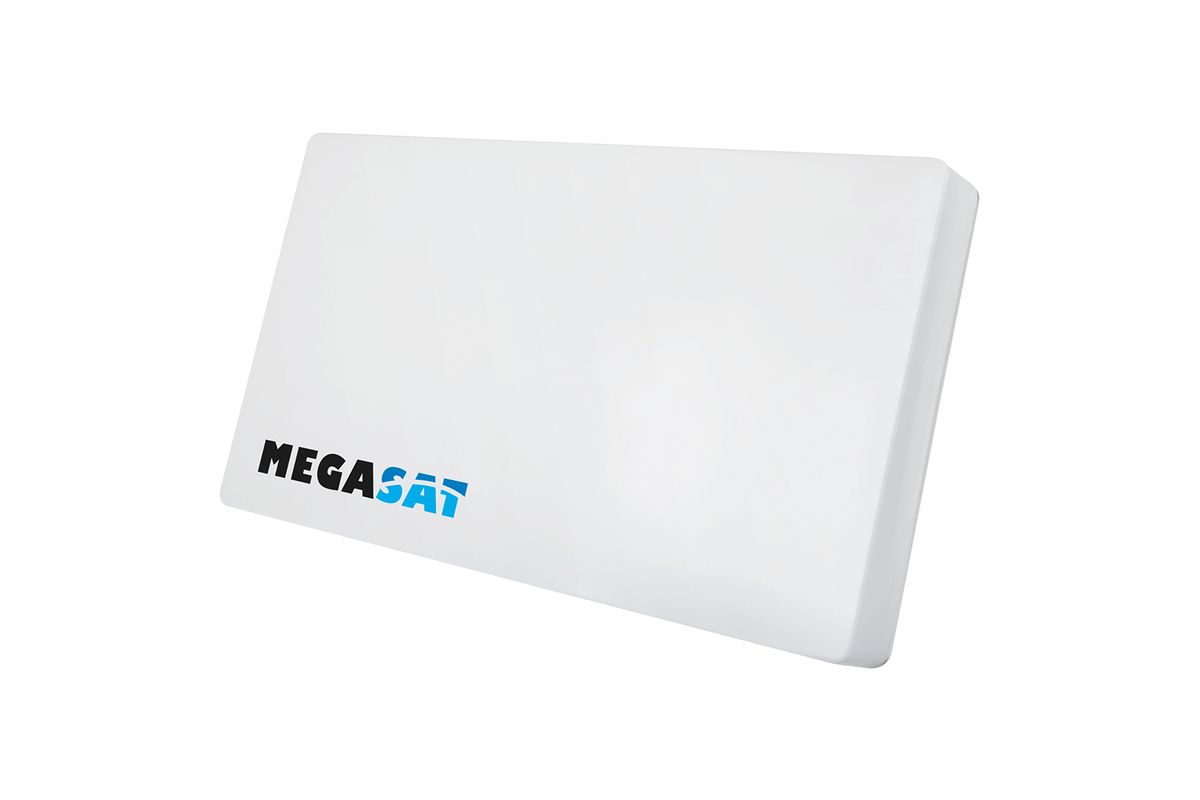

The MEGASAT Flachantenne D2 Profi-Line is a flat-panel satellite antenna with an integrated, replaceable Twin-LNB for digital satellite TV and radio reception. It supports up to two independent receivers (two LNB outputs). Key RF specs: input frequency 10.7–12.75 GHz, antenna gain 33 dBi (at 12.75 GHz), LNB output range 950–1,950 MHz (lower LO 9.75 GHz) and 1,100–2,150 MHz (upper LO 10.6 GHz). Physical dimensions approx. 525 × 290 × 145 mm with LNB (reflector only 525 × 290 × 68 mm). Product weight ~3.6 kg; packaged dimensions ~57 × 42.5 × 9.5 cm, packaged weight ~6 kg. Color: white. Material: plastic housing. Operating temperature range: −20 °C to +60 °C. Replaceable LNB, suitable for multiple mounting options.
-
BrandMegasat
-
ModelD2 Profi-Line
-
SKU / Item number560036
-
Manufacturer Part Number (MPN)200211
-
EAN / Barcode4046173107746
-
Product categoryFlat satellite antenna (flat-panel satellite dish with LNB)
-
Antenna typeFlat-panel satellite antenna
-
LNB configurationTwin-LNB (2 outputs)
-

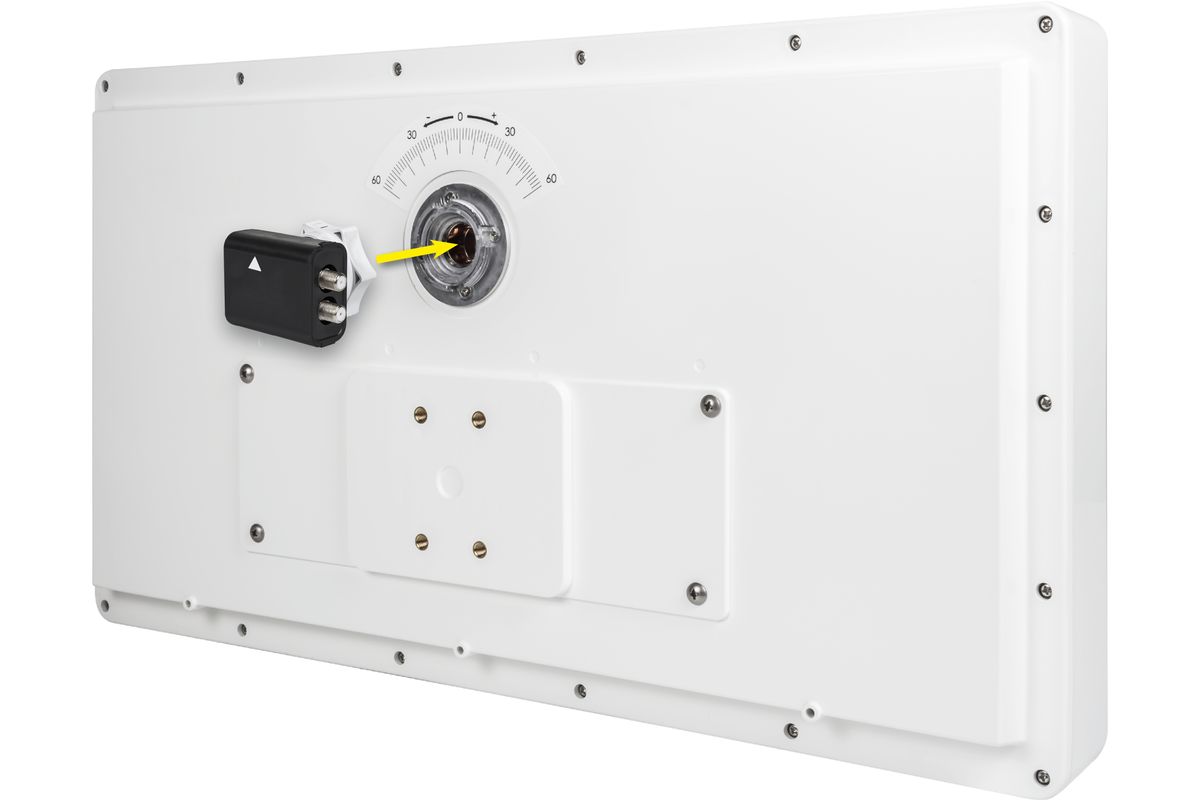

LNB replaceableYes
-
Maximum users2 participants / 2 receivers
-
Intended useDigital satellite television and radio reception
-
Input frequency range10.7–12.75 GHz
-
PolarizationLinear (vertical and horizontal)
-
Antenna gain33 dBi @ 12.75 GHz
-
LNB output frequency range950–1,950 MHz / 1,100–2,150 MHz
-
Local oscillator frequencies9.75 GHz / 10.6 GHz
-
LNB gainmin 55 dB, max 66 dB
-
Gain flatness~0.5 dB (manufacturer listing; some sources vary)
-
LNB supply voltage (vertical)12–14 V DC
-
LNB supply voltage (horizontal)16–19 V DC
-
Maximum current consumption160 mA
-
Product dimensions (with LNB)525 × 290 × 145 mm
-
Reflector dimensions (without LNB)525 × 290 × 68 mm
-
Product weight (approx)3600 g
-
Packaging dimensions570 × 425 × 95 mm
-
Package weight (approx)6000 g
-
MaterialPlastic housing
-
ColorWhite
-

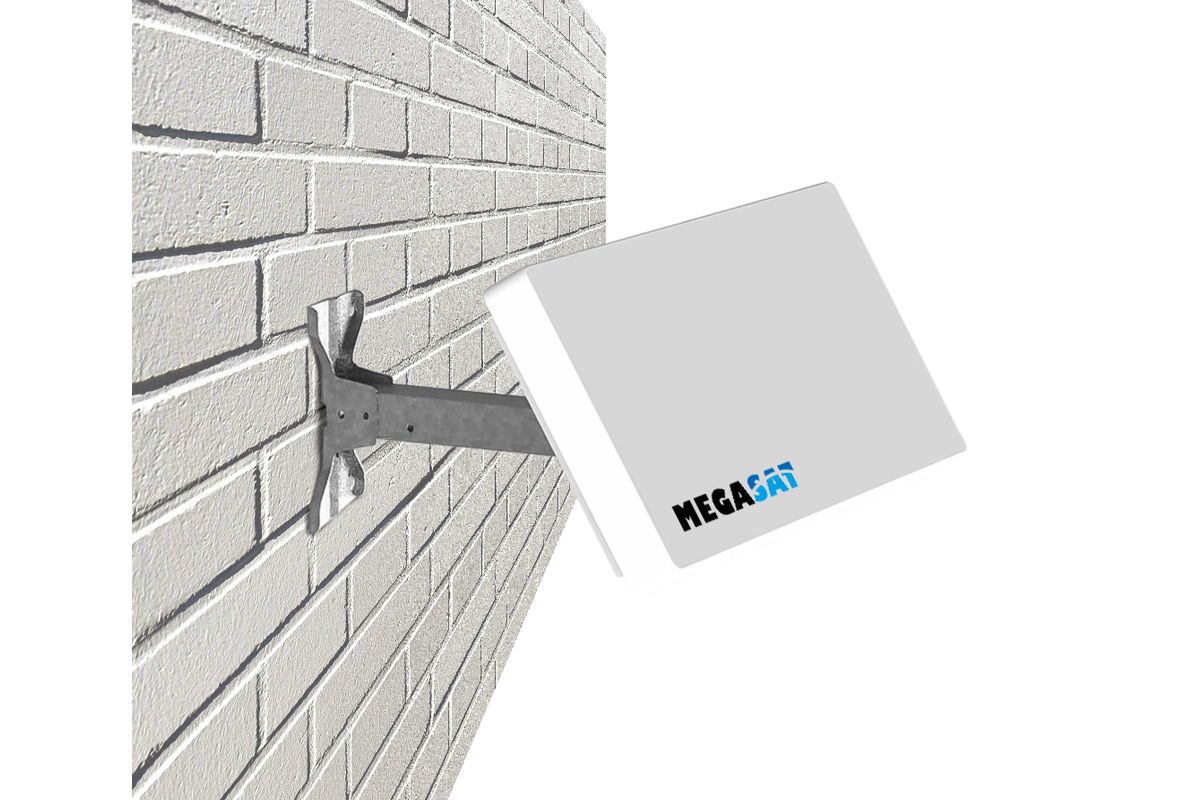

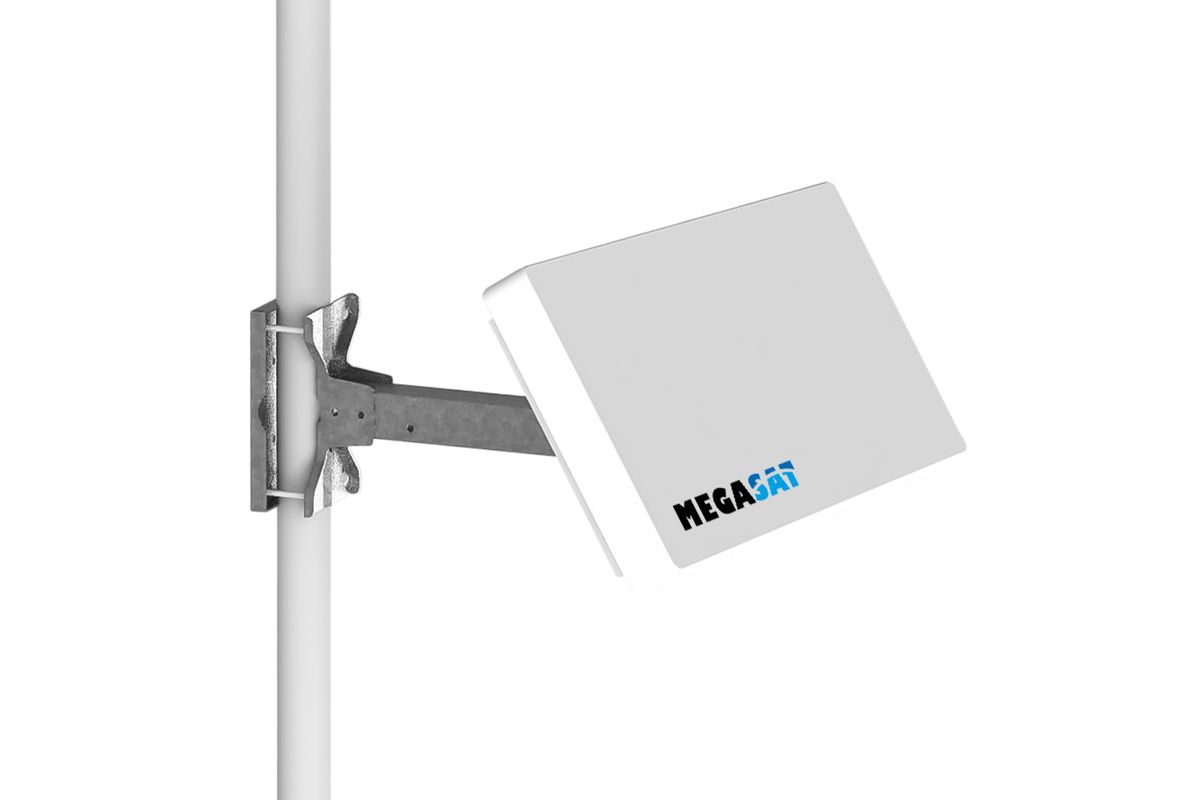

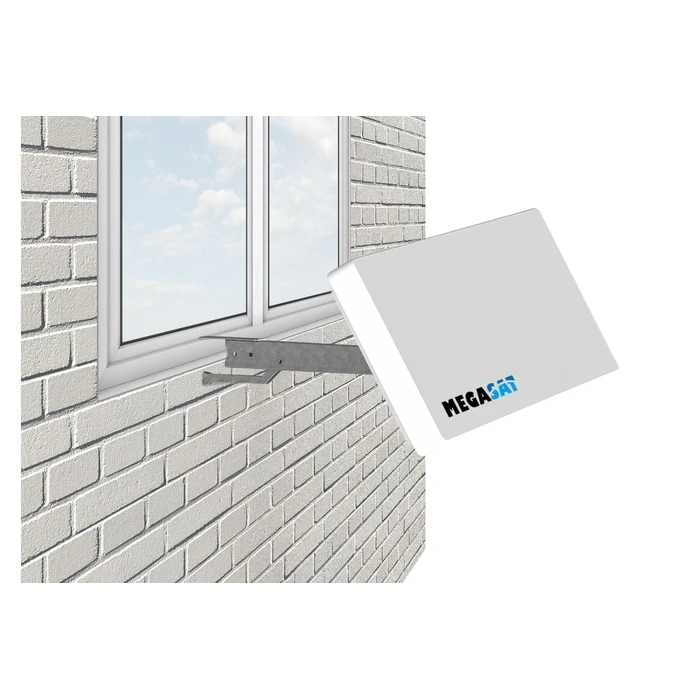

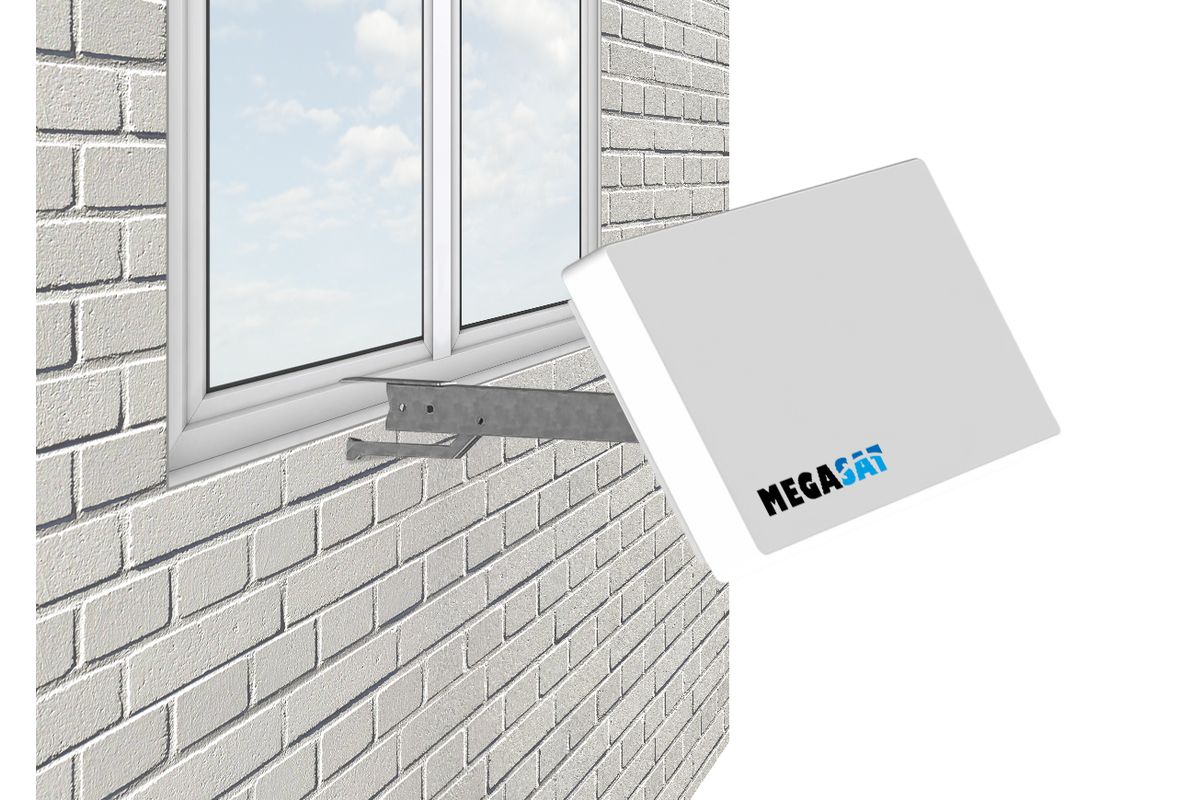

MountingVarious mounting options (suitable for different mounting configurations)
-
Operating temperature range−20 °C to +60 °C
-
Storage temperature range−40 °C to +80 °C
Ratings
Description
The MEGASAT Flachantenne D2 Profi-Line is a flat-panel satellite antenna with an integrated, replaceable Twin-LNB for digital satellite TV and radio reception. It supports up to two independent receivers (two LNB outputs). Key RF specs: input frequency 10.7–12.75 GHz, antenna gain 33 dBi (at 12.75 GHz), LNB output range 950–1,950 MHz (lower LO 9.75 GHz) and 1,100–2,150 MHz (upper LO 10.6 GHz). Physical dimensions approx. 525 × 290 × 145 mm with LNB (reflector only 525 × 290 × 68 mm). Product weight ~3.6 kg; packaged dimensions ~57 × 42.5 × 9.5 cm, packaged weight ~6 kg. Color: white. Material: plastic housing. Operating temperature range: −20 °C to +60 °C. Replaceable LNB, suitable for multiple mounting options.
Technical Specifications
-
BrandMegasat
-
ModelD2 Profi-Line
-
SKU / Item number560036
-
Manufacturer Part Number (MPN)200211
-
EAN / Barcode4046173107746
-
Product categoryFlat satellite antenna (flat-panel satellite dish with LNB)
-
Antenna typeFlat-panel satellite antenna
-
LNB configurationTwin-LNB (2 outputs)
-
LNB replaceableYes
-
Maximum users2 participants / 2 receivers
-
Intended useDigital satellite television and radio reception
-
Input frequency range10.7–12.75 GHz
-
PolarizationLinear (vertical and horizontal)
-
Antenna gain33 dBi @ 12.75 GHz
-
LNB output frequency range950–1,950 MHz / 1,100–2,150 MHz
-
Local oscillator frequencies9.75 GHz / 10.6 GHz
-
LNB gainmin 55 dB, max 66 dB
-
Gain flatness~0.5 dB (manufacturer listing; some sources vary)
-
LNB supply voltage (vertical)12–14 V DC
-
LNB supply voltage (horizontal)16–19 V DC
-
Maximum current consumption160 mA
-
Product dimensions (with LNB)525 × 290 × 145 mm
-
Reflector dimensions (without LNB)525 × 290 × 68 mm
-
Product weight (approx)3600 g
-
Packaging dimensions570 × 425 × 95 mm
-
Package weight (approx)6000 g
-
MaterialPlastic housing
-
ColorWhite
-
MountingVarious mounting options (suitable for different mounting configurations)
-
Operating temperature range−20 °C to +60 °C
-
Storage temperature range−40 °C to +80 °C
