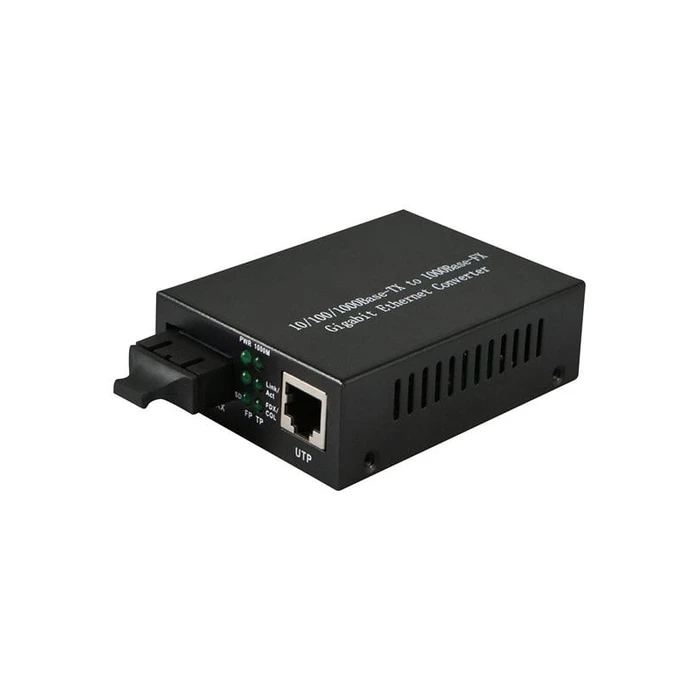

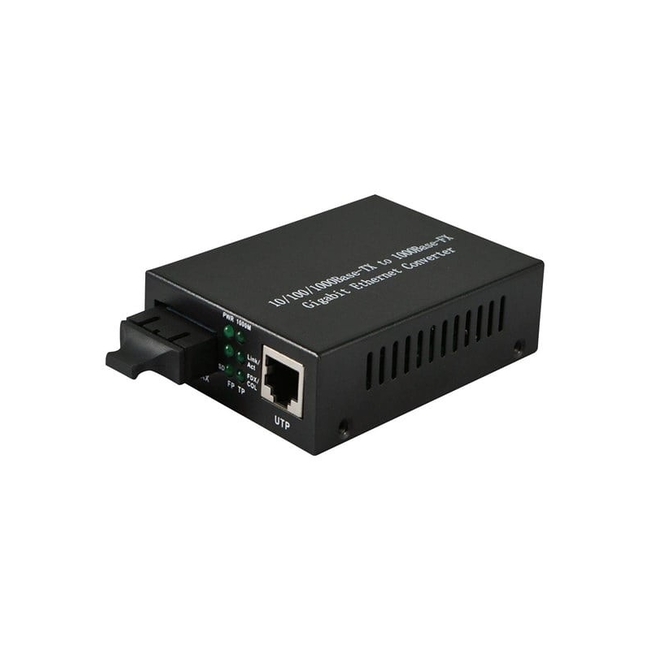

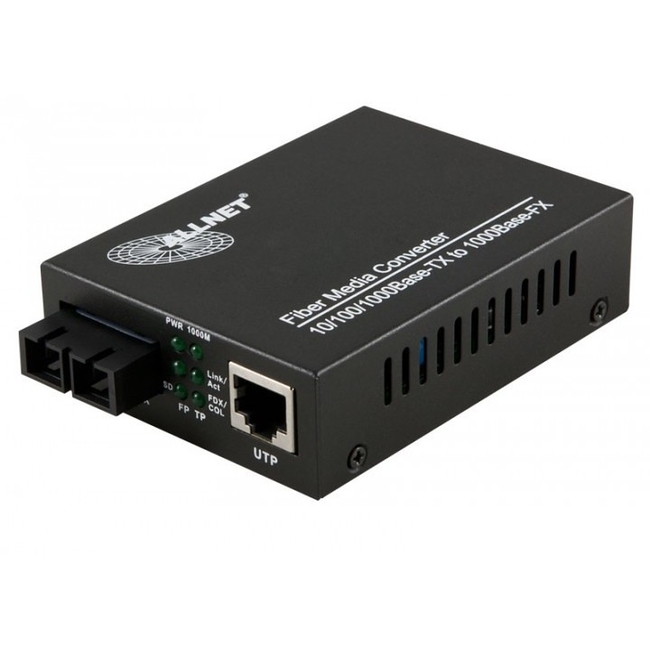

Media Converter Allnet 10/100/1000BASE-T to 1000BASE-LX SC 10km ALL-MC105G-SC-SM
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Transceiver TP-Link ISM311LM network Fiber optic 1.25 Mbit/s SFP 850 nm
Converter TP-Link Omada MC211CS-2 network media 1000 Mbit/s 1310 nm Single-mode Black
Converter TP-Link Omada MC212CS-2 network media 1000 Mbit/s 1550 nm Single-mode Black
Converter Planet 4-Port 1G Ethernet PoE to VDSL2 Extender IVC-234GPT
Converter Planet 10/100TX - 100Base-FX (SC) Single Mode Bridge Fiber
The ALLNET ALL-MC105G-SC-SM is a versatile media converter that effectively bridges Ethernet networks using both copper and fiber optic cables. This device is engineered for high-speed data transmission, making it ideal for long-distance connectivity requirements.
Key Features:
- Ethernet Ports: One 10/100/1000BaseT Ethernet TP Port and one 1000BaseLX Ethernet Fiber Port.
- Half/Full-Duplex Modes: Auto-MDI/MDI-X and Auto-Negotiation capabilities facilitate seamless integration.
- Long Distance Support: The fiber optic port supports up to 10 kilometers transmission using SC connectors.
Standards Compliance: The device complies with various IEEE standards including:
- IEEE 802.3 10BaseT
- IEEE 802.3u 100BaseTX
- IEEE 802.3ab 1000BaseT
- IEEE 802.3z 1000BaseLX
- IEEE 802.3x Flow Control for reliable data transmission.
Data Transfer Rates: Supports up to 1 Gbps on copper and fiber ports.
Power and Indicators: The converter requires a DC 5V/2A external power supply and features LED indicators for Power, Link, and TX/RX status.
Overall, the ALL-MC105G-SC-SM ensures robust and speedy connectivity, suitable for a range of industrial and commercial applications.
-
Ethernet TP Port10/100/1000BaseT
-
Ethernet Fiber Port1000BaseLX
-
Transmission Distance (Copper Port)100 meters
-
Transmission Distance (Fiber Port)10 kilometers
-
Data Transfer Rates1 Gbps
-
Power SupplyDC 5V/2A
-
Power Consumption3 Watts
-
Dimensions94 ? 71 ? 26 mm
-
Weight230 grams
-
Operating Temperature0°C to 50°C
-
Operating Humidity10% to 90% (non-condensing)
-
Storage Temperature-20°C to 70°C
-
Storage Humidity10% to 90% (non-condensing)
-
CertificationsCE standards
Ratings
Description
The ALLNET ALL-MC105G-SC-SM is a versatile media converter that effectively bridges Ethernet networks using both copper and fiber optic cables. This device is engineered for high-speed data transmission, making it ideal for long-distance connectivity requirements.
Key Features:
- Ethernet Ports: One 10/100/1000BaseT Ethernet TP Port and one 1000BaseLX Ethernet Fiber Port.
- Half/Full-Duplex Modes: Auto-MDI/MDI-X and Auto-Negotiation capabilities facilitate seamless integration.
- Long Distance Support: The fiber optic port supports up to 10 kilometers transmission using SC connectors.
Standards Compliance: The device complies with various IEEE standards including:
- IEEE 802.3 10BaseT
- IEEE 802.3u 100BaseTX
- IEEE 802.3ab 1000BaseT
- IEEE 802.3z 1000BaseLX
- IEEE 802.3x Flow Control for reliable data transmission.
Data Transfer Rates: Supports up to 1 Gbps on copper and fiber ports.
Power and Indicators: The converter requires a DC 5V/2A external power supply and features LED indicators for Power, Link, and TX/RX status.
Overall, the ALL-MC105G-SC-SM ensures robust and speedy connectivity, suitable for a range of industrial and commercial applications.
Technical Specifications
-
Ethernet TP Port10/100/1000BaseT
-
Ethernet Fiber Port1000BaseLX
-
Transmission Distance (Copper Port)100 meters
-
Transmission Distance (Fiber Port)10 kilometers
-
Data Transfer Rates1 Gbps
-
Power SupplyDC 5V/2A
-
Power Consumption3 Watts
-
Dimensions94 ? 71 ? 26 mm
-
Weight230 grams
-
Operating Temperature0°C to 50°C
-
Operating Humidity10% to 90% (non-condensing)
-
Storage Temperature-20°C to 70°C
-
Storage Humidity10% to 90% (non-condensing)
-
CertificationsCE standards
