The Mean Well NDR-75-12 is an industrial AC-DC DIN-rail switching power supply (single output) rated 12 V DC, 6.3 A (75.6 W). It accepts 90–264 VAC universal input, 50/60 Hz, features a metal enclosure, fanless convection cooling, and DIN-rail (TS-35) mounting. Protections include short-circuit,...
More

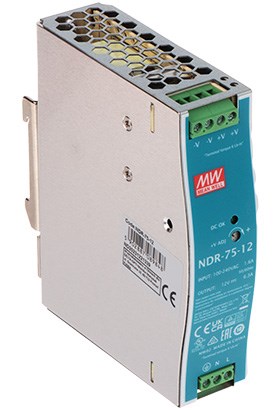

Mean Well NDR-75-12 AC-DC DIN-rail Power Supply, 12V 6.3A (75.6W)
Product Code: 1127731923
Upon Order
43,67 €
or
1,36€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 132 Loyalty Points
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Mean Well NDR-75-12 is an industrial AC-DC DIN-rail switching power supply (single output) rated 12 V DC, 6.3 A (75.6 W). It accepts 90–264 VAC universal input, 50/60 Hz, features a metal enclosure, fanless convection cooling, and DIN-rail (TS-35) mounting. Protections include short-circuit, overload, over-voltage and over-temperature. Typical efficiency ~85.5%, ripple & noise 80 mVp-p, voltage tolerance ±2%. Operating temperature range -20°C to +70°C. Official technical datasheet, images and certifications available from Mean Well and authorized distributors.
-
BrandMean Well
-
Model / MPNNDR-75-12
-
SeriesNDR-75
-
CategoryAC-DC DIN-rail switching power supply
-
Input Voltage90–264 VAC (universal)
-
Input Frequency50/60 Hz
-
Output Voltage12 V DC
-
Output Voltage Adjustable12–14 V DC (adjustable)
-
Output Current6.3 A
-
Output Power75.6 W (commonly listed as 75 W)
-
Efficiency~85.5% typical
-
Ripple and Noise80 mVp-p
-
Voltage Tolerance±2.0%
-
ProtectionsShort-circuit, Overload, Over-voltage, Over-temperature (and brown-out listed by some distributors)
-
CoolingFree air convection (fanless)
-
MountingDIN-rail (TS-35)
-
Enclosure MaterialMetal
-
Dimensions (manufacturer listings)~125.2 × 102 × 35 mm (alternative listings show variations/orientations)
-
Weight~500 g
-
Operating Temperature-20°C to +70°C
-
Certifications / ApprovalsCB, CE, TUV, UL (listed by some distributors)
-
IP RatingNo IP rating listed on some product pages
-
Warranty12 months bring-in (listed by some distributors)
-
Package TypeDIN-rail mounting packaging
-
Typical ApplicationsAlarm systems, network and security systems, industrial control
Ratings
Description
The Mean Well NDR-75-12 is an industrial AC-DC DIN-rail switching power supply (single output) rated 12 V DC, 6.3 A (75.6 W). It accepts 90–264 VAC universal input, 50/60 Hz, features a metal enclosure, fanless convection cooling, and DIN-rail (TS-35) mounting. Protections include short-circuit, overload, over-voltage and over-temperature. Typical efficiency ~85.5%, ripple & noise 80 mVp-p, voltage tolerance ±2%. Operating temperature range -20°C to +70°C. Official technical datasheet, images and certifications available from Mean Well and authorized distributors.
Technical Specifications
-
BrandMean Well
-
Model / MPNNDR-75-12
-
SeriesNDR-75
-
CategoryAC-DC DIN-rail switching power supply
-
Input Voltage90–264 VAC (universal)
-
Input Frequency50/60 Hz
-
Output Voltage12 V DC
-
Output Voltage Adjustable12–14 V DC (adjustable)
-
Output Current6.3 A
-
Output Power75.6 W (commonly listed as 75 W)
-
Efficiency~85.5% typical
-
Ripple and Noise80 mVp-p
-
Voltage Tolerance±2.0%
-
ProtectionsShort-circuit, Overload, Over-voltage, Over-temperature (and brown-out listed by some distributors)
-
CoolingFree air convection (fanless)
-
MountingDIN-rail (TS-35)
-
Enclosure MaterialMetal
-
Dimensions (manufacturer listings)~125.2 × 102 × 35 mm (alternative listings show variations/orientations)
-
Weight~500 g
-
Operating Temperature-20°C to +70°C
-
Certifications / ApprovalsCB, CE, TUV, UL (listed by some distributors)
-
IP RatingNo IP rating listed on some product pages
-
Warranty12 months bring-in (listed by some distributors)
-
Package TypeDIN-rail mounting packaging
-
Typical ApplicationsAlarm systems, network and security systems, industrial control
