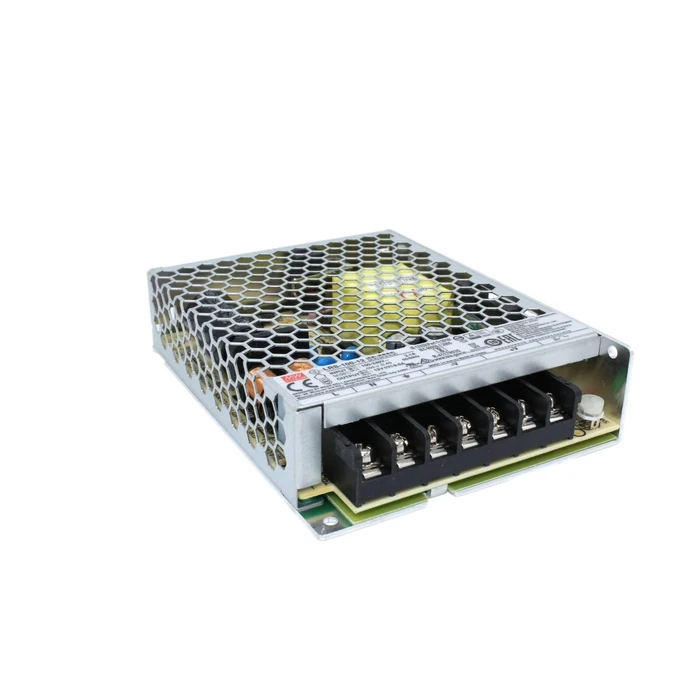

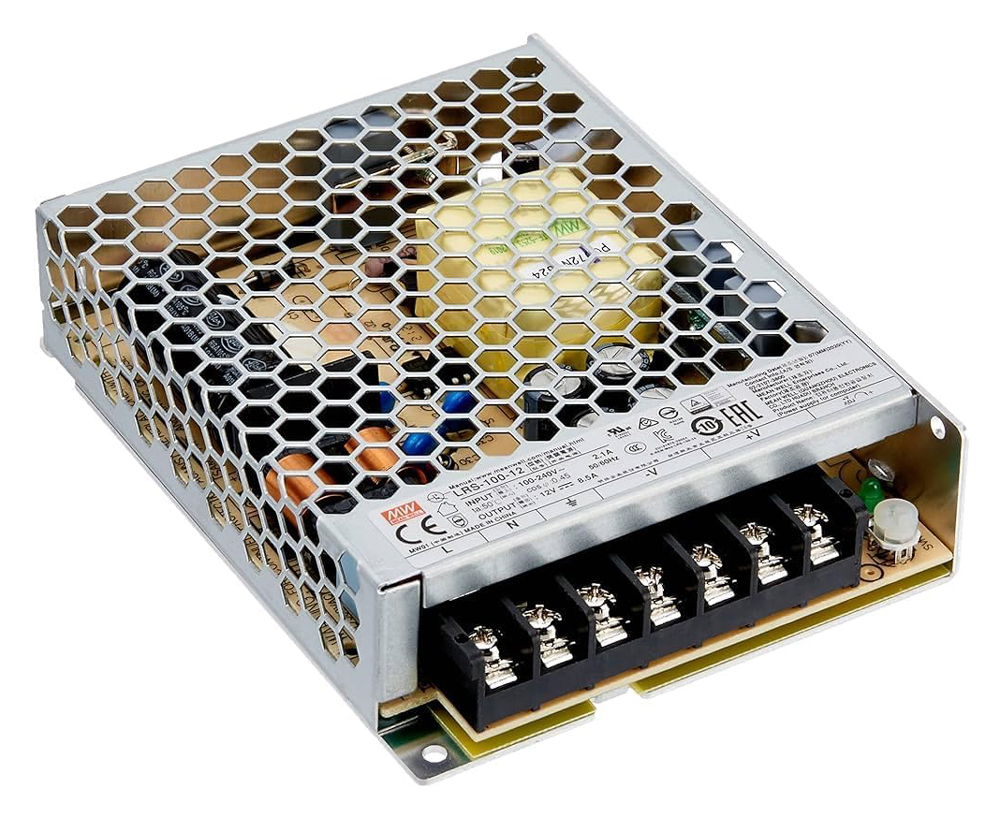

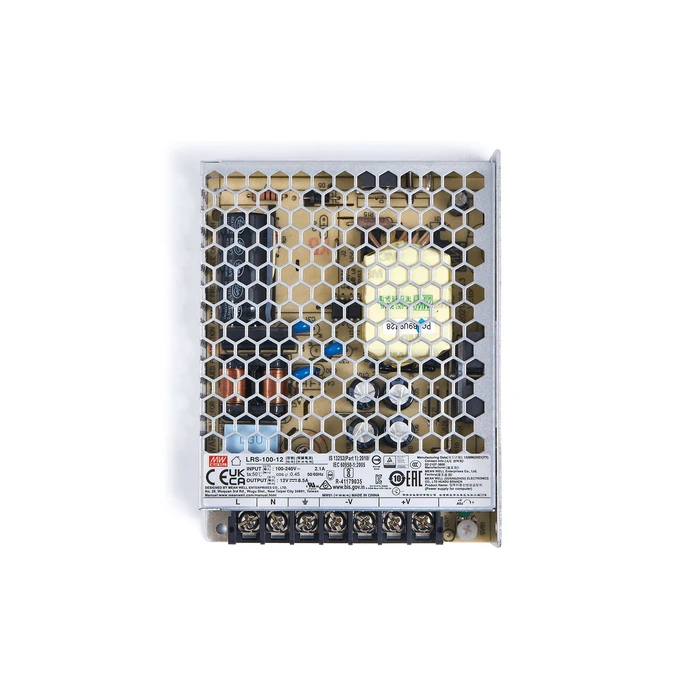

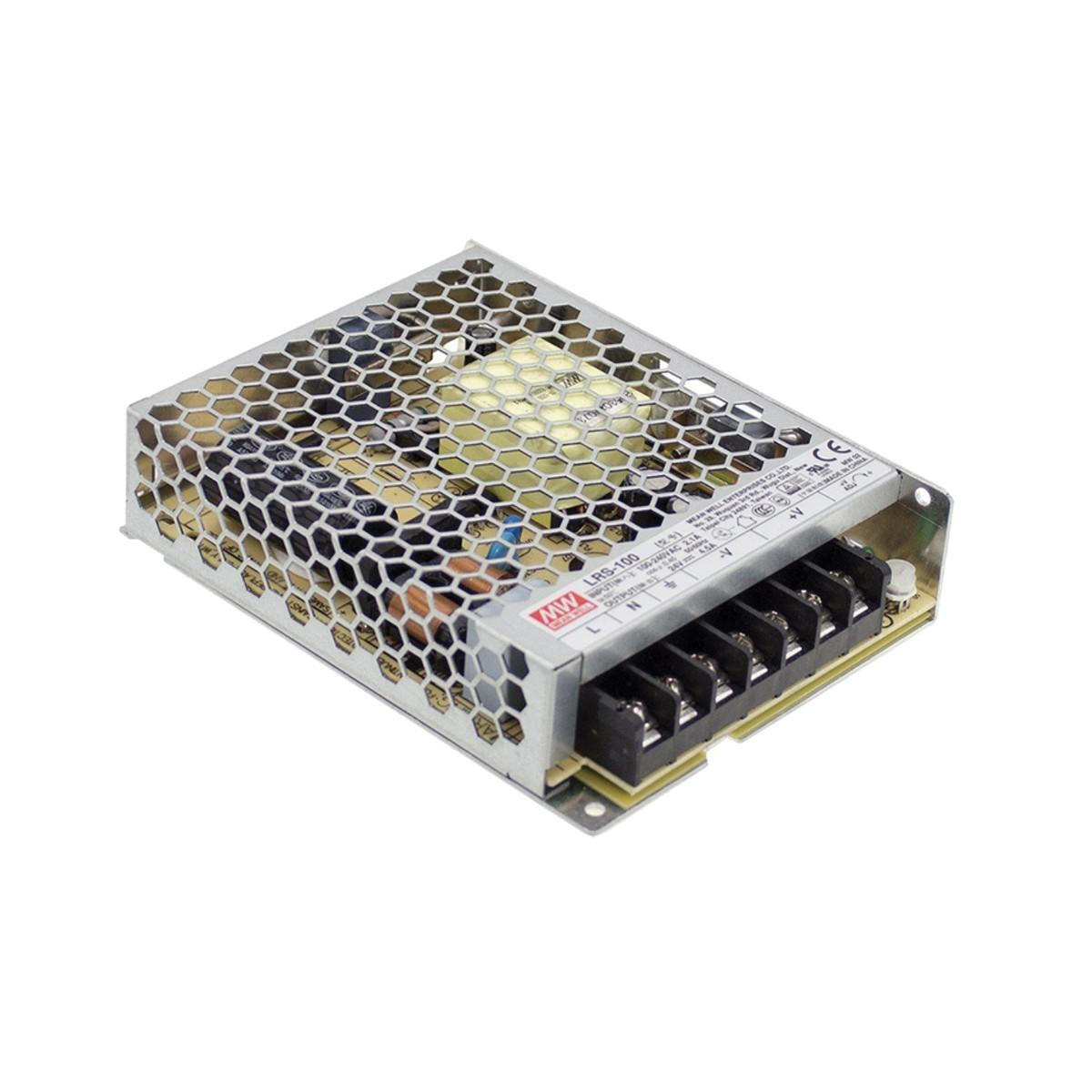

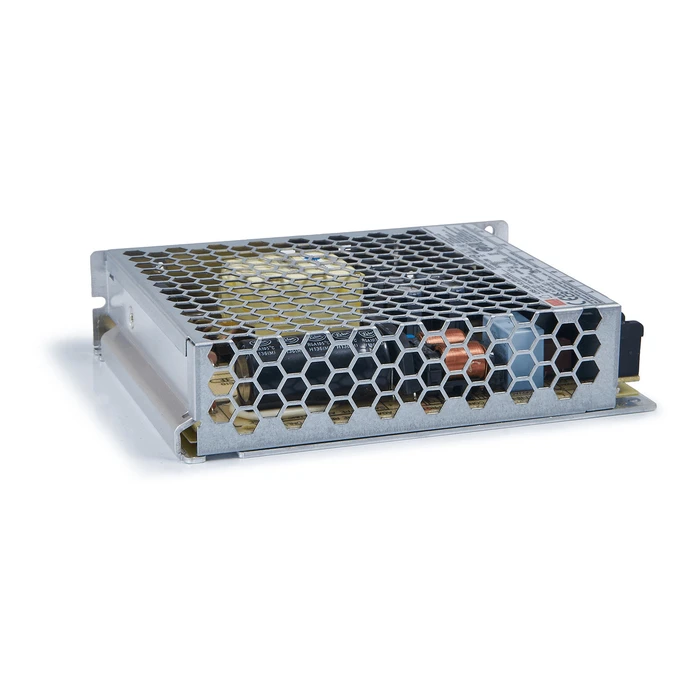

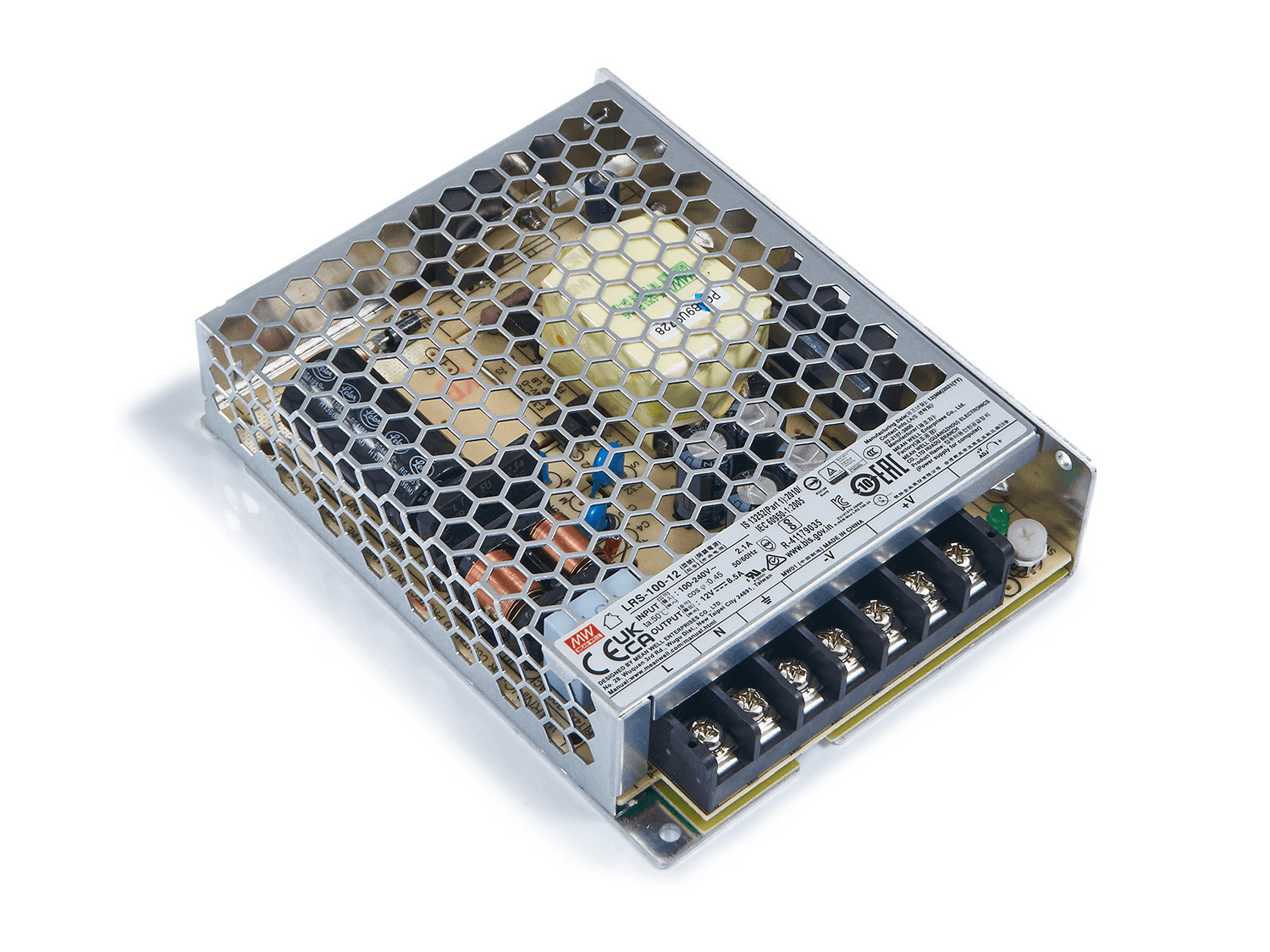

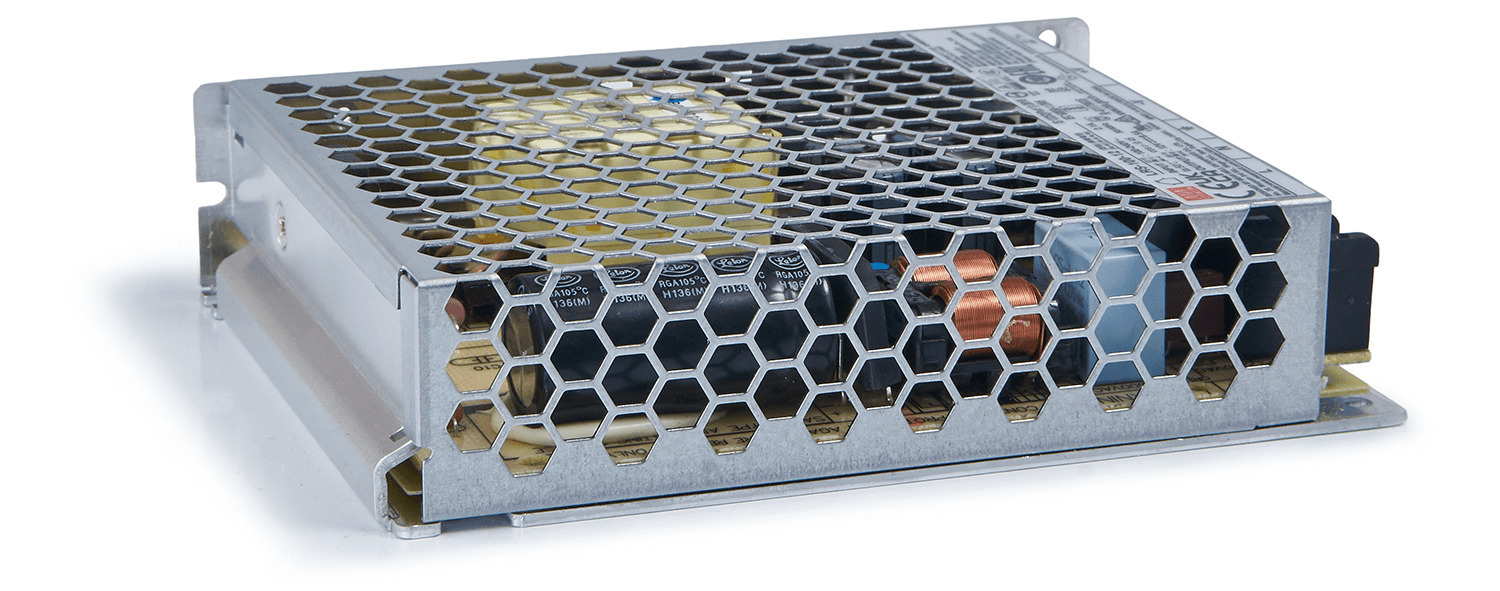

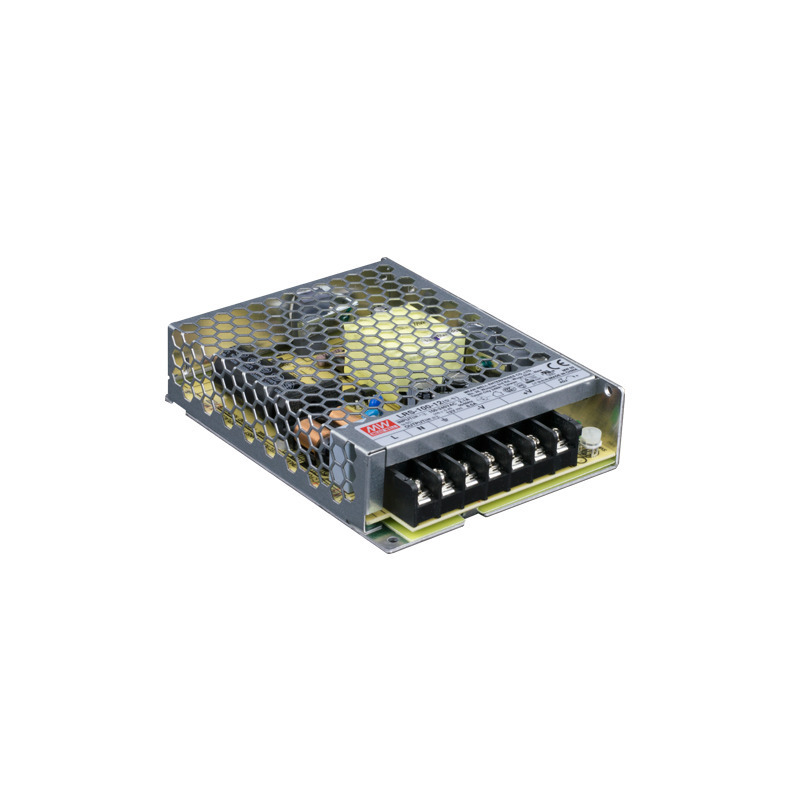

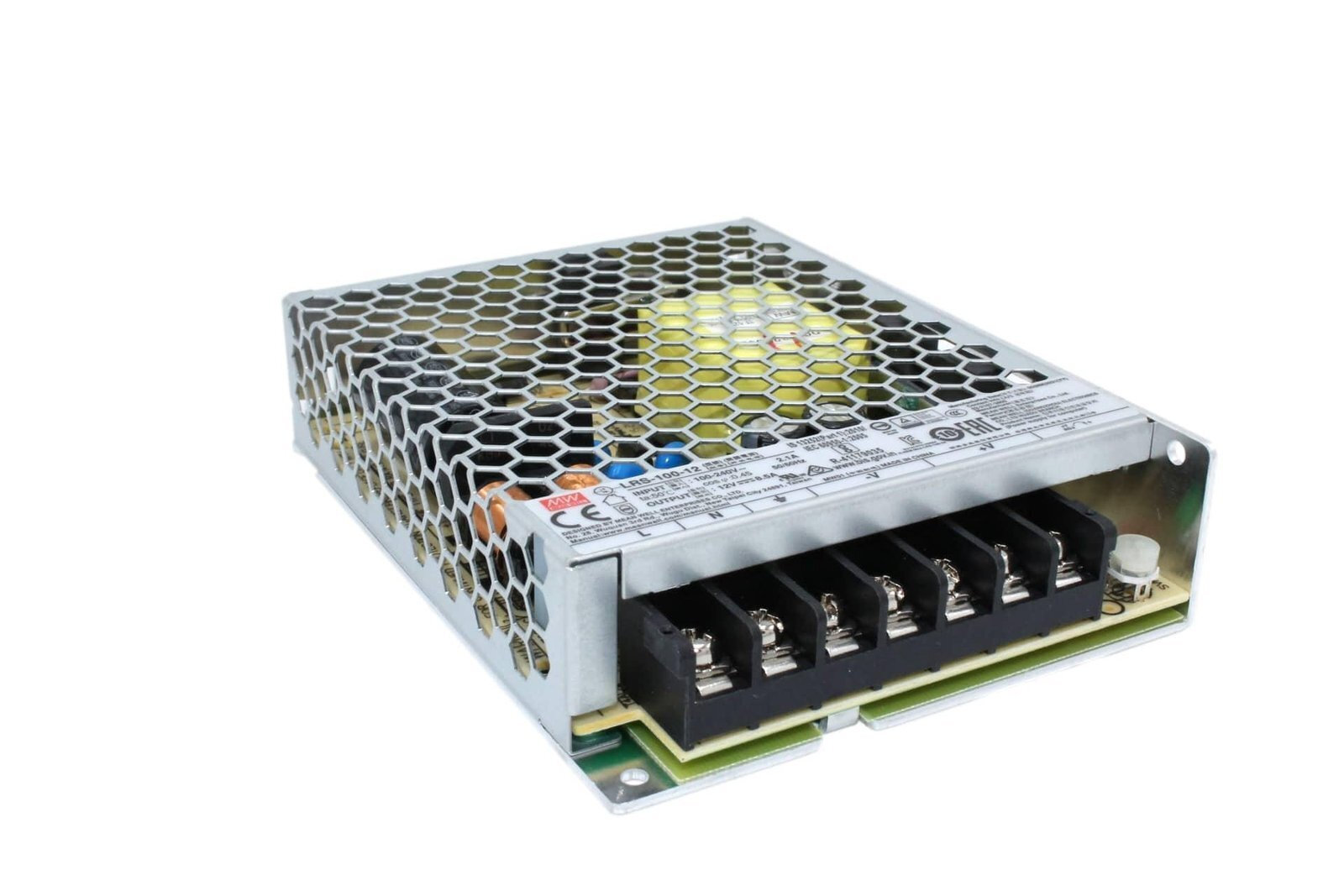

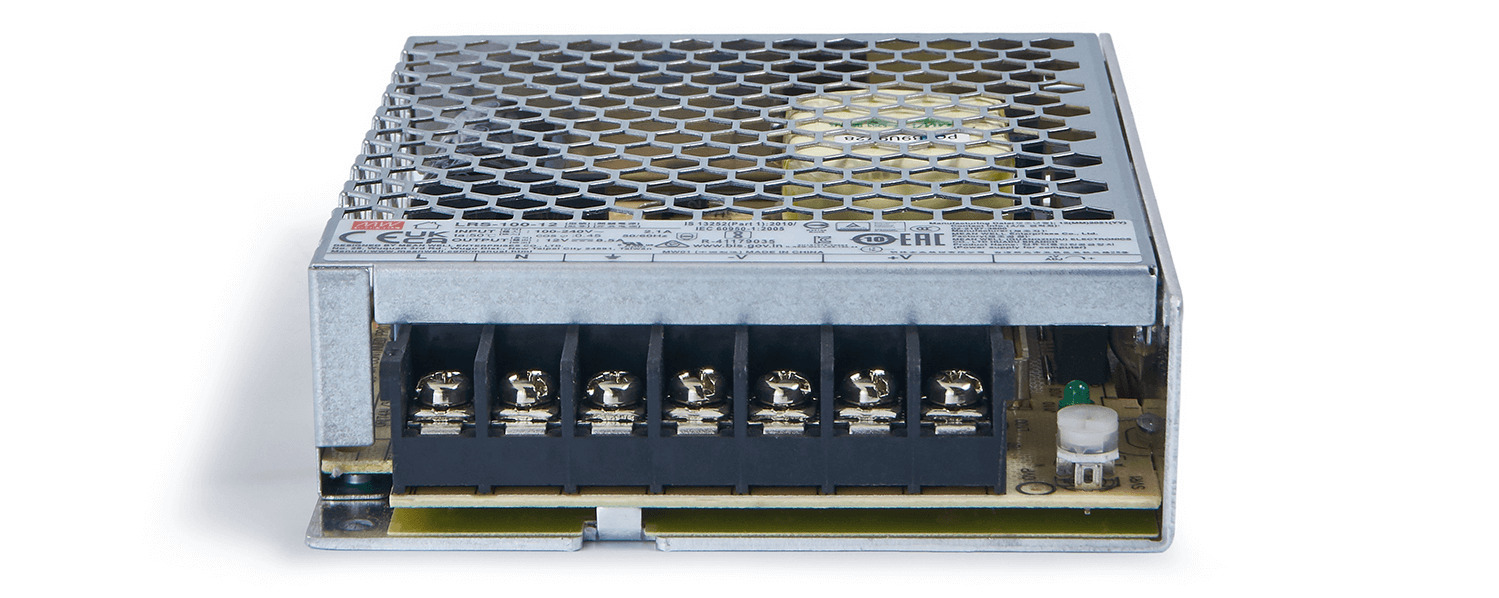

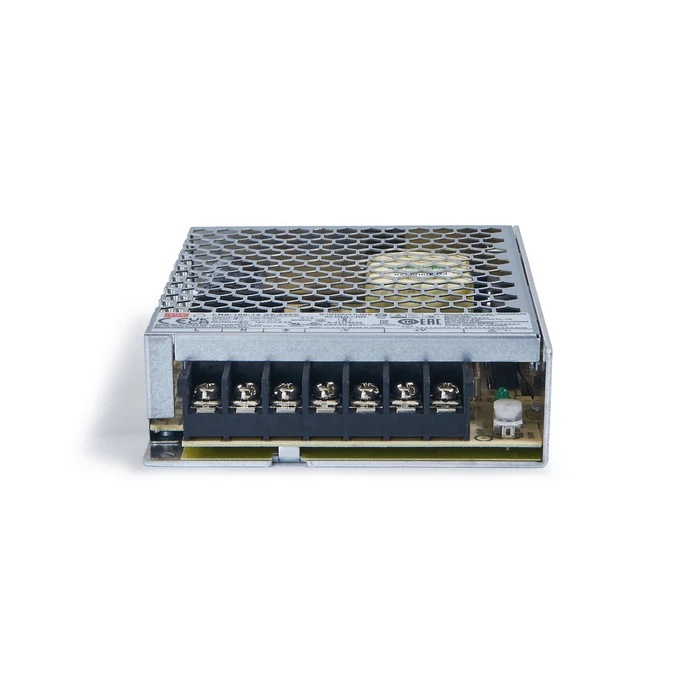

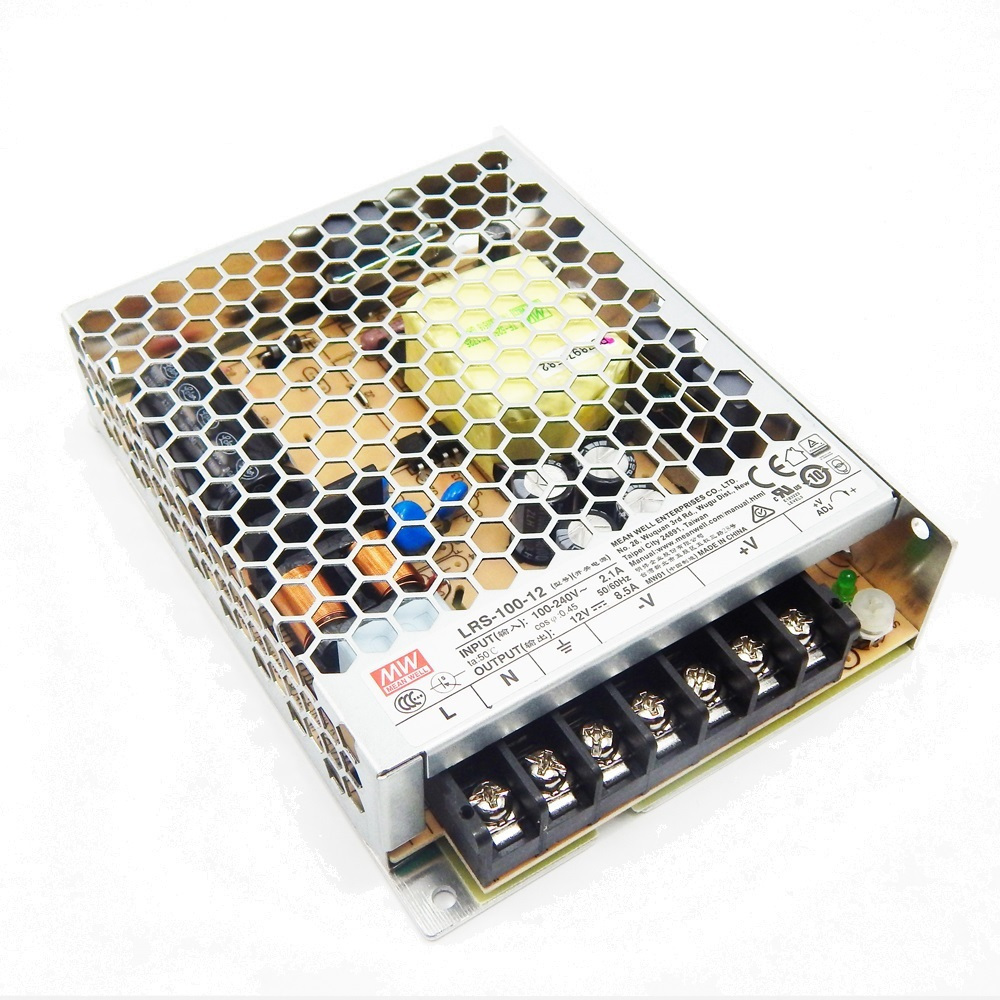

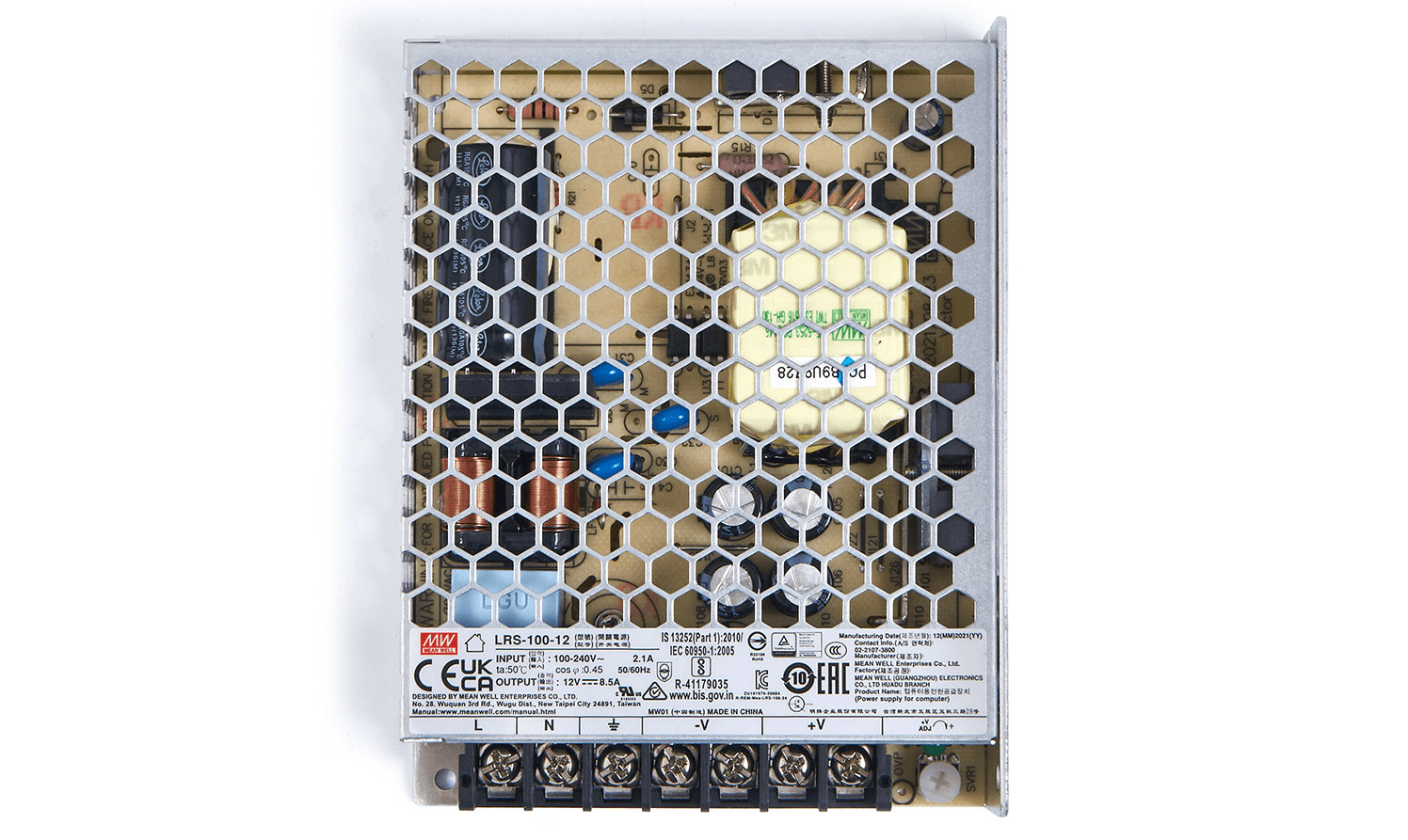

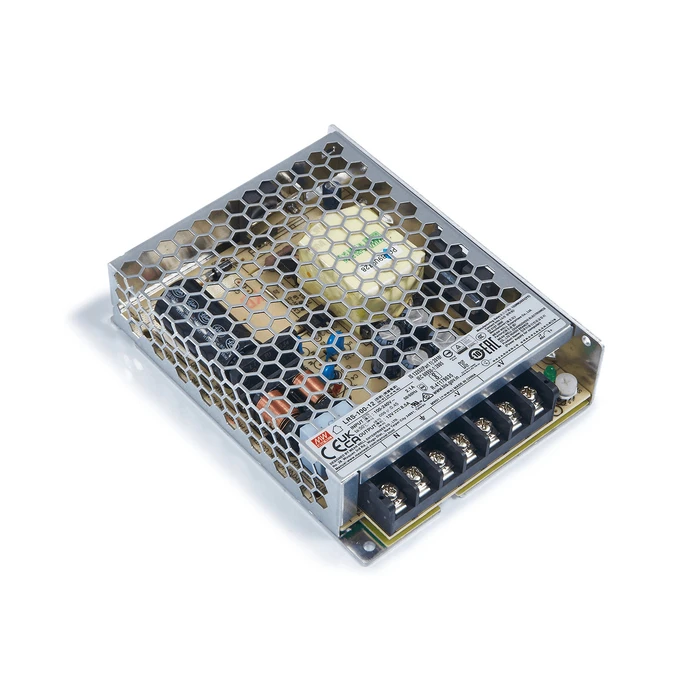

MEAN WELL LRS-100-12 Ultra Mini CCTV Power Supply 12V 8.5A 102W

Description

Technical Specifications

• Brand
  MEAN WELL
• Model
  LRS-100-12
• Output DC Voltage
  12 V
• Rated Current
  8.5 A
• Current Range
  0 ~ 8.5 A
• Rated Power
  102 W
• Ripple & Noise (max)
  120 mVp-p
• Voltage Adjustment Range
  10.2 ~ 13.8 V
• Voltage Tolerance
  +/-1.0%
• Line Regulation
  +/-0.5%
• Load Regulation
  +/-0.5%
• Setup & Rise Time
  500 ms; 30 ms @ 230VAC full load; 500 ms; 30 ms @ 115VAC full load
• Hold Up Time (Typ.)
  55 ms @ 230VAC full load; 10 ms @ 115VAC full load
• Input Voltage Range
  85 ~ 264 VAC; 120 ~ 373 VDC (withstand 300VAC surge for 5 sec)
• Frequency Range
  47 ~ 63 Hz
• Efficiency (Typ.)
  88%
• AC Current (Typ.)
  1.9 A @ 115VAC; 1.2 A @ 230VAC
• Inrush Current (Typ.)
  Cold start 50 A @ 230VAC
• Leakage Current
  <0.75 mA @ 240VAC
• Protection - Overload
  110 ~ 150% rated output power, hiccup mode, auto-recover
• Protection - Over Voltage
  13.8 ~ 16.2 V, output shutdown, recover by re-power on
• Working Temperature
  -30 ~ +70 °C (refer to derating curve)
• Working Humidity
  20 ~ 90% RH non-condensing
• Vibration
  10 ~ 500 Hz, 5G, 10 min/1 cycle, 60 min each X/Y/Z
• Over Voltage Category
  Compliance to BS EN/EN61558, BS EN/EN50178, BS EN/EN60664-1, BS EN/EN62477-1
• Altitude
  Up to 2000 meters
• MTBF
  3348.9K hrs min (Telcordia SR-332); 677.4K hrs min (MIL-HDBK-217F at 25°C)

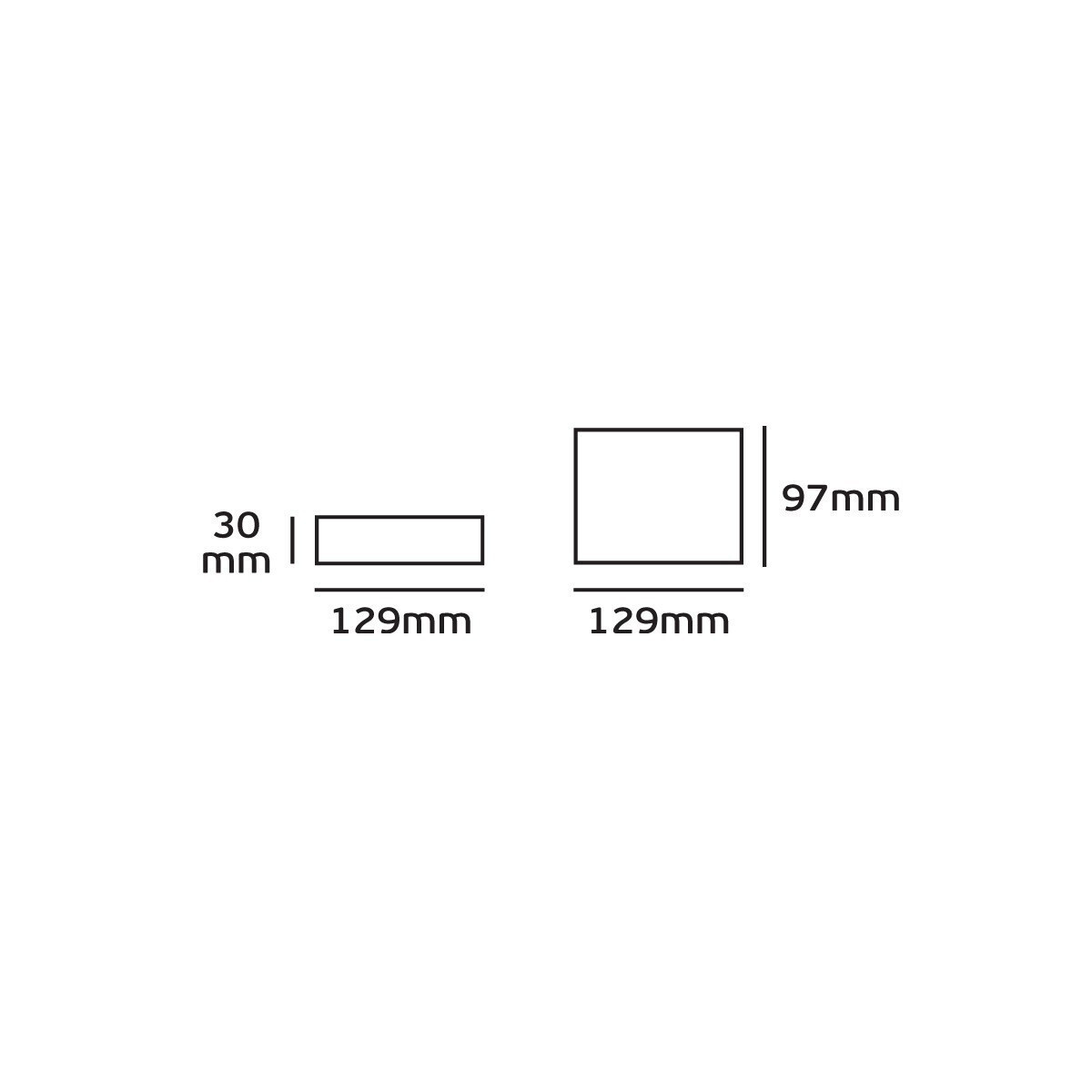

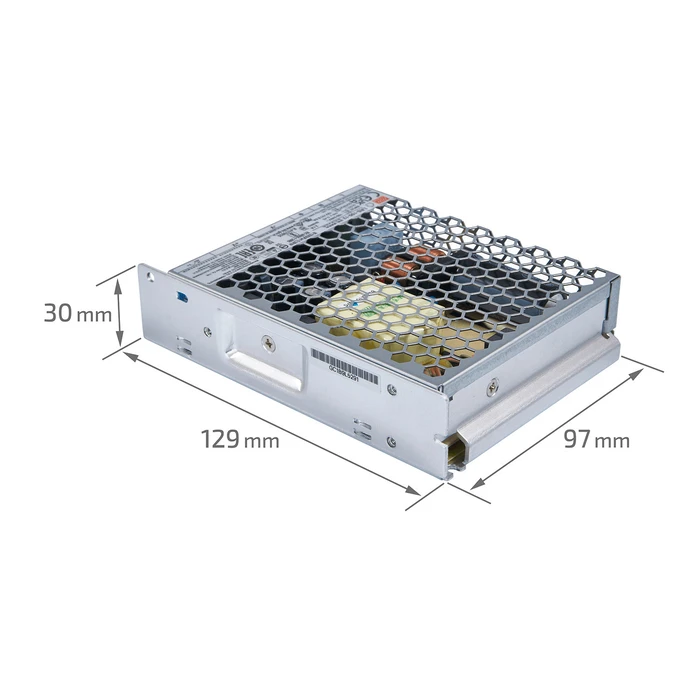

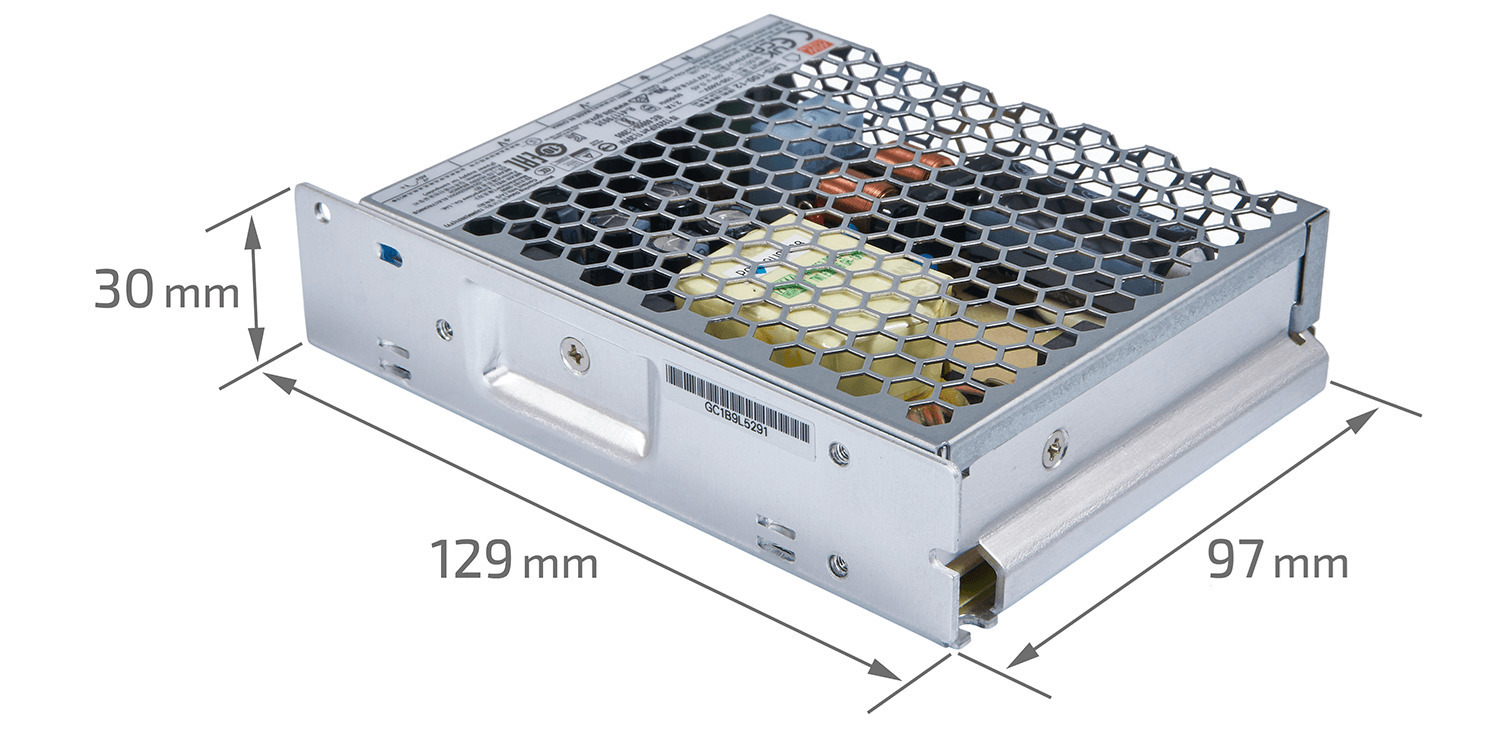

• Dimensions
  129 x 97 x 30 mm
• Case Material
  Metal enclosure (vented)
• Weight (product)
  320 g
