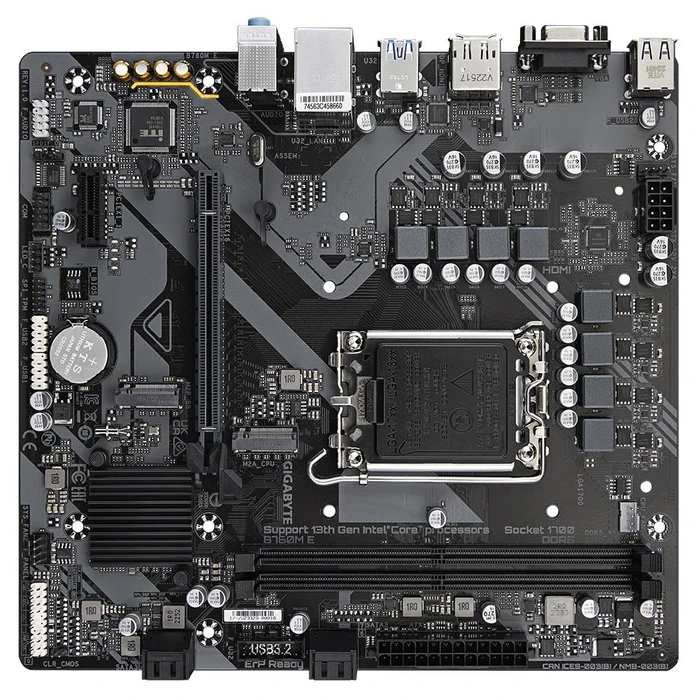

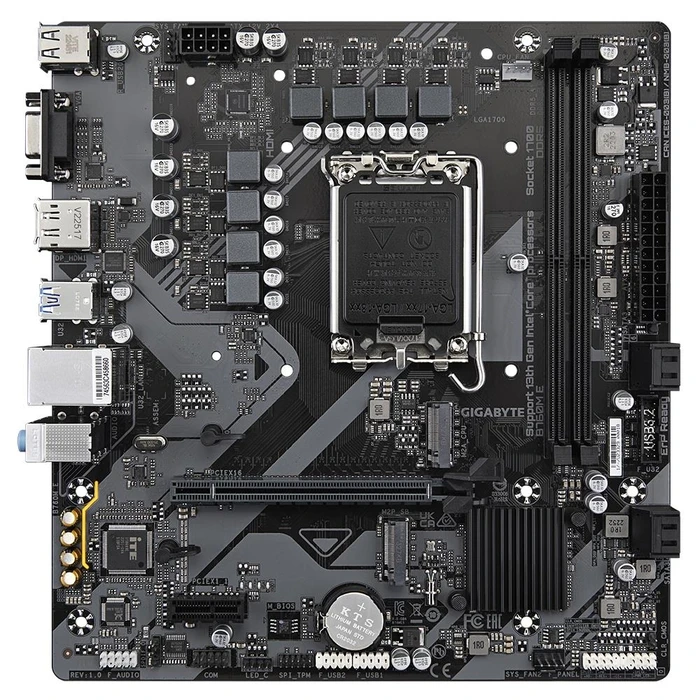

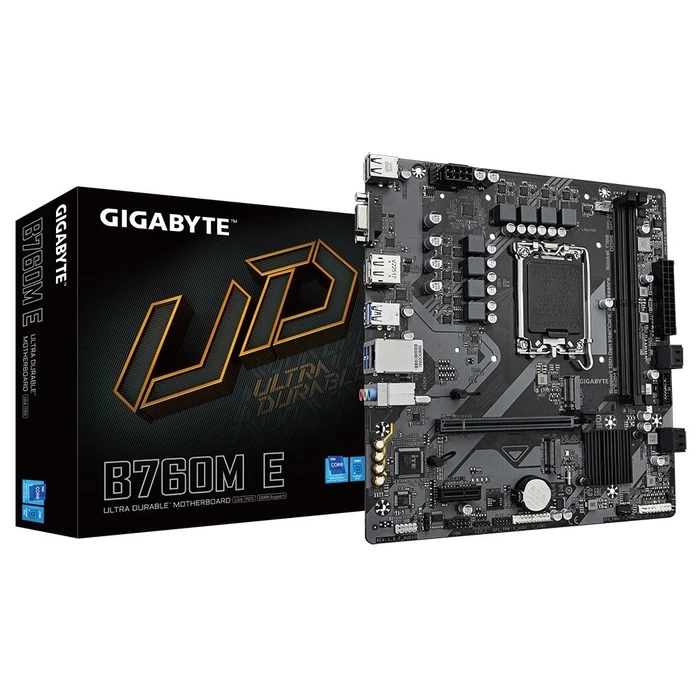

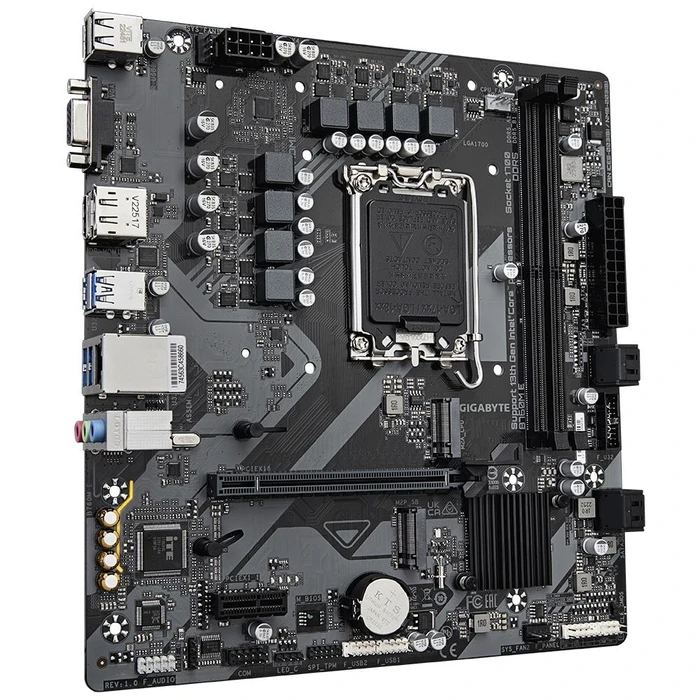

The Gigabyte B760M E 1.0 is a cutting-edge Micro-ATX motherboard crafted for Intel LGA 1700 socket CPUs, providing compatibility with Intel's 12th, 13th, and 14th generation Core processors. This motherboard offers exceptional support for DDR5 memory, featuring 2 DIMM slots that can operate at speeds ranging from 4000 MT/s to 7200 MT/s when overclocked.

Equipped with the Intel B760 Express chipset, it is fine-tuned for mainstream performance and connectivity. Below are some of the key technical specifications:

• CPU Socket: Intel LGA 1700, designed for 12th, 13th, and 14th Gen Core CPUs.
• Memory: 2 x DDR5 DIMM slots, dual channel, maximum capacity of 128GB, facilitating speeds of 4000 to 7200 MT/s (overclocked) with XMP profile support.
• Chipset: Intel B760 Express.
• Expansion Slots: 1 x PCIe 4.0 x16 slot featuring EZ-Latch quick-release for graphics cards.
• Storage Options:
  • 2 x PCIe 4.0 x4 M.2 slots for high-speed NVMe SSDs.
  • SATA 3 ports (typically 4 or 6 on comparable models).
• Power Delivery: Hybrid digital VRM design with 6+1+1 phases and an 8-pin solid CPU power connector for an efficient and stable power supply.
• Networking: Gigabit Ethernet (GbE LAN).

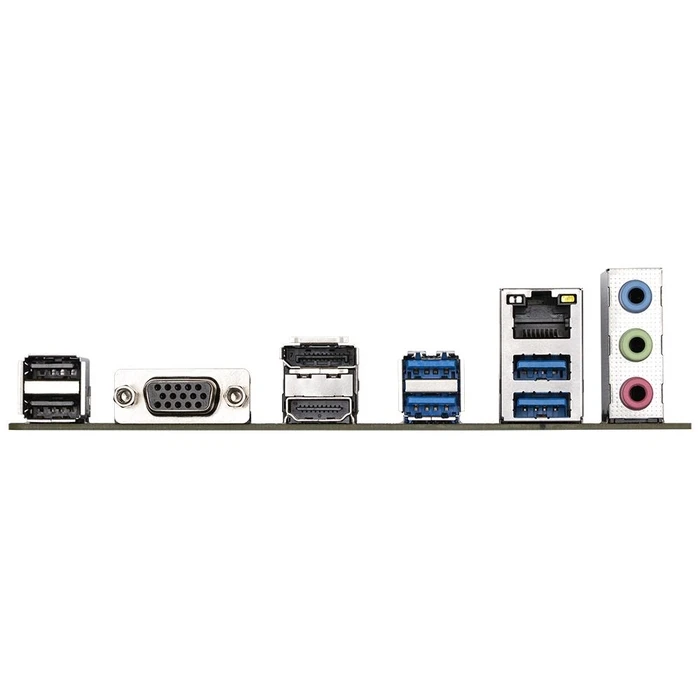

• Video Outputs: DisplayPort, HDMI, and D-Sub.
• Cooling Technology: Smart Fan 6 featuring multiple temperature sensors for optimal thermal management.
• Form Factor: Micro-ATX, ideal for compact yet expandable builds.

In summary, the Gigabyte B760M E (rev 1.0) stands out as a superb choice for users who demand a reliable and feature-rich motherboard supporting the latest Intel CPUs and DDR5 memory within a compact form factor.
