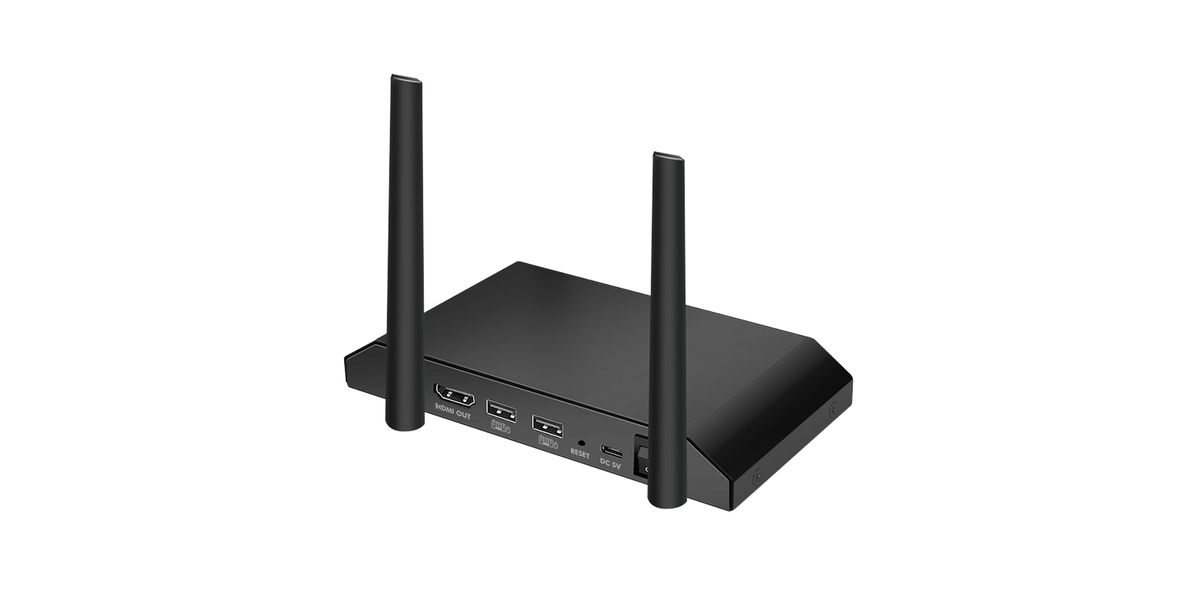

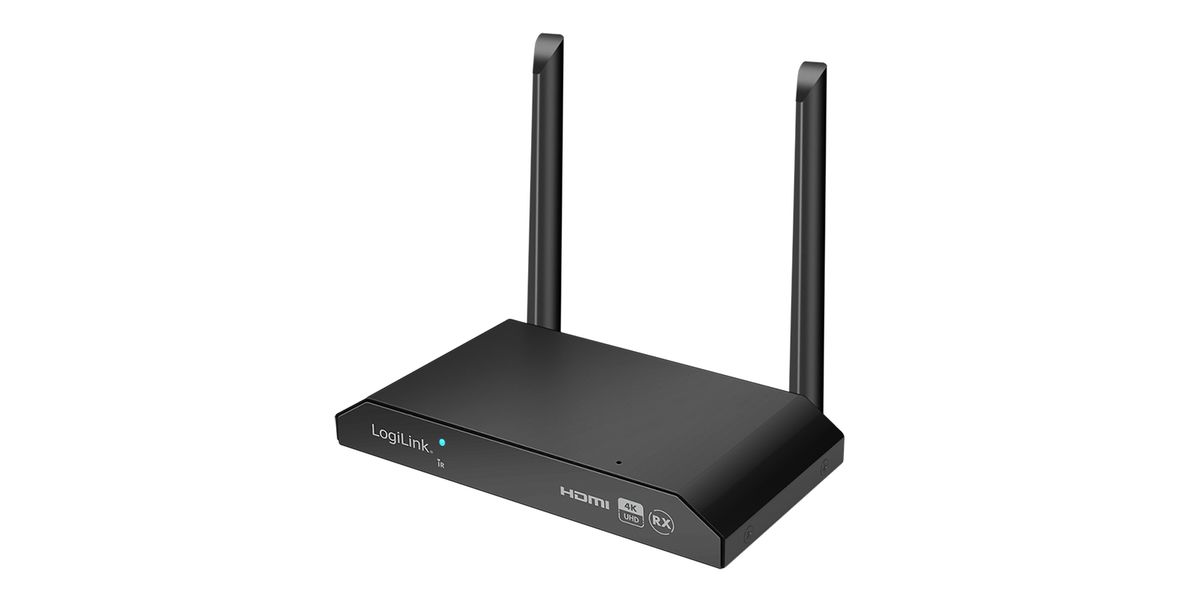

LogiLink HDMI Receiver Unit for HDW0103, Wireless, 150 m, 4K60Hz (HDW0103AR)

Description

Technical Specifications

• Brand
  LogiLink
• Model / MPN
  HDW0103AR
• SKU
  546250
• EAN / Barcode
  4052792075533
• Product Type
  HDMI Wireless Receiver Unit (expansion receiver for HDW0103)
• Purpose
  Expansion receiver unit for LogiLink HDW0103 wireless HDMI system
• Video Resolution
  Ultra HD 4K @ 60 Hz
• Color Format
  YUV 4:2:0, 24-bit
• HDMI Standard
  HDMI 2.0 technology
• Bandwidth
  6 Gbit/s per line at 600 MHz (18 Gbit/s total)
• Wireless Standard
  IEEE 802.11b/g/n/ac
• Frequency Bands
  2.4 GHz / 5 GHz (dual-band)
• MIMO
  2T2R (2 transmit, 2 receive)
• Range
  Up to 150 m (line of sight)
• Latency
  Near-zero (minimal latency)
• HDCP
  HDCP 2.2 compliant
• Audio Support
  2-channel stereo
• Power Supply
  DC 5V / 2A
• Connections / Ports
  HDMI output, USB port (for touch panel back control)
• Daisy-chaining
  Supports up to 4 displays or projectors per system
• Compatibility
  Requires LogiLink HDW0103 transmitter (not a standalone device)
• Use Cases
  Multi-display conferencing, wireless projection, interactive touch displays, KVM/AV installations

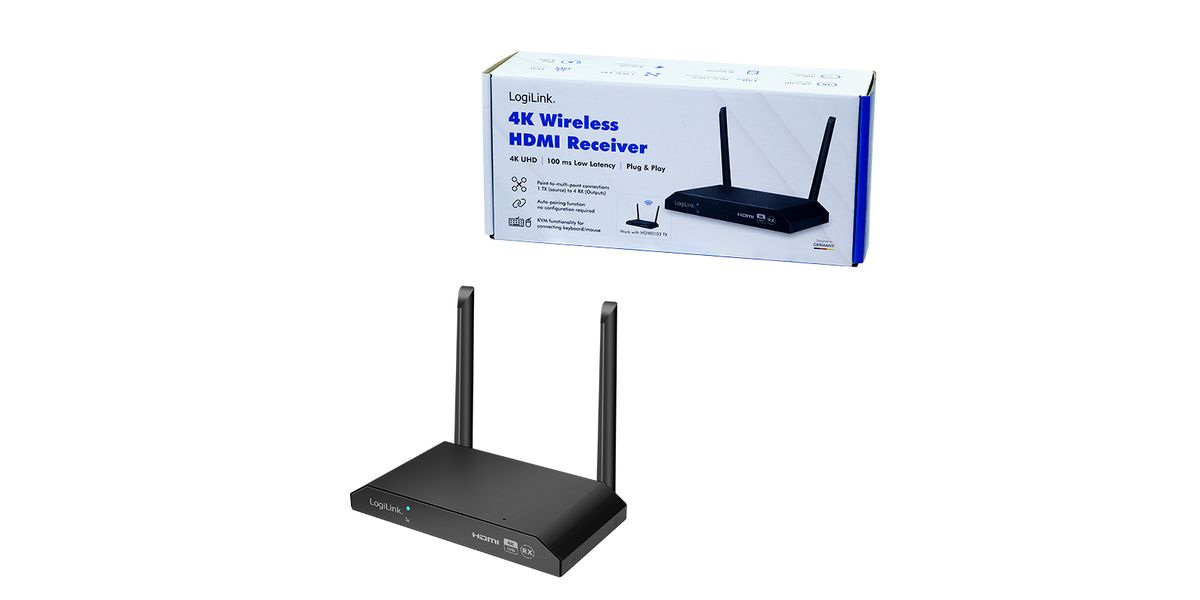

• Package Contents
  1 × HDMI Receiver Unit for HDW0103
• Physical Dimensions (set ref.)
  Length 25 cm, Width 24 cm, Height 6 cm (receiver-only dims not separately specified)
• Product Weight (approx.)
  ~250 g (device only)
• Material
  Plastic housing (typical for LogiLink AV units)
• Mounting / Placement
  Tabletop or rackable/stackable in AV setups
• Certifications / Compliance
  HDCP 2.2 supported
