LevelOne GVT-2000 Gigabit RJ45 to SFP Media Converter (10/100/1000BASE-T to 1000BASE-X)

Description

Technical Specifications

• Brand
  LevelOne
• Model
  GVT-2000 (MPN: GVM-2000 referenced)
• SKU
  569822
• EAN
  4015867243169
• Product Type
  Gigabit Ethernet Media Converter (RJ45 to SFP)

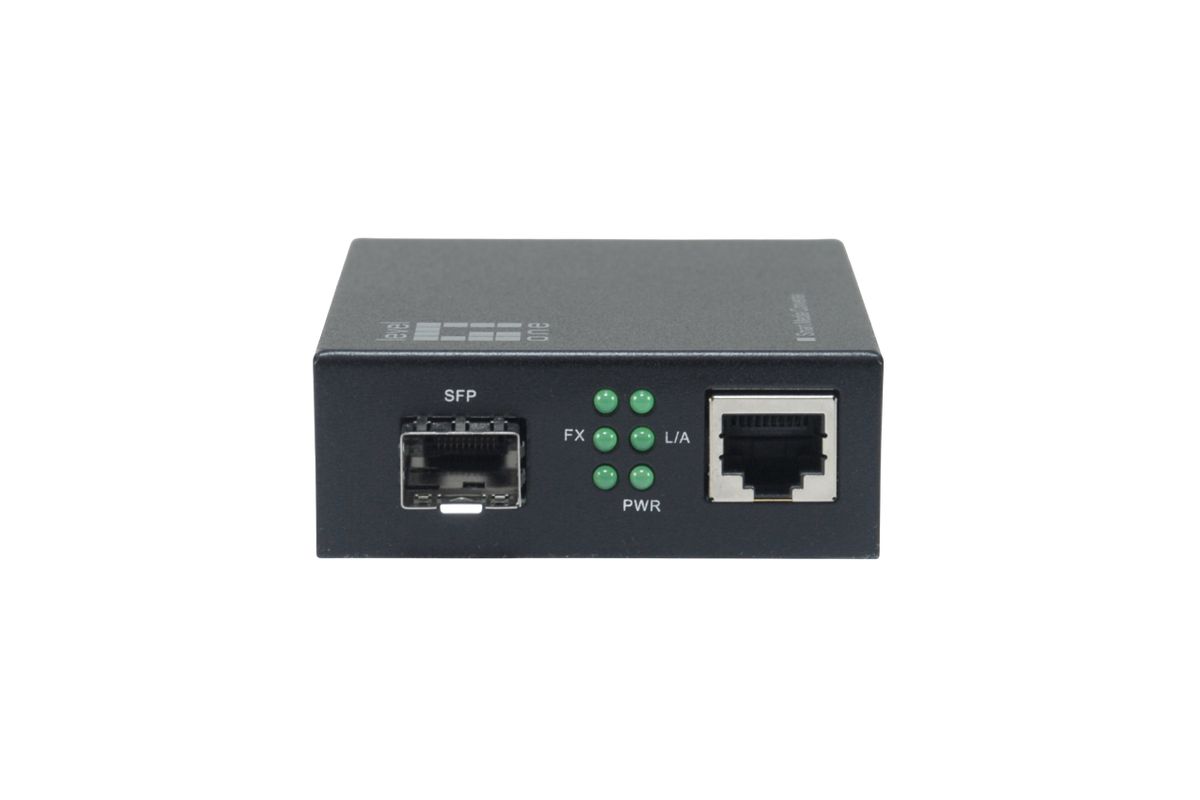

• Copper Port
  1 x RJ-45 10/100/1000BASE-T (Auto-Negotiation, Auto MDI/MDI-X)
• Fiber Port
  1 x SFP slot (mini-GBIC), 1000BASE-X (SFP module not included)
• Supported Speeds
  10/100/1000 Mbps (RJ-45), 1000 Mbps (SFP)
• Flow Control
  IEEE 802.3x
• Jumbo Frames
  Supports up to 9K (approx. 9,216 bytes)
• Link Fault Pass-through (LFP)
  Yes (Smart LFP mode)
• Switching Method
  Store-and-forward
• Configuration
  Dip switches for mode and LFP settings
• Fiber Types Supported
  Multi-mode (50/125um, 62.5/125um) and Single-mode (8/125um, 9/125um) with appropriate SFPs
• Maximum Fiber Distance
  Up to ~80 km with appropriate single-mode SFP
• LED Indicators
  Link/Activity and status LEDs for ports
• Mounting Options
  Desktop, wall mount or slide-in module for CHV-2000 19" rack
• Power
  External power adapter included
• Operating Temperature
  -10°C to 55°C
• Dimensions (unit)
  Approx. 9.4 x 7.1 x 2.5 cm (Depth x Width x Height)
• Weight (unit)
  Approx. 120 g

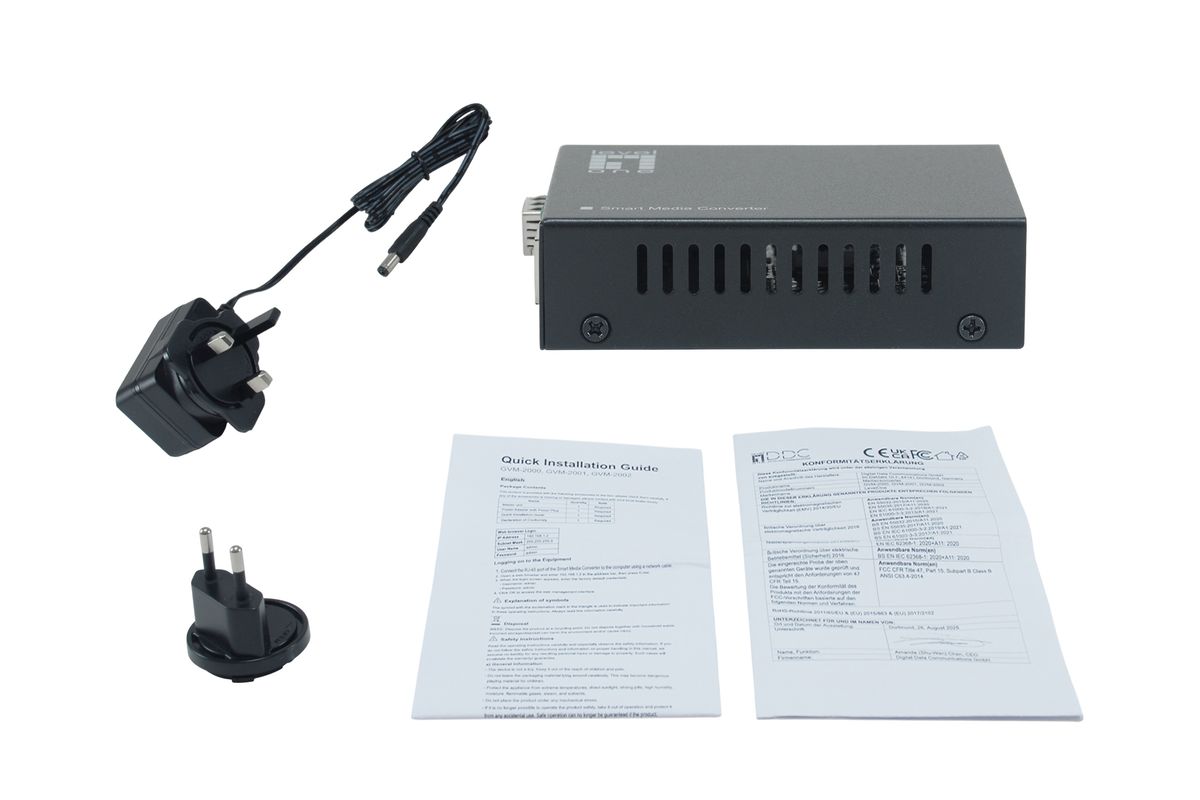

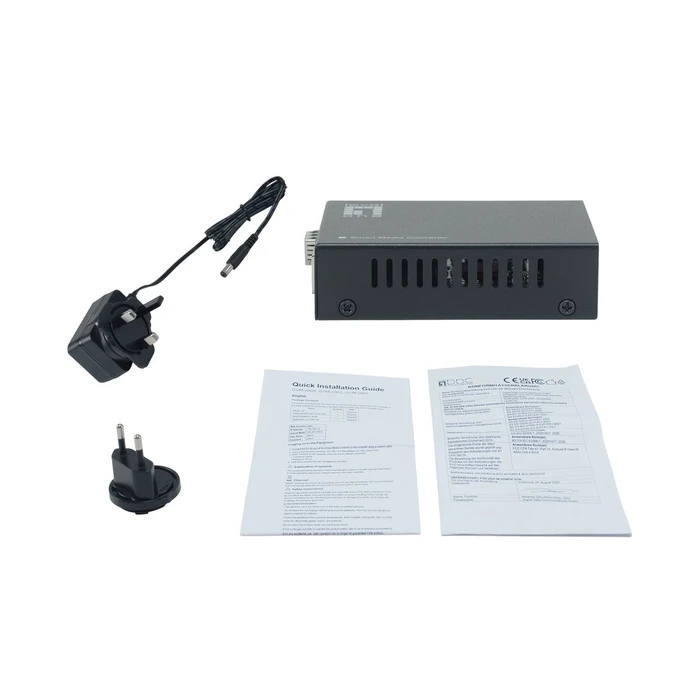

• Package Contents
  Media converter, power adapter, Quick Installation Guide
• Housing Material
  Metal enclosure (typical metal housing)
• Compliance / Safety
  Not explicitly listed in sources (refer to manufacturer's documentation)
