Lenovo ThinkStation P3 Tiny Gen 2 U5-235 16GB 512GB Intel UHD Windows 11 Pro (30K5002YGE)

Description

Technical Specifications

• Brand
  Lenovo
• Model
  ThinkStation P3 Tiny Gen 2 (P3 Tiny G2)
• MPN
  30K5002YGE
• SKU
  583632
• EAN
  0199271151860
• Category
  Workstation - Mini/Small Form Factor (1 liter)
• Form Factor
  Tiny / 1‑liter chassis
• Processor
  Intel Core Ultra 5 235 (14 cores: 6 Performance + 8 Efficient, up to 5.0 GHz)
• Chipset
  Intel Q870 (platform level)
• Cores / Threads
  14 cores / 14 threads (performance+efficient hybrid architecture)
• Base / Turbo Frequency
  Base ~3.4 GHz / Turbo up to 5.0 GHz (vendor stated)
• L2 Cache
  26 MB L2 Cache
• Memory (installed)
  16GB DDR5-6400 (non-ECC, SO‑DIMM)
• Memory Type / Speed
  DDR5-6400
• Memory Slots / Max
  2x SO-DIMM, up to 128GB (2x64GB)
• Storage (installed)
  512GB PCIe 5.0 x4 NVMe M.2 2280 SSD (Opal certified)
• Storage Expansion
  M.2 slot(s) for NVMe, optional additional storage depending on SKU
• Graphics
  Integrated Intel GPU (integrated Intel UHD graphics / Intel ARC/UHD integrated variant); optional NVIDIA RTX A1000 8GB available on certain configurations
• Displays Supported
  Integrated outputs + up to 6 displays supported with optional discrete GPU
• Operating System
  Windows 11 Pro (vPro/Enterprise capable)

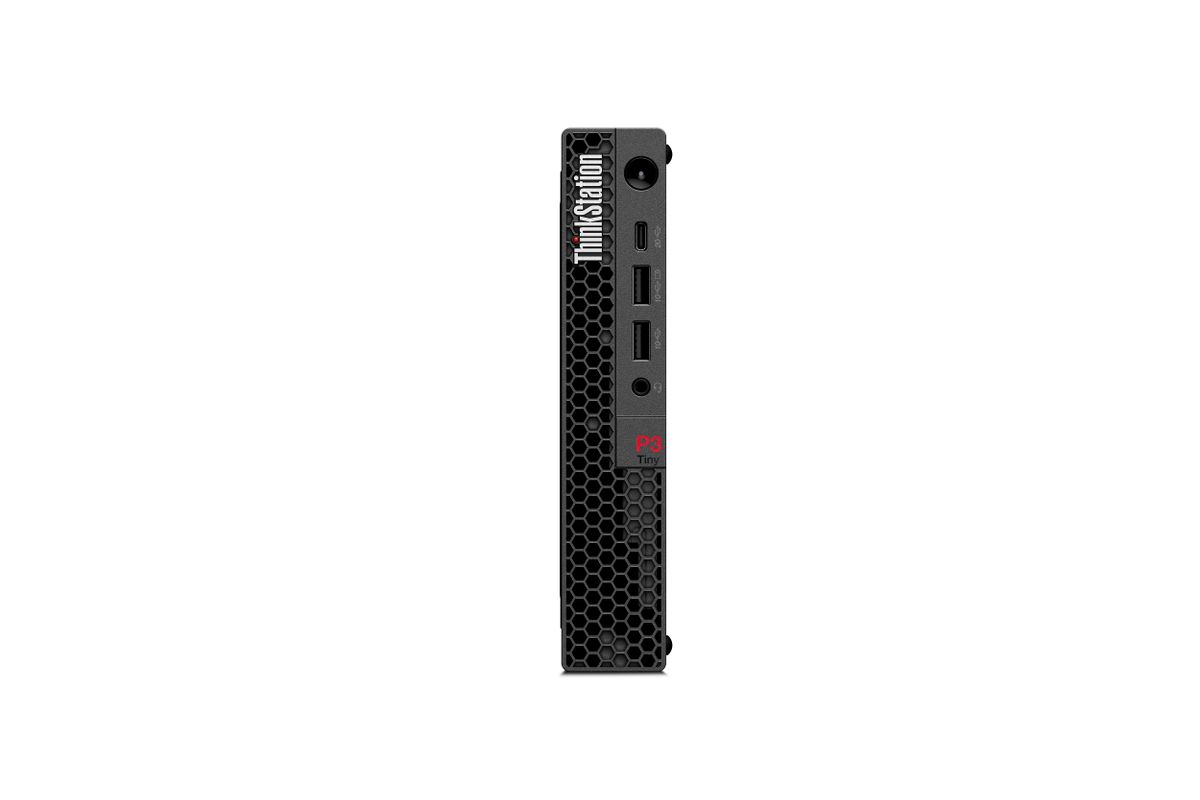

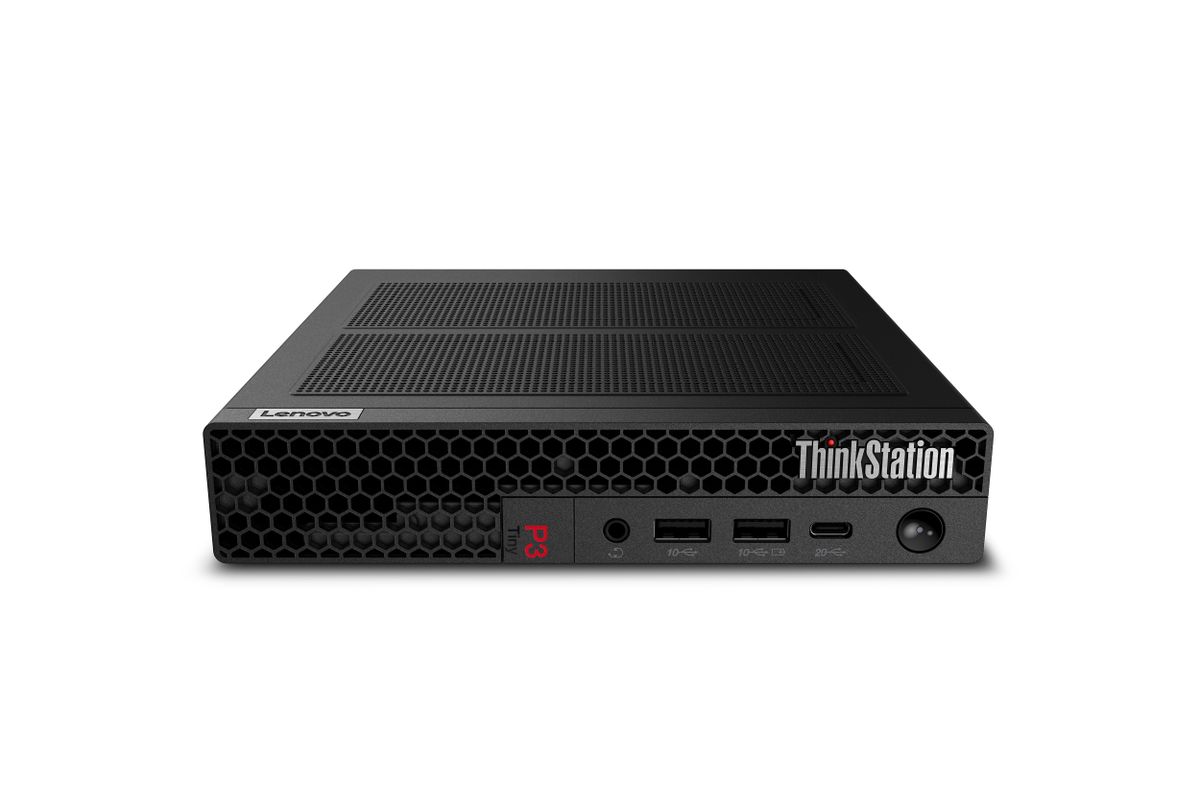

• Front Ports
  1x USB-C (20Gbps), 2x USB-A (10Gbps), 1x 3.5mm combo audio

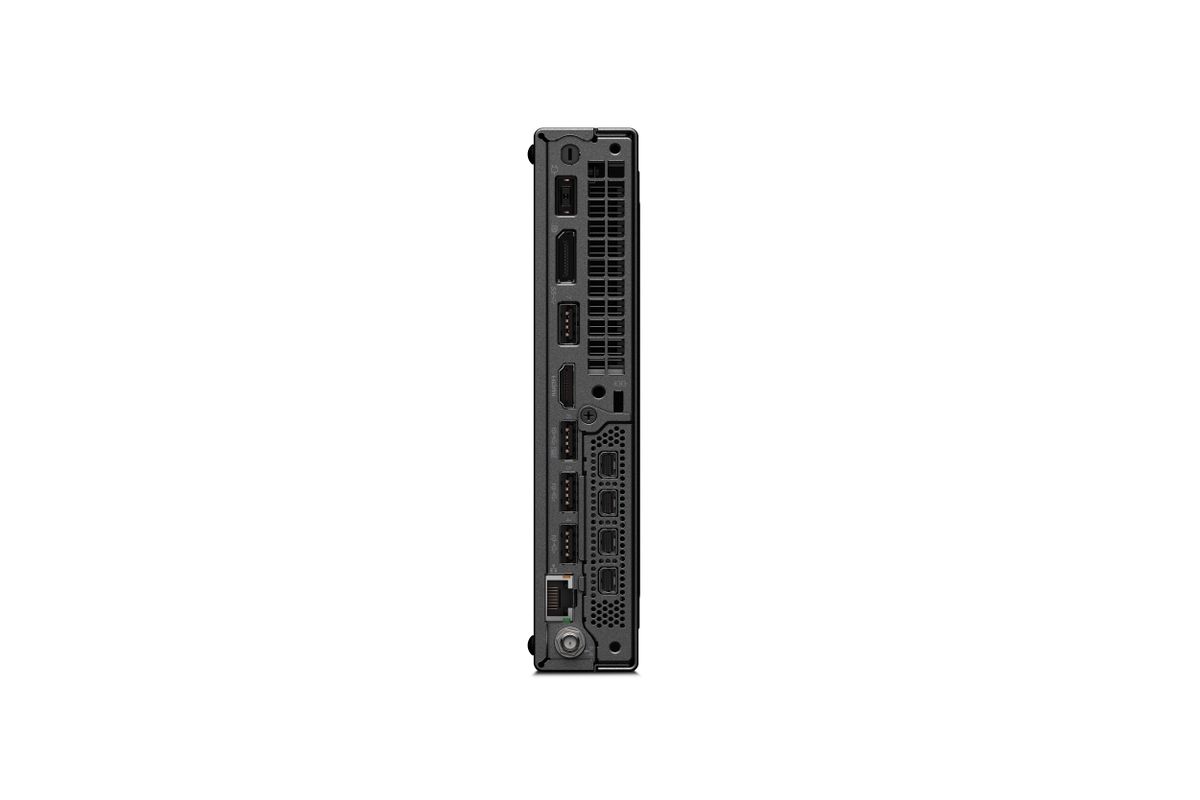

• Rear Ports
  4x USB-A (3x 10Gbps, 1x 5Gbps), 1x HDMI 2.1, 1x DisplayPort 1.4, 1x GbE Ethernet, Wi‑Fi antenna connectors
• Networking
  Intel i219‑LM Gigabit Ethernet
• Wireless
  Intel Wi‑Fi 7 (BE200) + Bluetooth 5.4
• Security
  Discrete TPM 2.0 (TCG/FIPS), Kensington security slot, chassis intrusion switch
• Manageability
  Intel vPro support on select SKUs
• Power Supply
  External power adapter (330W for GPU-enabled SKUs; smaller adapters for CPU-only configs depending on SKU)
• Audio
  Onboard audio with 3.5mm combo jack
• Dimensions
  179 x 182.9 x 37 mm (7.0 x 7.2 x 1.5 inches)
• Volume
  Approximately 1 liter
• Product Weight
  ~1100 g (device only; depends on configuration)
• Color / Material
  Black chassis, ABS/plastic and metal internal frame
• Included in Box

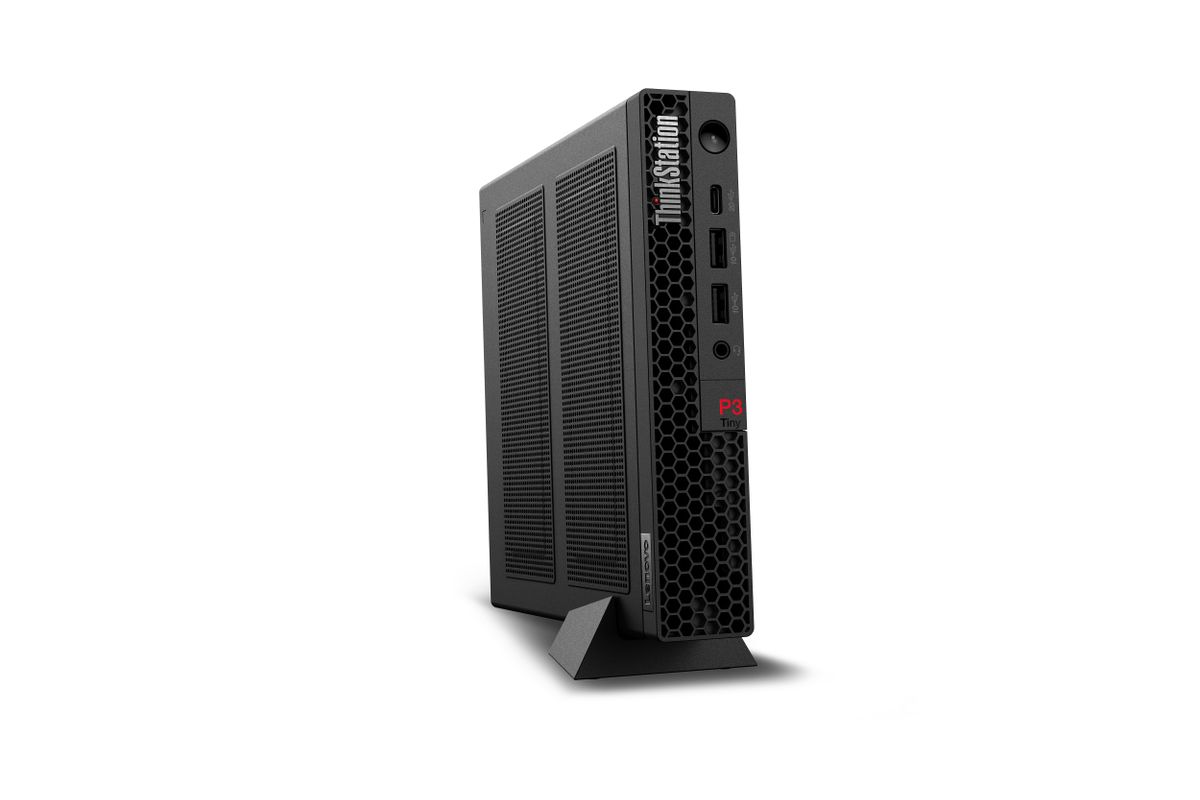

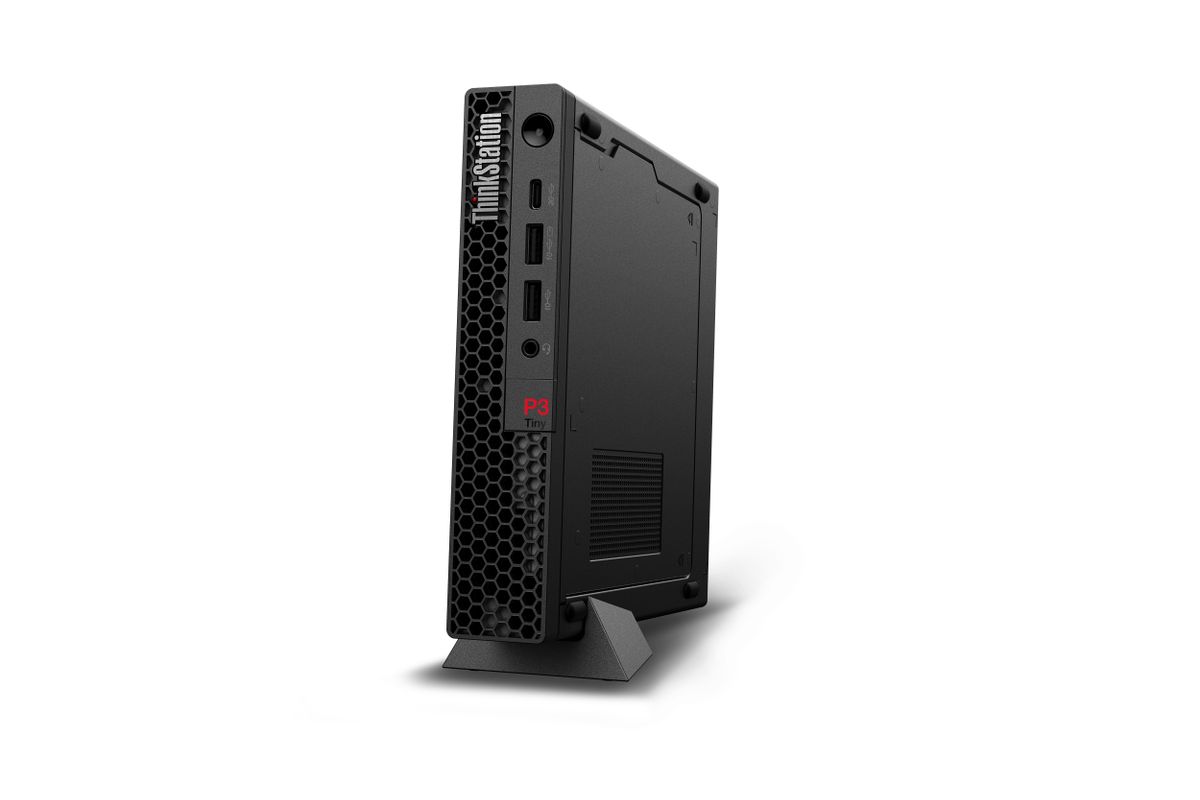

  ThinkStation P3 Tiny Gen 2 unit, vertical stand, external power adapter, power cord, quick start guide
• Warranty
  Manufacturer warranty (varies by region and purchase)
• Target Use
  Enterprise small‑form‑factor workstation, content creation, CAD/light 3D, office/remote management
