Lenovo ThinkEdge SE50 i5-8365UE 16GB RAM / 512GB SSD WLAN Windows 11 IoT (MPN: 11RJ00A6GE, EAN: 0198155798320)

Description

Technical Specifications

• Brand
  Lenovo (Lenovo Deutschland GmbH)
• Model
  ThinkEdge SE50
• MPN
  11RJ00A6GE
• SKU
  21246936
• EAN
  0198155798320
• Processor
  Intel Core i5-8365UE (4 cores / 8 threads, 1.6 GHz base, up to 4.1 GHz turbo)
• Chipset
  Intel platform (Whiskey Lake-U Embedded variant)
• Memory
  16 GB DDR4-2400 (1x16GB SO-DIMM installed, 2 slots, up to 64GB)
• Storage
  512 GB M.2 2280 PCIe NVMe SSD (1x M.2 slot) + 1x 2.5" SATA bay support
• Graphics
  Integrated Intel UHD Graphics 620
• Operating System
  Windows 11 IoT Enterprise LTSC (2024) (configurable)
• Security
  Discrete TPM 2.0, Intel vPro platform security
• Networking
  2x Gigabit Ethernet (RJ-45), Wi‑Fi 5 (802.11ac) 1x1, Bluetooth 4.2
• I/O Ports Front

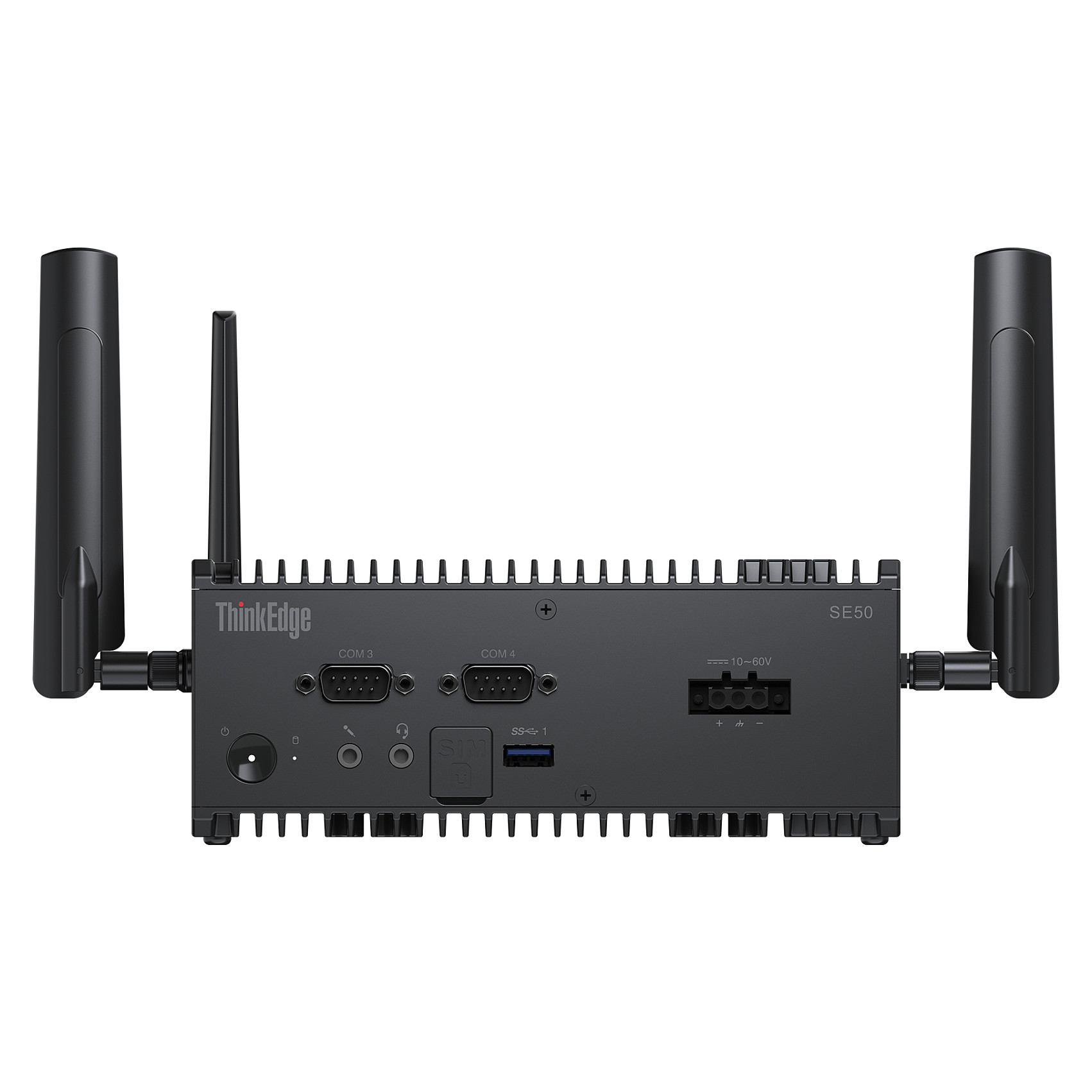

  USB 3.2 Gen1, audio jack (mic/headset), power button, DC input
• I/O Ports Rear

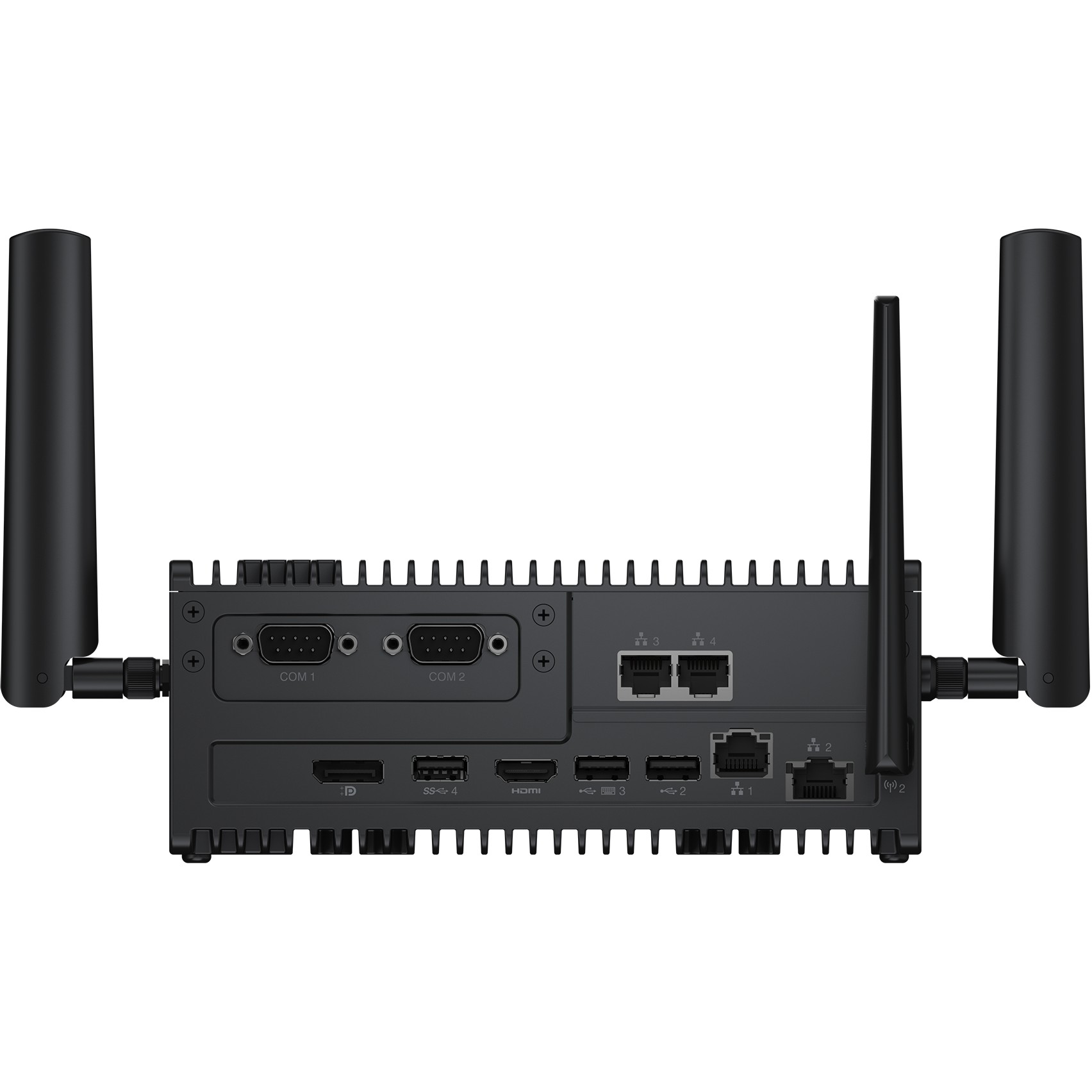

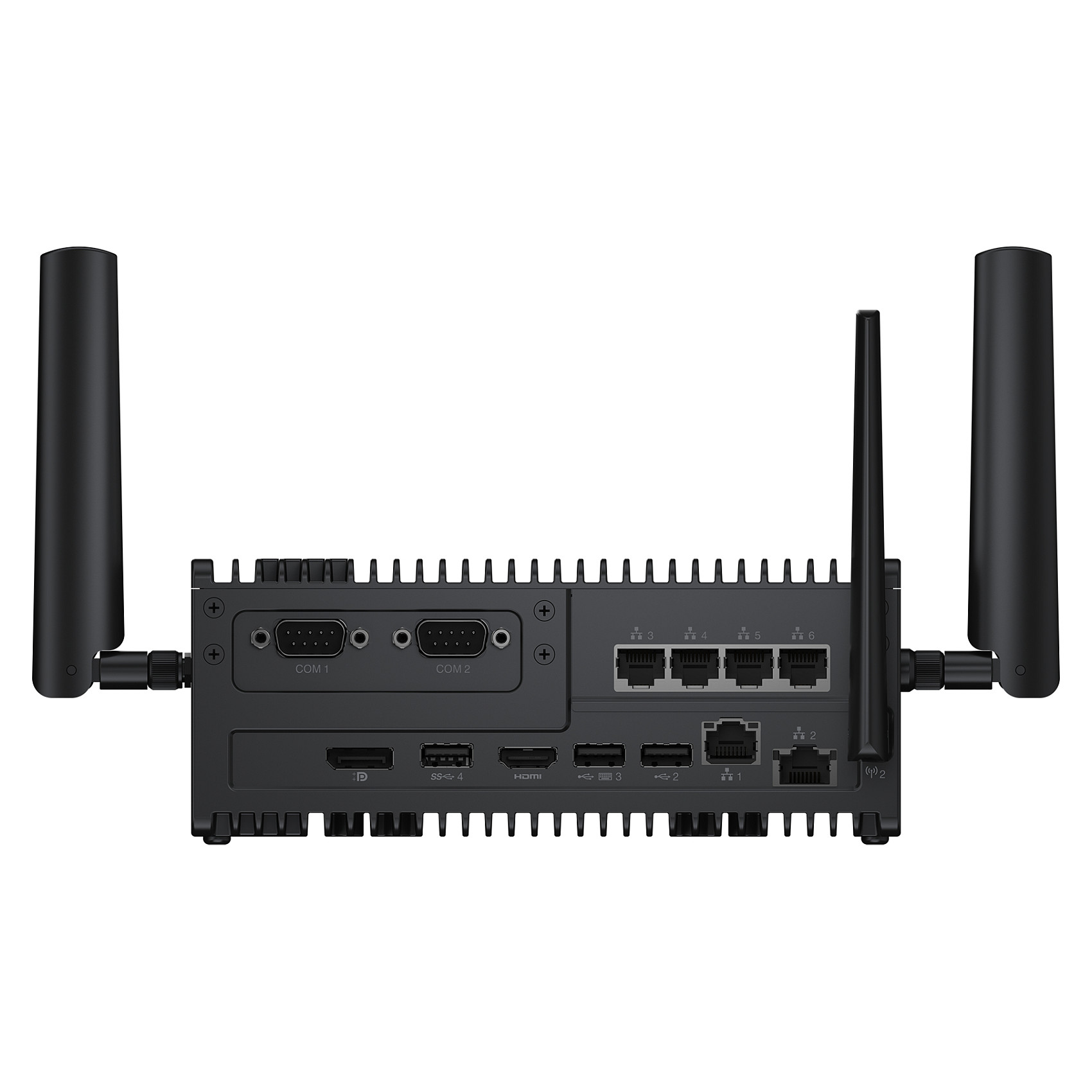

  USB 3.2 Gen1, USB 2.0 x2, HDMI 1.4, DisplayPort 1.2, 2x GbE LAN, 2x RS232 serial
• Display Support
  Up to 2 independent displays (HDMI + DP), max 4096×2304 (DP @60Hz)
• Expansion
  PCIe slot for industry card (CAN, DI/DO, RS422/485), optional 2x NIC, M.2 WWAN
• SIM Slot
  Optional (selected models with WWAN)
• Power Supply
  65W AC adapter / wide DC input 10–60V (industrial 3‑pin connector)
• Cooling
  Fanless (passive cooling)
• Ingress Protection
  IP50
• Dimensions
  179 mm (W) × 70 mm (H) × 182.9 mm (D)
• Product Weight
  ~1500 g (depends on configuration)
• Operating Temperature
  0°C to 50°C
• Storage Temperature
  -20°C to 70°C
• Warranty
  Base 1-year Courier or Carry-in service (regional variations apply)
• Use Cases
  Industrial IoT edge computing, smart manufacturing, remote monitoring, Azure/AWS IoT edge deployments
