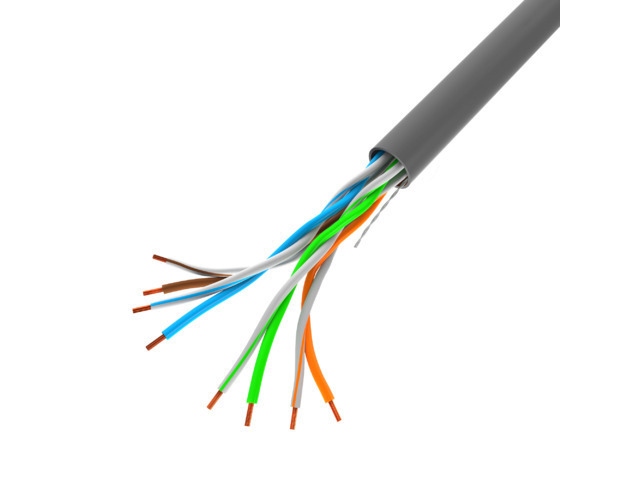

Lanberg Cat5e LAN cable, model LCU5-10CC-0305-S. Type: U/UTP (unshielded). Data rate: up to 100 Mb/s. Length: 305 m. Conductor: CCA (copper-clad aluminium). Conductor gauge: AWG 24 (4×2×0.5 mm). Conductor insulation: HDPE 0.93 mm. Outer jacket: PVC, approx. 5.0 mm diameter. Color: grey (RAL7035)....
More

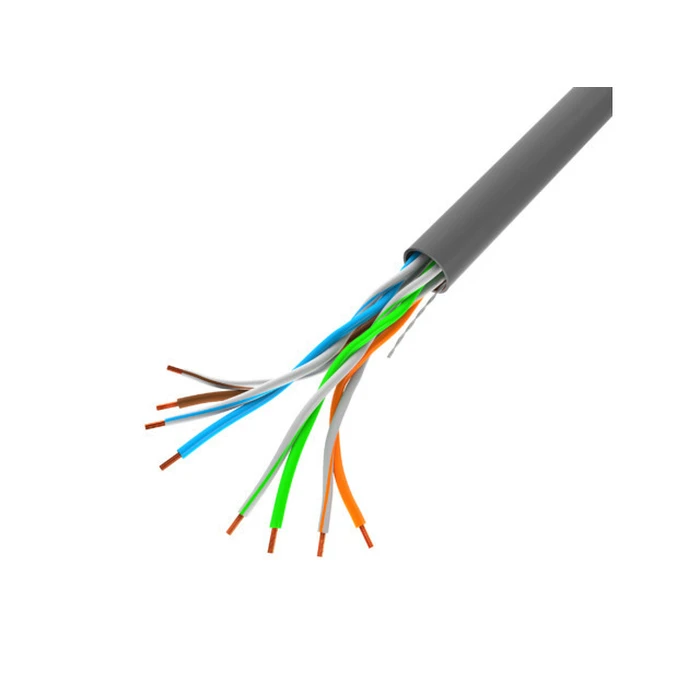

Lanberg LAN UTP Cable Cat5e 100Mb/s 305m CCA Grey (LCU5-10CC-0305-S)
Product Code: 1119726642
Upon Order
35,09 €
or
1,10€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 106 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Lanberg Cat5e LAN cable, model LCU5-10CC-0305-S. Type: U/UTP (unshielded). Data rate: up to 100 Mb/s. Length: 305 m. Conductor: CCA (copper-clad aluminium). Conductor gauge: AWG 24 (4×2×0.5 mm). Conductor insulation: HDPE 0.93 mm. Outer jacket: PVC, approx. 5.0 mm diameter. Color: grey (RAL7035). Rated frequency: 100 MHz. Manufacturer electrical characteristics: core resistance 60-90 Ω/km; pair-to-pair capacitance <330 pF/100m; characteristic impedance ≈100 Ω (±15); pair skew 0–60 ns. Recommended maximum link length: 100–120 m (100 m typical Ethernet limit). No connectors included. Suitable for Cat5e horizontal cabling; Fluke (EN 50173) testing recommended.
-
BrandLANBERG
-
ModelLCU5-10CC-0305-S
-
CategoryCat.5e
-
Cable TypeU/UTP (unshielded)
-
Length305 m
-
Rated Data Rate100 Mb/s
-
Rated Frequency100 MHz
-
Conductor MaterialCCA (copper-clad aluminium)
-
Conductor AWG24 (4×2×0.5 mm)
-
Conductor InsulationHDPE 0.93 mm
-
Outer Jacket MaterialPVC
-
Outer Jacket Thickness5.0 mm (approx.)
-
Characteristic Impedance≈100 Ω (±15)
-
Pair-to-Pair Capacitance<330 pF/100m
-
Core Resistance60-90 Ω/km
-
Pair Skew0-60 ns
-
Operating Temperature Range-20 to 70 °C
-
ColorGrey (RAL7035)
-
ShieldingUTP (no shielding)
-
Connectors IncludedNone
-
Packaging Dimensions (L×W×H)36×23×36 cm
-
Typical Product Weight3200 g
-
Typical Package Weight3500 g
-
Compliance/TestingFluke testing recommended (EN 50173)
Ratings
Description
Lanberg Cat5e LAN cable, model LCU5-10CC-0305-S. Type: U/UTP (unshielded). Data rate: up to 100 Mb/s. Length: 305 m. Conductor: CCA (copper-clad aluminium). Conductor gauge: AWG 24 (4×2×0.5 mm). Conductor insulation: HDPE 0.93 mm. Outer jacket: PVC, approx. 5.0 mm diameter. Color: grey (RAL7035). Rated frequency: 100 MHz. Manufacturer electrical characteristics: core resistance 60-90 Ω/km; pair-to-pair capacitance <330 pF/100m; characteristic impedance ≈100 Ω (±15); pair skew 0–60 ns. Recommended maximum link length: 100–120 m (100 m typical Ethernet limit). No connectors included. Suitable for Cat5e horizontal cabling; Fluke (EN 50173) testing recommended.
Technical Specifications
-
BrandLANBERG
-
ModelLCU5-10CC-0305-S
-
CategoryCat.5e
-
Cable TypeU/UTP (unshielded)
-
Length305 m
-
Rated Data Rate100 Mb/s
-
Rated Frequency100 MHz
-
Conductor MaterialCCA (copper-clad aluminium)
-
Conductor AWG24 (4×2×0.5 mm)
-
Conductor InsulationHDPE 0.93 mm
-
Outer Jacket MaterialPVC
-
Outer Jacket Thickness5.0 mm (approx.)
-
Characteristic Impedance≈100 Ω (±15)
-
Pair-to-Pair Capacitance<330 pF/100m
-
Core Resistance60-90 Ω/km
-
Pair Skew0-60 ns
-
Operating Temperature Range-20 to 70 °C
-
ColorGrey (RAL7035)
-
ShieldingUTP (no shielding)
-
Connectors IncludedNone
-
Packaging Dimensions (L×W×H)36×23×36 cm
-
Typical Product Weight3200 g
-
Typical Package Weight3500 g
-
Compliance/TestingFluke testing recommended (EN 50173)
