The UNI‑T UTP3313TFL‑II is a single‑output linear laboratory/bench DC power supply delivering adjustable, regulated output with CV (constant voltage) and CC (constant current) operation. It features dual LED displays for voltage and current, coarse/fine front‑panel controls, low ripple/noise, and...
More

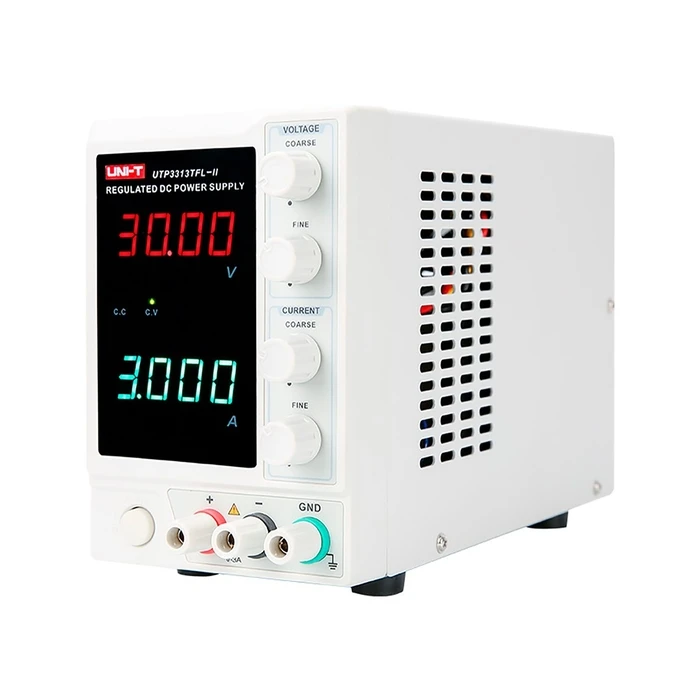

Laboratory Power Supply UTP3313TFL-II (UNI-T)
Product Code: 1127678248
Out of stock
115,93 €
or
3,62€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The UNI‑T UTP3313TFL‑II is a single‑output linear laboratory/bench DC power supply delivering adjustable, regulated output with CV (constant voltage) and CC (constant current) operation. It features dual LED displays for voltage and current, coarse/fine front‑panel controls, low ripple/noise, and current‑limit protection. Electrical rating: 0–30 V, 0–3 A, 90 W. AC input selectable 110/220 V ±5%, 50/60 Hz. Compact bench form factor; dimensions 105 × 165 × 249 mm; net weight ~3.0 kg. Supplied with international power cord.
-
Product TypeSingle-output linear DC laboratory/bench power supply
-
BrandUNI-T
-
Model (MPN)UTP3313TFL-II
-
SKUWLONONWCRCGML
-
EAN5901890056205
-
Output Voltage0–30 V
-
Output Current0–3 A
-
Output Power90 W
-
Voltage Resolution10 mV
-
Current Resolution1 mA
-
Voltage Accuracy<0.5% + 20 mV
-
Current Accuracy<0.5% + 5 mA
-
CV Load Regulation≤0.01% + 3 mV
-
CC Load Regulation≤0.1% + 5 mA
-
Ripple and Noise1 mVrms
-
DisplayDual LED voltage and current display
-
ControlsCoarse and fine voltage/current knobs; CV/CC mode indicators
-
Input VoltageAC 110/220 V ±5%
-
Frequency50/60 Hz
-
Dimensions105 × 165 × 249 mm (W × H × D)
-
Weight3000 g
-
Operating Temperature0°C to 40°C
-
Relative Humidity≤85%
-
AccessoriesInternational standard power cord
-
FeaturesConstant Voltage (CV) and Constant Current (CC), current limiting/protection, low ripple, front-panel adjustments, rear mains selector/fuse
-
MTBF2000 hours
-
Packaging QuantityStandard carton: 4 pcs
