Κουτί Server Chieftec Mini Rack UNC-409S-AIO-OP Black
| Installment plan | Amount / month |
|---|---|
| 2 | 133,33 € |
| 4 | 67,02 € |
| 6 | 44,92 € |
| 8 | 33,87 € |
| 10 | 27,24 € |
| 12 | 22,82 € |
| 18 | 15,45 € |
| 24 | 11,77 € |
| 36 | 8,10 € |
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description
Chieftec UNC-409S-AIO-OP Overview

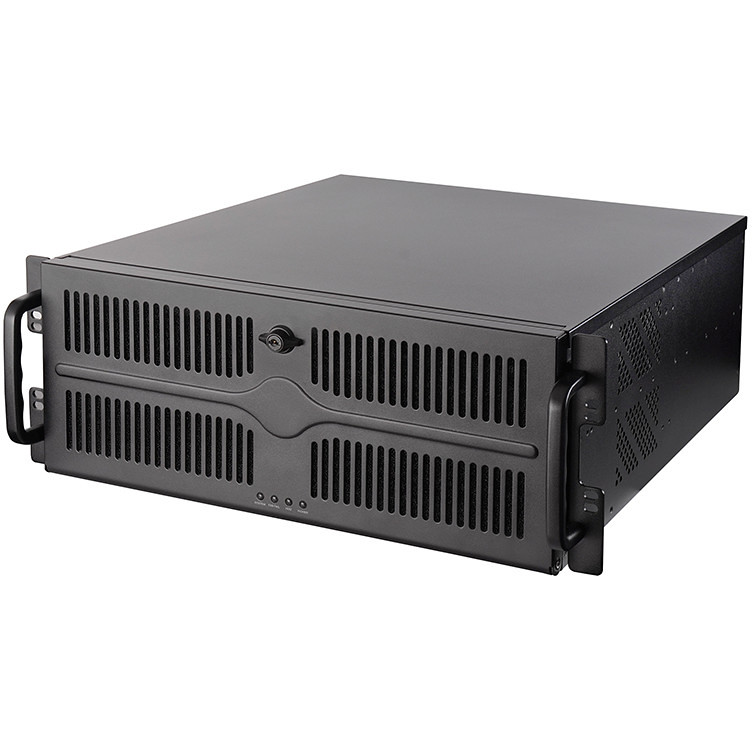

The Chieftec UNC-409S-AIO-OP is a premium 4U rackmount server chassis, crafted to excel in industrial and professional settings that prioritize reliability and flexibility.
Constructed from 1.2 mm SGCC steel, this sleek black chassis not only ensures structural integrity but also supports efficient thermal management. The design allows seamless integration into standard 19" racks, making it ideal for data centers and server rooms.
Key Features

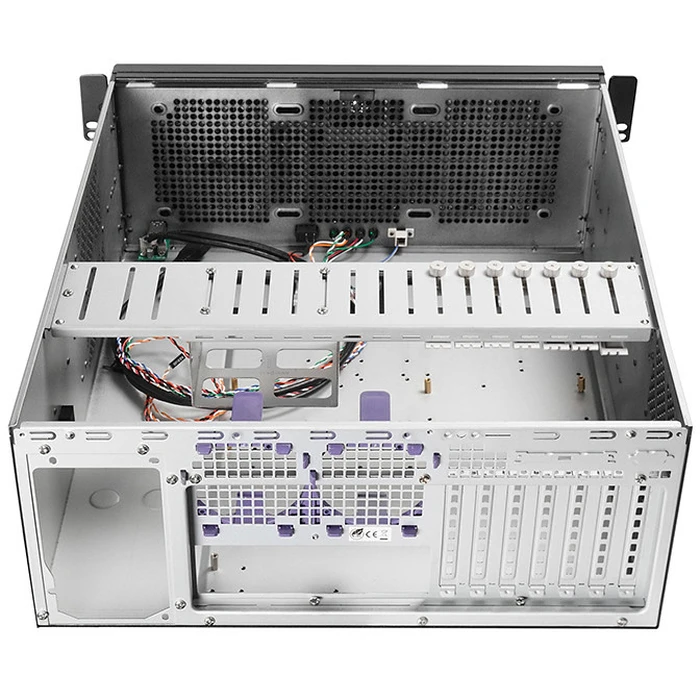

- Motherboard Compatibility: Supports various form factors including Mini-ITX, Micro-ATX, ATX, E-ATX, SSI-CEB, and SSI-EEB.
- Expansion Options: Equipped with 7 expansion slots for PCIe cards, enabling versatile configurations.
- Drive Bays: Features 2 x 3.5" internal bays and 2 x 2.5" internal bays for optimal storage solutions.
Cooling is paramount in high-performance applications. Therefore, the chassis includes positions for 2 x 120 mm fans at the front and 2 x 80 mm fans at the rear. This ensures effective cooling, especially when coupled with a 360 mm AIO water cooler.
Specifications
Dimensions of the chassis are 480 mm (D) x 427 mm (W) x 176.8 mm (H). It supports a range of power supply configurations including standard ATX and redundant power supply options.
The front panel is equipped with 2 x USB 3.0 ports and audio in/out, providing convenient access to peripherals.
Specifications
-
Material
- 1.2 mm SGCC steel
-
Chassis Dimensions (D x W x H)
- 480 mm x 427 mm x 176.8 mm
-
Supported Motherboard Forms
- Mini-ITX, Micro-ATX, ATX, E-ATX, SSI-CEB, SSI-EEB
-
Expansion Slots
- 7 PCIe slots
-
Drive Bays
- 2 x 3.5" internal, 2 x 2.5" internal
-
Cooling Fan Positions
- 2 x 120 mm front, 2 x 80 mm rear
-
Maximum CPU Cooler Height (with cage removed)
- 130 mm
-
Maximum VGA Card Length
- 450 mm
-
Power Supply Type
- ATX, EPS/SSI redundant
-
Front I/O Ports
- 2 x USB 3.0, Audio in/out
