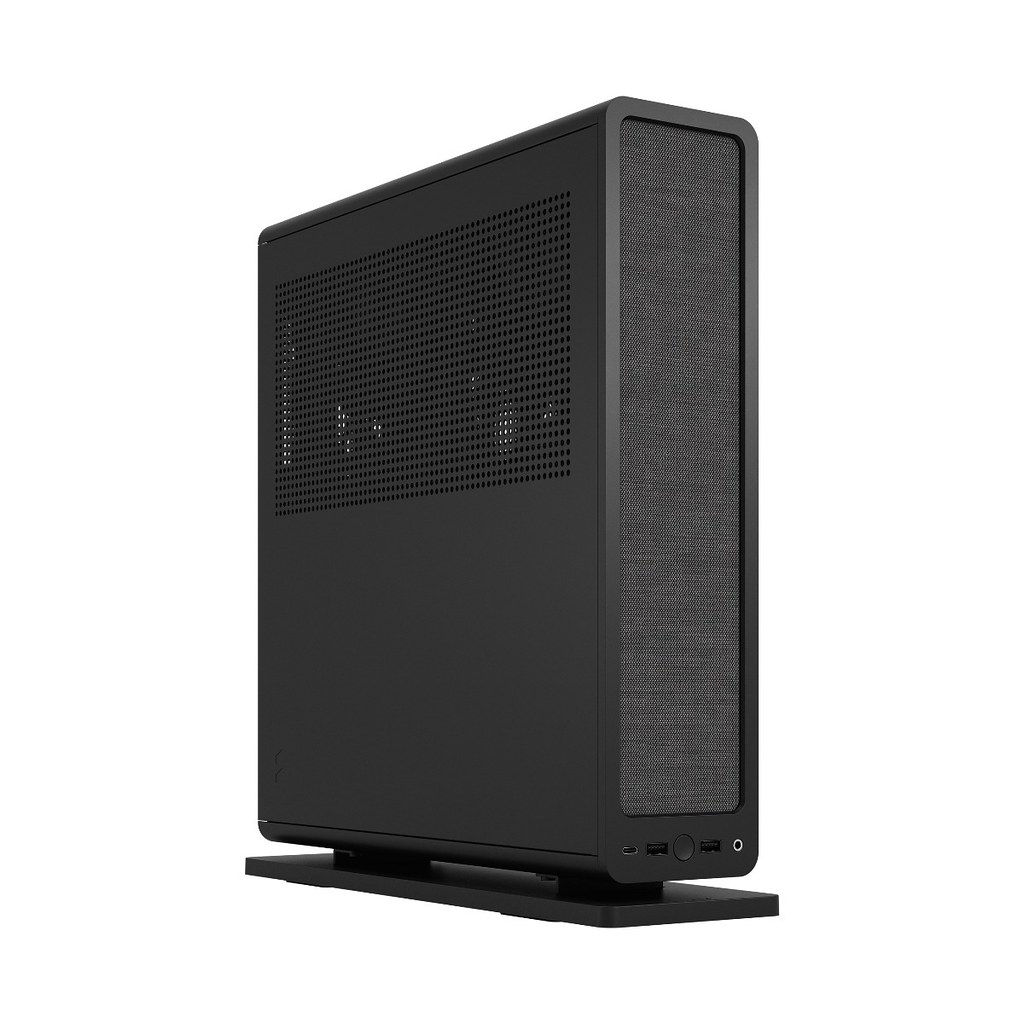

Κουτί Η/Υ Fractal Design Ridge Black mITX

Technical Specifications

• Main Features
  Supports GPUs up to 335 mm in length; All panels are removable allowing maximum accessibility; PCIe 4.0 riser card included; Meticulously designed to maximize your capacity while minimizing your footprint; Small form factor case with a volume of 12.6 liters; Multiple foot configurations allow for horizontal and vertical orientation; Elevate any game table, workspace, or entertainment area; Ventilated on all sides to maximize its cooling potential; Includes 2 pre-installed 140mm Aspect PWM fans; Supports 2x 120/140mm fans and 3x 80mm fans (not included); Sleek fabric front with CNC machined aluminum frame; Features a power LED bar on the front.
• Specifications
  Dedicated Brackets for 2.5" drives
• Expansion slots
  3 slots
• front interface
  1x USB 3.1 Gen 2 Type-C 2x USB 3.0 1x Combo jack – Audio/Microphone on/off button power LED
• Total fan mounts
  2x 120/140 mm and 3x 80 mm
• Side Fans

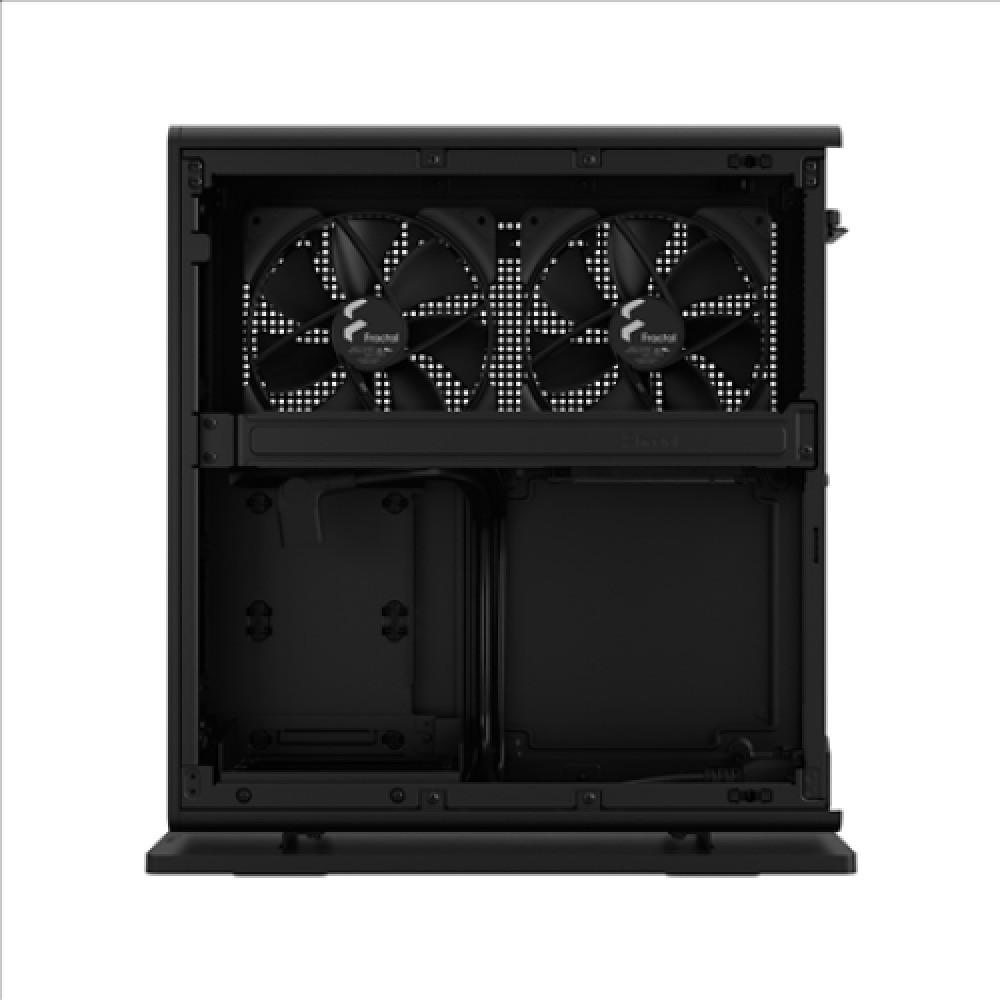

  Supports 2x 120/140mm (2x PWM Aspect 140mm fans included)
• Fans on top
  Supports 3x 80mm fans (not included)
• Cable routing clearance
  13.8mm (behind PSU)
• Left side panel
  Steel
• Right side panel
  Steel
• Compatibility
  Compatible motherboards type
• Side radiator
  120 mm when GPUs with length ?175 mm are installed (280 mm without GPU)
• Max Power Supply Length
  SFX-L
• Maximum GPU length
  325mm with SSD installed. 335mm without SSD installed.
• Maximum GPU height
  125mm with top fans installed. 137 mm without top fans.
• Maximum GPU thickness
  57 mm with 2 x 140 mm fans installed, 82 mm without side fans.
• Maximum height of CPU cooler
  70mm
• Vertical
  374 x 110 x 395 mm
• Horizontal
  360 x 375 x 115 mm
• Housing dimensions without feet/bumps/screws
  355 x 95 x 375 mm
• Net weight
  4.3kg
• Volume
  12.6 liters
