KNIPEX MultiCrimp crimping pliers (model 97 33 03) designed for photovoltaic connectors (MC4 / MC4 EVO2) and general electrical crimping tasks. Provides precise, repeatable crimps and accepts interchangeable crimping dies for a range of terminal types: conductor/ferrule range 0.25–6.0 mm² (AWG...
More
KNIPEX MultiCrimp crimping pliers for PV MC4 / MC4 EVO2, model 97 33 03
Product Code: 1173702815
Available in 4 - 6 days
265,13 €
or
8,28€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 796 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

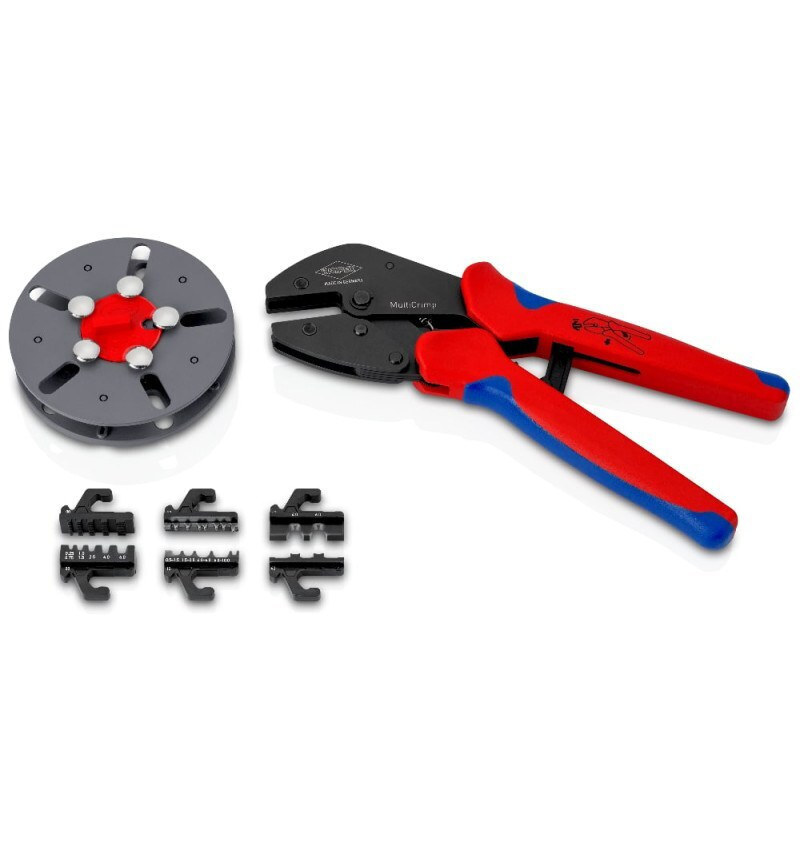

KNIPEX MultiCrimp crimping pliers (model 97 33 03) designed for photovoltaic connectors (MC4 / MC4 EVO2) and general electrical crimping tasks. Provides precise, repeatable crimps and accepts interchangeable crimping dies for a range of terminal types: conductor/ferrule range 0.25–6.0 mm² (AWG 24–10). Compatible die examples: MC4/MC4 Evo2 4/6 mm² (die 97 39 42), sealed connector dies for 0.5–10 mm² (die 97 39 13), and ferrule dies 0.25–6 mm² (die 97 39 08). The tool features a ratchet mechanism with a 5-step pressure-release for safe, consistent crimps, and is designed for reliable use on photovoltaic cable assemblies and insulated end sleeves. Constructed from high-quality forged steel with ergonomic multi-component grips for comfort and control. Brand: KNIPEX. SKU: 21270164. EAN: 4003773092599. MPN: 97 33 03.
-
BrandKNIPEX
-
Model / Part Number97 33 03
-
SKU21270164
-
EAN4003773092599
-
MPN97 33 03
-
TypeMultiCrimp crimping pliers for PV connectors (MC4 / MC4 EVO2)
-
Ferrule / conductor range0.25–6.0 mm² (AWG 24–10)
-
Compatible crimping diesMC4/MC4 Evo2 4/6 mm² (97 39 42); sealed connector dies for 0.5–10 mm² (97 39 13); ferrule dies 0.25–6 mm² (97 39 08)
-
Ratchet mechanismYes — with 5-step pressure release
-
Primary useCrimping PV MC4 connectors, ferrules, insulated end sleeves; photovoltaic and general electrical installations
-
Construction materialHigh-grade forged steel (chrome-vanadium style), oil-hardened finish
-
HandlesErgonomic multi-component grips (insulated style)
-
Weight (product)320 g
-
Package weight400 g
-
Package dimensions (L×W×H)24 × 9 × 3.5 cm
-
Manufacturer originGermany (KNIPEX)
-
NotesInterchangeable dies and adapter sets available; ensure correct die for connector type prior to crimping
Ratings
Description
KNIPEX MultiCrimp crimping pliers (model 97 33 03) designed for photovoltaic connectors (MC4 / MC4 EVO2) and general electrical crimping tasks. Provides precise, repeatable crimps and accepts interchangeable crimping dies for a range of terminal types: conductor/ferrule range 0.25–6.0 mm² (AWG 24–10). Compatible die examples: MC4/MC4 Evo2 4/6 mm² (die 97 39 42), sealed connector dies for 0.5–10 mm² (die 97 39 13), and ferrule dies 0.25–6 mm² (die 97 39 08). The tool features a ratchet mechanism with a 5-step pressure-release for safe, consistent crimps, and is designed for reliable use on photovoltaic cable assemblies and insulated end sleeves. Constructed from high-quality forged steel with ergonomic multi-component grips for comfort and control. Brand: KNIPEX. SKU: 21270164. EAN: 4003773092599. MPN: 97 33 03.
Technical Specifications
-
BrandKNIPEX
-
Model / Part Number97 33 03
-
SKU21270164
-
EAN4003773092599
-
MPN97 33 03
-
TypeMultiCrimp crimping pliers for PV connectors (MC4 / MC4 EVO2)
-
Ferrule / conductor range0.25–6.0 mm² (AWG 24–10)
-
Compatible crimping diesMC4/MC4 Evo2 4/6 mm² (97 39 42); sealed connector dies for 0.5–10 mm² (97 39 13); ferrule dies 0.25–6 mm² (97 39 08)
-
Ratchet mechanismYes — with 5-step pressure release
-
Primary useCrimping PV MC4 connectors, ferrules, insulated end sleeves; photovoltaic and general electrical installations
-
Construction materialHigh-grade forged steel (chrome-vanadium style), oil-hardened finish
-
HandlesErgonomic multi-component grips (insulated style)
-
Weight (product)320 g
-
Package weight400 g
-
Package dimensions (L×W×H)24 × 9 × 3.5 cm
-
Manufacturer originGermany (KNIPEX)
-
NotesInterchangeable dies and adapter sets available; ensure correct die for connector type prior to crimping
