Detailed Description

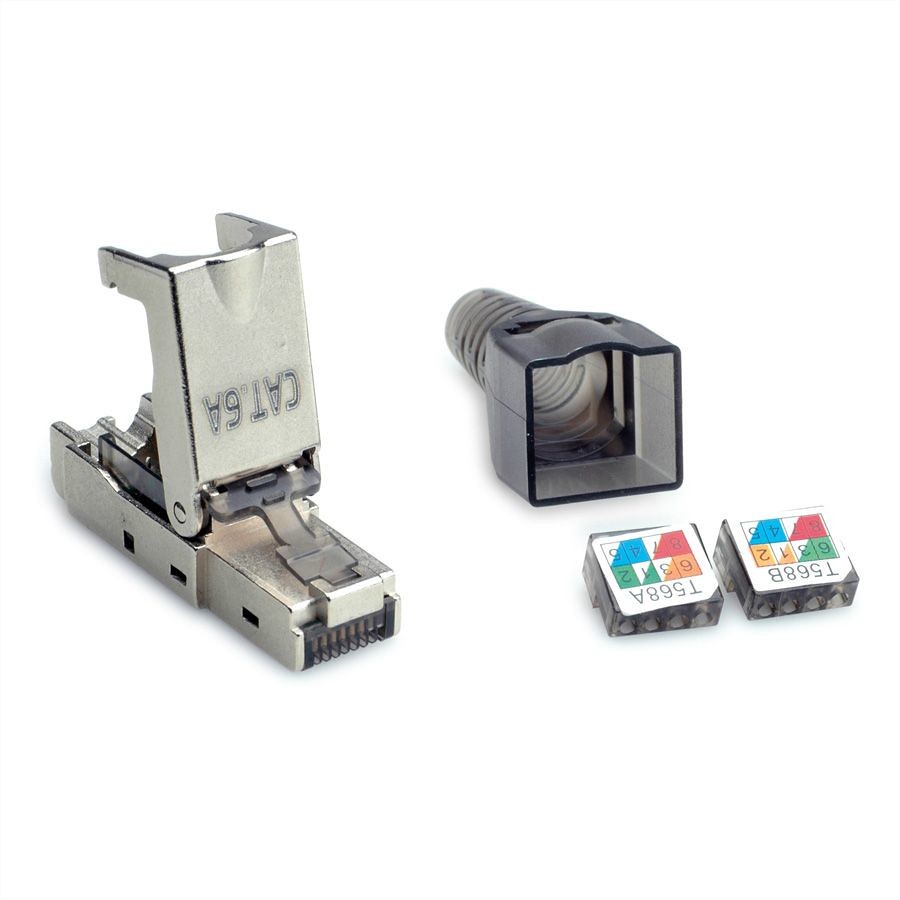

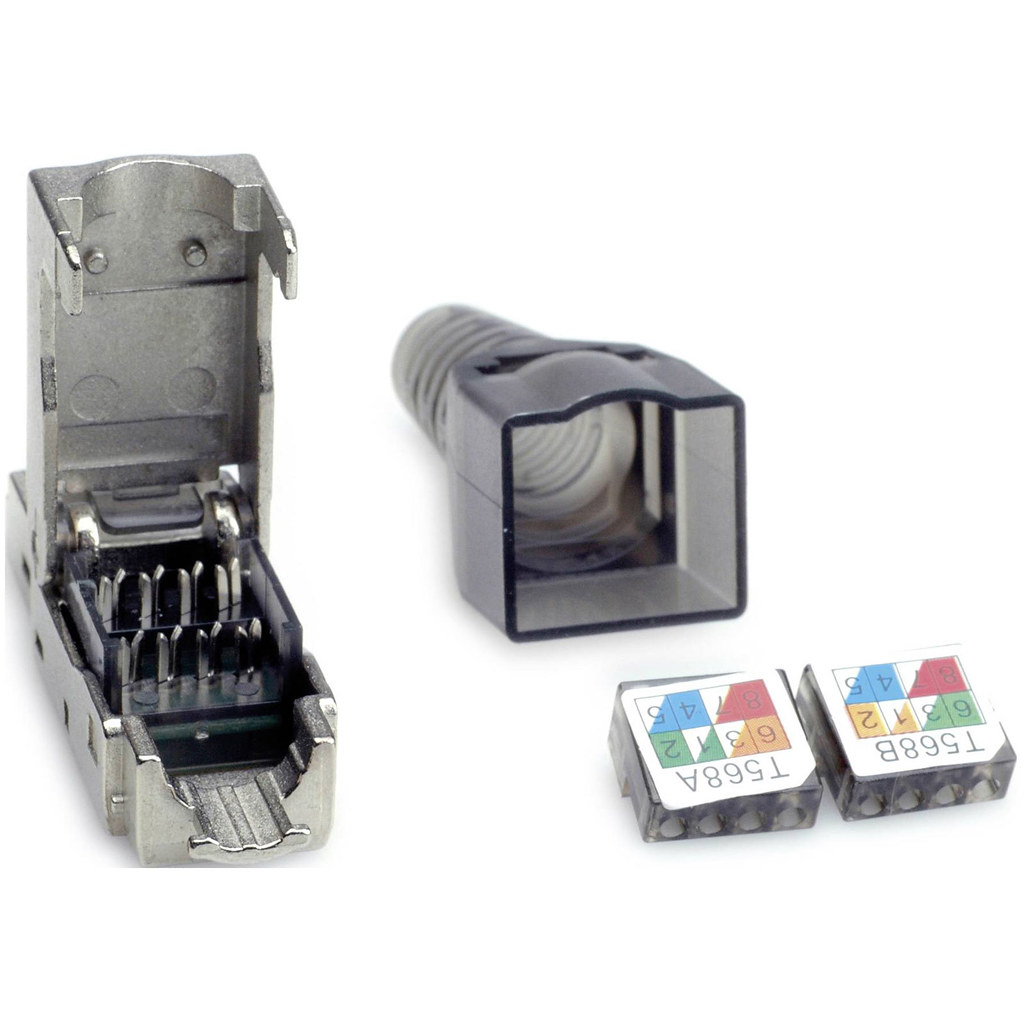

The FELDKONFEKTIONIERBARER RJ45 is a versatile field-wireable RJ45 connector, specifically designed for industrial Ethernet applications. This connector is particularly suitable for CAT6A networking, which emphasizes high data transmission rates.
Featuring a male straight plug design, this RJ45 connector easily facilitates secure and quick cable termination with its innovative IDC terminals, removing the need for soldering or specialized tools. It ensures compliance with Ethernet CAT6A standards, providing stable network connections.
Key features include:
- Data Transmission Rate: Up to 10 Gbit/s
- Protection Degree: IP20
- Durable Housing: High-quality plastic
This connector is built to endure mechanical stress typical in industrial settings, highlighting its durability.
In summary, the FELDKONFEKTIONIERBARER RJ45 connector is an efficient solution for those requiring robust and flexible cabling options in high-speed data transfer environments.
Specifications
-
Connector Type
- RJ45, Male, Field-wireable
-
Cable Outlet
- Straight
-
Number of Poles
- 8
-
Protection Degree (IEC 60529)
- IP20
-
Operating Voltage (DC max.)
- 60 V
-
Maximum Current per Contact
- 2 A
-
Data Transmission Rate
- Up to 10 Gbit/s (CAT6A/Class EA)
-
Cable Cross Section Range
- 0.14 mm² to 0.34 mm²
-
AWG Cable Range
- 26 AWG to 22 AWG
-
Maximum Wire Insulation Diameter
- 1.6 mm
-
Clamping Range
- 4.5 mm to 9 mm
-
Operating Temperature Range
- -40 °C to +70 °C
-
Connection Technology
- IDC terminals for quick and reliable wiring
-
Material
- Plastic housing with good mechanical resistance
-
Installation Notes
- Requires proper strain relief to protect connectors from mechanical loads.
