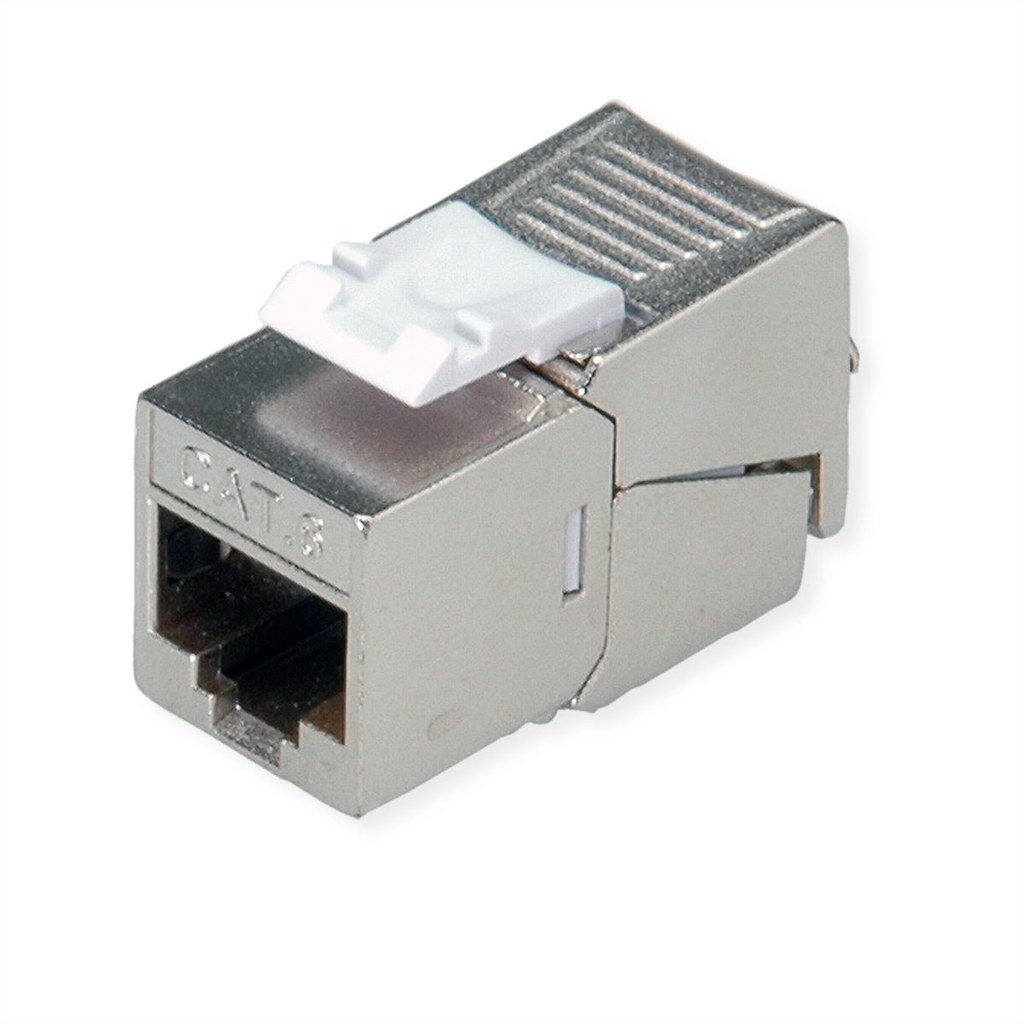

The KEYST KAT6/KL.E.GESCHIRMT is a high-performance Cat6 shielded keystone jack specifically designed for efficient network connections. It boasts a robust and compact build, optimized for terminating Ethernet cables in various environments.
Key Features:
- Enhanced shielding: Reduces electromagnetic interference (EMI) for stable data transmission.
- Universal compatibility: Supports both stranded and solid copper wires ranging from 22 to 26 AWG.
- Easy installation: The keystone design allows for snap-in installation and versatile mounting options.
- Compact size: Fits standard keystone patch panels and wall plates efficiently.
- PoE support: Compatible with IEEE 802.3bt Power over Ethernet standards.
This keystone jack is engineered to provide a reliable data rate support of up to 1 Gbps. Its materials, including phosphor bronze with nickel and gold plating, ensure optimum conductivity and corrosion resistance. With easy punch-down IDC termination and minimal maintenance requirements, the KEYST KAT6/KL.E.GESCHIRMT is ideal for modern networking needs, whether in commercial or residential installations.
-
Product TypeShielded Cat6 Keystone Jack
-
Model Number (MPN)26.11.0377
-
EAN Code7611990111008
-
Wiring StandardT568A/T568B
-
ShieldingShielded (geschirmt)
-
StyleUsually 90-degree (right angle) or inline
-
Data Rate SupportUp to 1,000 Mbps (1 Gbps)
-
Housing MaterialABS + PC (plastic composite)
-
Contact MaterialPhosphor Bronze, nickel and gold plating for optimum conductivity and corrosion resistance
-
Insulation Displacement Contact (IDC) MaterialPhosphor Bronze, tin plated
-
Color OptionsTypically available in multiple colors for cable management
-
DimensionsApprox. 22 mm(H) x 18 mm(W) x 30 mm(D)
-
Operating Temperature-10°C to 60°C
-
Mating CyclesMinimum 750 cycles
-
Cable CompatibilitySupports 22-26 AWG stranded or solid copper wires
-
CertificationsMeets TIA/EIA-568-C.2 Cat6, ISO/IEC 11801 Class E standards; UL listed
-

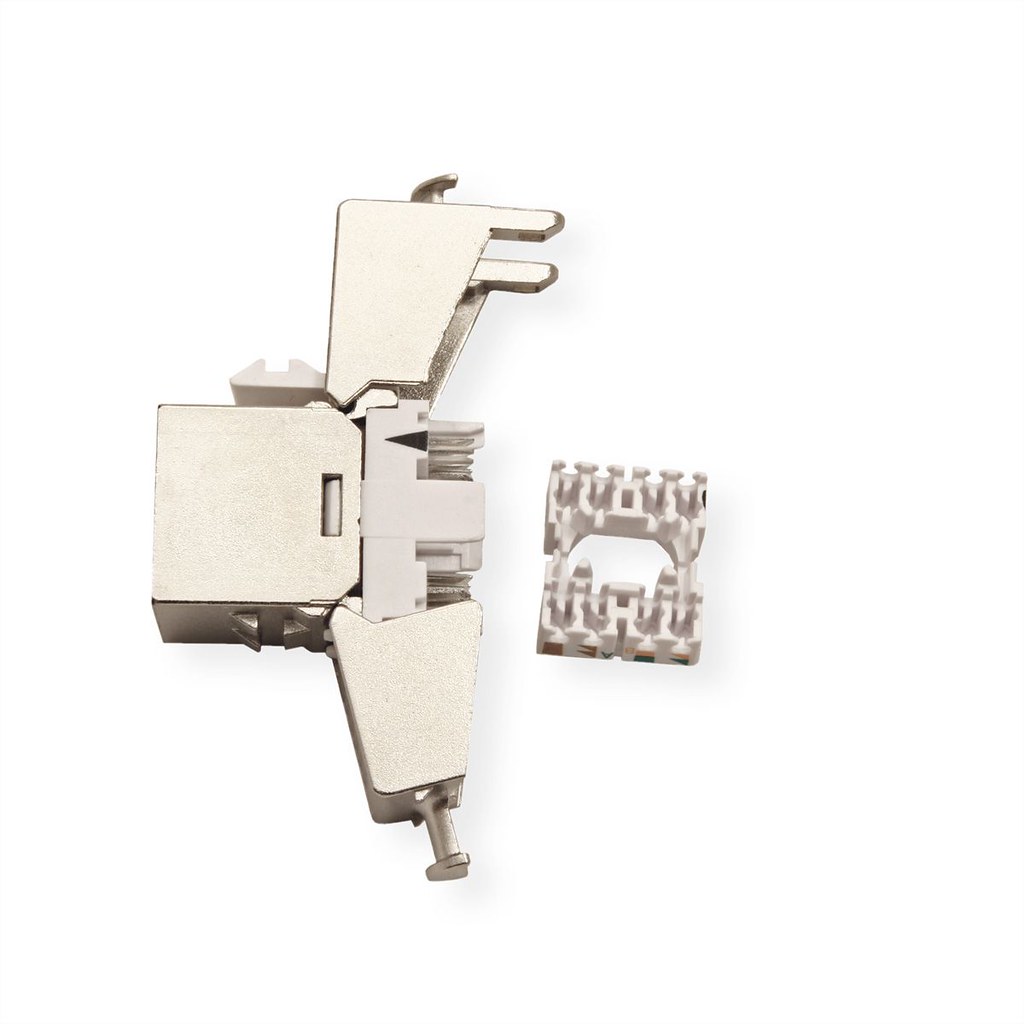

Termination Method110-type IDC punch-down with strain relief
-
PoE SupportCompatible with IEEE 802.3bt PoE (Type 1 to Type 4) according to Molex standards
Ratings
Description
The KEYST KAT6/KL.E.GESCHIRMT is a high-performance Cat6 shielded keystone jack specifically designed for efficient network connections. It boasts a robust and compact build, optimized for terminating Ethernet cables in various environments.
Key Features:
- Enhanced shielding: Reduces electromagnetic interference (EMI) for stable data transmission.
- Universal compatibility: Supports both stranded and solid copper wires ranging from 22 to 26 AWG.
- Easy installation: The keystone design allows for snap-in installation and versatile mounting options.
- Compact size: Fits standard keystone patch panels and wall plates efficiently.
- PoE support: Compatible with IEEE 802.3bt Power over Ethernet standards.
This keystone jack is engineered to provide a reliable data rate support of up to 1 Gbps. Its materials, including phosphor bronze with nickel and gold plating, ensure optimum conductivity and corrosion resistance. With easy punch-down IDC termination and minimal maintenance requirements, the KEYST KAT6/KL.E.GESCHIRMT is ideal for modern networking needs, whether in commercial or residential installations.
Technical Specifications
-
Product TypeShielded Cat6 Keystone Jack
-
Model Number (MPN)26.11.0377
-
EAN Code7611990111008
-
Wiring StandardT568A/T568B
-
ShieldingShielded (geschirmt)
-
StyleUsually 90-degree (right angle) or inline
-
Data Rate SupportUp to 1,000 Mbps (1 Gbps)
-
Housing MaterialABS + PC (plastic composite)
-
Contact MaterialPhosphor Bronze, nickel and gold plating for optimum conductivity and corrosion resistance
-
Insulation Displacement Contact (IDC) MaterialPhosphor Bronze, tin plated
-
Color OptionsTypically available in multiple colors for cable management
-
DimensionsApprox. 22 mm(H) x 18 mm(W) x 30 mm(D)
-
Operating Temperature-10°C to 60°C
-
Mating CyclesMinimum 750 cycles
-
Cable CompatibilitySupports 22-26 AWG stranded or solid copper wires
-
CertificationsMeets TIA/EIA-568-C.2 Cat6, ISO/IEC 11801 Class E standards; UL listed
-
Termination Method110-type IDC punch-down with strain relief
-
PoE SupportCompatible with IEEE 802.3bt PoE (Type 1 to Type 4) according to Molex standards
