Keystone Digitus RJ45-Stecker Cat6a for field applications Unshielded
Transceiver TP-Link Omada Nek SM311LS Fiber Converter SFP/LX/LC V5.2
Αξεσουάρ Δικτύο Auerswald COMpact 5200R telephone system (19" rackmount enclosure)
Αξεσουάρ Δικτύου Delock Keystone Modul USB 3.0 A Female to USB 3.0 A Female

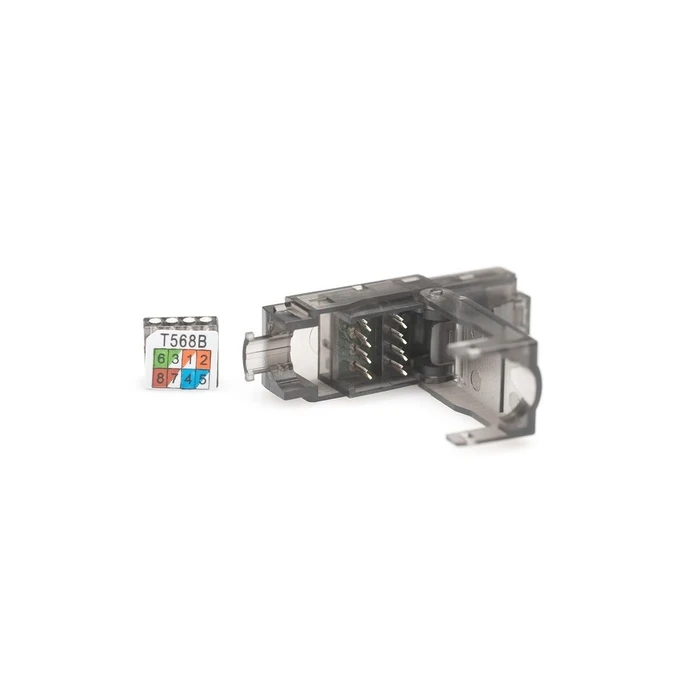

The DIGITUS RJ45-Stecker Cat6a für Feldanwendungen ungeschirmt (DN-93633) is a remarkable field-assembly connector specifically designed for hassle-free installation on solid and stranded wires. With its exceptional performance, it caters to high-speed networks, supporting speeds of up to 10 Gigabit Ethernet.
One of the key features of this connector is its unshielded design. It is compatible with IEEE 802.3an standards for 10GBASE-T, ensuring seamless communication for voice and data.
- Connector Type: RJ45 (8P8C)
- Wire Compatibility: AWG 27/7 to 22/1
- Installation Method: Tool-free installation via IDC strips
Additionally, the materials used ensure durability. The housing is typically made of polycarbonate, while the contacts are made of phosphor bronze with nickel gold plating for enhanced performance.
Performance specifications highlight the robustness of this connector:
- Maximum Insertion Force: 30N
- Mating Cycles: More than 1500
- Operating Temperature: -20°C to +70°C
This connector is particularly appealing due to its tool-free installation and support for cable diameters ranging from 6 to 9.5 mm. Moreover, it is equipped with a dust cap in some listings, ensuring long-lasting functionality.
-
CategoryCAT 6A
-
StandardsIEEE 802.3an for 10GBASE-T
-
Connector TypeRJ45 (8P8C)
-
Wire CompatibilityAWG 27/7 to 22/1
-
Operating Temperature-20°C to +70°C
-
Maximum Insertion Force30N
-
Mating Cycles>1500
-
Dielectric Strength1000 VDC contact-to-contact, 1500 VDC contact-to-ground
Ratings
Description
The DIGITUS RJ45-Stecker Cat6a für Feldanwendungen ungeschirmt (DN-93633) is a remarkable field-assembly connector specifically designed for hassle-free installation on solid and stranded wires. With its exceptional performance, it caters to high-speed networks, supporting speeds of up to 10 Gigabit Ethernet.
One of the key features of this connector is its unshielded design. It is compatible with IEEE 802.3an standards for 10GBASE-T, ensuring seamless communication for voice and data.
- Connector Type: RJ45 (8P8C)
- Wire Compatibility: AWG 27/7 to 22/1
- Installation Method: Tool-free installation via IDC strips
Additionally, the materials used ensure durability. The housing is typically made of polycarbonate, while the contacts are made of phosphor bronze with nickel gold plating for enhanced performance.
Performance specifications highlight the robustness of this connector:
- Maximum Insertion Force: 30N
- Mating Cycles: More than 1500
- Operating Temperature: -20°C to +70°C
This connector is particularly appealing due to its tool-free installation and support for cable diameters ranging from 6 to 9.5 mm. Moreover, it is equipped with a dust cap in some listings, ensuring long-lasting functionality.
Technical Specifications
-
CategoryCAT 6A
-
StandardsIEEE 802.3an for 10GBASE-T
-
Connector TypeRJ45 (8P8C)
-
Wire CompatibilityAWG 27/7 to 22/1
-
Operating Temperature-20°C to +70°C
-
Maximum Insertion Force30N
-
Mating Cycles>1500
-
Dielectric Strength1000 VDC contact-to-contact, 1500 VDC contact-to-ground
