Keystone Digitus Cat6A shielded 4 pcs. tool-free
Need Help? Fill in your details so we can call you immediately!
Buy now, pay later με tbi bank
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Transceiver TP-Link ISM311LM network Fiber optic 1.25 Mbit/s SFP 850 nm
Converter TP-Link Omada MC211CS-2 network media 1000 Mbit/s 1310 nm Single-mode Black
Converter TP-Link Omada MC212CS-2 network media 1000 Mbit/s 1550 nm Single-mode Black
Converter Planet 4-Port 1G Ethernet PoE to VDSL2 Extender IVC-234GPT

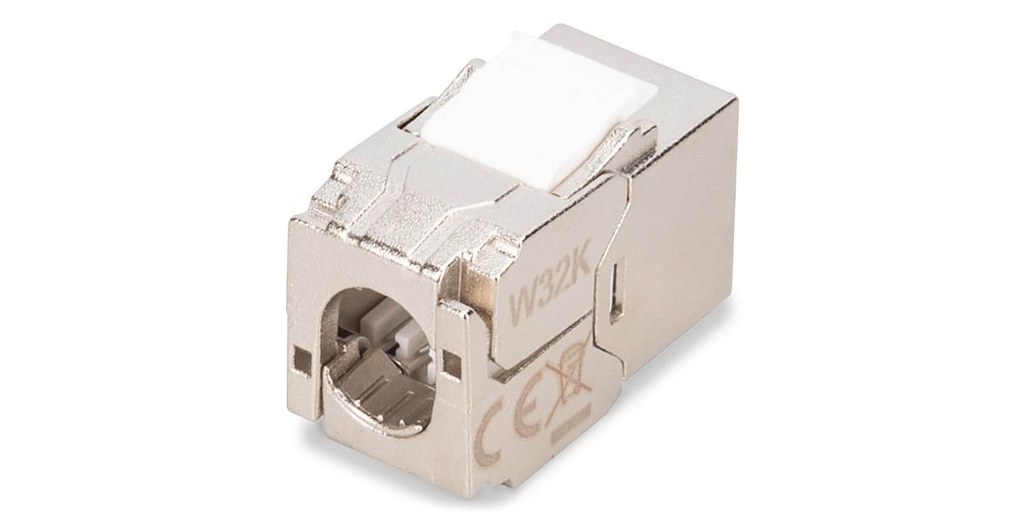

The Digitus CAT 6A Keystone Module, Shielded, Tool-Free (DN-93615-S-4) is a highly efficient and compact solution tailored for structured cabling needs in professional networking environments. This set comprises 4 shielded CAT 6A keystone modules, expertly crafted to facilitate reliable, high-speed data transmission of up to 10 Gbps over distances reaching 100 meters.

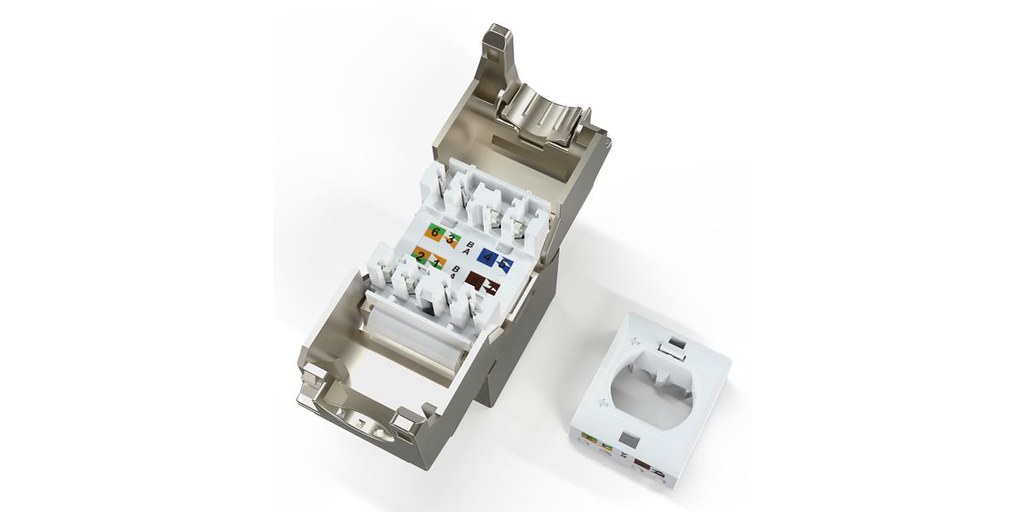

These modules are perfect for installation in patch panels, distribution boxes, floor boxes, and desktop housings, providing exceptional EMI protection along with user-friendly installation. Notably, each module incorporates a tool-free mounting system that utilizes LSA insulation-displacement connectors.
- Color-coded according to EIA/TIA 568 A & B standards
- Intelligent cable manager for secure fixation and strain relief
- 360° shield contact to ensure unparalleled electromagnetic interference protection
In summary, this product is designed for network installers and IT professionals who demand a reliable, high-quality solution for all CAT 6A cabling applications.
-
CategoryCAT 6A (10GBase-T, 500 MHz)
-
StandardsISO/IEC 11801 3rd Edition, EN 50173-1, ANSI/TIA 568-C.2
-
Shielding360° cable screen connection for enhanced EMI protection
-
Housing MaterialZinc die-cast, nickel-plated
-
Contact MaterialPhosphor bronze
-
Contact CoatingNickel, gold-plated (0.5 µm)
-
Insulation-Displacement ConnectorsLSA, color-coded (EIA/TIA 568 A & B)
-
Cable CompatibilitySupports AWG 26/7 – 22/1 stranded and solid copper conductors
-
Insertion ForceMax. 30 N (IEC 60603-7-51)
-
Holding Force7.7 kg between socket and plug
-
Dielectric Strength1000 VDC (contact/contact), 1500 VDC (contact/ground)
-
Mating Cycles≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
-
Operating Temperature-20°C to +70°C
-
PoE SupportSuitable for IEEE 802.3 af/at/bt (PoE, PoE+, 4PPoE in permanent link)
-
MountingTool-free, compatible with standard 483 mm (19") 1U panels and modular junction boxes
-
Opening SizeKeystone standard (19.35 mm x 14.8 mm)
Ratings
Description
The Digitus CAT 6A Keystone Module, Shielded, Tool-Free (DN-93615-S-4) is a highly efficient and compact solution tailored for structured cabling needs in professional networking environments. This set comprises 4 shielded CAT 6A keystone modules, expertly crafted to facilitate reliable, high-speed data transmission of up to 10 Gbps over distances reaching 100 meters.
These modules are perfect for installation in patch panels, distribution boxes, floor boxes, and desktop housings, providing exceptional EMI protection along with user-friendly installation. Notably, each module incorporates a tool-free mounting system that utilizes LSA insulation-displacement connectors.
- Color-coded according to EIA/TIA 568 A & B standards
- Intelligent cable manager for secure fixation and strain relief
- 360° shield contact to ensure unparalleled electromagnetic interference protection
In summary, this product is designed for network installers and IT professionals who demand a reliable, high-quality solution for all CAT 6A cabling applications.
Technical Specifications
-
CategoryCAT 6A (10GBase-T, 500 MHz)
-
StandardsISO/IEC 11801 3rd Edition, EN 50173-1, ANSI/TIA 568-C.2
-
Shielding360° cable screen connection for enhanced EMI protection
-
Housing MaterialZinc die-cast, nickel-plated
-
Contact MaterialPhosphor bronze
-
Contact CoatingNickel, gold-plated (0.5 µm)
-
Insulation-Displacement ConnectorsLSA, color-coded (EIA/TIA 568 A & B)
-
Cable CompatibilitySupports AWG 26/7 – 22/1 stranded and solid copper conductors
-
Insertion ForceMax. 30 N (IEC 60603-7-51)
-
Holding Force7.7 kg between socket and plug
-
Dielectric Strength1000 VDC (contact/contact), 1500 VDC (contact/ground)
-
Mating Cycles≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
-
Operating Temperature-20°C to +70°C
-
PoE SupportSuitable for IEEE 802.3 af/at/bt (PoE, PoE+, 4PPoE in permanent link)
-
MountingTool-free, compatible with standard 483 mm (19") 1U panels and modular junction boxes
-
Opening SizeKeystone standard (19.35 mm x 14.8 mm)
