Κεραία WiFi Teltonika PR1KC640 network MIMO directional SMA 4 dBi
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Κεραία WiFi Mikrotik 915 / Omnidirectional 6.5dBi 900-928MHz + SMA + Bracket
Κεραία WiFi Extralink EXSEC19-60 5GHz MIMO 4x4, 60°, 19dBi, for Mimosa A5C

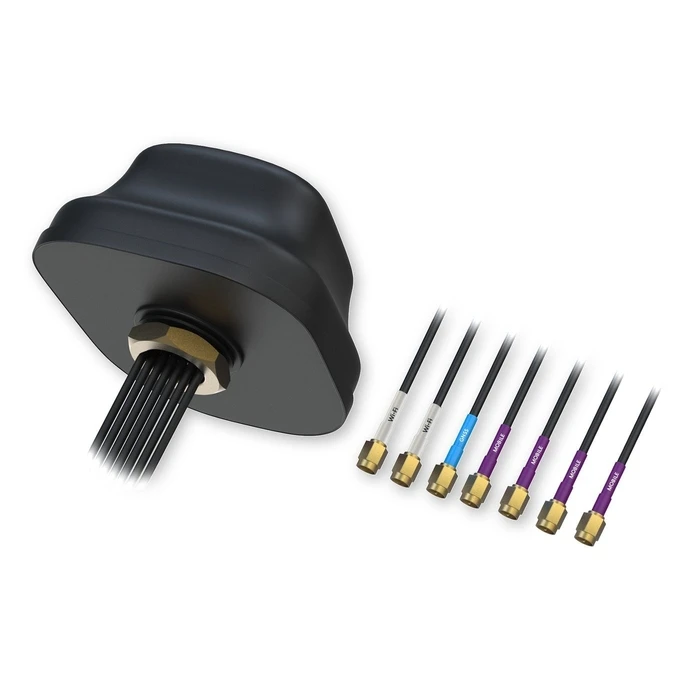

The WiFi Teltonika PR1KC640 Antenna is an advanced multi-functional roof antenna designed for robust wireless connectivity. This compact unit integrates 4x4 MIMO LTE, dual-band MIMO WiFi, and GNSS capabilities, ensuring superior performance in a variety of environments.
One of the key features of this antenna is its directional design, which enhances signal strength and reliability. With multiple SMA connectors, it accommodates diverse applications effectively, making it ideal for both mobile and stationary setups.
Key Technical Specifications
- Frequency Coverage:
- Cellular LTE 4G/5G Bands: 617 - 960 MHz, 1710 - 2690 MHz, 2900 - 4200 MHz
- GNSS: 1164 - 1300 MHz and 1559 - 1610 MHz
- WiFi: 2400 - 2483.5 MHz and 4900 - 5925 MHz
- Gain: 4 dBi for LTE and WiFi bands
- MIMO Technology: Features 4x SMA male connectors for LTE, 2x RP-SMA male for WiFi, and 1x SMA male for GNSS
- Impedance: 50 Ω
- VSWR: ?3.0 for LTE, ?2.5 for WiFi, ?2.0 for GNSS
This antenna ensures low signal reflection and efficient transmission, making it a perfect choice for demanding environments. Its robust design allows it to withstand harsh conditions, providing reliable connectivity when you need it most.
-
Frequency Coverage - LTE617 - 960 MHz, 1710 - 2690 MHz, 2900 - 4200 MHz
-
Frequency Coverage - GNSS1164 - 1300 MHz and 1559 - 1610 MHz
-
Frequency Coverage - WiFi2400 - 2483.5 MHz and 4900 - 5925 MHz
-
Gain4 dBi
-
MIMO Connectors4x SMA male for LTE, 2x RP-SMA male for WiFi, 1x SMA male for GNSS
-
Impedance50 Ω
-
VSWR - LTE?3.0
-
VSWR - WiFi?2.5
-
VSWR - GNSS?2.0
-
LNA Gain (GNSS)40 ± 2 dB
-
Current Consumption?60 mA
-
Mounting Hole Diameter28 mm
-
Maximum Panel Thickness8 mm
-
Weight960 ± 30 g
-
Dimensions189 x 182 x 85 mm
-
Operating Temperature Range-40 °C to +85 °C
Ratings
Description
The WiFi Teltonika PR1KC640 Antenna is an advanced multi-functional roof antenna designed for robust wireless connectivity. This compact unit integrates 4x4 MIMO LTE, dual-band MIMO WiFi, and GNSS capabilities, ensuring superior performance in a variety of environments.
One of the key features of this antenna is its directional design, which enhances signal strength and reliability. With multiple SMA connectors, it accommodates diverse applications effectively, making it ideal for both mobile and stationary setups.
Key Technical Specifications
- Frequency Coverage:
- Cellular LTE 4G/5G Bands: 617 - 960 MHz, 1710 - 2690 MHz, 2900 - 4200 MHz
- GNSS: 1164 - 1300 MHz and 1559 - 1610 MHz
- WiFi: 2400 - 2483.5 MHz and 4900 - 5925 MHz
- Gain: 4 dBi for LTE and WiFi bands
- MIMO Technology: Features 4x SMA male connectors for LTE, 2x RP-SMA male for WiFi, and 1x SMA male for GNSS
- Impedance: 50 Ω
- VSWR: ?3.0 for LTE, ?2.5 for WiFi, ?2.0 for GNSS
This antenna ensures low signal reflection and efficient transmission, making it a perfect choice for demanding environments. Its robust design allows it to withstand harsh conditions, providing reliable connectivity when you need it most.
Technical Specifications
-
Frequency Coverage - LTE617 - 960 MHz, 1710 - 2690 MHz, 2900 - 4200 MHz
-
Frequency Coverage - GNSS1164 - 1300 MHz and 1559 - 1610 MHz
-
Frequency Coverage - WiFi2400 - 2483.5 MHz and 4900 - 5925 MHz
-
Gain4 dBi
-
MIMO Connectors4x SMA male for LTE, 2x RP-SMA male for WiFi, 1x SMA male for GNSS
-
Impedance50 Ω
-
VSWR - LTE?3.0
-
VSWR - WiFi?2.5
-
VSWR - GNSS?2.0
-
LNA Gain (GNSS)40 ± 2 dB
-
Current Consumption?60 mA
-
Mounting Hole Diameter28 mm
-
Maximum Panel Thickness8 mm
-
Weight960 ± 30 g
-
Dimensions189 x 182 x 85 mm
-
Operating Temperature Range-40 °C to +85 °C
