Κεραία WiFi Teltonika Mobile/Gnss Roof Sma/Combo Quad Pr1Kcl28
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Κεραία Δικτύου Poynting Wi-Fi Mast/Wand A-WLAN-060-V1 White SMA (F) 2,4 GHz/5GHz 18dBi Dual-Band-Directional

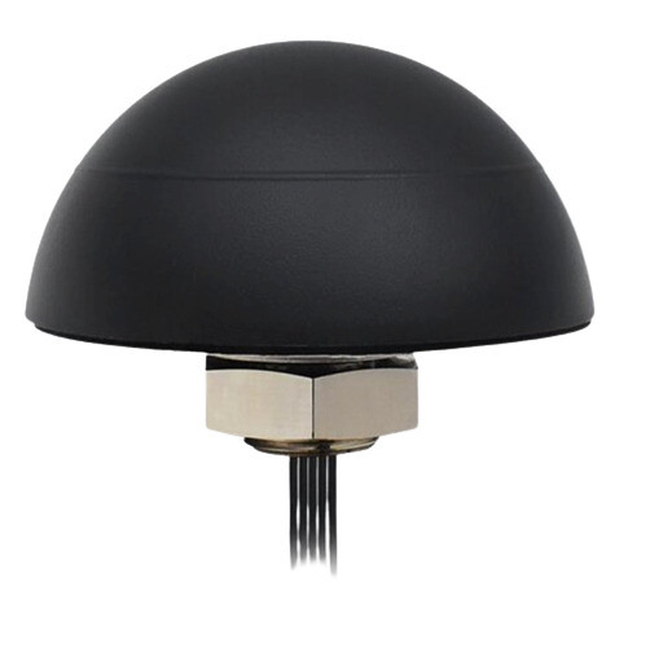

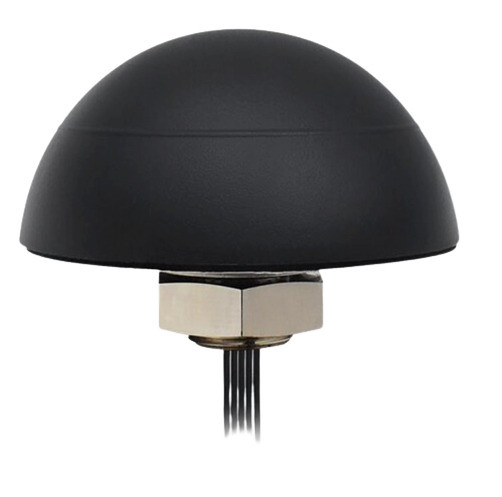

The Teltonika PR1KCL28 Combo Quad Mobile/GNSS Roof SMA Antenna is a versatile and reliable antenna, perfect for integrating quad-band mobile connectivity with GNSS capabilities. This solution is crucial for ensuring seamless wireless communication and accurate location data in various dynamic environments.
Key features include:
- Mounting Method: Screw installation for stability.
- Protection Rating: IP65 for dust and water resistance.
- Material: Made from UV-resistant plastic ensuring durability.
- Dimensions: Compact housing measuring Ø 110.0 x 53.0 mm.
Additionally, its operating temperature ranges from -40°C to +85°C, making it suitable for extreme environments. The antenna's weight is approximately 525 ± 10 grams, while it includes 5x RG174 cables each 3000 mm long for ease of connectivity.
Technical specifications point to a well-engineered design:
- GNSS Frequency Range: 1575.42 ± 3 MHz
- LNA Gain: 28 ± 2 dB
- LTE Frequency Range: 698 – 960 MHz and 1710 – 2690 MHz
- Impedance: 50 Ω, standard for most systems.
This antenna is not only efficient in terms of performance but also compliant with RoHS regulations, ensuring it meets essential environmental safety standards.
-
Mounting MethodScrew
-
Radome Ingress Protection RatingIP65
-
Radome MaterialUV-resistant plastic
-
Housing DimensionsØ 110.0 x 53.0 mm
-
Cable5x RG174, 3000 mm each
-
Operating Temperature-40°C to +85°C
-
Weight525 ± 10 g
-
UV ResistanceYes
-
RoHS CompliantYes
-
GNSS Frequency Range1575.42 ± 3 MHz
-
GNSS PolarizationRHCP
-
LNA Gain28 ± 2 dB
-
LNA Noise Figure≤ 1.5 dB
-
V.S.W.R (GNSS)< 2.0
-
GNSS Impedance50 Ω
-
Supply Voltage3 – 5 VDC
-
Current Consumption (GNSS)< 15 mA
-
LTE Frequency Range698 – 960 MHz and 1710 – 2690 MHz
-
LTE PolarizationLinear
-
LTE Gain3.0 dBi
-
LTE V.S.W.R< 3.0
-
LTE Impedance50 Ω
-
Connector Type and Count4x SMA Male
Ratings
Description
The Teltonika PR1KCL28 Combo Quad Mobile/GNSS Roof SMA Antenna is a versatile and reliable antenna, perfect for integrating quad-band mobile connectivity with GNSS capabilities. This solution is crucial for ensuring seamless wireless communication and accurate location data in various dynamic environments.
Key features include:
- Mounting Method: Screw installation for stability.
- Protection Rating: IP65 for dust and water resistance.
- Material: Made from UV-resistant plastic ensuring durability.
- Dimensions: Compact housing measuring Ø 110.0 x 53.0 mm.
Additionally, its operating temperature ranges from -40°C to +85°C, making it suitable for extreme environments. The antenna's weight is approximately 525 ± 10 grams, while it includes 5x RG174 cables each 3000 mm long for ease of connectivity.
Technical specifications point to a well-engineered design:
- GNSS Frequency Range: 1575.42 ± 3 MHz
- LNA Gain: 28 ± 2 dB
- LTE Frequency Range: 698 – 960 MHz and 1710 – 2690 MHz
- Impedance: 50 Ω, standard for most systems.
This antenna is not only efficient in terms of performance but also compliant with RoHS regulations, ensuring it meets essential environmental safety standards.
Technical Specifications
-
Mounting MethodScrew
-
Radome Ingress Protection RatingIP65
-
Radome MaterialUV-resistant plastic
-
Housing DimensionsØ 110.0 x 53.0 mm
-
Cable5x RG174, 3000 mm each
-
Operating Temperature-40°C to +85°C
-
Weight525 ± 10 g
-
UV ResistanceYes
-
RoHS CompliantYes
-
GNSS Frequency Range1575.42 ± 3 MHz
-
GNSS PolarizationRHCP
-
LNA Gain28 ± 2 dB
-
LNA Noise Figure≤ 1.5 dB
-
V.S.W.R (GNSS)< 2.0
-
GNSS Impedance50 Ω
-
Supply Voltage3 – 5 VDC
-
Current Consumption (GNSS)< 15 mA
-
LTE Frequency Range698 – 960 MHz and 1710 – 2690 MHz
-
LTE PolarizationLinear
-
LTE Gain3.0 dBi
-
LTE V.S.W.R< 3.0
-
LTE Impedance50 Ω
-
Connector Type and Count4x SMA Male
