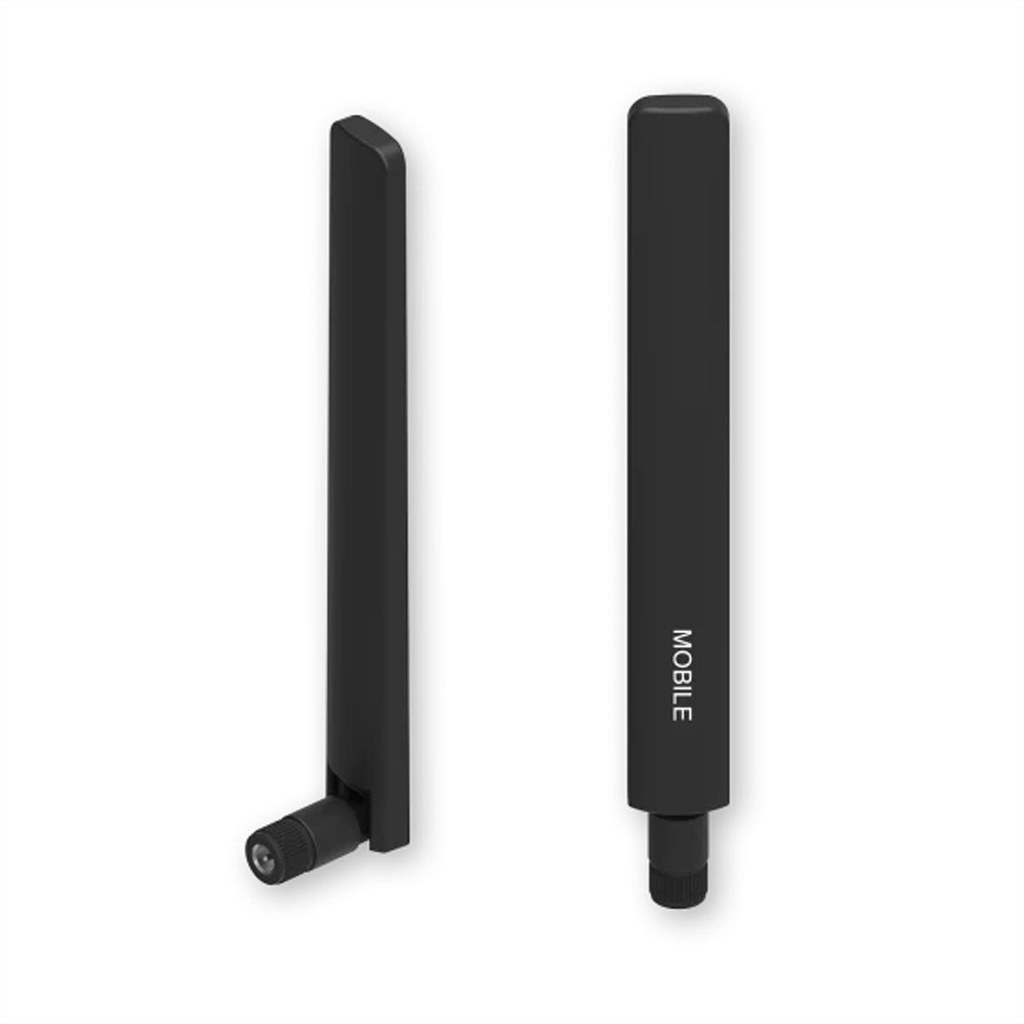

The Teltonika Networks 5G Mobile SMA Antenna PR1US540 is a versatile and high-performance antenna designed for 5G mobile applications. This product is key to enhancing connectivity in networking solutions and offers exceptional performance across various frequency bands.
This antenna operates within a frequency range of 617 to 960 MHz, 1410 to 1610 MHz, 1710 to 2690 MHz, and 3300 to 7125 MHz, making it suitable for diverse applications. The linear (vertical) polarization significantly improves signal reception in varying environmental conditions.
Key Features:
- Gain: Maximum gain of 4.5 dBi for robust signal strength.
- VSWR: Rated at 3.0 for good impedance matching and minimal signal loss.
- Impedance: 50 Ω standard for wireless communication systems.
- Connector Type: SMA Male for easy device integration.
- Operating Temperature: -40 °C to +85 °C for reliable performance.
- IP Rating: IP33 for dust and water splash protection.
- RoHS Compliance: Ensures adherence to environmental safety standards.
- Weight: 24 grams for lightweight handling.
- Dimensions: 196.5 mm (length) x 21.6 mm (width) x 13.0 mm (height).
In summary, the Teltonika Networks 5G Mobile SMA Antenna PR1US540 stands out due to its durability, wide operating temperature range, and high-performance specifications, making it an invaluable addition to any 5G networking solution.
-
Frequency Range617 ~ 960 MHz, 1410 ~ 1610 MHz, 1710 ~ 2690 MHz, 3300 ~ 7125 MHz
-
PolarizationLinear (Vertical)
-
Gain4.5 dBi
-
VSWR3.0
-
Impedance50 Ω
-
Connector TypeSMA Male
-
Operating Temperature-40 °C to +85 °C
-
IP RatingIP33
-
RoHS ComplianceYes
-
Weight24 grams
-
Dimensions196.5 mm x 21.6 mm x 13.0 mm
Ratings
Description
The Teltonika Networks 5G Mobile SMA Antenna PR1US540 is a versatile and high-performance antenna designed for 5G mobile applications. This product is key to enhancing connectivity in networking solutions and offers exceptional performance across various frequency bands.
This antenna operates within a frequency range of 617 to 960 MHz, 1410 to 1610 MHz, 1710 to 2690 MHz, and 3300 to 7125 MHz, making it suitable for diverse applications. The linear (vertical) polarization significantly improves signal reception in varying environmental conditions.
Key Features:
- Gain: Maximum gain of 4.5 dBi for robust signal strength.
- VSWR: Rated at 3.0 for good impedance matching and minimal signal loss.
- Impedance: 50 Ω standard for wireless communication systems.
- Connector Type: SMA Male for easy device integration.
- Operating Temperature: -40 °C to +85 °C for reliable performance.
- IP Rating: IP33 for dust and water splash protection.
- RoHS Compliance: Ensures adherence to environmental safety standards.
- Weight: 24 grams for lightweight handling.
- Dimensions: 196.5 mm (length) x 21.6 mm (width) x 13.0 mm (height).
In summary, the Teltonika Networks 5G Mobile SMA Antenna PR1US540 stands out due to its durability, wide operating temperature range, and high-performance specifications, making it an invaluable addition to any 5G networking solution.
Technical Specifications
-
Frequency Range617 ~ 960 MHz, 1410 ~ 1610 MHz, 1710 ~ 2690 MHz, 3300 ~ 7125 MHz
-
PolarizationLinear (Vertical)
-
Gain4.5 dBi
-
VSWR3.0
-
Impedance50 Ω
-
Connector TypeSMA Male
-
Operating Temperature-40 °C to +85 °C
-
IP RatingIP33
-
RoHS ComplianceYes
-
Weight24 grams
-
Dimensions196.5 mm x 21.6 mm x 13.0 mm
