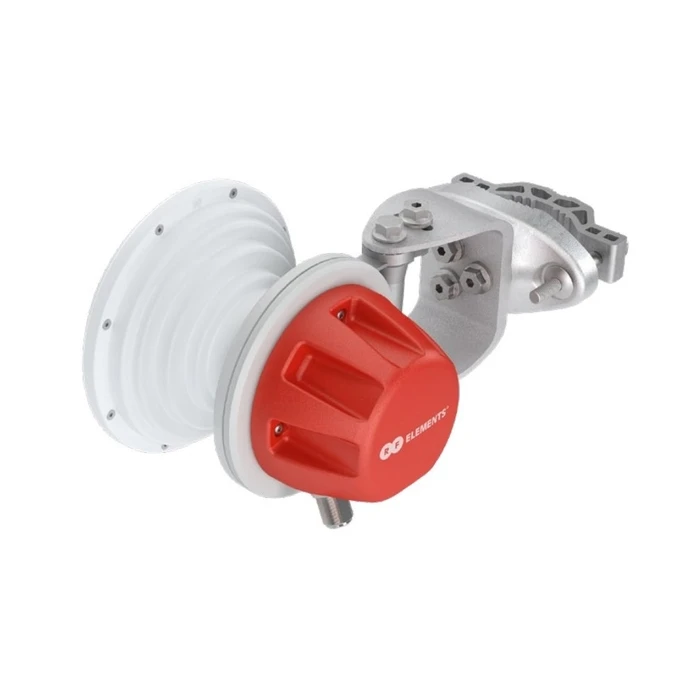

The WiFi RF Elements HG3-CC-S50 Tubular N-Type 14.3 is an advanced antenna specially designed for high-performance 5 GHz WiFi applications. Operating within the frequency range of 5180 MHz to 6400 MHz, this antenna promises excellent performance and reliability.
One of the standout features of the antenna is its consistent gain of 14.3 dBi. Coupled with dual linear polarization (both horizontal and vertical), it ensures a broad coverage area and enhanced signal quality. The symmetrical beam pattern and low side lobes make it particularly effective in high-density environments.
Constructed from durable, UV-resistant materials, including polycarbonate, aluminum, and stainless steel, this antenna is built to withstand harsh environmental conditions. It offers an IP55 rating for dust and water protection, ensuring longevity.
Key Features:
- Operating Temperature: -30°C to +55°C
- Wind Resistance: Survives up to 160 km/h
- Pole Mounting Diameter: 30-80 mm (recommended close to 80 mm)
- Weight: 1.9 kg
The antenna also integrates mechanical tilt adjustments of ±25°, allowing for precise alignment to fit specific coverage scenarios. Its effective projected area is 172 cm² from the front and 97 cm² from the side, facilitating strong wind resistance.
-
Frequency Range5180 - 6400 MHz
-
Gain14.3 dBi
-
Beamwidth Horizontal33°
-
Beamwidth Elevation33°
-
Extended Horizontal Beamwidth50°
-
Extended Elevation Beamwidth50°
-
Front-to-Back Ratio33 dB
-
Max VSWR (5180-5850 MHz)1.6
-
Max VSWR (5850-6400 MHz)1.9
-
Beam Efficiency92%
-
PolarizationDual Linear (Horizontal + Vertical)
-
Impedance50 Ohm
-
Antenna TypeHorn antenna
-
Radio Connection2x N Female Bulkhead Connector
-
Dimensions305 ? 239 ? 183 mm
-
Weight1.9 kg
-
Environmental ProtectionIP55
-
Pole Mounting Diameter30-80 mm
-
Operating Temperature-30°C to +55°C
-
Wind SurvivalUp to 160 km/h
-
Wind Load Front21 N
-
Wind Load Side12 N
-
Flame RatingUL 94 HB
