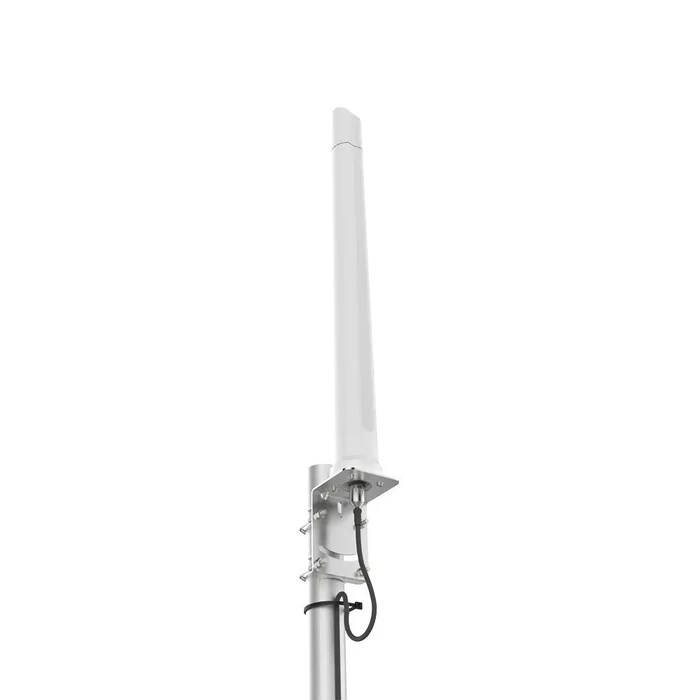

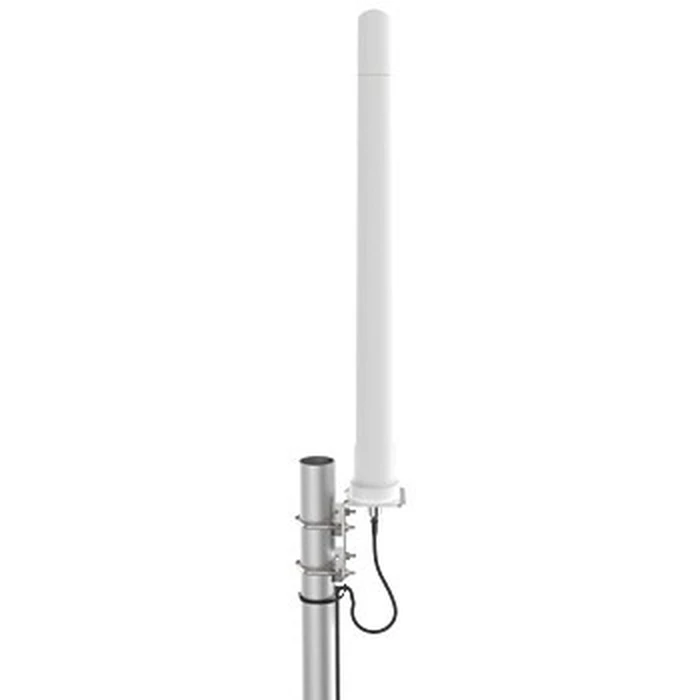

Κεραία Δικτύου Poynting LTE/GSM Mast/Wand A-OMNI-292-V2 White N-Type (F) LoRa Helium 7dbi omnidirectional N-Type-F
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Κεραία WiFi Mikrotik 915 / Omnidirectional 6.5dBi 900-928MHz + SMA + Bracket
Κεραία WiFi Extralink EXSEC19-60 5GHz MIMO 4x4, 60°, 19dBi, for Mimosa A5C
The A-OMNI-292-V2 is a versatile and high-gain omnidirectional antenna that supports various cellular technologies including 4G LTE, 3G, and 2G, along with 2.4 GHz Wi-Fi. It is particularly useful in machine-to-machine (M2M) applications, ensuring reliable connectivity in diverse environments.
This antenna operates across multiple frequency bands:
- 617 - 960 MHz
- 1427 - 1517 MHz
- 1710 - 2700 MHz
Key features include:
- Gain: 8 dBi at 1710 - 2700 MHz, 5 dBi at 617 - 960 MHz, and 5.8 dBi at 1427 - 1517 MHz.
- VSWR: Less than 2.5:1 over 90% of the bands.
- Input Impedance: 50 ohms for optimal signal transmission.
The A-OMNI-292-V2 also boasts robust environmental specifications:
- Operating Temperature: -40°C to +70°C.
- Protection Rating: IP65 for dust and water ingress.
- Wind Survival: Up to 190 km/h.
The antenna is made from durable materials, includes easy-installation connectors, and complies with important regulatory standards, making it suitable for a wide range of applications.
-
Frequency Bands617 - 960 MHz, 1427 - 1517 MHz, 1710 - 2700 MHz
-
Gain8 dBi (1710 - 2700 MHz), 5 dBi (617 - 960 MHz), 5.8 dBi (1427 - 1517 MHz)
-
VSWR<2.5:1
-
Input Impedance50 ohms
-
Temperature Range-40°C to +70°C
-
Water and Dust ProtectionIP65
-
Wind SurvivalUp to 190 km/h
-
ConnectorsN-Type (F)
Ratings
Description
The A-OMNI-292-V2 is a versatile and high-gain omnidirectional antenna that supports various cellular technologies including 4G LTE, 3G, and 2G, along with 2.4 GHz Wi-Fi. It is particularly useful in machine-to-machine (M2M) applications, ensuring reliable connectivity in diverse environments.
This antenna operates across multiple frequency bands:
- 617 - 960 MHz
- 1427 - 1517 MHz
- 1710 - 2700 MHz
Key features include:
- Gain: 8 dBi at 1710 - 2700 MHz, 5 dBi at 617 - 960 MHz, and 5.8 dBi at 1427 - 1517 MHz.
- VSWR: Less than 2.5:1 over 90% of the bands.
- Input Impedance: 50 ohms for optimal signal transmission.
The A-OMNI-292-V2 also boasts robust environmental specifications:
- Operating Temperature: -40°C to +70°C.
- Protection Rating: IP65 for dust and water ingress.
- Wind Survival: Up to 190 km/h.
The antenna is made from durable materials, includes easy-installation connectors, and complies with important regulatory standards, making it suitable for a wide range of applications.
Technical Specifications
-
Frequency Bands617 - 960 MHz, 1427 - 1517 MHz, 1710 - 2700 MHz
-
Gain8 dBi (1710 - 2700 MHz), 5 dBi (617 - 960 MHz), 5.8 dBi (1427 - 1517 MHz)
-
VSWR<2.5:1
-
Input Impedance50 ohms
-
Temperature Range-40°C to +70°C
-
Water and Dust ProtectionIP65
-
Wind SurvivalUp to 190 km/h
-
ConnectorsN-Type (F)
