The PUCK-12 is a high-performance, 2-in-1 omnidirectional antenna specifically designed for a wide range of applications, including IoT/M2M, Smart Metering, Smart Utilities, Transportation, Marine, and Agricultural markets.

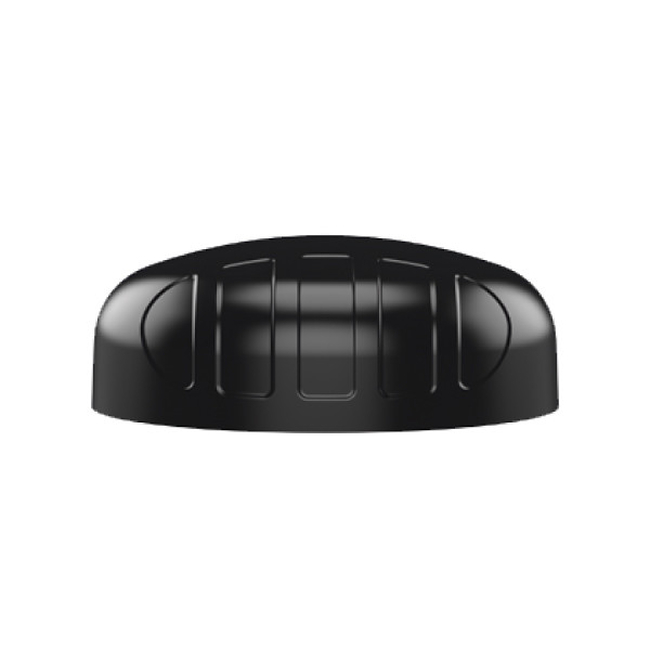

One of the remarkable features of this antenna is its compact and low-profile design. It is housed in a robust and vandal-resistant enclosure, making it suitable for deployment in harsh environments. Available in both black and white, the radome is constructed from PC+ABS material, which is both halogen-free and UV stable.

Key Technical Specifications:

• Frequency Bands: 2400 – 2500 MHz and 5000 – 7200 MHz
• Gain: Up to 7.5 dBi at 5000 – 7200 MHz, and 5 dBi at 2400 – 2500 MHz
• MIMO Technology: Supports 2x2 MIMO Wi-Fi, including Wi-Fi-6e/Wi-Fi-7/Bluetooth standards

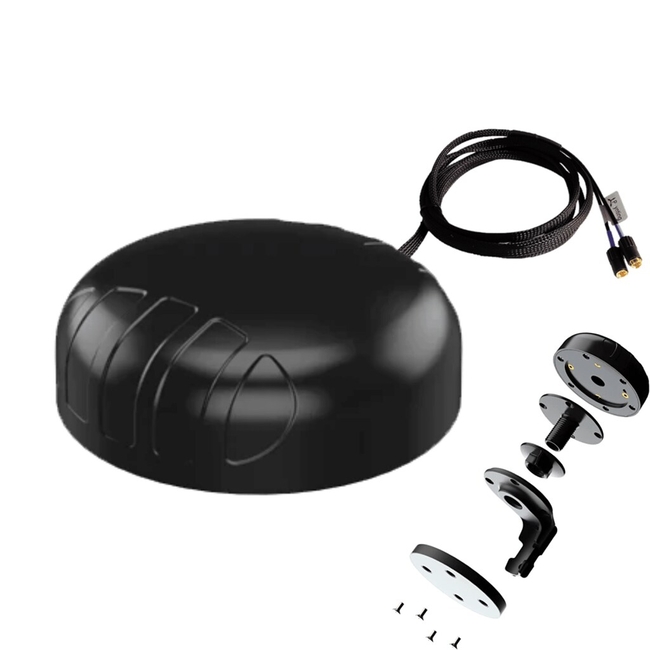

In terms of installation, the PUCK-12 offers versatile mounting options: spigot, magnetic, adhesive surface, wall, and pole mounts, which facilitate easy installation in various settings.

Durability and Compliance:

• IP69K rating for water and dust resistance
• Operating temperature range of -40°C to +80°C
• Compliance with RoHS and ISO standards

The PUCK-12 is an excellent choice for a variety of wireless communication needs.
