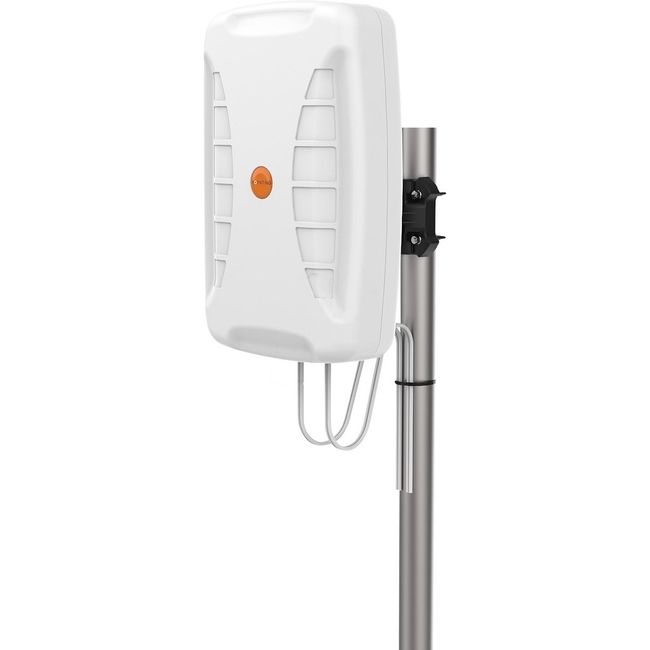

The A-XPOL-0024-V1-02 is a cutting-edge unidirectional antenna designed specifically for 5G and LTE applications. As part of Poynting's Cross Polarised (XPOL) antenna range, it utilizes advanced metamaterial technology to deliver exceptional performance.
Featuring a peak gain of 11 dBi across its wideband frequency range from 617 to 4200 MHz, this antenna ensures superior connectivity. The unique Artificial Magnetic Conductor (AMC) configuration enhances both bandwidth and gain.
Key Features:
- Operating Frequency Bands: 617 - 4200 MHz
- Gain:
- 8.5 dBi at 617 960 MHz
- 8.5 dBi at 1710 2700 MHz
- 11 dBi at 3400 4200 MHz
- VSWR: Less than 2:1
- Feed Power Handling: Up to 10 W
- Input Impedance: 50 Ohms
Its robust construction includes an IP65 rating, making it weatherproof and dust resistant. The antenna operates efficiently within a temperature range of -40°C to +80°C.
Dimensions: The compact design measures 290 mm x 444 mm x 110 mm, allowing easy installation on poles or walls.
With compliance to CE and RoHS standards, the A-XPOL-0024-V1-02 is perfect for various applications such as Fixed Wireless Access (FWA) and LTE/5G connectivity enhancements.
-
Frequency Bands617 - 4200 MHz
-
Max Gain at 617 - 960 MHz8.5 dBi
-
Max Gain at 1710 - 2700 MHz8.5 dBi
-
Max Gain at 3400 - 4200 MHz11 dBi
-
VSWR< 2:1
-
Feed Power Handling10 W
-
Input Impedance50 Ohms
-
Cell 1 PolarizationVertical & Horizontal
-
Cell 2 Polarization±45°
-
Coax Cable Loss at 900 MHz0.385 dB/m
-
Coax Cable Loss at 1800 MHz0.565 dB/m
-
Coax Cable Loss at 2400 MHz0.666 dB/m
-
Coax Cable Loss at 3000 MHz0.788 dB/m
-
DC ShortYes
-
Dimensions290 mm x 444 mm x 110 mm
-
Radome MaterialUV stable ASA
-
Mounting TypePole and Wall
Ratings
Description
The A-XPOL-0024-V1-02 is a cutting-edge unidirectional antenna designed specifically for 5G and LTE applications. As part of Poynting's Cross Polarised (XPOL) antenna range, it utilizes advanced metamaterial technology to deliver exceptional performance.
Featuring a peak gain of 11 dBi across its wideband frequency range from 617 to 4200 MHz, this antenna ensures superior connectivity. The unique Artificial Magnetic Conductor (AMC) configuration enhances both bandwidth and gain.
Key Features:
- Operating Frequency Bands: 617 - 4200 MHz
- Gain:
- 8.5 dBi at 617 960 MHz
- 8.5 dBi at 1710 2700 MHz
- 11 dBi at 3400 4200 MHz
- VSWR: Less than 2:1
- Feed Power Handling: Up to 10 W
- Input Impedance: 50 Ohms
Its robust construction includes an IP65 rating, making it weatherproof and dust resistant. The antenna operates efficiently within a temperature range of -40°C to +80°C.
Dimensions: The compact design measures 290 mm x 444 mm x 110 mm, allowing easy installation on poles or walls.
With compliance to CE and RoHS standards, the A-XPOL-0024-V1-02 is perfect for various applications such as Fixed Wireless Access (FWA) and LTE/5G connectivity enhancements.
Technical Specifications
-
Frequency Bands617 - 4200 MHz
-
Max Gain at 617 - 960 MHz8.5 dBi
-
Max Gain at 1710 - 2700 MHz8.5 dBi
-
Max Gain at 3400 - 4200 MHz11 dBi
-
VSWR< 2:1
-
Feed Power Handling10 W
-
Input Impedance50 Ohms
-
Cell 1 PolarizationVertical & Horizontal
-
Cell 2 Polarization±45°
-
Coax Cable Loss at 900 MHz0.385 dB/m
-
Coax Cable Loss at 1800 MHz0.565 dB/m
-
Coax Cable Loss at 2400 MHz0.666 dB/m
-
Coax Cable Loss at 3000 MHz0.788 dB/m
-
DC ShortYes
-
Dimensions290 mm x 444 mm x 110 mm
-
Radome MaterialUV stable ASA
-
Mounting TypePole and Wall
