Sku: 1173522456
Κεραία Δικτύου Poynting 5G/LTE Marine A-OMNI-0404-V1-01 White N-Type (F) 2 dbi omnidirectional OMNI-404 LTE/WiFi N-Type
130,42 €
Up to 36 instalments by credit card x 4,07€ / month
| Installment plan | Amount / month |
|---|---|
| 2 | 67,08 € |
| 4 | 33,72 € |
| 6 | 22,60 € |
| 8 | 17,04 € |
| 10 | 13,70 € |
| 12 | 11,48 € |
| 18 | 7,77 € |
| 24 | 5,92 € |
| 36 | 4,07 € |
Product Availability
για καλύτερη τιμή!
Need help?
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
Call us now!
Methods of Pickup/Shipment
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Share this:
Detailed Description

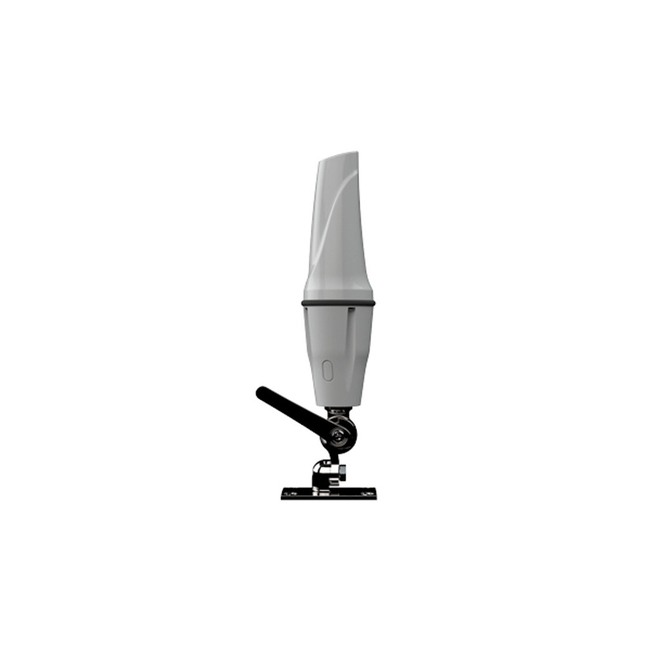

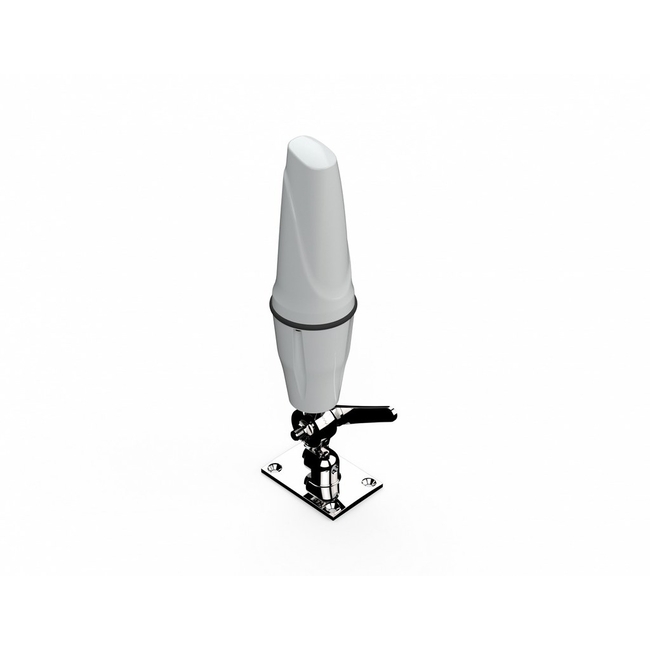

The Poynting Antennas OMNI-404 is a high-performance, omnidirectional marine antenna expertly designed for both 4G LTE and 5G networks.
Specially engineered for reliable internet connectivity in adverse marine environments, the OMNI-404 offers exceptional features:
- Omnidirectional Design: Offers consistent coverage in all directions.
- Weather Resistance: Built to withstand UV, saltwater exposure, and harsh conditions with an IP69K rating.
- Easy Installation: Includes standard 1-inch marine adapter bracket for simple mounting.
- Robust Construction: Made with UV-stable ASA material for enhanced durability.
With a frequency range from 617 to 3800 MHz, it supports critical LTE features and improves data transmission stability. The antenna also boasts a peak gain of 2 dBi across all bands and a VSWR of ? 2.5:1.
The OMNI-404 is a perfect choice for marine applications, ensuring versatile connectivity even in the most challenging environments.
Specifications
-
Frequency Bands
- 617-960 MHz, 1427-1517 MHz, 1710-2700 MHz, 3400-3800 MHz
-
Peak Gain
- 2 dBi
-
VSWR
- ? 2.5:1
-
Feed Power Handling
- 10 W
-
Input Impedance
- 50 Ohm
-
Polarization
- Linear Vertical
-
DC Short
- Path to Ground
-
Dimensions
- 252 mm x ?75 mm
-
Weight
- 0.35 Kg
-
Mounting Type
- Standard 1'' - 14 TPI marine mount
-
Operating Temperature
- -40°C to +80°C
-
Humidity
- Up to 98%
-
Wind Survival
- <190 km/h
-
Enclosure Flammability Rating
- UL 94-HB
-
Impact Resistance
- IK 10
-
Water Ingress Protection
- IP 69K
-
Salt Spray Resistance
- MIL-STD 810F/ASTM B117
