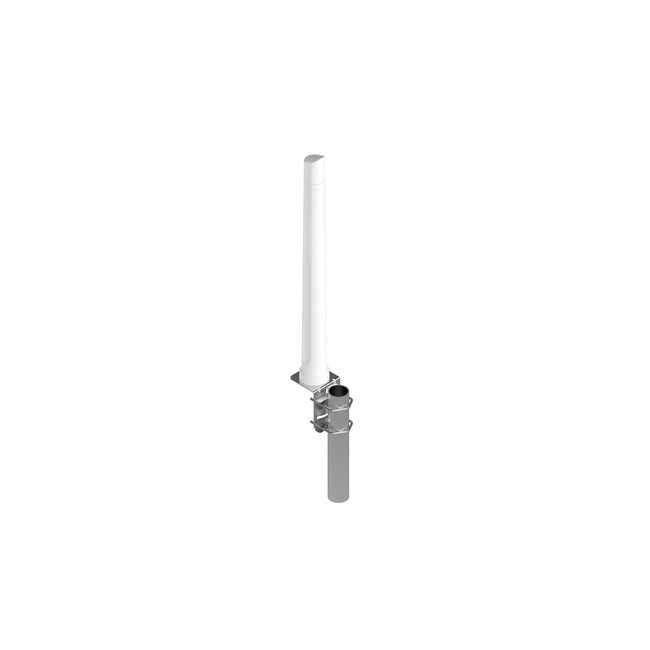

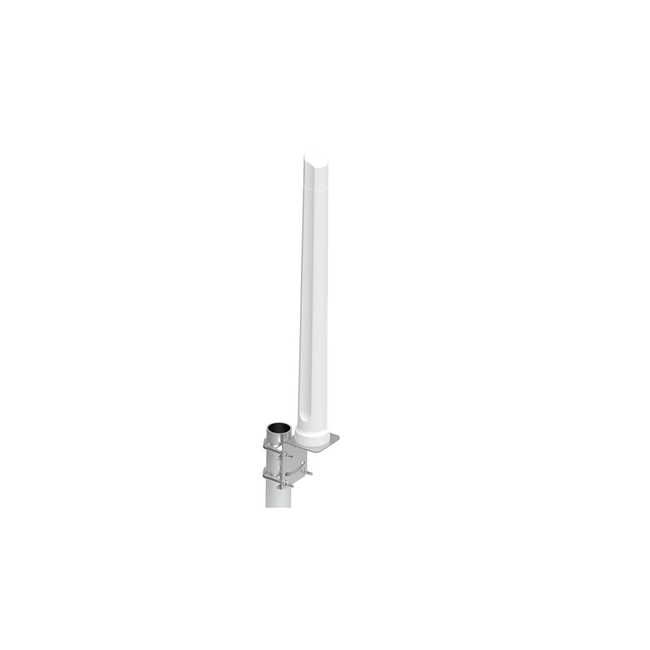

The Poynting OMNI-293-V1-01 is a high-performance omni-directional antenna specifically crafted for 5G and LTE applications. Engineered to deliver exceptional signal reception and transmission capabilities, it is adaptable to various environments, from urban to rural settings.
Key Features:
- Frequency Coverage: Operating over a broad spectrum from 617 MHz to 3800 MHz, this antenna ensures compatibility with contemporary 4G/LTE and future 5G frequencies, including band 71.
- Peak Gain: With a peak gain of 9 dBi, the OMNI-293 significantly enhances signal reliability, particularly excelling at the 17102700 MHz range.
- Omni-Directional Design: Its omni-directional radiation pattern guarantees all signals within its radius are captured without the need for specific orientation.
- Durability: Featuring an IP65 rated enclosure, it is resistant to dust and water, making it suitable for harsh environmental conditions.
- Mounting Flexibility: Includes sturdy wall and pole mount brackets for versatile installation options.
Overall, the Poynting OMNI-293-V1-01 is designed to facilitate superior connectivity across a multitude of uses, ensuring reliable performance in all scenarios.
-
Frequency Bands617960 MHz, 14271517 MHz, 17102700 MHz, 34003800 MHz
-
Gain (Max)6 dBi @ 617960 MHz, 6 dBi @ 14271517 MHz, 9 dBi @ 17102700 MHz, 8 dBi @ 34003800 MHz
-
VSWRLess than 2.5:1 over 90% of the bands
-
Feed Power Handling10 W
-
Input Impedance50 Ohm (nominal)
-
PolarizationLinear Vertical
-
Dimensions635 mm x ?71 mm
-
Packaged Dimensions700 mm x 95 mm x 90 mm
-
Radome MaterialABS (Halogen Free)
-
Radome ColorPantone - Cool Gray (1C) RAL - 7047
-
Mounting TypeWall and pole mount
-
Wind SurvivalLess than 160 km/h
-
Temperature Range (Operating)-40°C to +80°C
-
Environmental ConditionsOutdoor/Indoor
-
Water Ingress Protection RatioIP65
-
Salt SprayMIL-STD 810G/ASTM B117
-
Operating Relative HumidityUp to 98%
-
Storage Humidity5% to 95% - non-condensing
Ratings
Description
The Poynting OMNI-293-V1-01 is a high-performance omni-directional antenna specifically crafted for 5G and LTE applications. Engineered to deliver exceptional signal reception and transmission capabilities, it is adaptable to various environments, from urban to rural settings.
Key Features:
- Frequency Coverage: Operating over a broad spectrum from 617 MHz to 3800 MHz, this antenna ensures compatibility with contemporary 4G/LTE and future 5G frequencies, including band 71.
- Peak Gain: With a peak gain of 9 dBi, the OMNI-293 significantly enhances signal reliability, particularly excelling at the 17102700 MHz range.
- Omni-Directional Design: Its omni-directional radiation pattern guarantees all signals within its radius are captured without the need for specific orientation.
- Durability: Featuring an IP65 rated enclosure, it is resistant to dust and water, making it suitable for harsh environmental conditions.
- Mounting Flexibility: Includes sturdy wall and pole mount brackets for versatile installation options.
Overall, the Poynting OMNI-293-V1-01 is designed to facilitate superior connectivity across a multitude of uses, ensuring reliable performance in all scenarios.
Technical Specifications
-
Frequency Bands617960 MHz, 14271517 MHz, 17102700 MHz, 34003800 MHz
-
Gain (Max)6 dBi @ 617960 MHz, 6 dBi @ 14271517 MHz, 9 dBi @ 17102700 MHz, 8 dBi @ 34003800 MHz
-
VSWRLess than 2.5:1 over 90% of the bands
-
Feed Power Handling10 W
-
Input Impedance50 Ohm (nominal)
-
PolarizationLinear Vertical
-
Dimensions635 mm x ?71 mm
-
Packaged Dimensions700 mm x 95 mm x 90 mm
-
Radome MaterialABS (Halogen Free)
-
Radome ColorPantone - Cool Gray (1C) RAL - 7047
-
Mounting TypeWall and pole mount
-
Wind SurvivalLess than 160 km/h
-
Temperature Range (Operating)-40°C to +80°C
-
Environmental ConditionsOutdoor/Indoor
-
Water Ingress Protection RatioIP65
-
Salt SprayMIL-STD 810G/ASTM B117
-
Operating Relative HumidityUp to 98%
-
Storage Humidity5% to 95% - non-condensing
